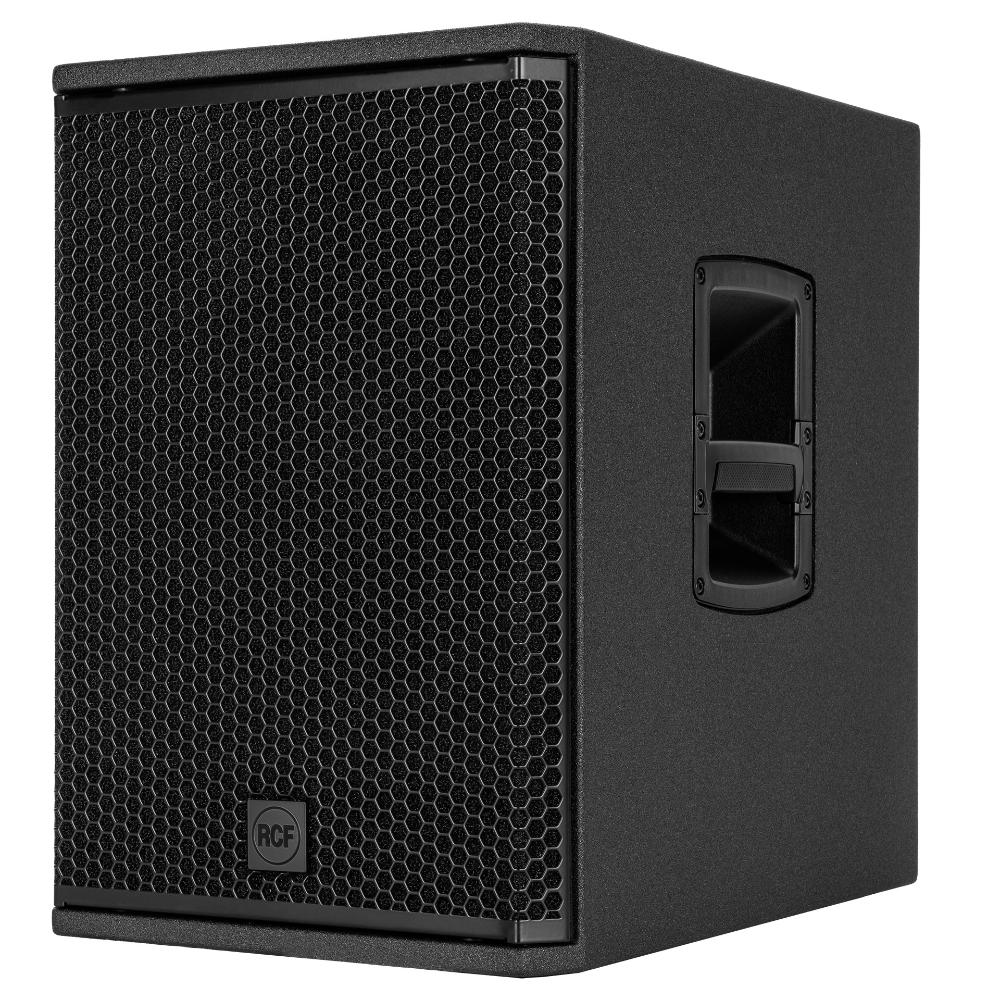

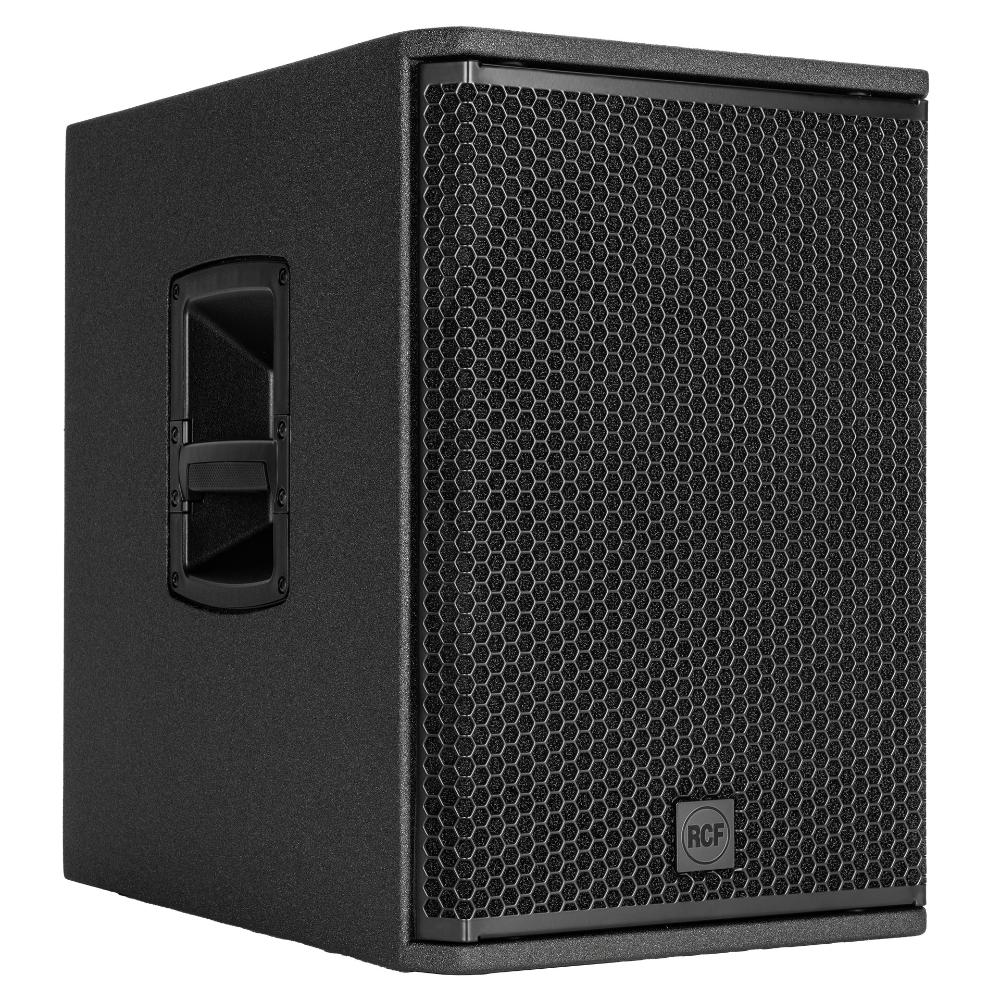

RCF SUB15-AX

Active 15" Powered Subwoofer

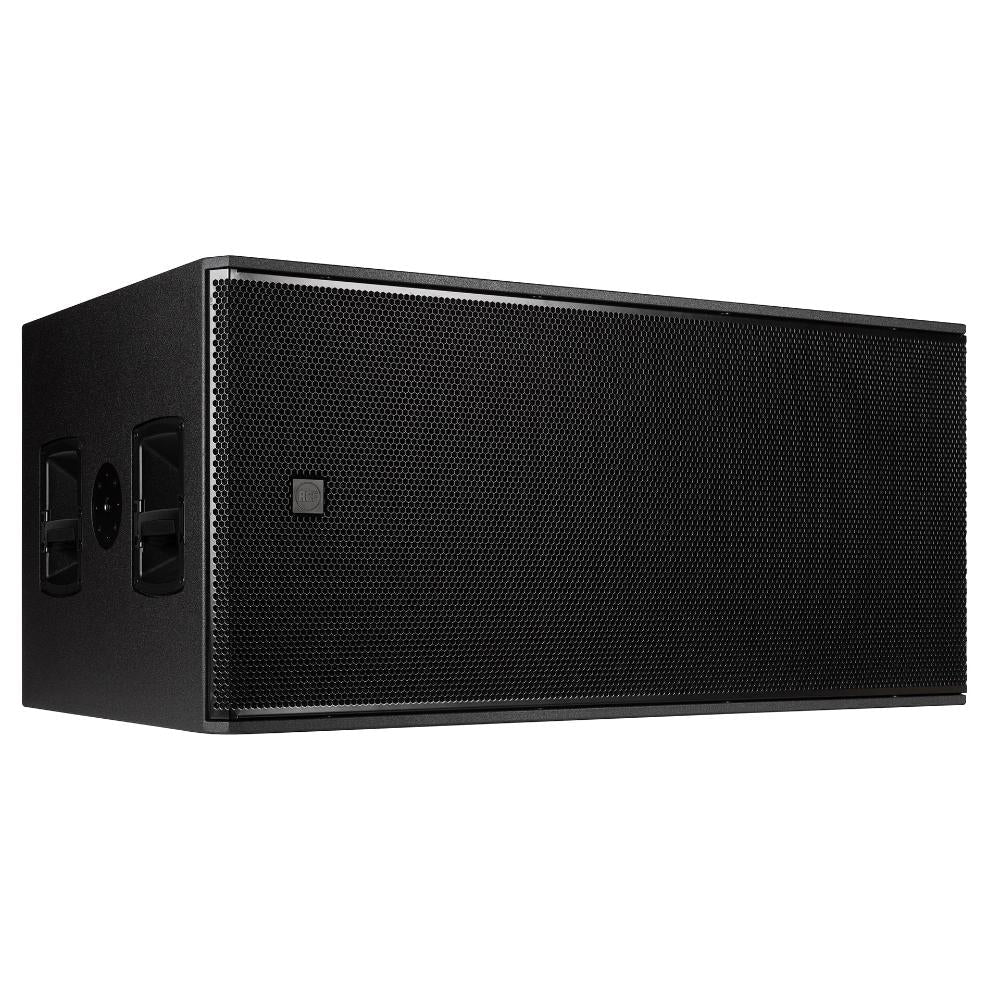

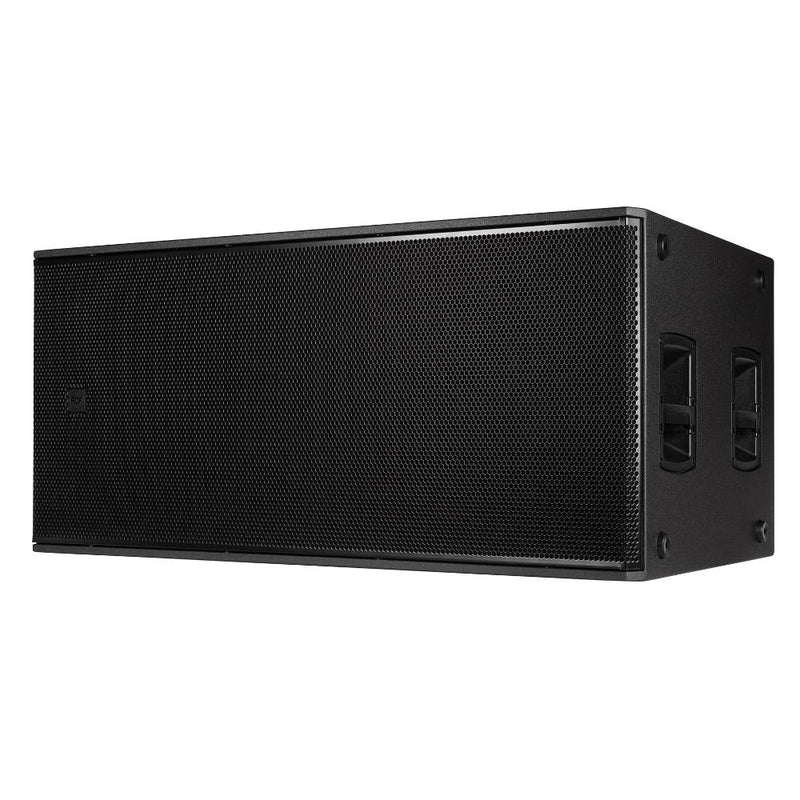

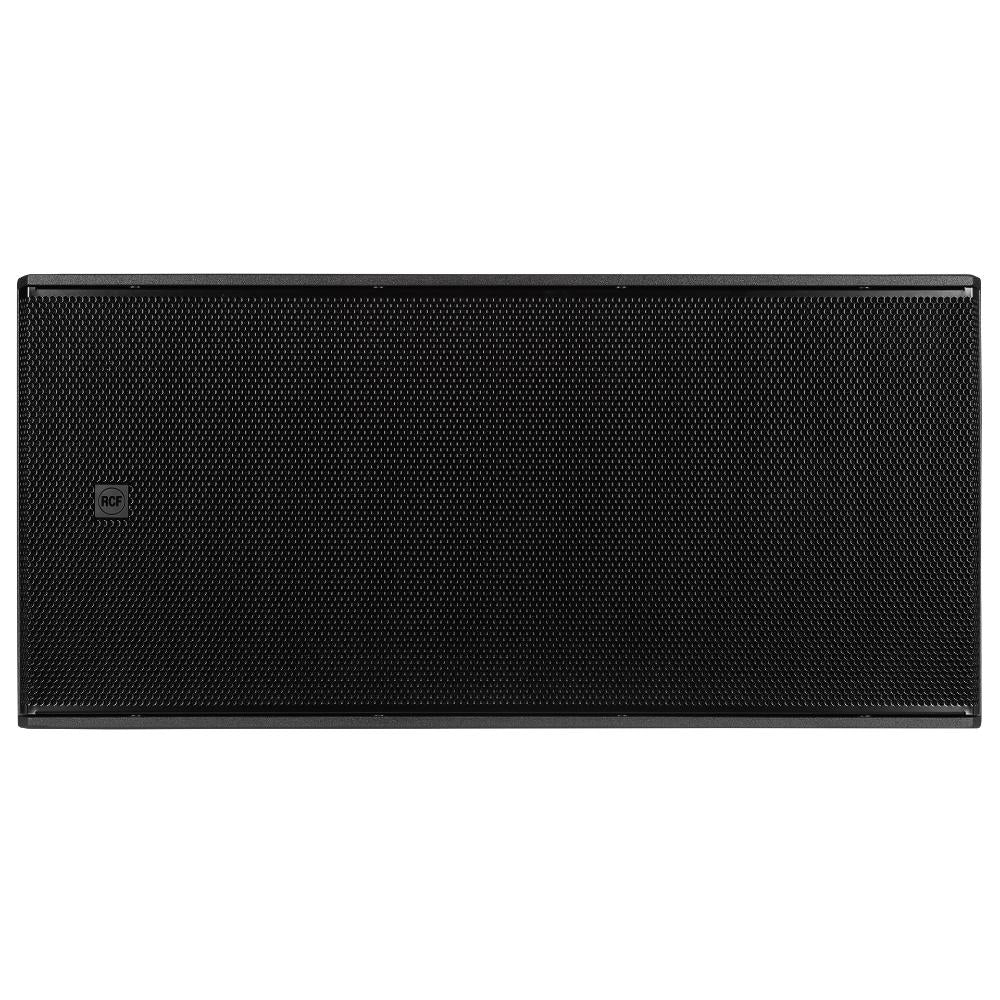

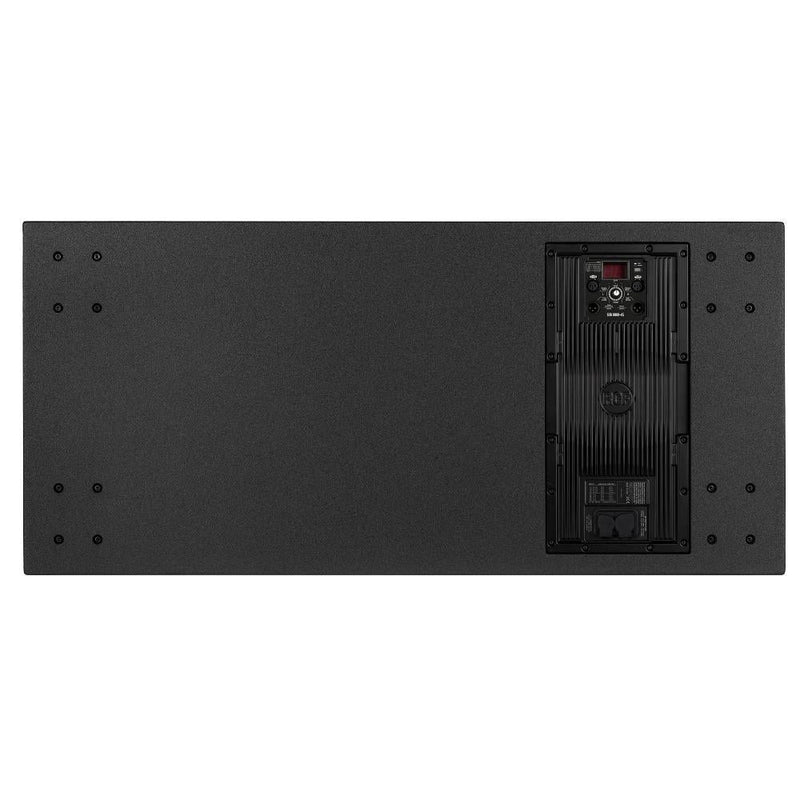

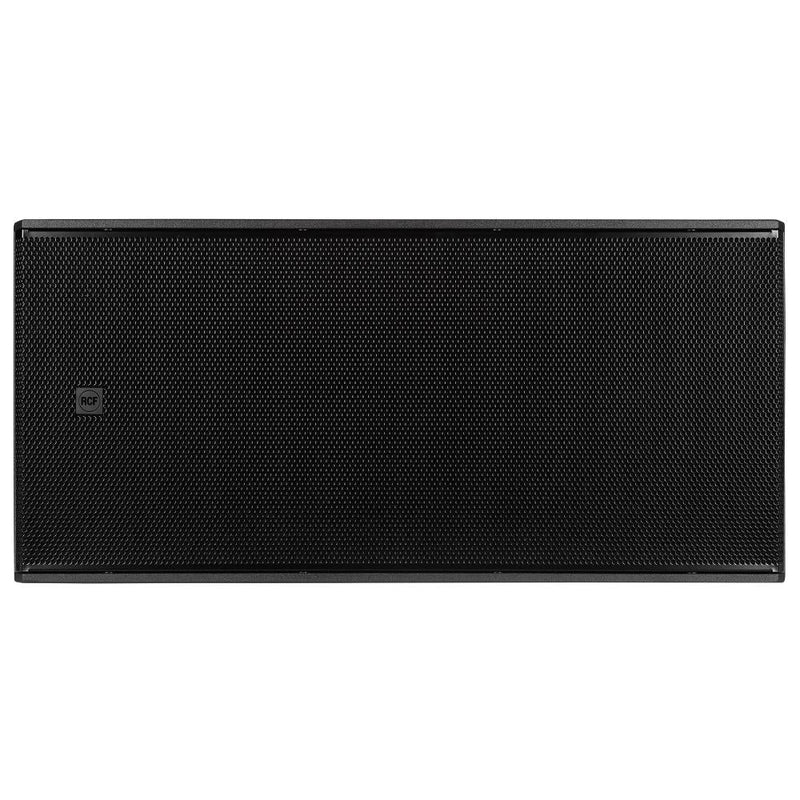

The SUB 8008-AS is a double 18” high power active subwoofer for live bands, DJs, Clubs, and Rental Companies. It employs a state-of-the-art transducer featuring a high-power ceramic magnetic circuit with a 4” voice coil. The power amplifier manages extreme currents up to 4400W delivering sound pressure levels up to 137 dB with exceptional headroom. The ultra-fast attack with accurate power handling is managed with high efficiency, producing a very low heat loss for silent and fan-less cooling. Built specifically for demanding live sound applications with deep, powerful bass response. Rear panel controls include 12 presets, crossover frequency, polarity switch, Deep/Punch selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is easy to carry and secure for installation. With its rugged construction, sound quality, and high power, SUB 8008-AS is perfect in mid to big-sized venues and touring applications.

Features:

• Up to 137 dB Sound Pressure Level
• 4400W Class-D Bi-Amplification
• 30-120 Hz linear frequency response
• 2 x 18" High Power Woofers
• IP Rated Powercon TRUE1 TOP IN/OUT
• 8 Crossover Presets and 4 Cardioid Presets

Specifications:
ACOUSTICAL SPECIFICATIONS

• Frequency Response: 30 Hz ÷ 120 Hz
• Max SPL @ 1m: 137 dB

TRANSDUCERS

• Woofer: 2 x 18'', 4.0'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies: Selectable
• Protections: Thermal, Excurs., RMS
• Limiter: Soft Limiter
• Controls: Xover, Phase switch, Deep/Punch, Output Delay Setting

POWER SECTION

• Total Power: 4400 W Peak
• Low frequencies: 4400 W Peak
• Cooling: Convection/Forced
• Connections: Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

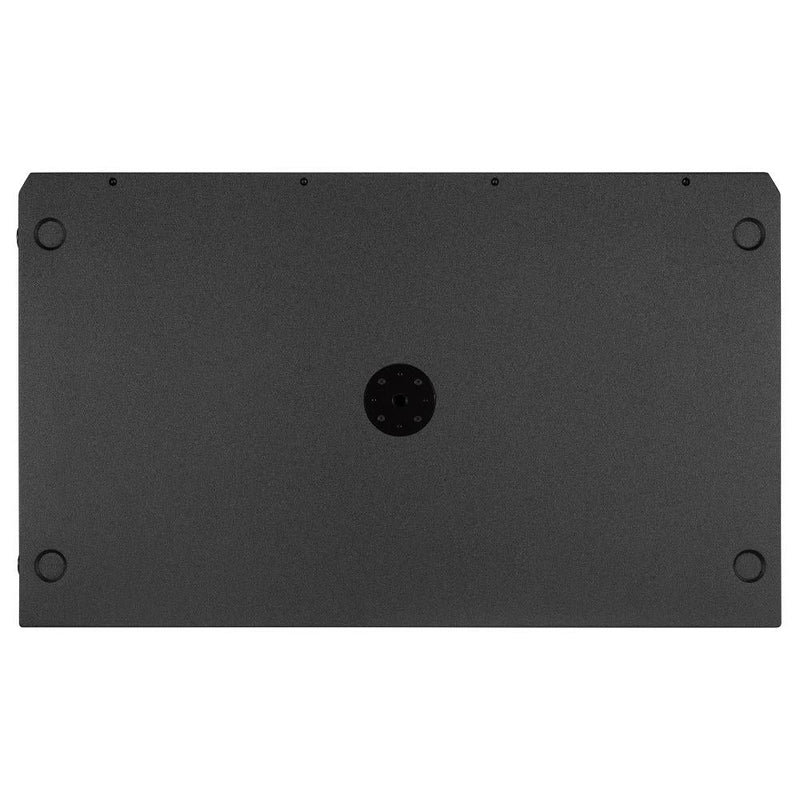

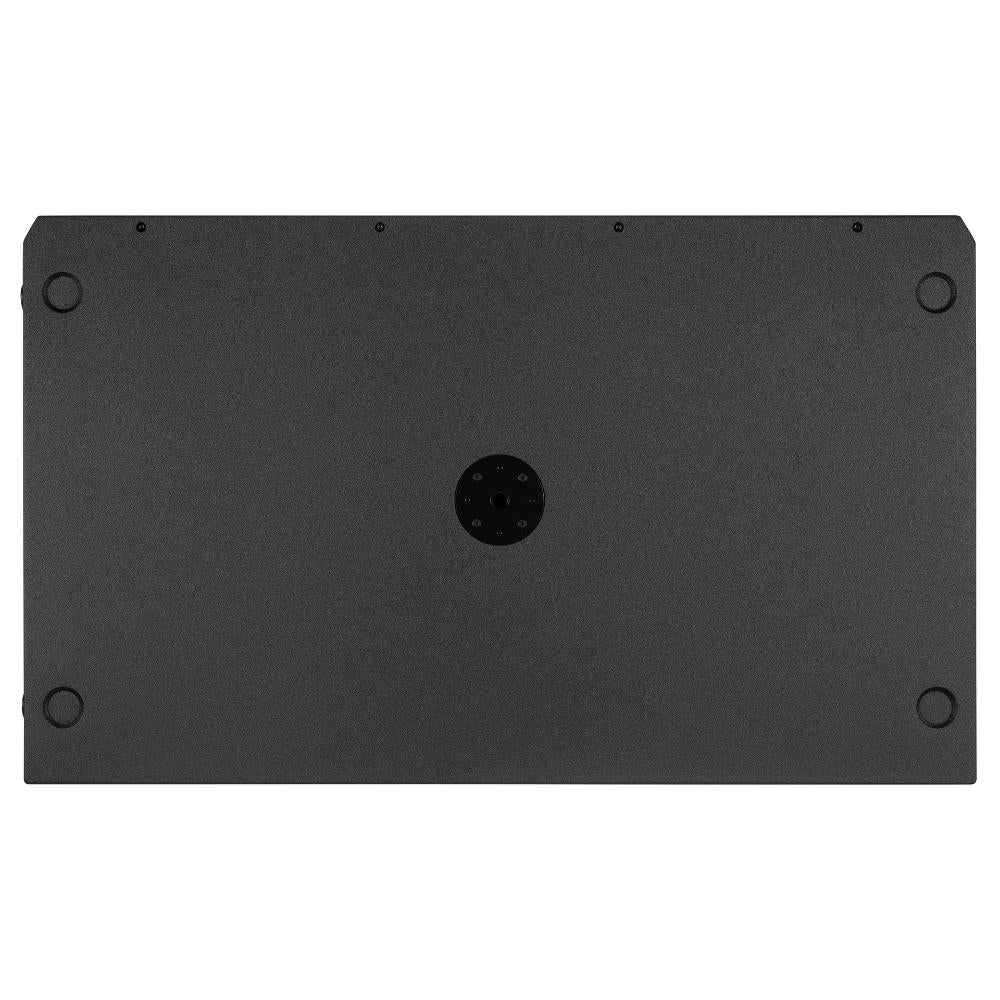

• Hardware: 2 x M20

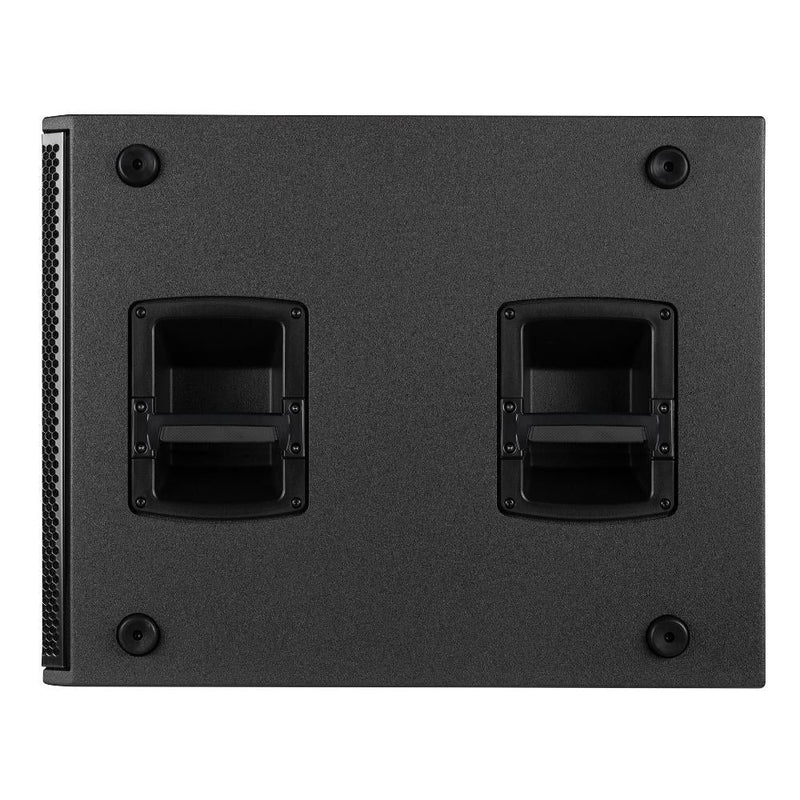

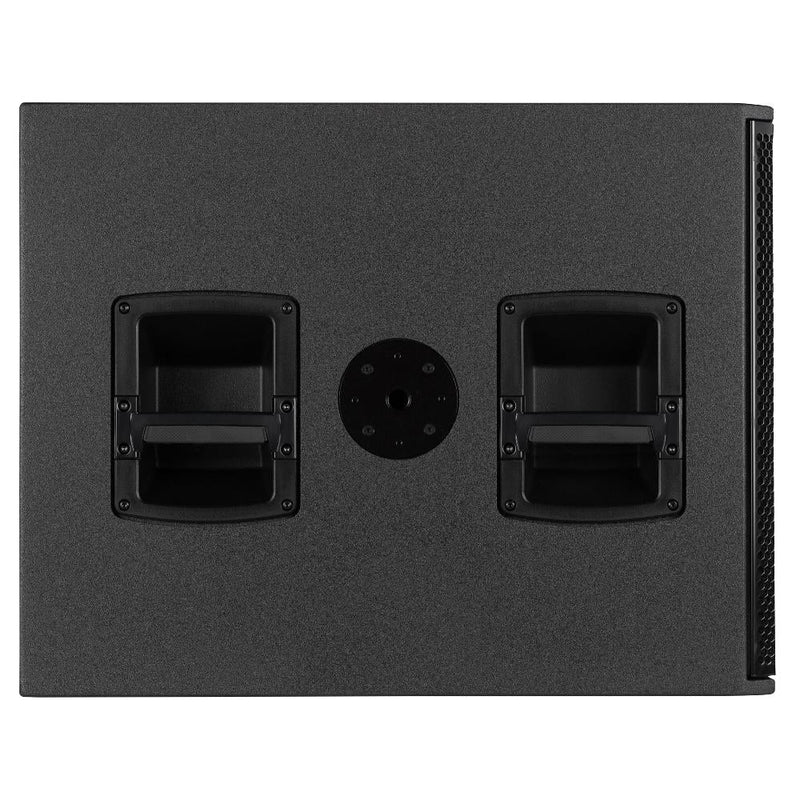

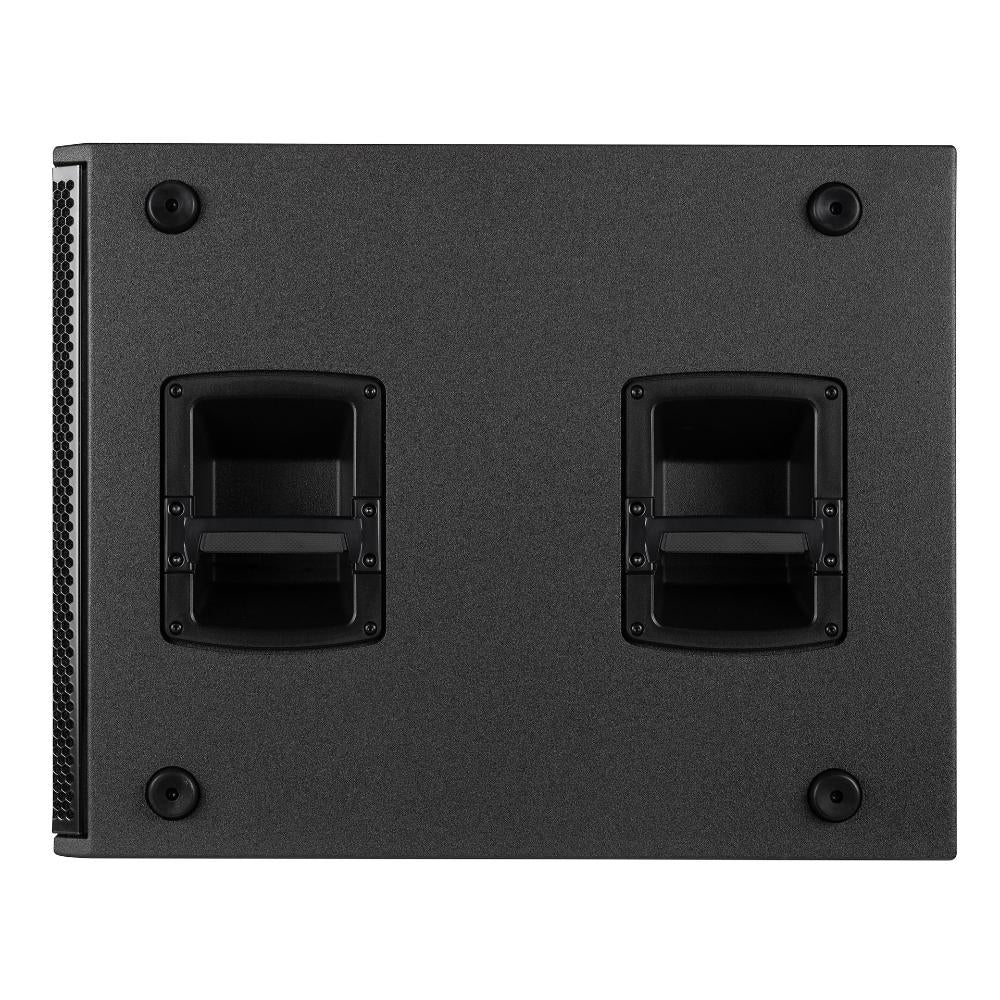

• Handles: 2 x side
• Color: Black

SIZE

• Height: 550 mm / 21.65 inches
• Width: 1180 mm / 46.46 inches
• Depth: 700 mm / 27.56 inches
• Weight: 80 kg / 176.37 lbs
