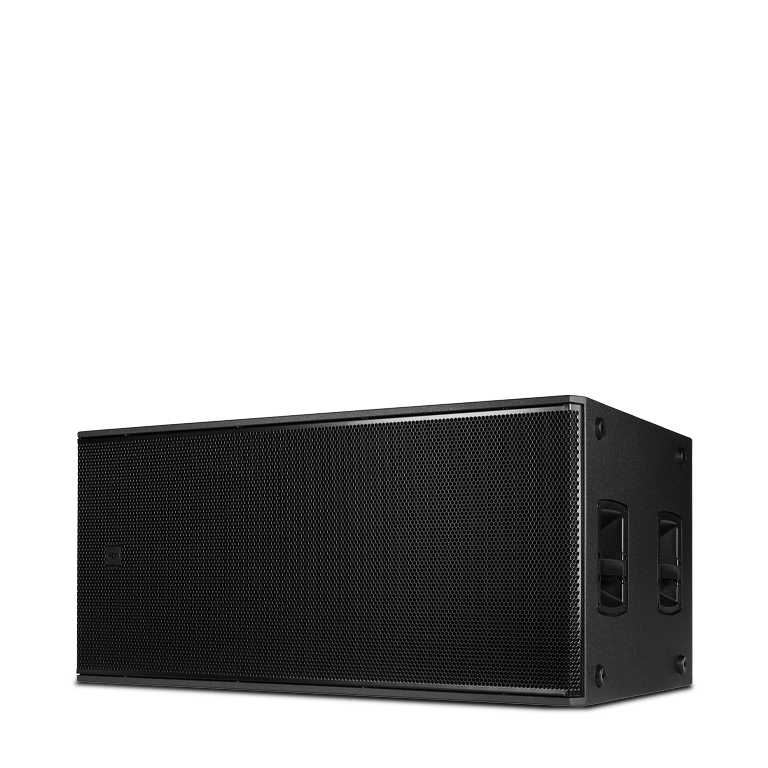

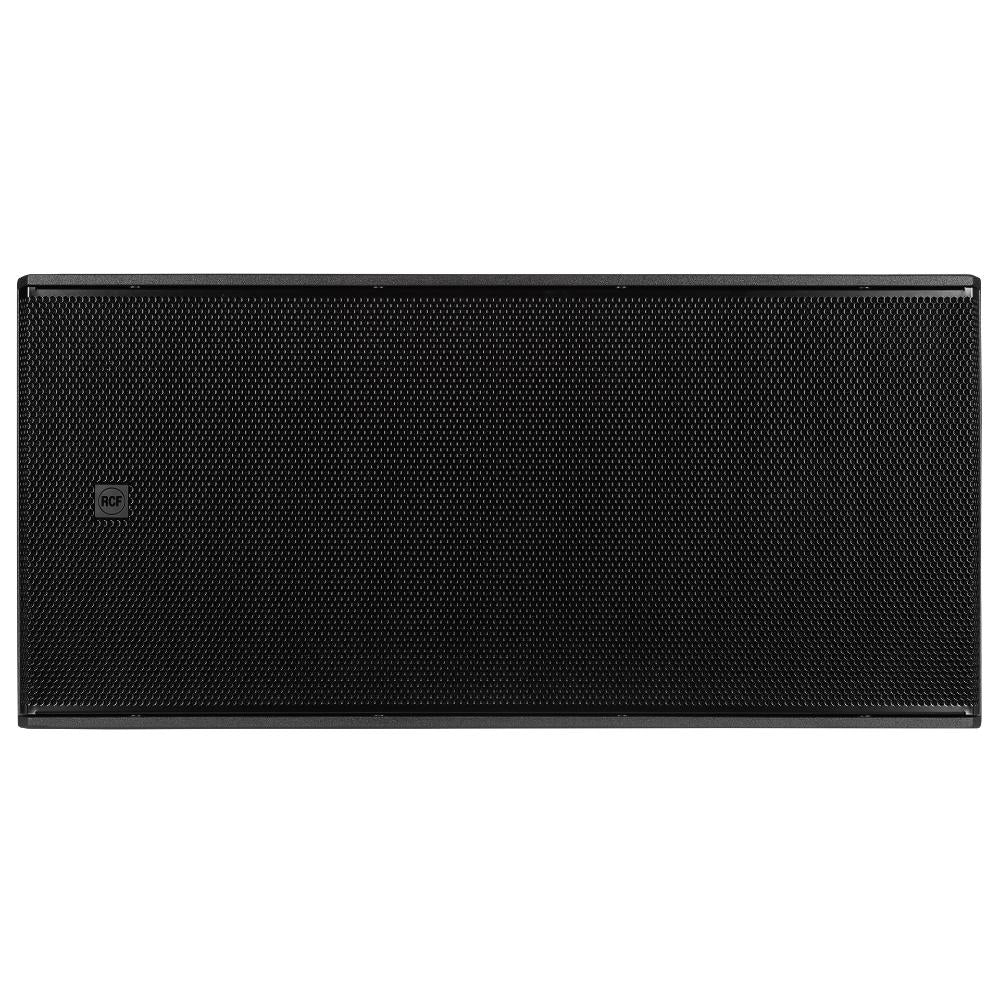

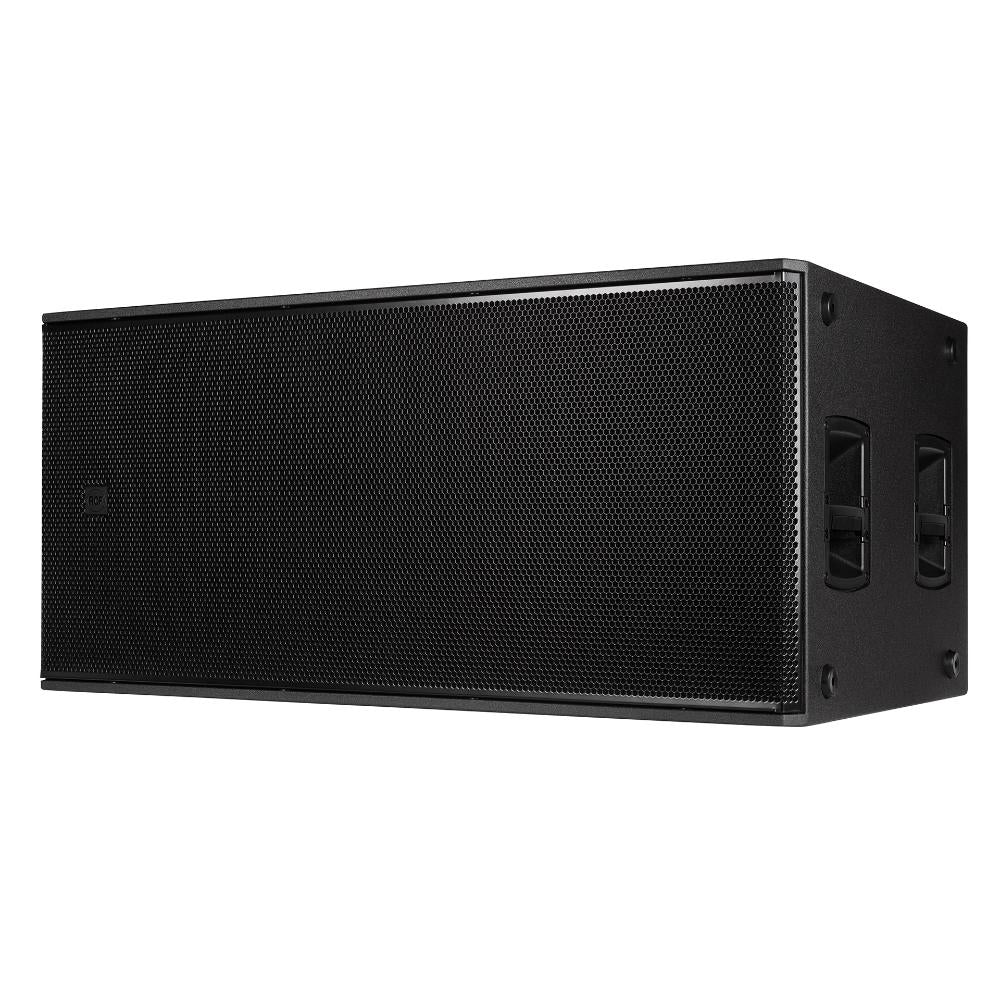

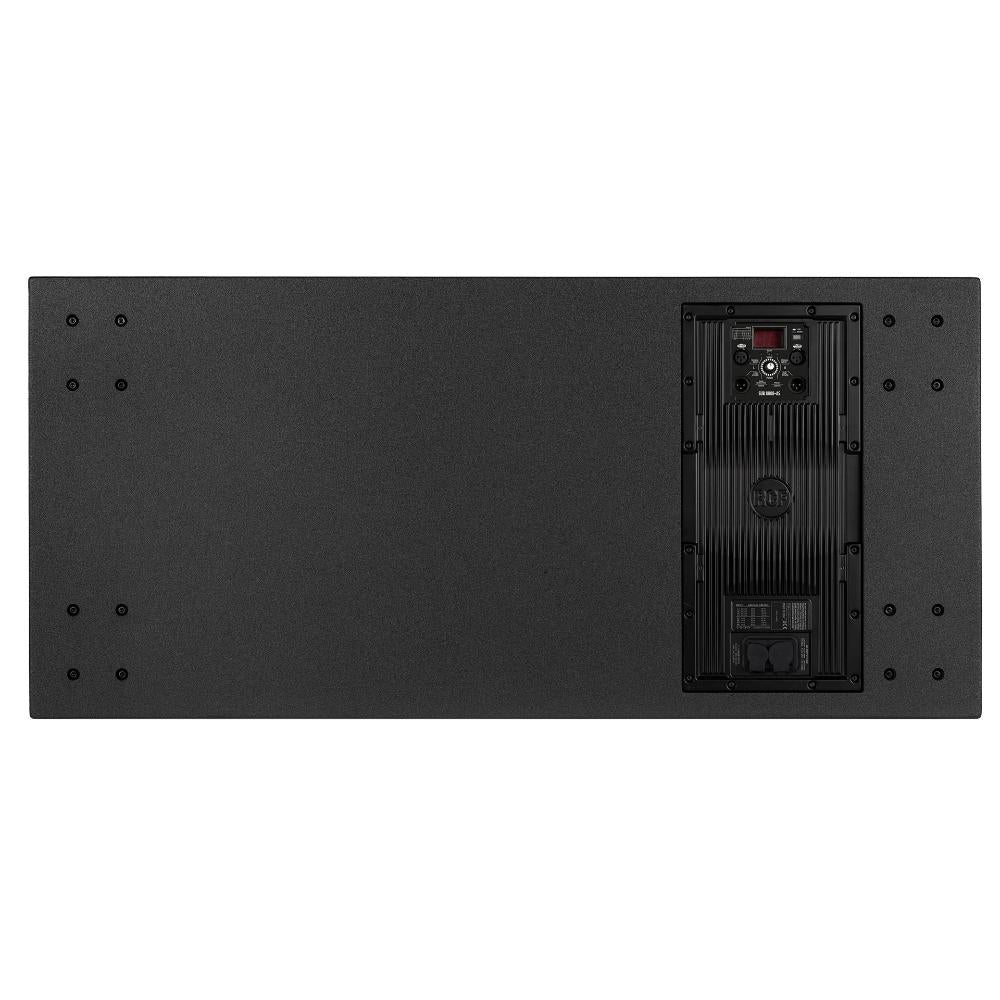

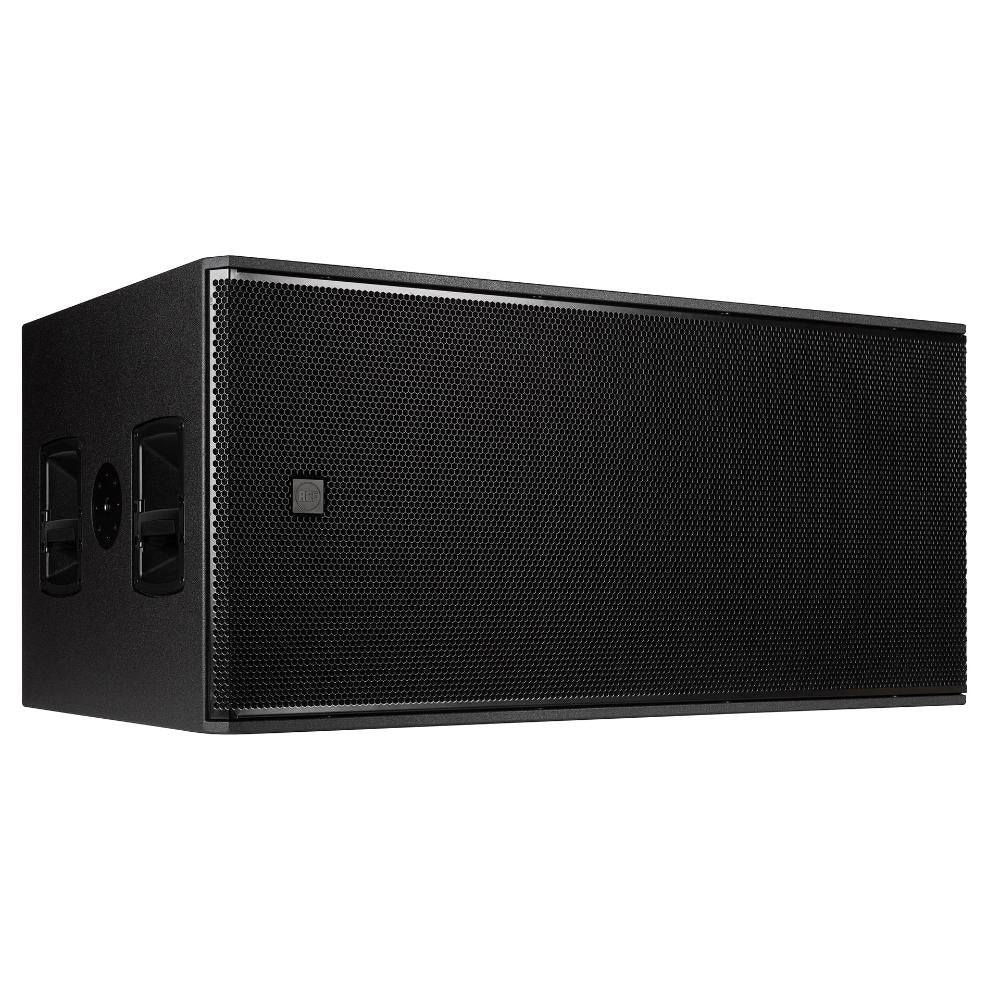

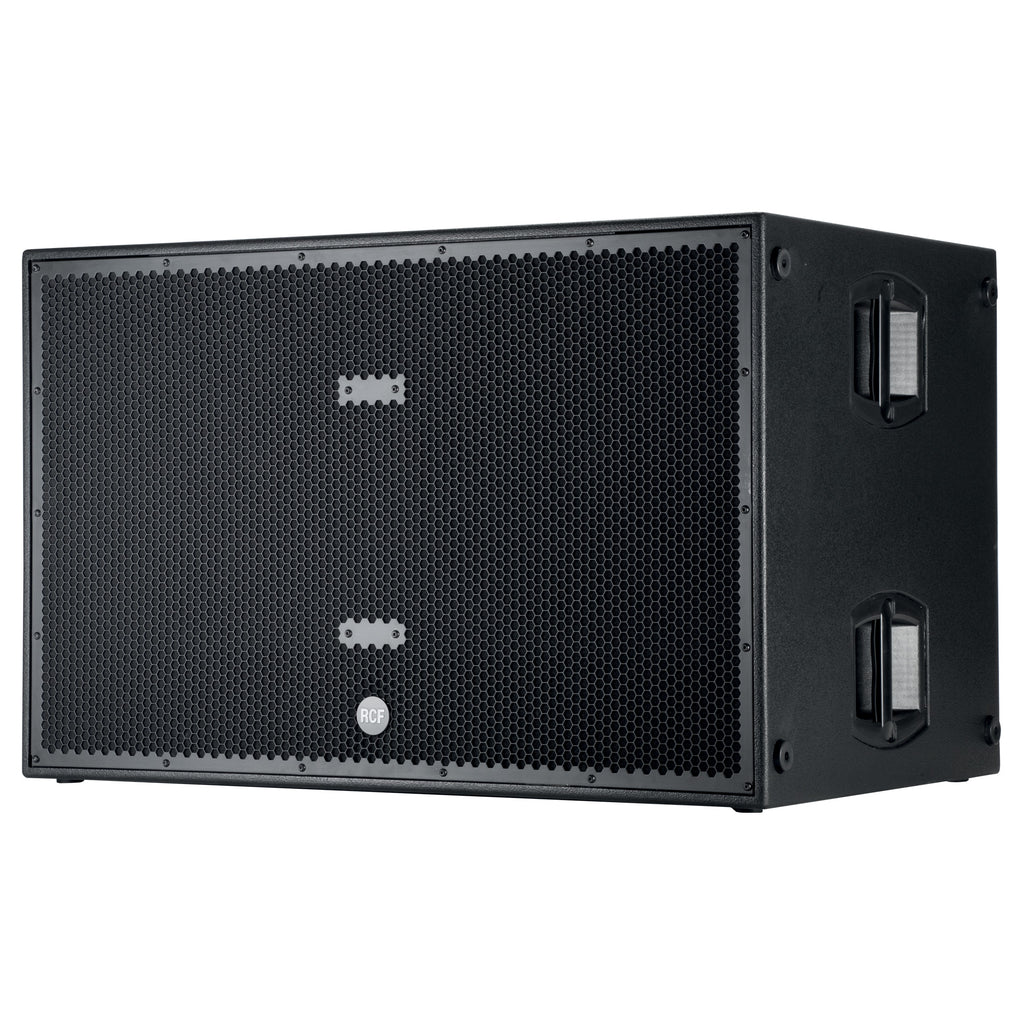

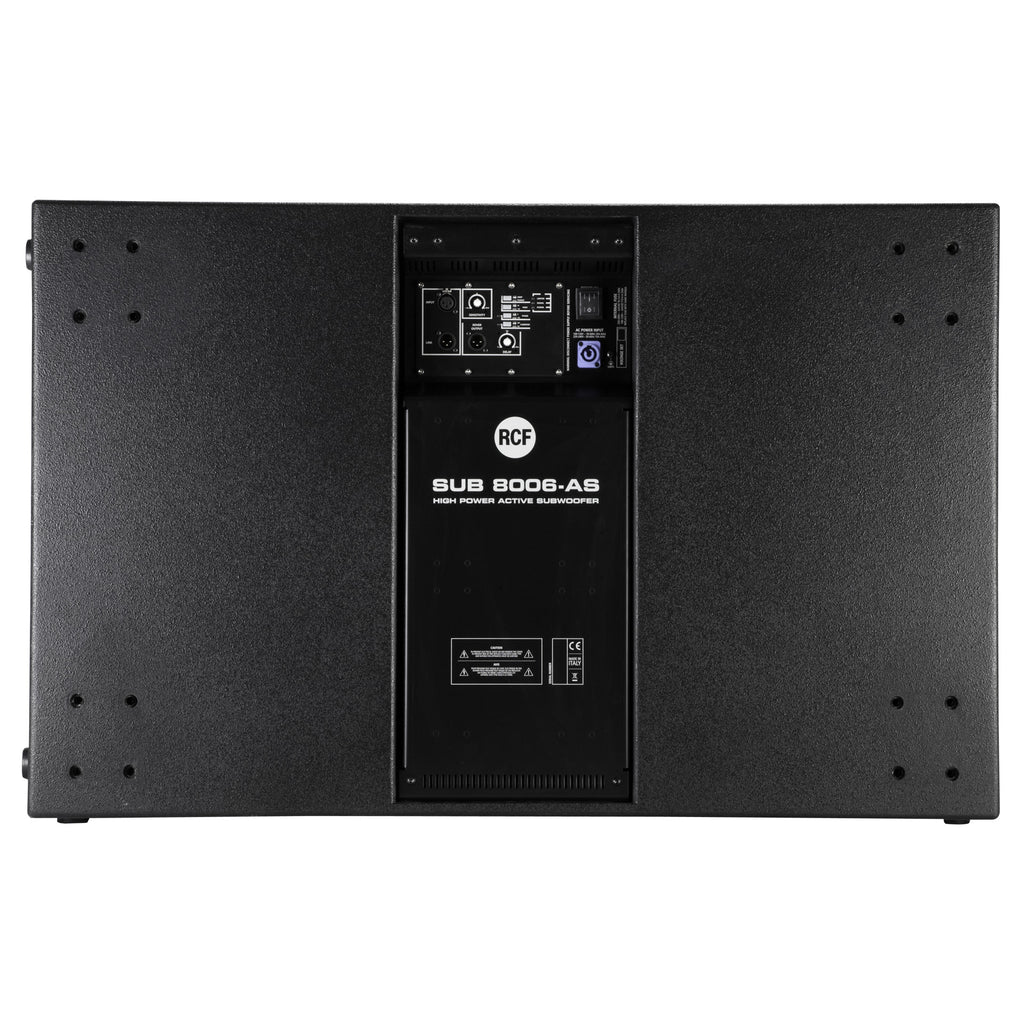

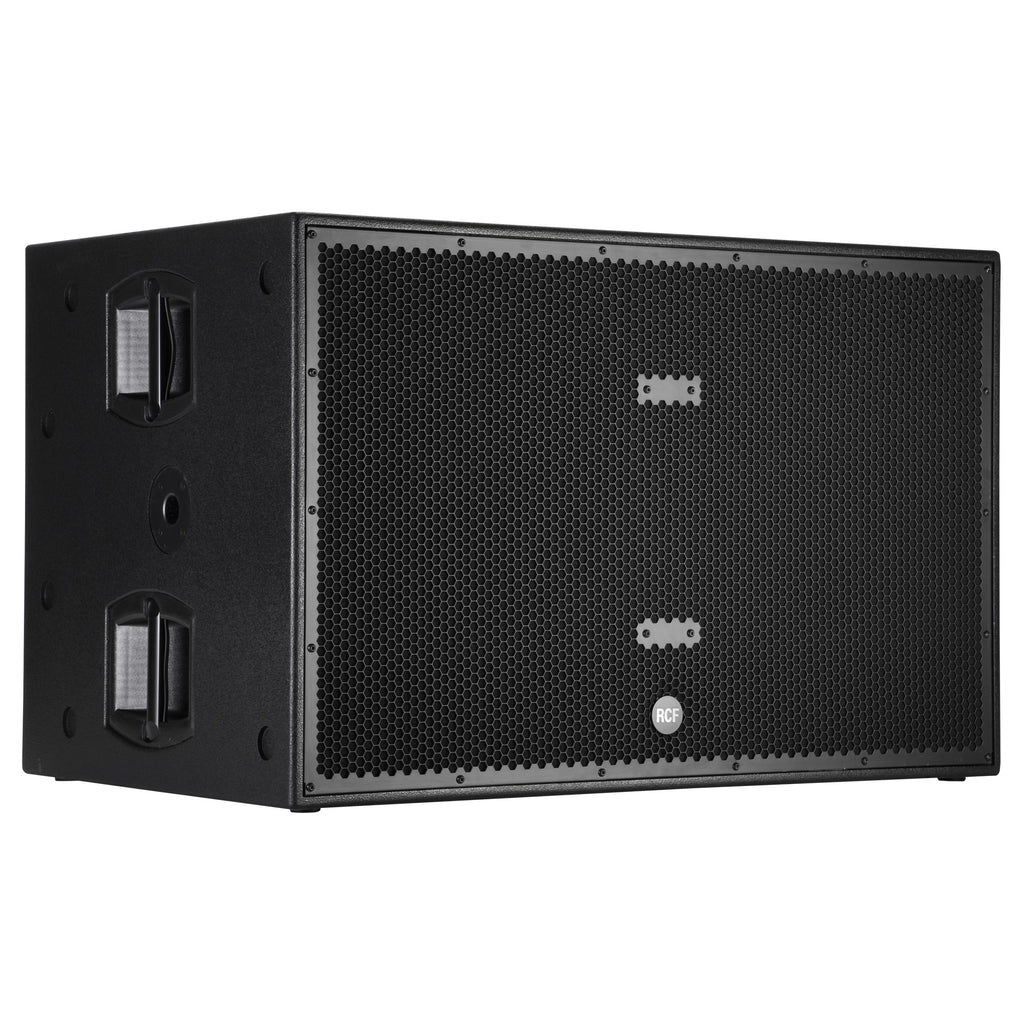

TOURING | SUB 8006-AS | ACTIVE HIGH POWER SUBWOOFER | Technical Specifications | 141 dB max SPL | 5000 Watt Peak power - 2500 Watt RMS
Technical Specifications
| Acoustical specifications |
| Frequency Response |
30 Hz - 120 Hz |
| Max SPL @ 1m |
141 dB |
| Transducers |
| Woofer |
2 x 18'', 4.0'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR |
| Output connectors |
Input sensitivity |
| -2 dBu/+4 dBu |
| Processor section |
| Hi-Pass Frequencies |
100 Hz |
| Low-Pass Frequencies |
80 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Fast Limiter |

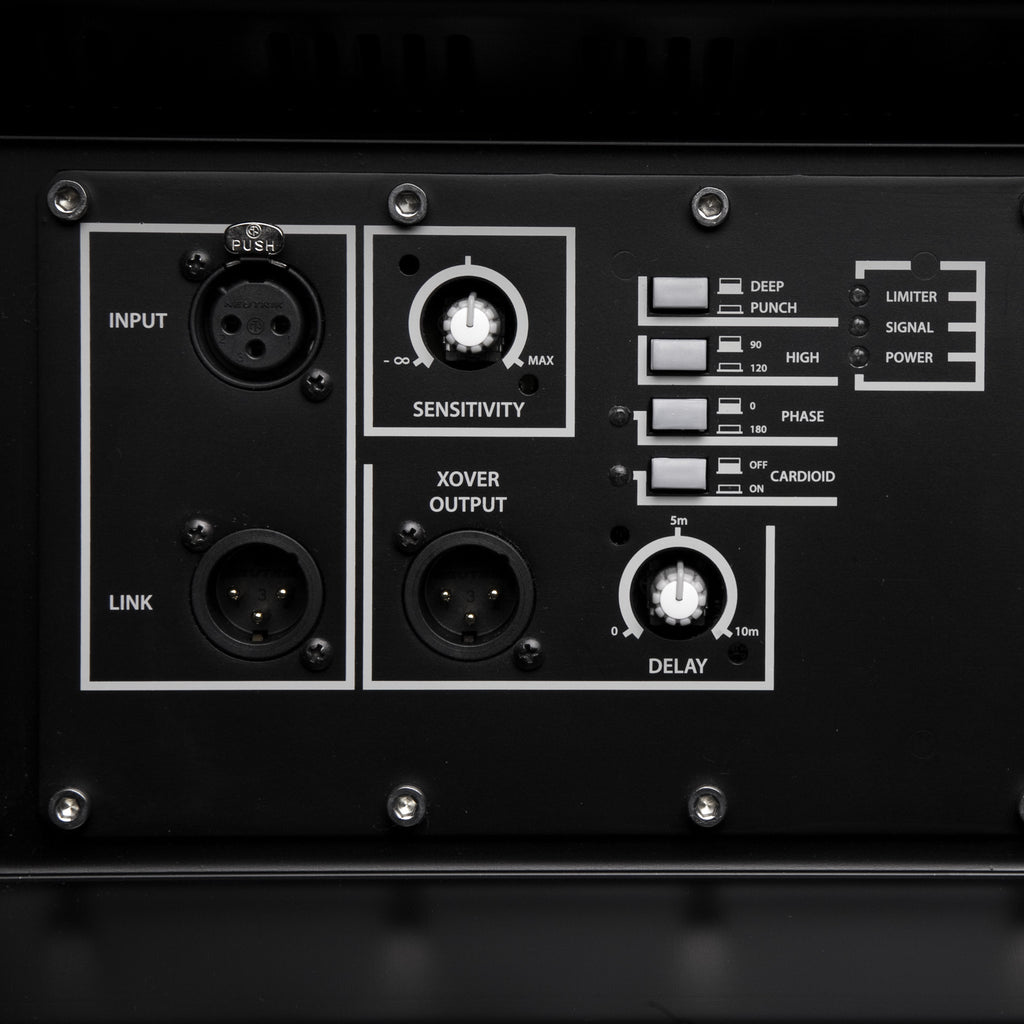

| Controls |
| Xover, Phase switch, Depp/Punch, Output Delay Settings, Cardioi |
| Power section |
| Total Power |
5000 W Peak, 2500 W RMS |
| Low frequencies |
Cooling |
| Convection |

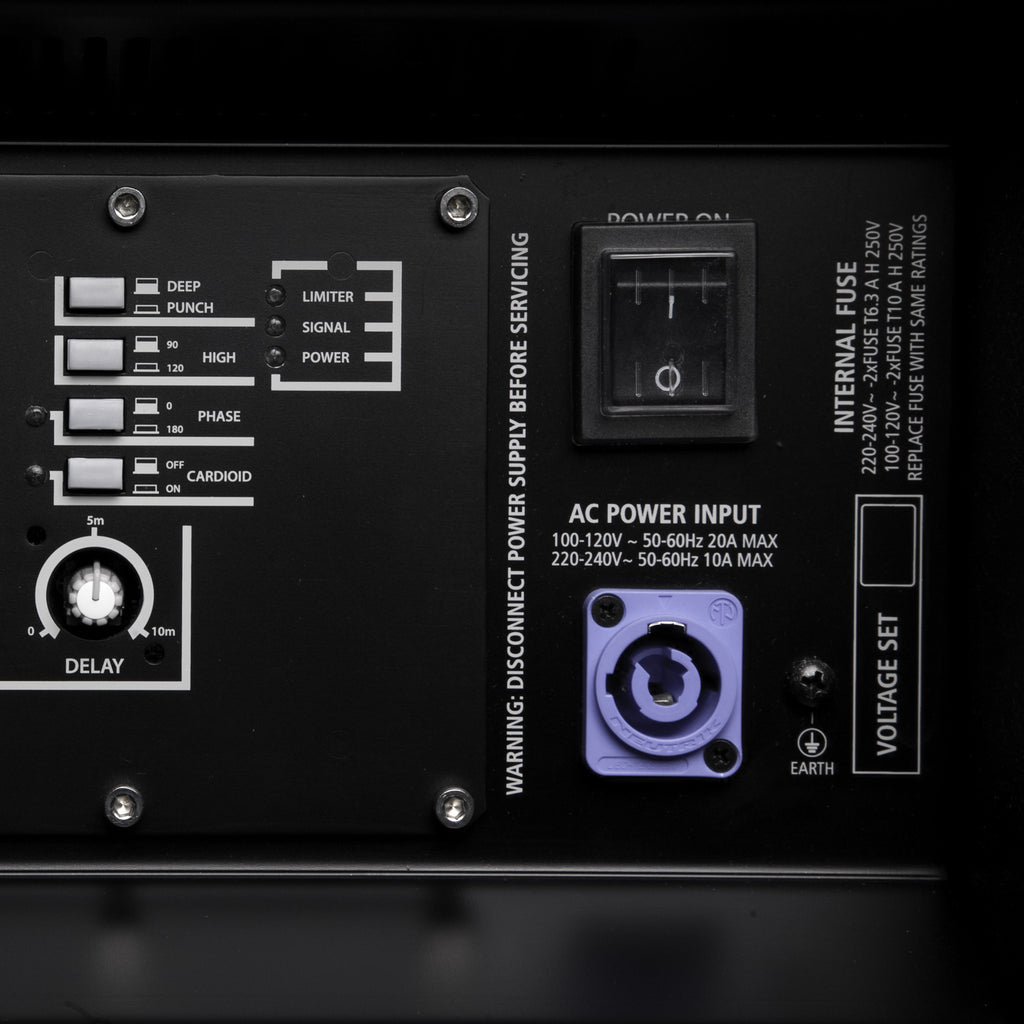

| Connections |
| Powercon IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |
Mounting points |

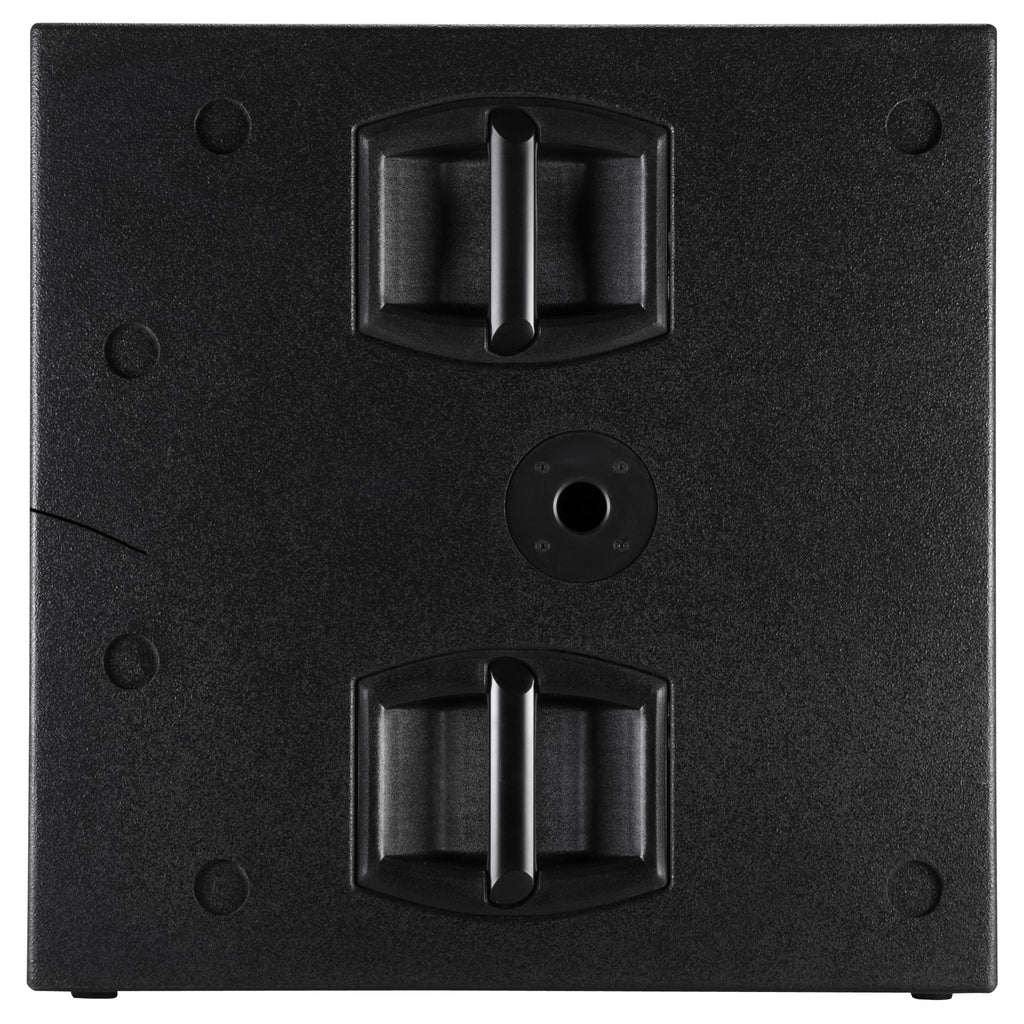

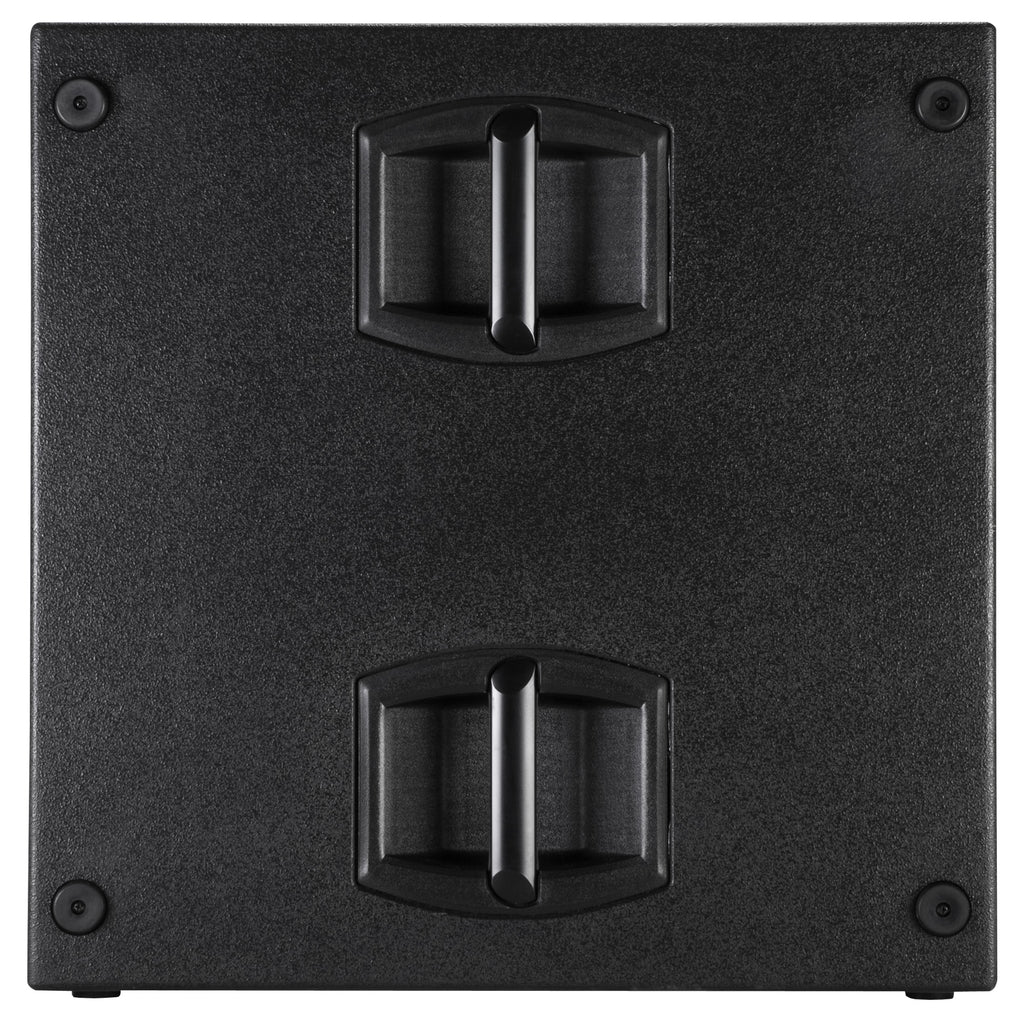

| Handles |
4 side |

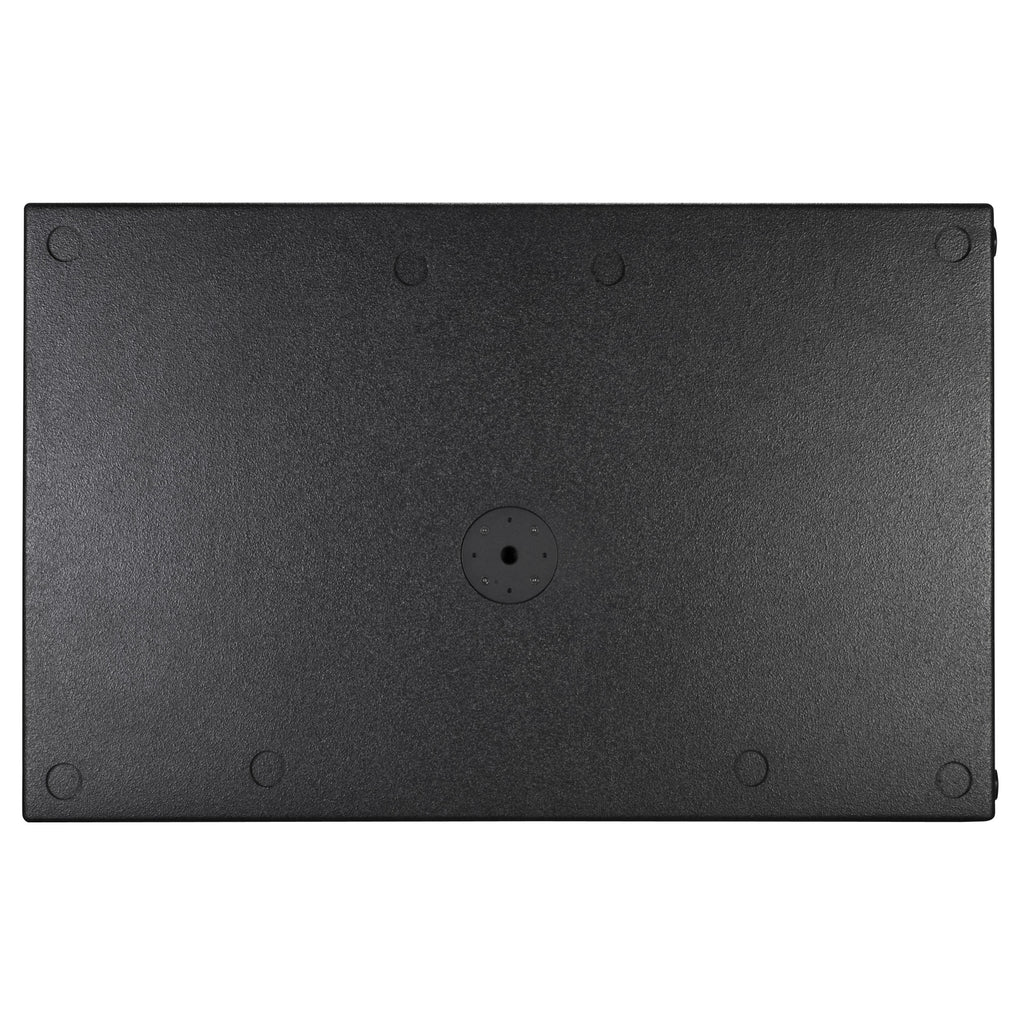

| Pole mount/Cap |
M20 thread |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
709 mm / 27.91 inches |
| Width |
1109 mm / 43.66 inches |
| Depth |
700 mm / 27.56 inches |
| Weight |
96.4 kg / 212.53 lbs |
| Shipping information |
| Package Height |
763 mm / 30.04 inches |
| Package Width |
1156 mm / 45.51 inches |
| Package Depth |
753 mm / 29.65 inches |
| Package Weight |
109 kg / 240.3 lbs |
