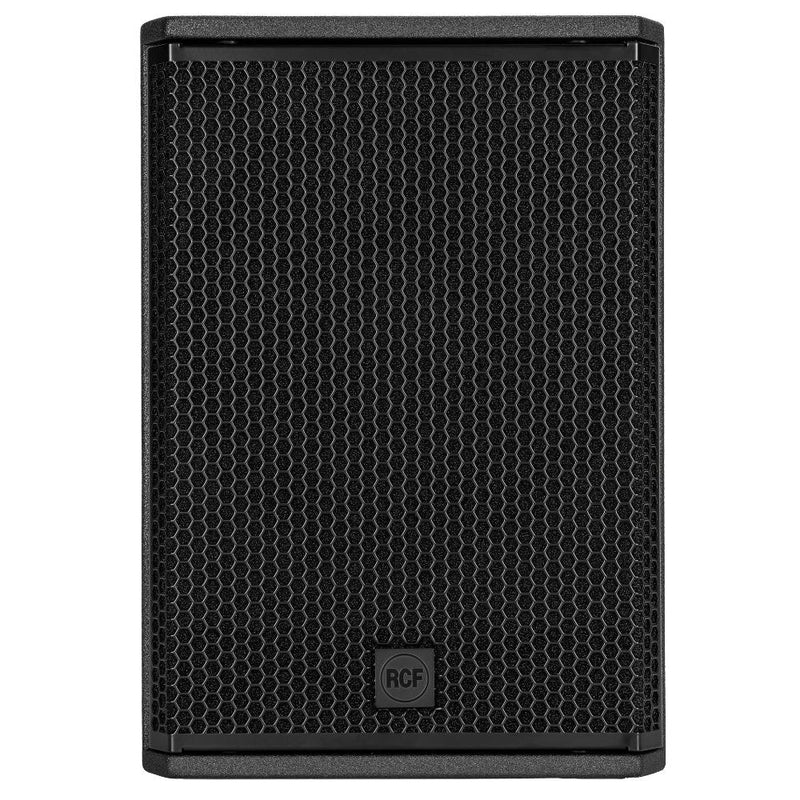

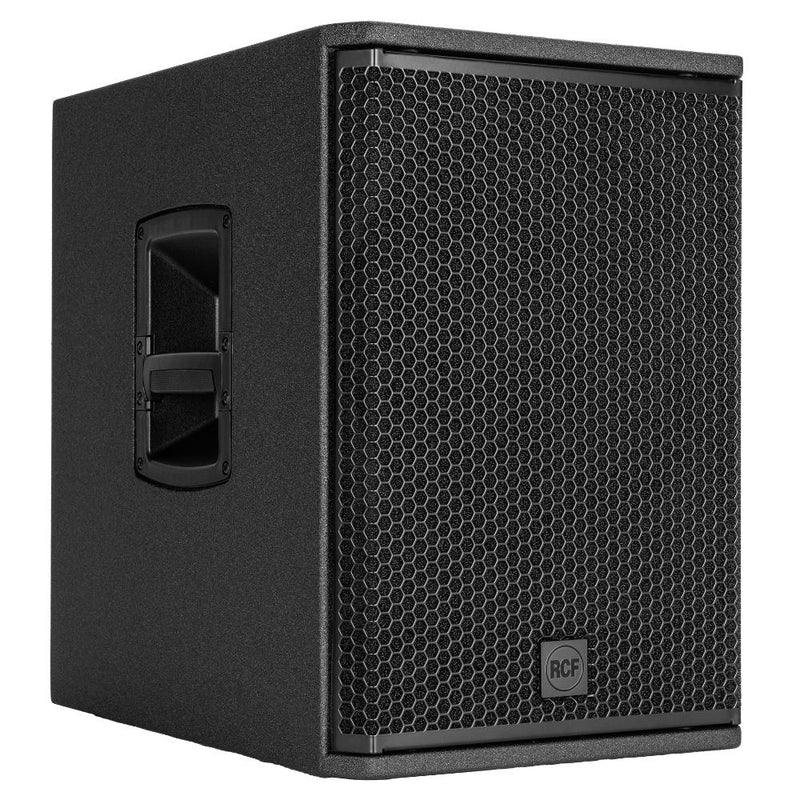

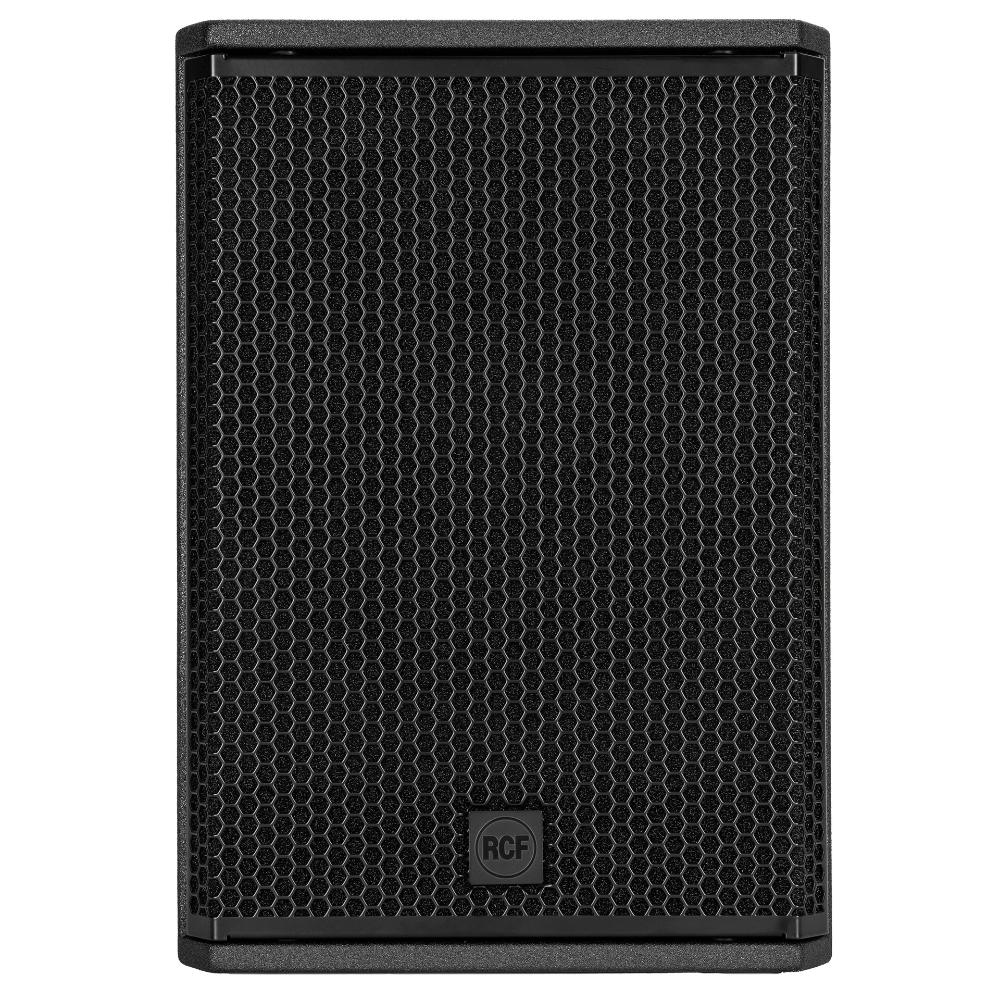

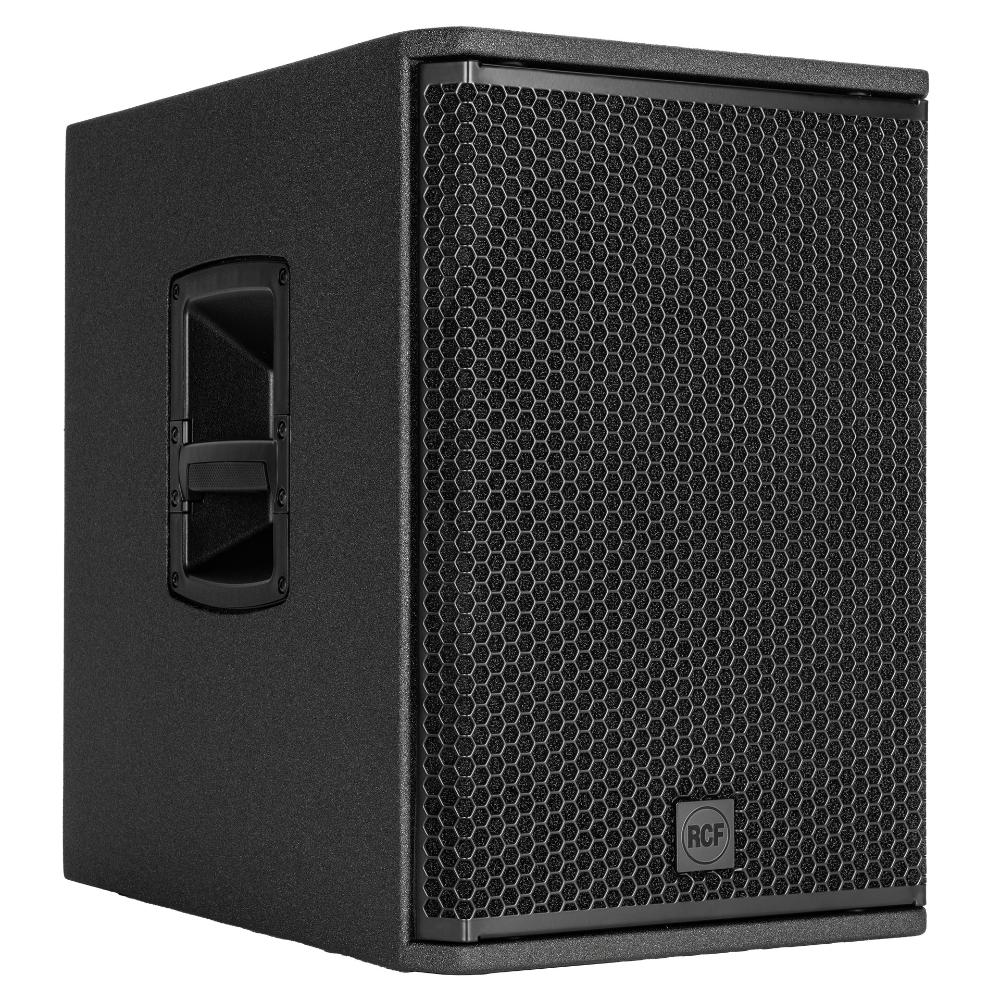

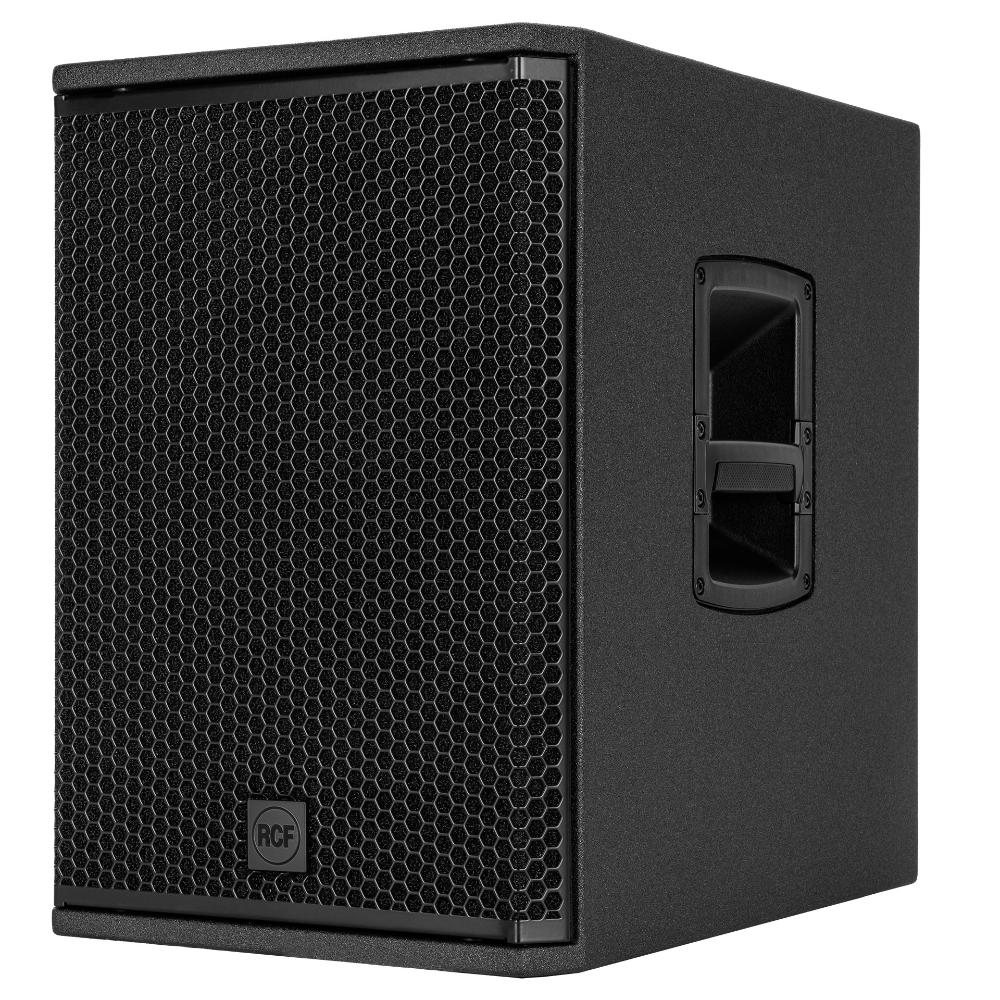

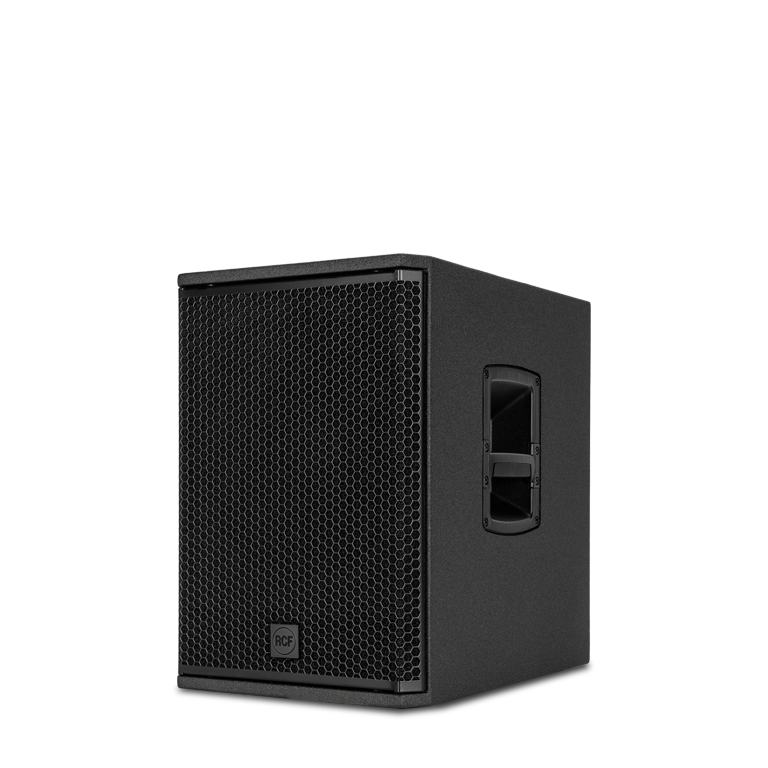

SUB 702-AS MK3 | ACTIVE SUBWOOFER | 1400 Watt Class-D Amplifier | 12” Woofer, bass reflex housing | Stereo Crossover | Switchable Crossover Frequencies
Technical Specifications
| Acoustical specifications |
| Frequency Response |
40 Hz - 120 Hz |
| Max SPL @ 1m |
129 dB |
| Transducers |
| Woofer |
12'', 2.5'' v.c |

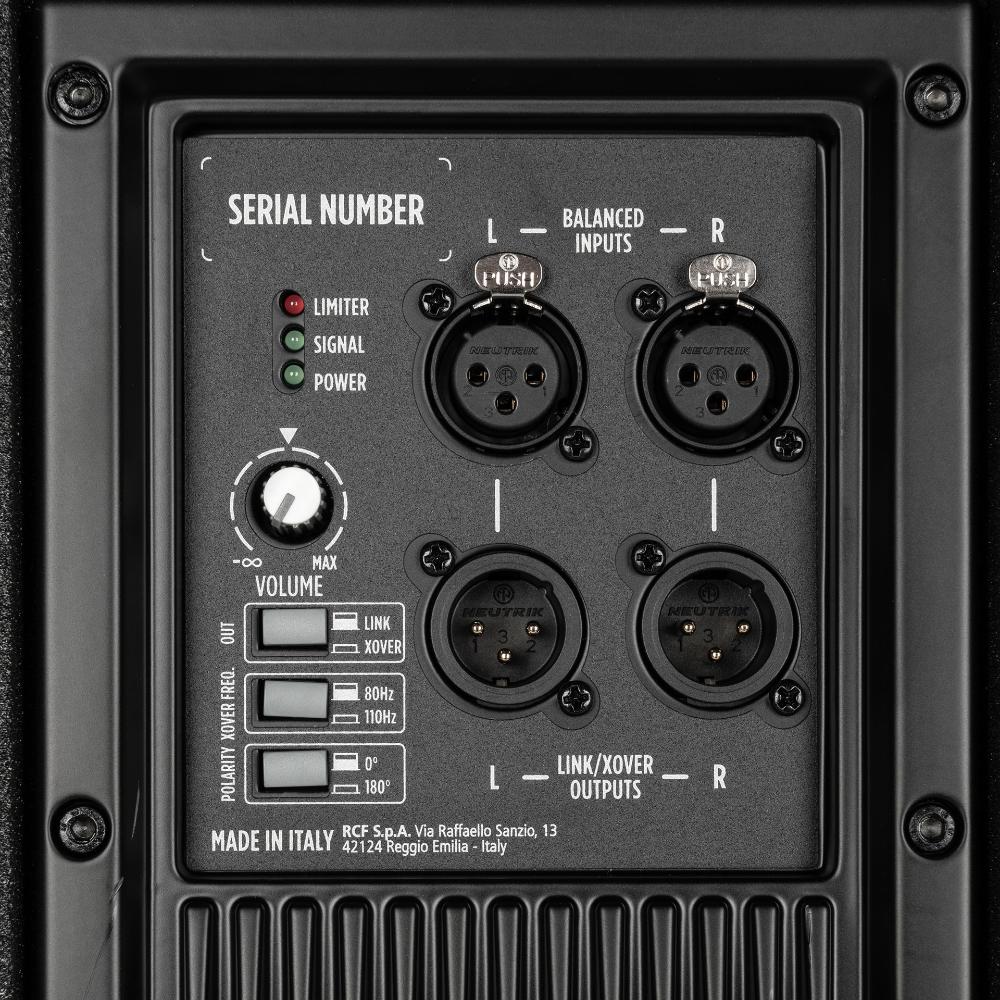

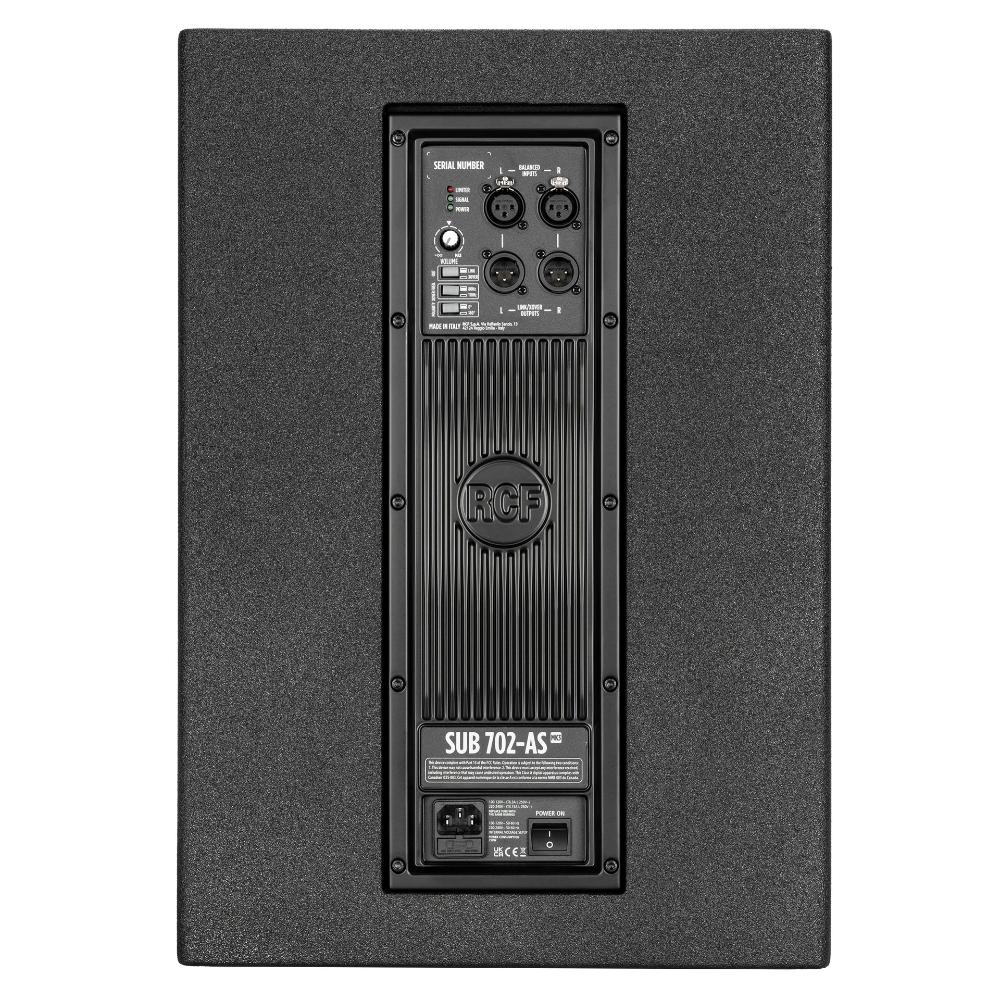

| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR |
| Output connectors |
Input sensitivity |
| -2 dBu/+4 dBu |
| Processor section |
| Hi-Pass Frequencies |
110 Hz |
| Low-Pass Frequencies |
80 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
| Volume, EQ, Phase, Xover |
| Power section |
| Total Power |
1400 W Peak, 700 W RMS |
| Low frequencies |
Cooling |
| Convection |
| Connections |
| VDE |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Baltic birch plywood |

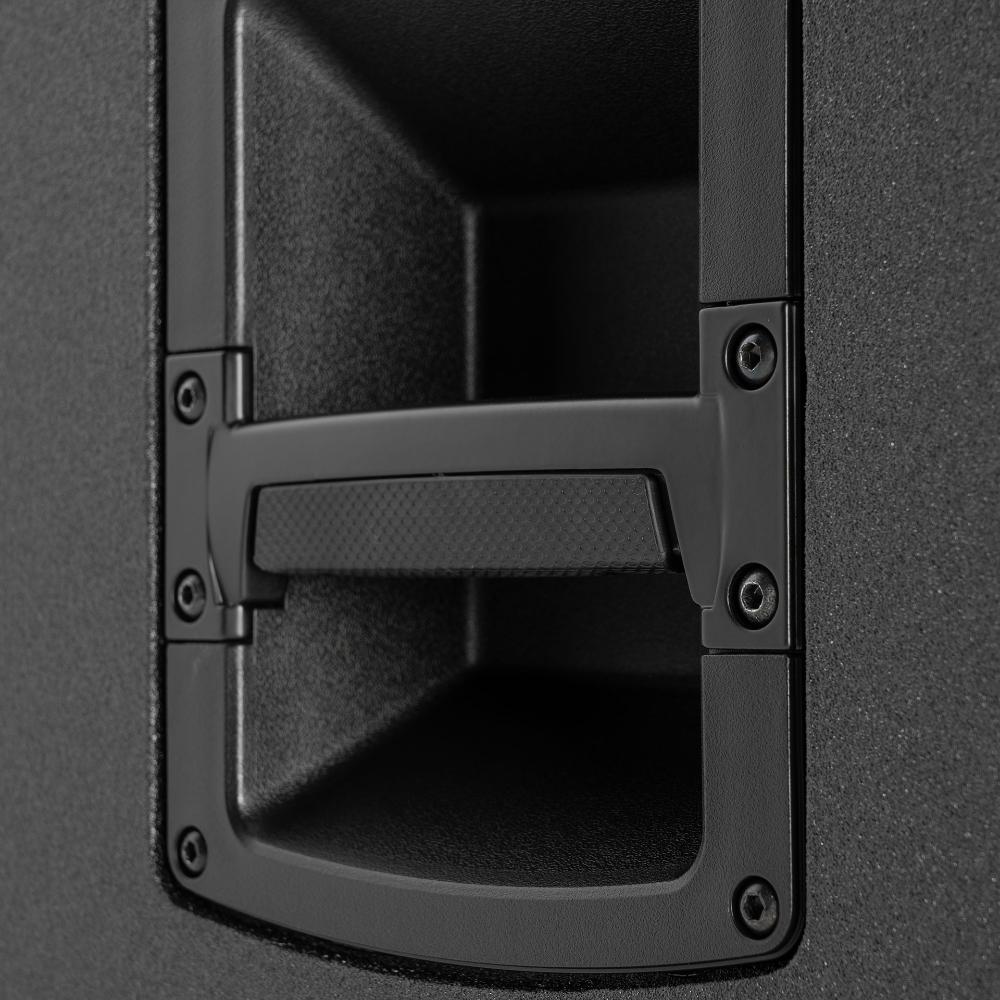

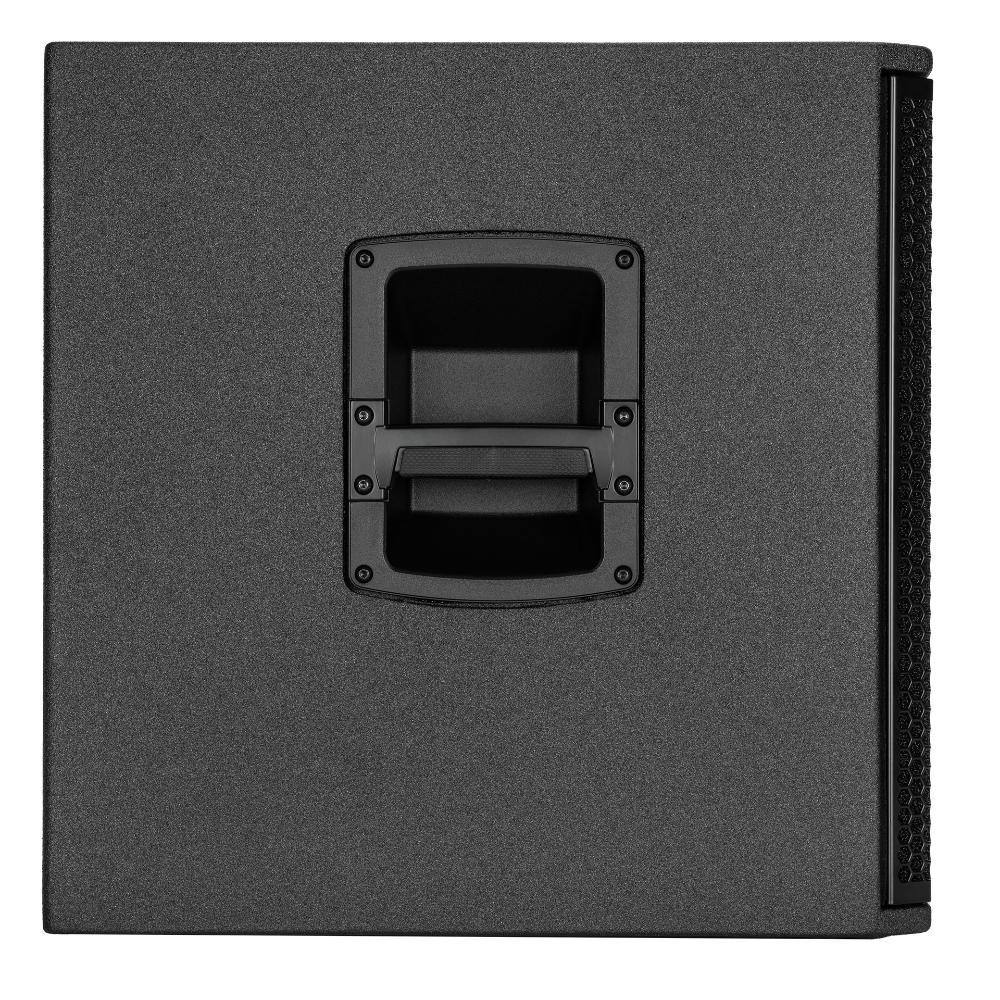

| Handles |
One each side |

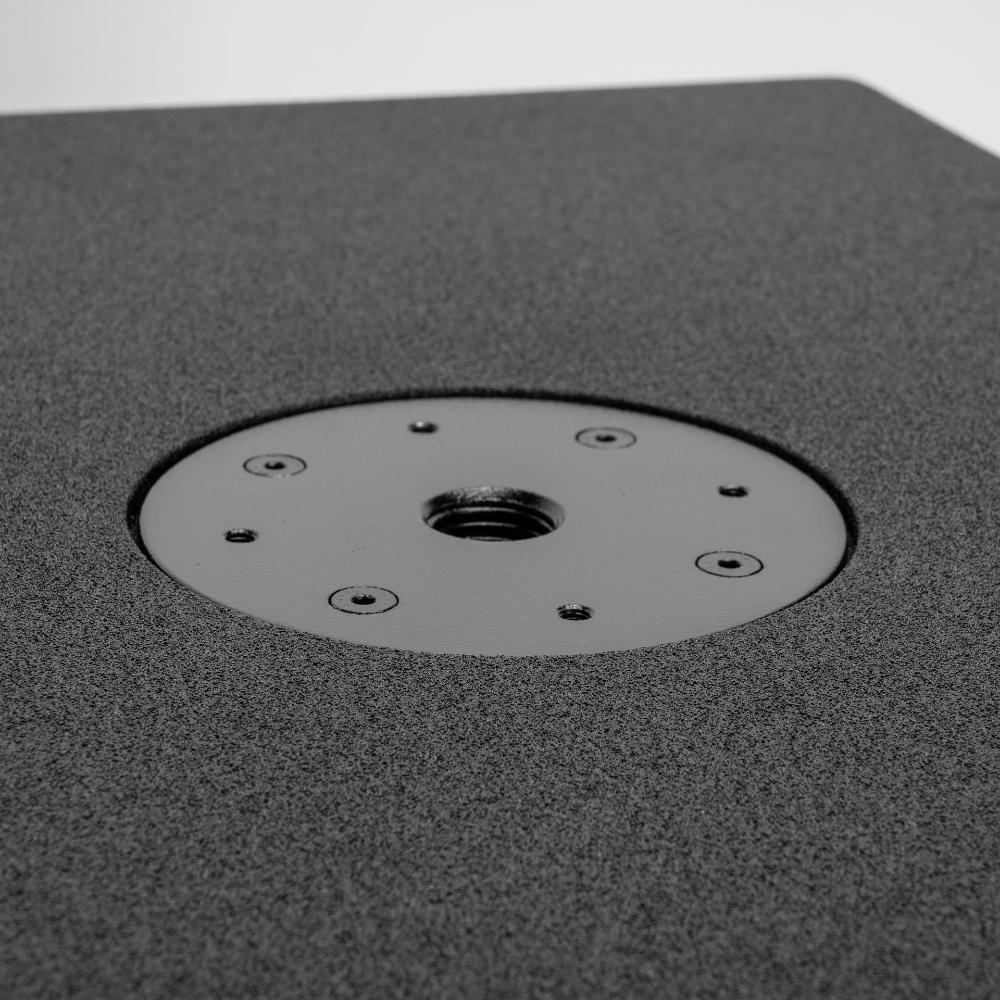

| Pole mount/Cap |
M20 thread |
| Grille |
Steel with clothing |
| Color |
Black |
| Size / Weight |
| Height |
523 mm / 20.59 inches |
| Width |
360 mm / 14.17 inches |
| Depth |
515 mm / 20.28 inches |
| Weight |
21.5 kg / 47.4 lbs |
| Shipping information |
| Package Height |
565 mm / 22.24 inches |
| Package Width |
575 mm / 22.64 inches |
| Package Depth |
420 mm / 16.54 inches |
| Package Weight |
25.5 kg / 56.22 lbs |
