Sennheiser SZI 1029-120
Roll over image to zoom in Click on image to zoom
Sennheiser SZI 1029-120

Sennheiser SZI 1029-120

Save $451.00
SennheiserSKU: SZI-1029-120
Price:
$2,049.00 $2,500.00

Description



SZI 1029-120

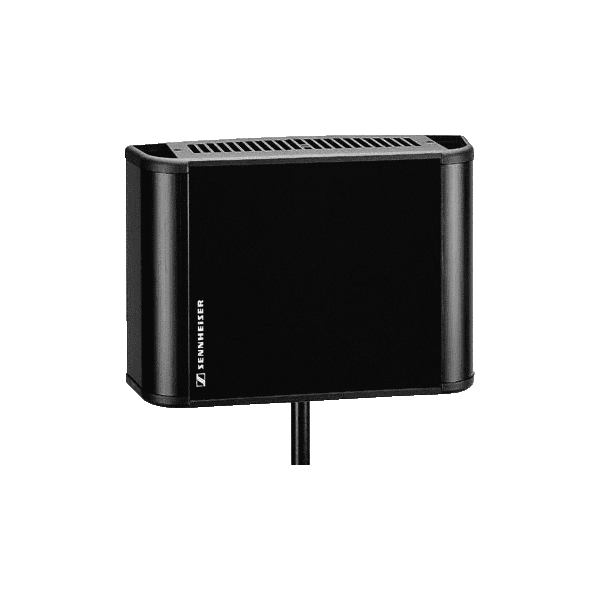

The SZI 1029 is a high-power radiator for use with all wideband and narrow-band modulators that is available in 5 W and 10 W radiating power.


Overview

The SZI 1029 is a high-power radiator for use with all wideband and narrow-band modulators that is available in 5 W and 10 W radiating power. The radiator is automatically switched on by the RF carrier and can cover areas of up to 800 m² (5 W variants) or 1600 m² (10 W variants) in single-channel operation. High-quality GaAlAs transmitting diodes have been arranged in independent groups to ensure reliable transmission. A malfunction indicator is triggered when the radiating power is reduced by more than 30 %.


Features

  • High-power radiator with a maximum coverage area of 800 m² (SZI 1029) or 1600 m² (SZI 1029-10)

  • 6 variants

  • RF output for connecting additional radiators

  • Automatic on/off function

  • Versatile installation due to 5/8", 3/8" and 1/2" threads

  • Excellent reliability due to 12 (SZI 1029) or 24 (SZI 1029-10) independent groups of transmitting diodes and malfunction indicator


What's in the box?

  • 1 radiator or modulator/radiator, respectively
  • 1 mains cable


Technical Data

  • Weight
    3.0 kg
  • Current consumption
    700 mA / Stand-by 50 mA
  • Operating voltage (mains)
    170-260 V, 50-60 Hz
    • Color
      black
    • Effective radiated power
      10 W
    • IR Diodes
      264 GaAlAs
    • Max. coverage area
      1600 m²
    • Impedance
      5 k?
    • RF input
      BNC
    • RF output
      BNC
    • Threshold for automatic on/off function
      50 mV (HF- Signal)
