Description



SZI 1015

The SZI 1015 is a 2-Watt radiator with a coverage area of up to 400 m².


Overview

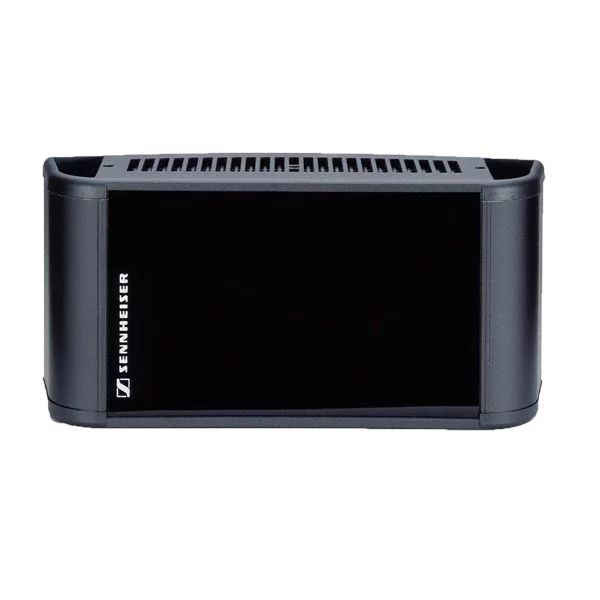

The SZI 1015 is a 2-Watt radiator with a coverage area of up to 400 m². The radiator is switched on and off automatically by the modulator’s RF carrier. The RF signal from the modulator can be daisy-chained via BNC sockets. A barrier strip with RF and DC inputs and outputs is connected in parallel. The radiator has a 5/8” thread and comes with a 3/8” and 1/2” adapter, it can therefore easily be mounted to various attachments.


Features

  • 2-Watt radiator and modulator for the new carrier frequencies 2.3 and 2.8 MHz

  • 2-Watt radiator with a maximum coverage area of 400 m²

  • Chaining the signal to additional radiators

  • Modulator for single-channel, two-channel or stereo operation, features monitoring diodes and a separate barrier strip with RF and DC outputs for connecting radiators

  • Wide range of mounting accessories for the radiator, modulator comes complete with rack-mount ears


What's in the box?

  • SZI 1015


Technical Data

  • Color
    white
    black
  • Dimensions
    250 x 100 x 80 mm
  • Audio-XLR connector
    BNC - Socket
    • Weight
      1,3 kg
    • Carrier frequencies
      30 kHz - 6 MHz
    • Current consumption
      0,7 A bei 25 V
    • Operating voltage (mains)
      25-30 V DC
    • Input voltage range
      50 mV - 3 V
    • Effective radiated power
      2 W
    • IR Diodes
      72
    • Max. coverage area
      400 m²
    • Threshold for automatic on/off function
      50 mV
