Sennheiser SL RACK RECEIVER DW-4-US
Roll over image to zoom in Click on image to zoom
Sennheiser SL RACK RECEIVER DW-4-US

Sennheiser SL RACK RECEIVER DW-4-US

Save $120.00
SennheiserSKU: SL-RACK-RECEIVER-DW-4-US
Price:
$569.00 $689.00

Description



SL RACK RECEIVER DW-4-US

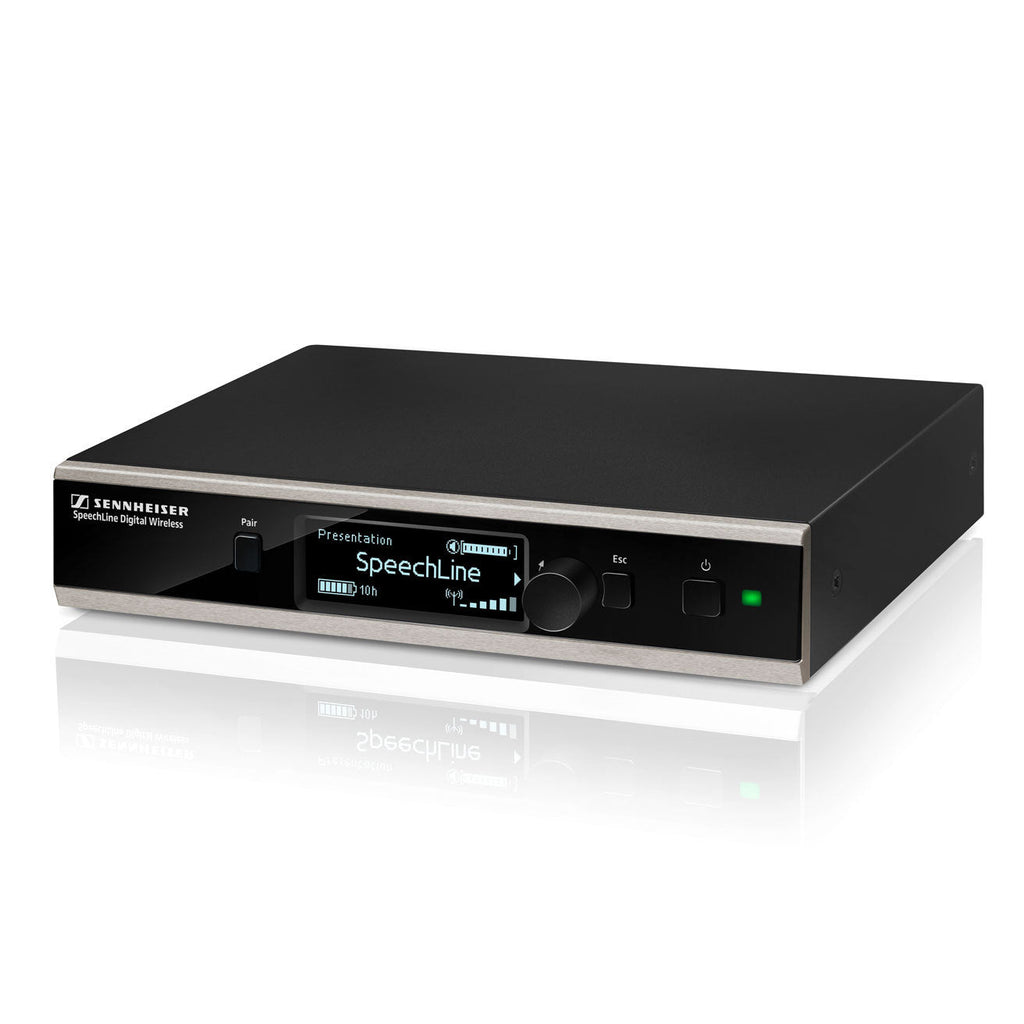

The half 19" stationary SL Rack Receiver DW is the easy-to-integrate core of the SpeechLine Digital Wireless System.


Overview

The half 19" stationary SL Rack Receiver DW is the easy-to-integrate core of the SpeechLine Digital Wireless System. It features a clear visible OLED display for easy setup and operation. Thanks to the bi-directional communication all settings of the mobile transmitters can be adjusted from the receiver side. The automatic frequency and interference management allows convenient and reliable operation. Thanks to the easy-to-handle pairing process, the transmitter and receiver are securely linked. Via network integration all settings and statuses are also accessible via AMX/Crestron media control protocol and the dedicated Sennheiser iOS Apps. The antennas can be either back or front-mounted.
Furthermore, extension cables for wall mounting are available.


Features

  • Automatic frequency and interference management

  • Speech optimized automatics and sound profiles

  • Clear and easy focused user interface with OLED display

  • Ethernet connectivity (IPv4 and IPv6)

  • Media control protocol integration

  • Secure 256 bit AES encryption

  • Remote controllable

  • Quick setup pairing process


What's in the box?

  • SL Reveiver DW - Rack Receiver
  • Power Supply
  • Antennas


Technical Data

  • Power supply
    US
    12 V DC
  • Frequency range
    1,920 to 1,930 MHz
  • Frequency response
    20 to 20,000 Hz
    • THD, total harmonic distortion
      typ. 0.1 %
    • Weight
      approx. 828 g
    • Power consumption
      350 mA
    • Signal-to-noise ratio
      > 90 dB(A)
    • RF output power
      adaptive, up to 250 mW (country-specific)
    • Antenna connector
      2 x reverse SMA
    • Audio output level (balanced)
      max. +18 dBu, typ. -24 dBu
    • Audio output level (unbalanced)
      max. +6 dBu
    • Dynamic range
      > 120 dB(A)
    • RF sensitivity
      < -90 dBm
    • Sampling rates
      24 bit/48 kHz
    • Connection
      Audio Out: XLR 3M Audio Out: 2 x RCA Network: RJ 45
