Sennheiser SL Bodypack - MKE 2 KIT DW-4

Save $150.00
SennheiserSKU: SL Bodypack - MKE 2 KIT DW-4

Sale price$589.00 Regular price$739.00

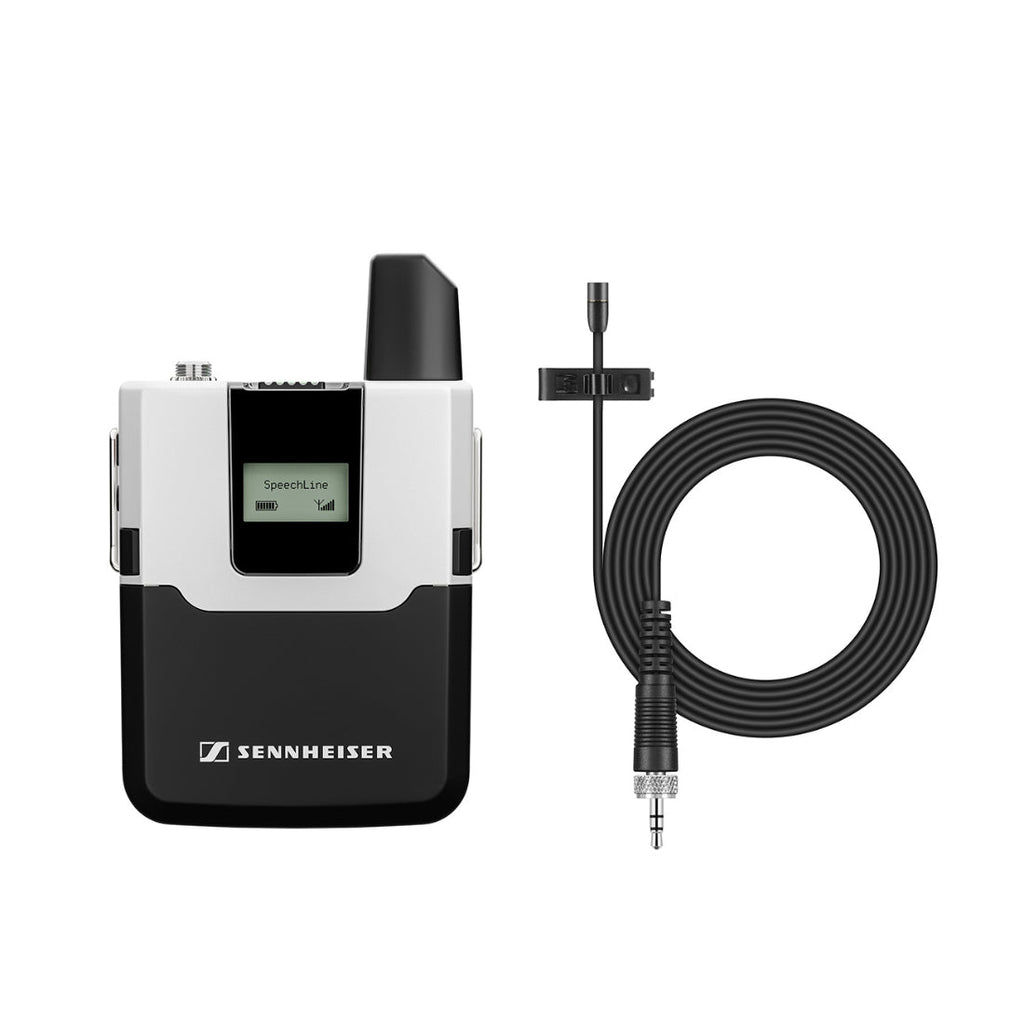

SL Bodypack - MKE 2 KIT DW-4

Kit with SL Bodypack DW and MKE 2 a High-quality, sub-miniature omni-directional clip-on lavalier microphone.
Article No. 509211

The SL Bodypack KITs DW are the perfect complement to the new SL Multi-Channel Receiver DW.
This KIT contains the compact and robust SL Bodypack DW bodypack transmitter, which is specially designed to transmit the spoken word and is compatible with all Sennheiser neckband and lavalier microphones (e.g. SL Headmic 1 or MKE 1). Thanks to the bi-directional communication between transmitter and receiver, no adjustments need to be made at the transmitter and the automatic frequency and interference management ensures easy setup and maximum transmission reliability. The transmitter's LC display shows the name of the radio link, the charge level of the battery pack(s) and the reception quality. With the easily accessible mute switch, the transmitter can be muted if necessary. The SL Bodypack DW is equipped with a rechargeable lithium-ion battery pack with external charging contacts for easy charging in the chargers and a USB socket for charging via USB.

Also included in the kit is the MKE 2 ew Gold, a high-quality, sub-miniature clip-on lavalier microphone which is suitable for all areas of live work. It fulfils the most stringent demands on sound quality and is extremely rugged. A special Umbrella Diaphragm™ and a welded housing protect the MKE 2 ew Gold against sweat and moisture. Colour: matte black.

  • Lockable 3.5 mm jack socket

  • Clear and easy focused user interface

  • Long operation time (up to 15 hours)

  • Advanced power management and Li-Ion rechargeables

  • Secure 256 bit AES encryption

  • Remote controllable

  • New Umbrella Diaphragm™ protects the mic against sweat

  • Very high sound pressure handling capability

  • Versatile attachment due to an extensive range of accessories

SL Bodypack DW
Frequency response
20 to 20,000 Hz

Operating time
Accupack: typ. 15 h Batteries: typ. 10 h

Input voltage range
Mic: 2.2 V RMS Line: 3.3 V RMS

Dynamic range
> 120 dB(A)

Input impedance
1 M?

Sampling rates
24 bit/48 kHz

THD, total harmonic distortion
typ. 0.1 %

approx. 88 g

Audio input
3,5 mm socket, lockable

Signal-to-noise ratio
> 90 dB(A)

RF output power
adaptive, up to 250 mW (country-specific)
Sensitivity in free field, no load (1kHz)
5 mV/Pa +- 3 dB

Nominal impedance
1000 ?

Min. terminating impedance
4700 ?

Equivalent noise level
26 dB

Equivalent noise level weighted as per CCIR
39 dB

Maximum sound pressure level (passive)
142 dB

Current consumption
ca. 250 µA

Operating voltage (stand alone)
7,5 V

d 4,8 mm

Frequency response (Microphone)
20 - 20000 Hz +- 3 dB

Transducer principle (Microphone)
Dauerpolarisiertes Kondensatormikrofon

Connection cable
3.5 mm Jack Plug

17 g

Pick-up pattern
What's in the Box
SL Bodypack DW
MKE 2 ew Gold
BA 30
