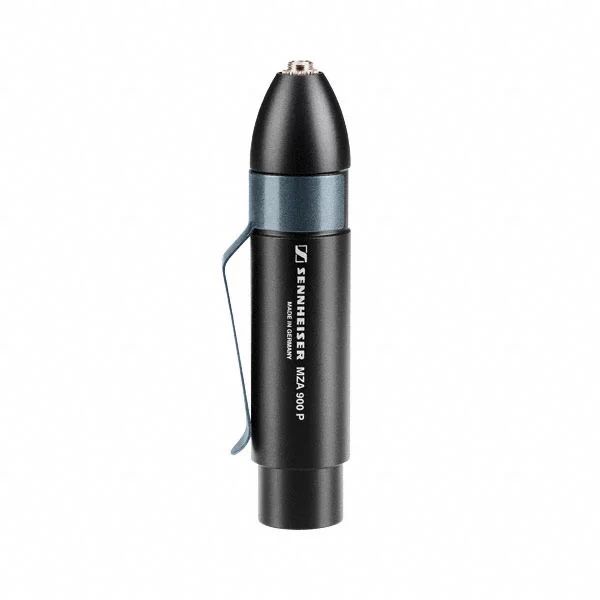

Sennheiser MZA 900 P

Save $39.05
SennheiserSKU: MZA-900-P

Price:
Sale price$179.95 Regular price$219.00

Description



MZA 900 P

Phantom power adaptor to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs. Lockable 3.5mm jack socket. Robust chassis. Ideal if using both wired and wireless applications.


Overview

The MZA 900 P phantom power adaptor is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 - 52 V phantom powering (P12 - P48). The connected microphone is supplied via the adaptor.

The phantom power adaptor is available in two different versions:

  • MZA 900 P with lockable 3.5 mm jack socket (as evolution wireless)
  • MZA 900 P-4 with lockable 3-pin special socket

The adaptor is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications.

The MZA 900 P can also be used as a cable tester for XLR microphone cables.


Features

  • Robust metall chassis

  • Switchable gain (0/-12dB)

  • Switchable roll-off filter (125 Hz (-3 dB), 12 dB/oct)

  • Two-colour control LED (phantom power, audio peak)

  • Input 3,5mm stereo jack socket, lockable

  • Output XLR-3M


What's in the box?

  • MZA 900 P with belt clip
  • Instructions for use
  • Warranty certificatee


Technical Data

  • 0/-12 dB
  • Gain
    0/-12 dB
  • 0/-12 dB
    • 1,8V (P48), 0,6V (P12) @ 0dB gain
    • Output voltage
      1,8V (P48), 0,6V (P12) @ 0dB gain
    • 1,8V (P48), 0,6V (P12) @ 0dB gain
    • 1,8V (P48), 0,6V (P12) @ 0dB gain
    • 20 - 20000 Hz (-1 dB)
    • P12 - P48, 10 - 52V, 2,6 - 2,8mA
    • Phantom powering
      P12 - P48, 10 - 52V, 2,6 - 2,8mA
    • P12 - P48, 10 - 52V, 2,6 - 2,8mA
    • P12 - P48, 10 - 52V, 2,6 - 2,8mA
    • 100 ?
    • Output impedance
      100 ?
    • 100 ?
    • 100 ?
    • Dimensions
      Ø 19/22 mm, L 100 mm
    • Weight
      60 g
    • Nominal impedance
      100 ?
    • Phantom powering
      P12 - P48, 10 - 52V, 2,6 - 2,8mA
    • Operating temperature
      -20.....+60 °C
    • Gain
      0/-12 dB
    • Output voltage
      1,8V (P48), 0,6V (P12) @ 0dB gain
