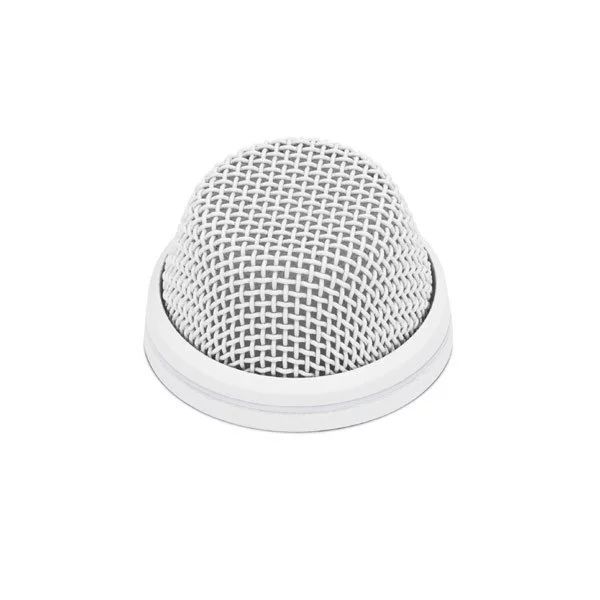

Sennheiser MEB 104 W

Save $40.95
SennheiserSKU: MEB-104-W

Price:
Sale price$189.00 Regular price$229.95

Description



MEB 104 W

Boundary installation wired microphones for simple installation in tables or ceiling elements. With its compact, discreet design, this model will fit perfectly into any environment. The microphone capsule with cardioid pickup pattern guarantees optimum speech intelligibility, and its robust housing provides the perfect protection. The model is available in black and white color.


Overview

Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 104 (cardioid) fits any style of interior and can be easily installed into surfaces such as tables or ceiling tiles. It features a proven Sennheiser microphone capsule for the best speech intelligibility, and is protected by a rugged housing. Its -L variant features a bi-color LED ring for status indication.


What's in the box?

  • MEB 104
  • Quickguide
  • Mounting material


Technical Data

  • Connector
    MEB 104: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = ?
  • Current consumption
    MEB 104: 3 mA
  • Color
    black
    • Dimensions
      Height: 3.54 in (0.75 in above surface), Diameter: 1.12 in
    • Frequency response
      40 Hz – 20 kHz
    • Max. sound pressure level
      125 dB
    • Transducer principle
      pre-polarized condenser microphone
    • Weight
      2.12 oz
    • Pick-up pattern
      cardioid
    • Nominal impedance
      200 ?
    • Phantom powering
      P 24 - P 48
    • Operating temperature
      32 °to 104 ° F
    • Equivalent noise level
      28 dB (A)
    • Equivalent noise level weighted as per CCIR 468-3
      38 dB (CCIR)
    • Acoustics
      Boundary Layer Microphone
    • Dynamic range
      97 dB (A)
    • Sensitivity
      14 mV/Pa
    • Thread
      M 20
