Sennheiser MEB 102-L B

Save $40.95
SennheiserSKU: MEB-102-L-B

Price:
Sale price$209.00 Regular price$249.95

Description



MEB 102-L B

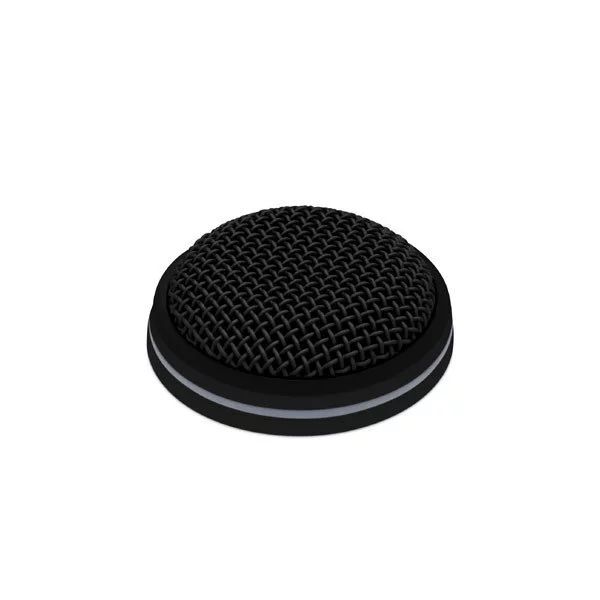

Boundary installation wired microphone for simple installation in tables or ceiling elements. With its compact, discreet design, this model will fit perfectly into any environment. The omni-directional microphone capsule guarantees optimum speech intelligibility, and its robust housing provides the perfect protection. The model is available in black and white color.


Overview

Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 102 (omnidirectional) fits any style of interior and can be easily installed into surfaces such as tables or ceiling tiles. It features a proven Sennheiser microphone capsule for the best speech intelligibility, and is protected by a rugged housing. Its -L variant features a bi-color LED ring for status indication.


What's in the box?

  • MEB 102
  • Quickguide
  • Mounting material


Technical Data

  • Connector
    MEB 102: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = ?
  • Current consumption
    MEB 102: 3 mA
  • Color
    black
    • Dimensions
      Height: 83.26 in (0.47 in above surface), Diameter 1.12 in
    • Frequency response
      40 Hz – 20 kHz
    • Max. sound pressure level
      125 dB
    • Transducer principle
      pre-polarized condenser microphone
    • Weight
      2.05 oz
    • Pick-up pattern
      omni-directional
    • Nominal impedance
      200 ?
    • Phantom powering
      P 24 - P 48
    • Operating temperature
      32 °to 104 ° F
    • Equivalent noise level
      21 dB (A)
    • Equivalent noise level weighted as per CCIR 468-3
      31 dB (CCIR)
    • Acoustics
      Boundary Layer Microphone
    • Dynamic range
      104 dB (A)
    • Sensitivity
      16 mV/Pa
    • Thread
      M 20
