Description



MAT 153-S

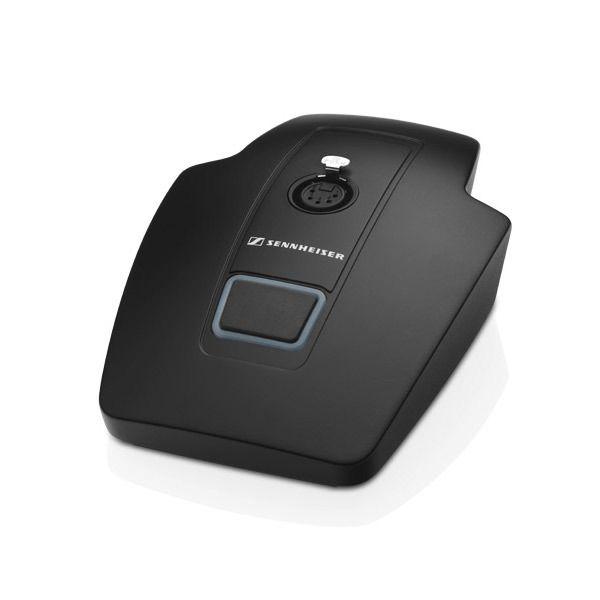

The MAT 153-S is a sturdy, wired table stand that provides a stable base for XLR-5 gooseneck microphones. It has a user-friendly microphone button with a two-color status display that provides quick visual feedback on whether the microphone is active or muted. The TTL logic output on the underside can be used to activate a camera or media control system. The model is available in black color.


Overview

Featuring a rugged housing, the functionally and unobtrusively designed MAT 153 provides a solid ground for gooseneck microphones with lighting ring.

Connector:
MIC IN: XLR-5F
MIC OUT: XLR-3M
3x terminal


Features

  • Powered with standard XLR-3 cable


What's in the box?

  • MAT 153-S table stand


Technical Data

  • Color
    black
    LED light ring: red / green
  • Connector
    Mic in: XLR-5F, Pin assignment: 1 = gnd, 2 = hot (+), 3 = cold (?), 4 = LED (?), 5 = LED (+)
  • Connector
    Mic out: XLR-3M, Pin assignment: 1 = gnd, 2 = +, 3 = ?
    • Connector
      Clip contact: Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal)
    • Weight
      approx. 1,206 g
      1526 g
    • Current consumption
      3.7 mA
    • Output voltage
      Logic out: high level output voltage > 2.4 V, low level output voltage < 0.4 V
    • Output voltage
      Logic in: high level input voltage > 2.0 V, low level input voltage < 0.8 V
