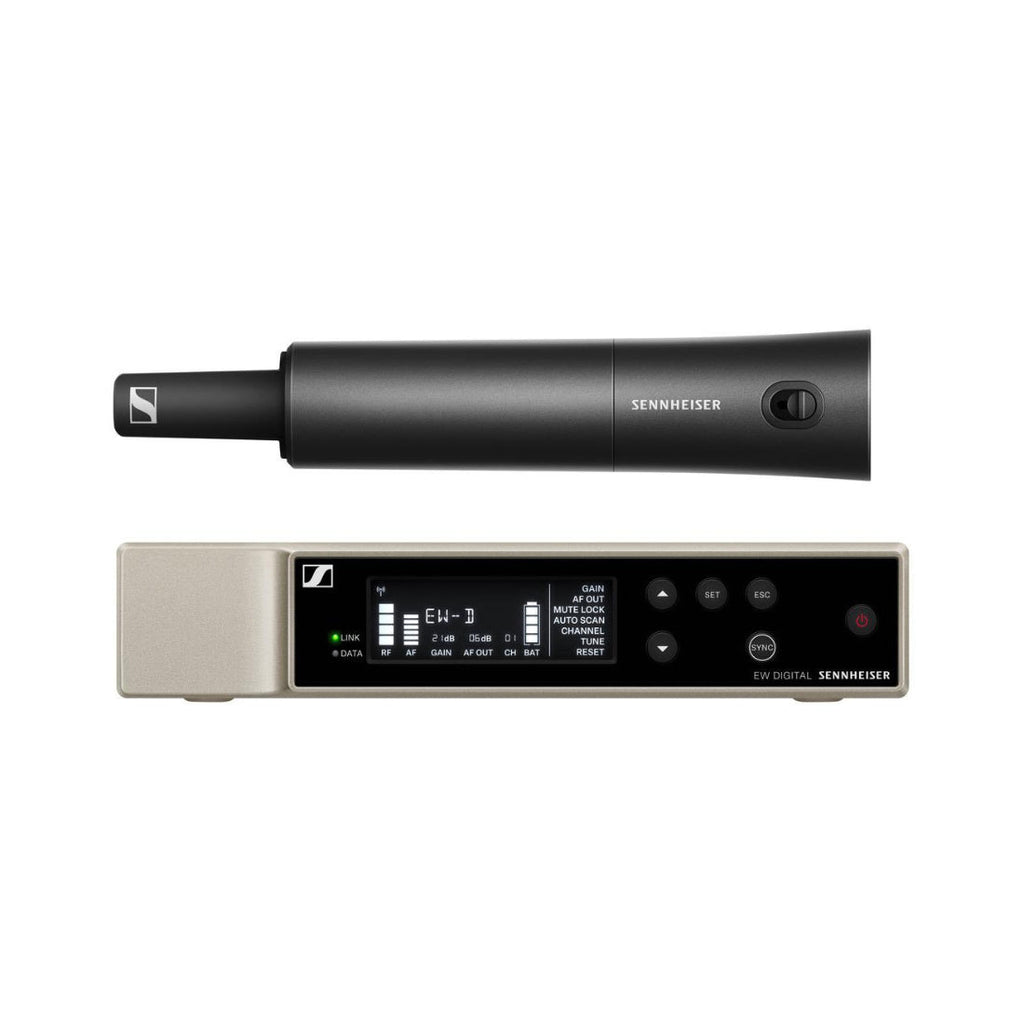

Sennheiser EW-D SKM-S BASE SET (R1-6)
Roll over image to zoom in Click on image to zoom
Sennheiser EW-D SKM-S BASE SET (R1-6)

Sennheiser EW-D SKM-S BASE SET (R1-6)

Save $100.00
SennheiserSKU: EW-D SKM-S BASE SET (R1-6)
Price:
$599.00 $699.00

Description


EW-D SKM-S BASE SET (R1-6)
Base Set for digital wireless applications featuring sationary receiver and handheld transmitter for use with a wide range of Evolution Wireless Digital microphone heads.
Article No. 508761


Versatile and feature-rich digital wireless system for those who sing or speak that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.

  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

  • Auto scan creates reliable connections with minimal time and effort

  • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

  • 2,240 selectable frequencies allow for fine tuning

  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Specifications
Frequency range
520 - 576 MHz

THD, total harmonic distortion
? -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature
-10 °C - +55 °C (14 °F - 131 °F)

Operating relative humidity
5 - 95 % (non-condensing)

Audio frequency response
20 Hz - 20 kHz (-3 dB) @ 3 dBfs

System Latency
1.9 ms
EW-D EM
Dimensions
212 x 44 x 189 mm

Weight
approx. 1000 g (without antennas and power supply)

Current consumption
? 300 mA

Input voltage range
11 - 13 V ?

Audio output level
18 dBu max.

Transmission power
BLE: max. 10 mW EIRP
EW-D SKM-S
Dimensions
50 x 268 mm (incl. MMD 835 microphone module)
40 x 200 mm (without microphone module)

Weight
approx. 304 g (incl. MMD 835 microphone module)
approx. 195 g (without microphone module)

Power supply
2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack

Current consumption
< 300 mA

Input voltage range
2.0 - 4.35 V

Transmission power
Audio link: 10 mW
ERP (Range Y1-3): 12 mW ERP
BLE: max. 10 mW EIRP
What's in the Box
EW-D EM rack receiver
EW-D SKM handheld transmitter
2 rod antennas
power supply with country adapters
rackmount set
4 rubber feet
quick guide
safety guide
manufacturer declaration sheet
