Description

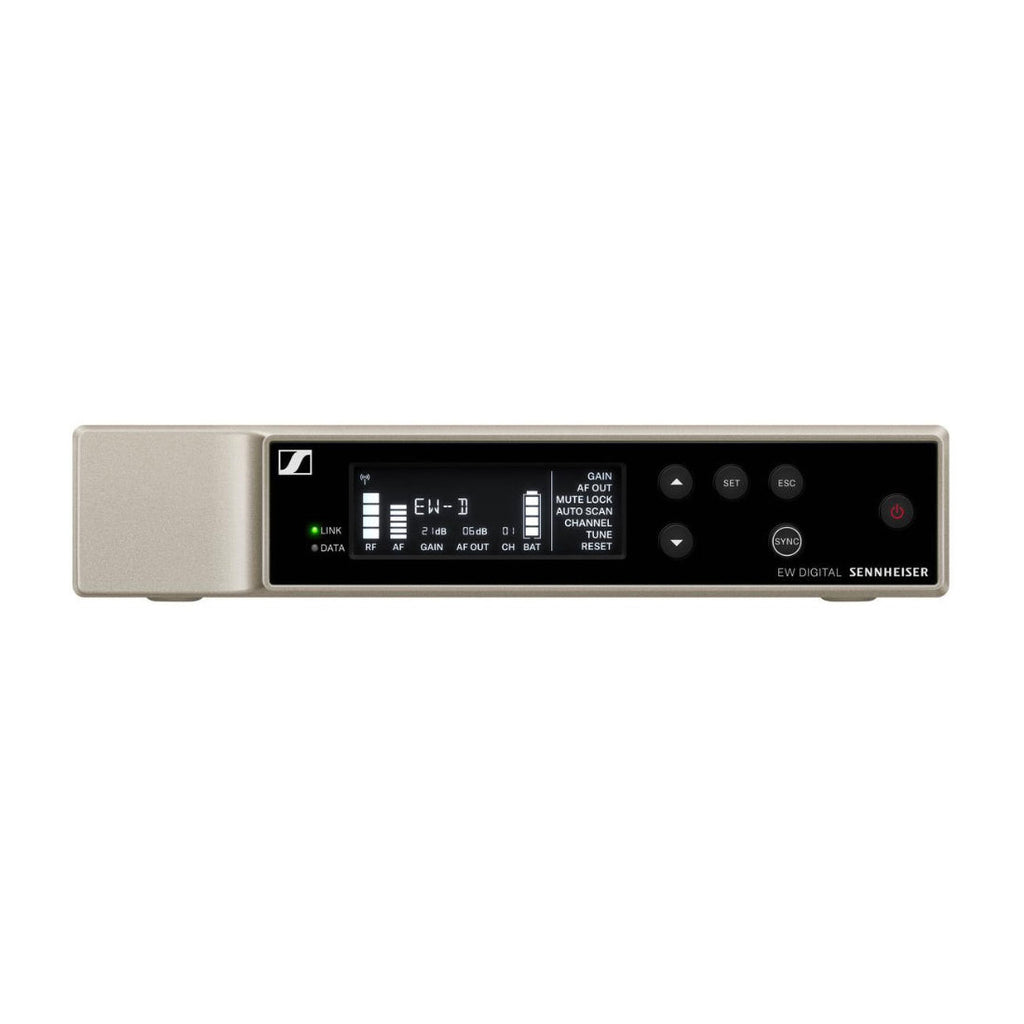

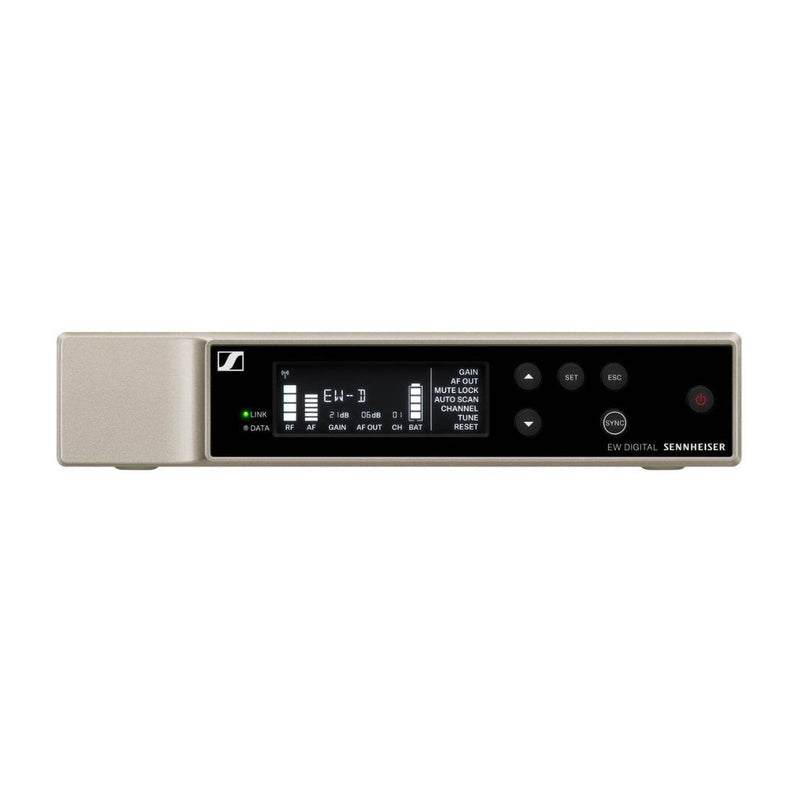

EW-D EM (R1-6)
1/2 19" rack receiver for use with Evolution Wireless Digital handheld and bodypack transmitters.
Article No. 508801
|
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.
|
Specifications
Frequency range 520 - 576 MHz Dimensions 212 x 44 x 189 mm THD, total harmonic distortion ? -60 dB for 1 kHz @ -3 dBfs input level Weight approx. 1000 g (without antennas and power supply) Operating temperature -10 °C - +55 °C (14 °F - 131 °F) Current consumption ? 300 mA Input voltage range 11 - 13 V ? Transmission power BLE: max. 10 mW EIRP Operating relative humidity 5 - 95 % (non-condensing) Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs Audio output level 18 dBu max. What's in the Box EW-D EM rack receiver 2 rod antennas power supply with country adapters rackmount set 4 rubber feet quick guide safety guide manufacturer declaration sheet |
