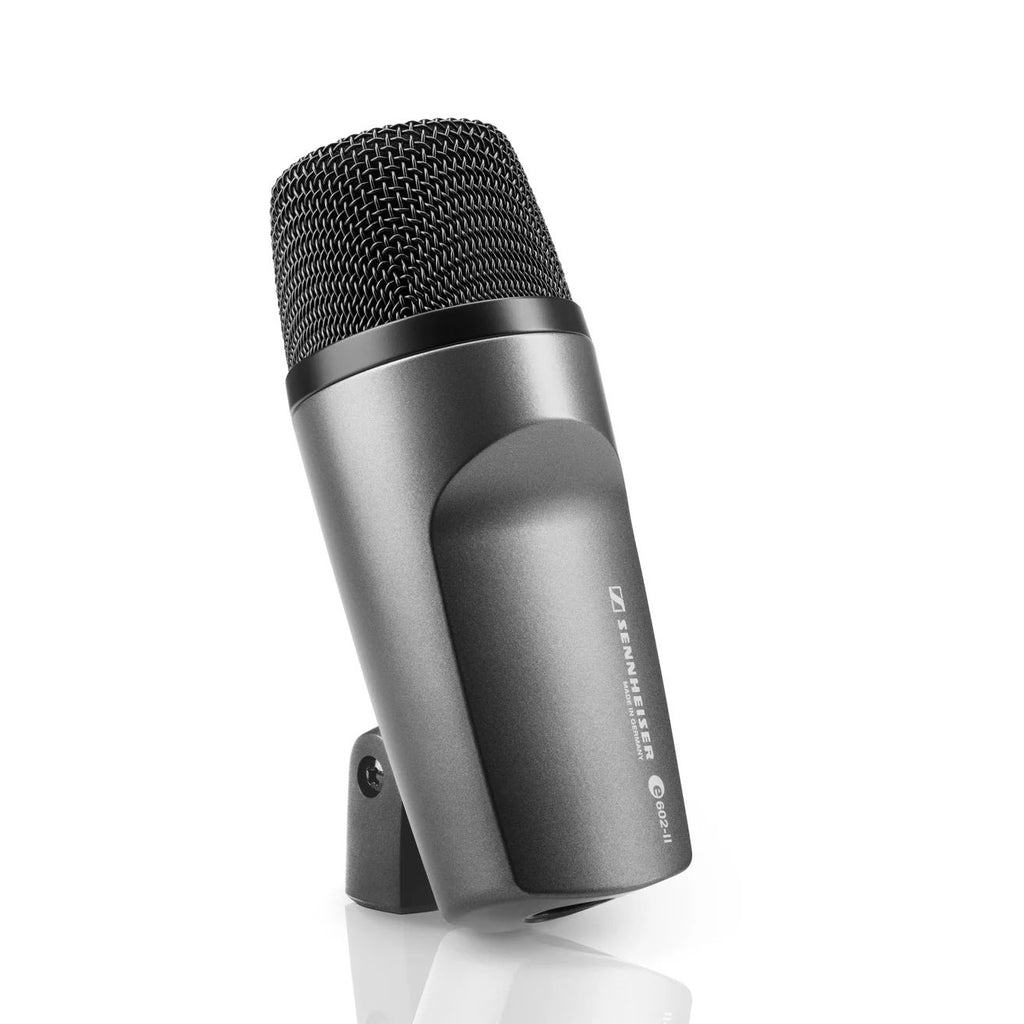

The e 602 II is a cardioid instrument microphone especially suitable for use with bass drums, bass guitar cabs, tubas and other low frequency instruments.

Key Features

• Rugged, lightweight aluminium body for stable positioning on long microphone boom arms

• Lightweight high-performance voice coil construction

• Fast transient response

• Low frequency extension

• Ideal for direct use on the most problematic bass signal

• Frequency-independent directivity provides isolation from other on-stage signals

• Humbucking coil

• Integral stand mount

Specifications

• Dimensions

  Ø 60 x 153 mm

• Connector

  XLR-3

• Frequency response

  20 - 16000 Hz

• Weight

  318 g

• Sensitivity in free field, no load (1kHz)

  0,25 mV/Pa; (50 Hz) 0,9 mV/Pa

• Nominal impedance

  350 ?

• Min. terminating impedance

  1000 ?
