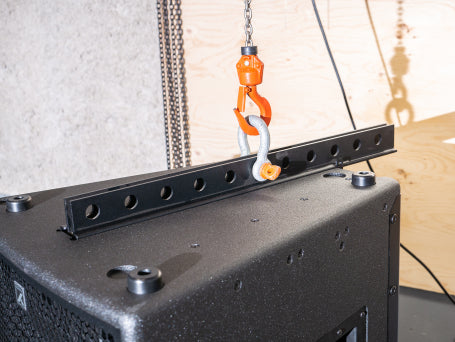

The pickup bar is simply slid into the integral flying rail on the top or bottom of the SA153 and/or SA315S cabinets and secured in place with the provided hardware. There are eleven pickup points along the length of the bar, allowing for easy tilting of the array.
Features
- 4x Wide Column Flying Bumper
- Can Safely Handle 2x SA153 and 1x SA315S Cabinets in Each Column (12 Cabinet Max Hang)
- 2x Extension Tilt Bars Included
Specifications
| Max Load Capacity |
500 lbs / 226kg at 7:1 Safety Ratio |
| Max Cabinet Capacity |
One Single Column Hang (2x SA153 + 1x SA315S Max. Total Cabinet Hang = 3) |
| Material / Construction |
7 Gauge Welded Steel Plate |
| Finish |
Black Powder Coat |
| Required Shackle Size (Not Included) |
5/8" (Sample Crosby#1018473) |
| Overall Dimension DxWxH |
26.75" x 1.56" x 2.19" (68 cm x 4 cm x 5.6 cm) |
| Weight |
7 lbs / 3.18 kg |
