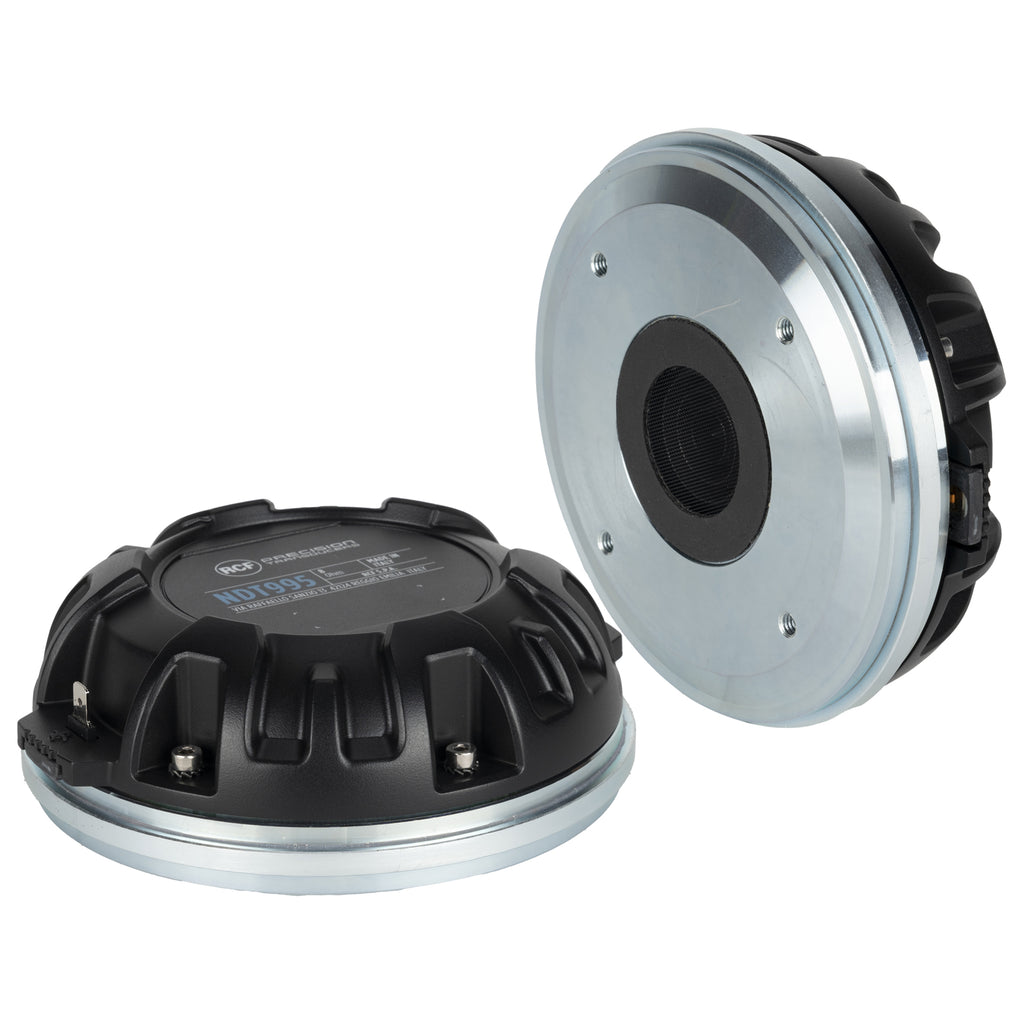

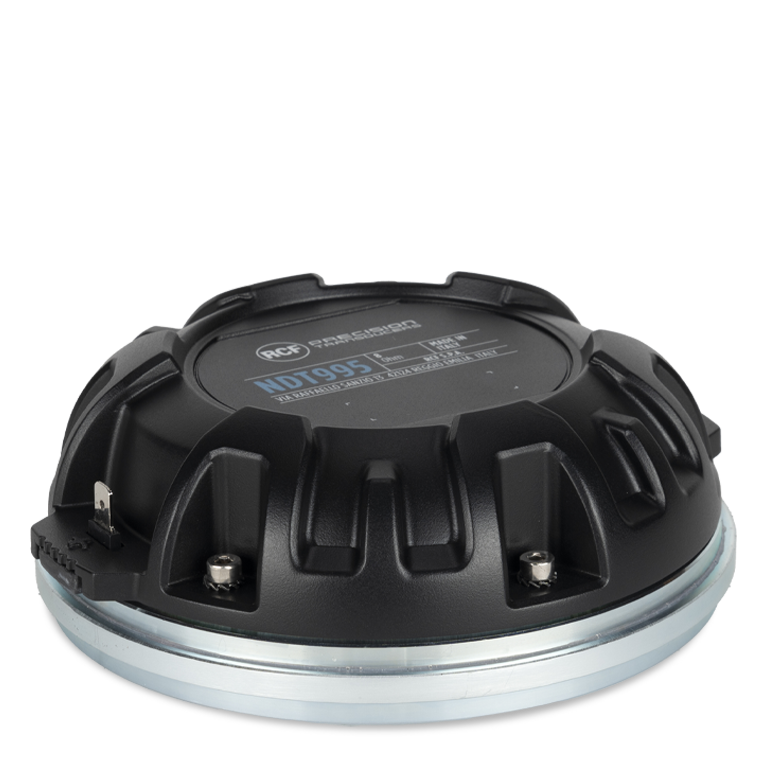

NDT995 Driver
The 4-inch pure titanium dome NDT995 compression driver focuses on maximizing linearity, precision and long-term reliability. It is mainly suitable for professional line arrays and point source applications. Its motor structure features a high-flux density neodymium magnet assembly with a copper demodulation ring to reduce harmonic and intermodulation distortion. The 4" class-leading design utilizes a Kapton former, inside-outside ultralight edge wound aluminum wire and a 4-slot phase plug to deliver minimum distortion across its operating bandwidth. The high sensitivity at 110 dB, 280 Watts continuous power handling at 8 ohms, and very low recommended crossover point from 650 Hz make it ideal for integration with waveguides in two-way high-powered systems.
Features
- 4.0 inch, Titanium dome, polyimide surround
- 280W continuous program power handling @ 8O
- Frequency range: 500Hz - 20kHz
- Kapton former, inside/outside edge wound aluminum voice coil
- 4-slot optimized geometry phase plug
- Copper inductance ring for extended response
- Low recommended crossover point
Specifications
General specifications
| Exit Throat Diameter |
1.4 inch / 36 mm |
| Related Impedance |
8 ohm |
| Program Power (watt) |
280 W |
| Power handling capacity |
140 W |
| Sensitivity |
110 dB |
| Frequency range |
500 - 20000 Hz |
| Diaphragm Material |
Pure Titanium |
| Suspension Material |
Polyimide |
| Suspension Design |
Flat |
| Minimum Impedance (ohm) |
8.50 ohm |
| Voice Coil Diameter |
4.0 inch / 102 mm |
| Voice Coil Winding Material |
Edgewound Aluminum |
| Voice Coil Former Design |
Direct Drive Kapton |
| Number of layers |
1 |
| Kind of layers |
inside/outside |
| Flux Density |
2.0 T |
| Phase Plug Design |
4 slot |
| Phase Plug Material |
Aluminum |
| Magnetics |
Neodymium |
| Voice Coil Demodulation Ring |
Copper |
Thiele - small parameters
| Bl factor (Bl) (T x m) |
17.60 T x m |
Mounting information
| Overall diameter |
146 mm / 5.75 inches |
| Overall height |
55 mm / 2.17 inches |
| Mounting |
4 x 6 mm threaded holes at 90° |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
Shipping information
| Package Height |
79 mm / 3.11 inches |
| Package Width |
169 mm / 6.65 inches |
| Package Depth |
171 mm / 6.73 inches |
| Package Weight |
2.92 kg / 6.44 lbs |
