RCF IPS 5.0K, Class H Power Amplifier (2 X 2,600 W @ 4 Ω)

IPS 5.0K Two Channels Professional Power Amplifier

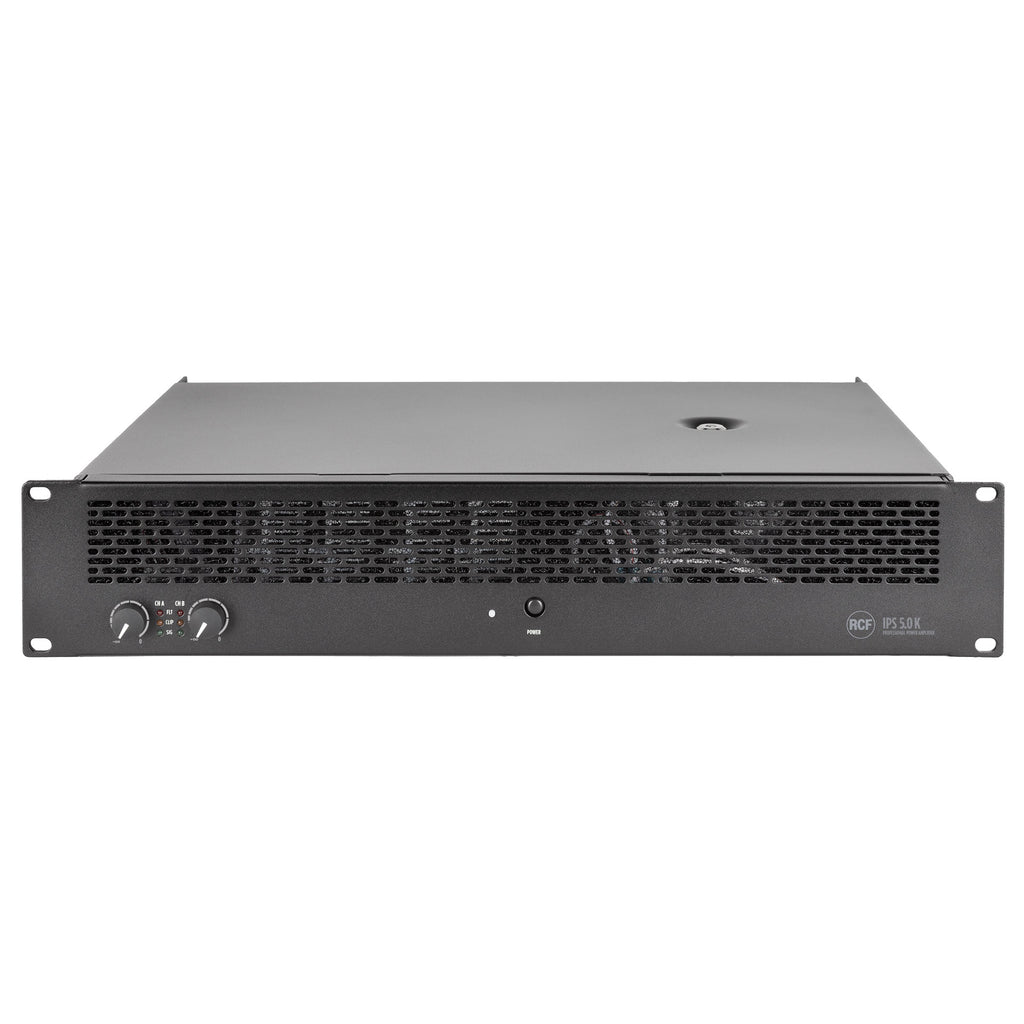

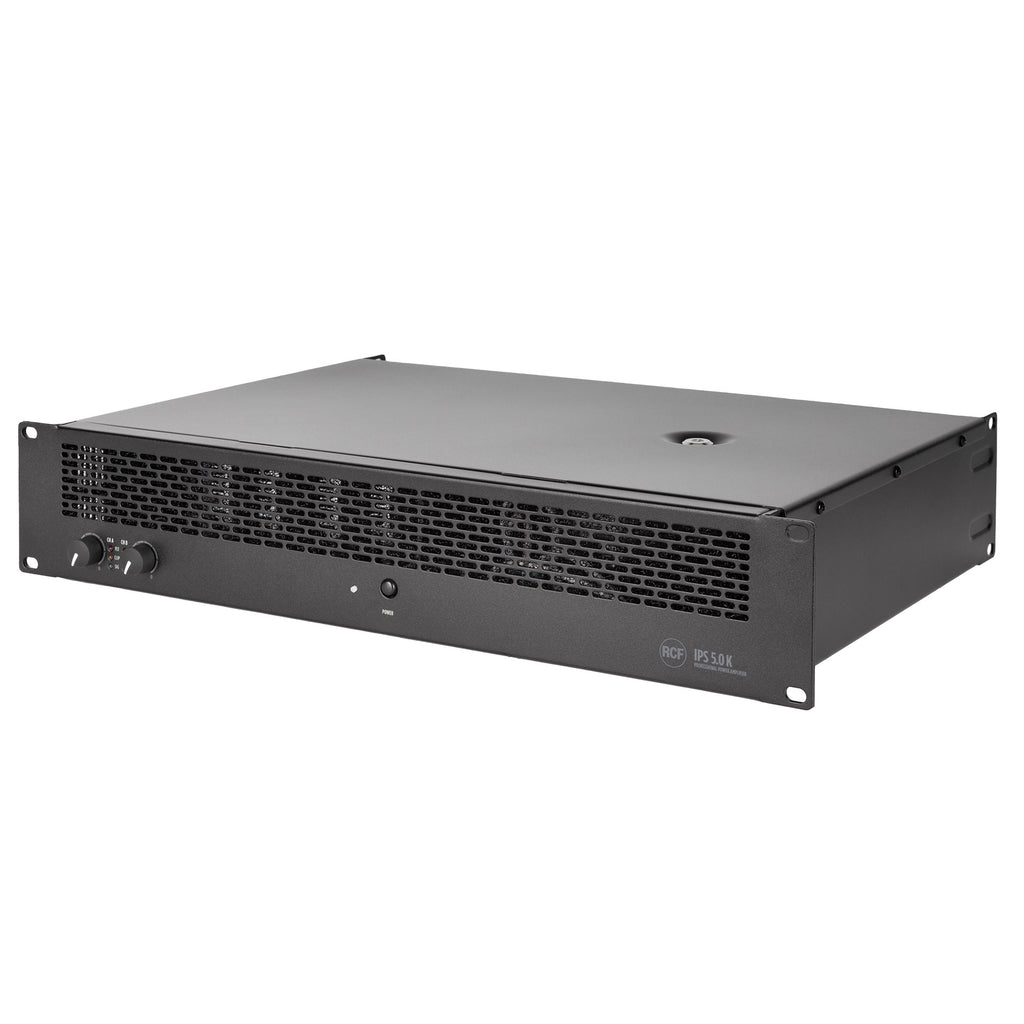

IPS Series is a range of two channel professional amplifiers that combine the latest high-performing class-H power amplification technology with long-term reliability. IPS 5.0K is a 2-channel power amplifier that delivers up to 2 x 2600 Watts at 4 Ohms impedance. It features independent gain control, signal/clip and fault indicators, stereo XLR input and output link, stereo/parallel/bridge switch, speakON, and binding post output connectors. Moreover, it is protected against short circuits. Thanks to its high-efficiency heat sinks and variable speed fans, IPS 5.0K can withstand extreme heat conditions, ensuring complete reliability.

Features

• 2 x 2600 W Class-H power
• Fast response and low distortion
• Stereo, parallel, bridge modes
• Extensive protection circuit
• Variable speed cooling system
• Signal, clip, fault led indicators
• XLR input connectors
• SpeakON and binding post output connectors
• Limiter on each channel

Energize your Sound

IPS are high-performance, versatile 2U power amplifiers for install applications, using sophisticated Class-H topology for two single-channel outputs, two parallel outputs, or a single-channel bridge operativity. High quality, low distortion audio output, flawless reliability and safety, industry-standard speakON connectors, and binding post terminals make IPS Series electronics the workhorse solution for mobile sound systems and permanent installation applications.

Extensive protection circuits

The Advantage of Class H

Class-H amplifiers modulate the supply voltage to the amplifier output devices so that it is never higher than necessary to support the signal swing. This reduces dissipation across the output devices connected to that supply and allows the amplifier to operate with an optimized efficiency, regardless of output power level. Up to full power, a Class-H design will require less energy than a pure class AB design, and is better suited for high-power applications.

Remarkable Audio Performance

With a very high signal-to-noise ratio, IPS amplifiers also boast a very low total harmonic distortion, making it perfect for highly demanding music applications hence delivering perfect vocal intelligibility.

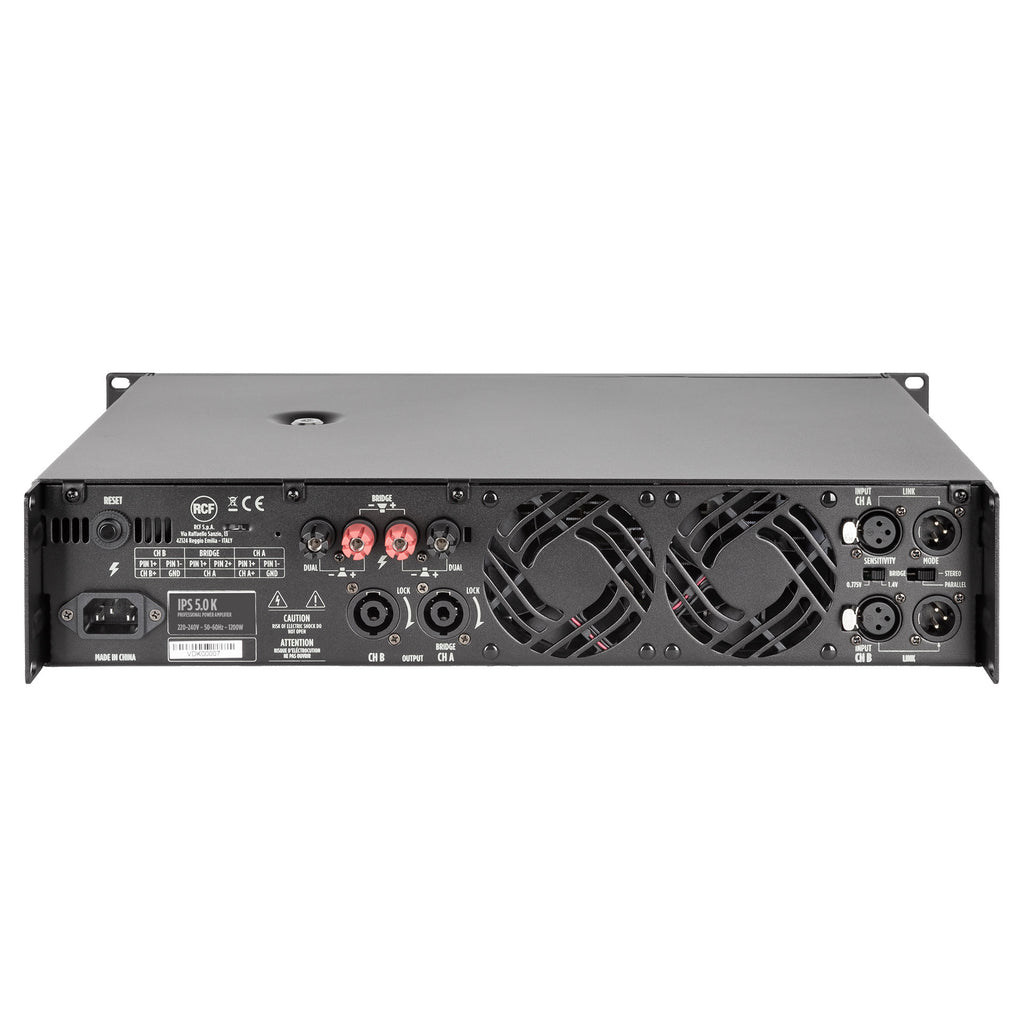

1 CH B OUTPUT

Channel B output to loudspeakers (SPEAKON and BINDING POST connectors). Do not use this output if the amplifier is set to BRIDGE mode. See both ‘Operation modes’ and ‘SPEAKON connector wiring’ manual sections.

2 CH A OUTPUT

Channel A output to loudspeakers (SPEAKON and BINDING POST connectors). If the amplifier is set to BRIDGE mode, only connect this output. See both ‘Operation modes’ and ‘SPEAKON connector wiring’ manual sections.

3 CH A INPUT

Channel A balanced audio input (female XLR connector).

4 CH A LINK

Channel A balanced parallel audio output (male XLR connector). This output is linked in parallel with the channel A input and is useful to link another amplifier.

5 SENSITIVITY

switch

Set the sensitivity switch to either 0.775 V or 1.4 V, which is input signal voltage required to get the maximum power output from the amplifier.

6 CH B INPUT (STEREO MODE ONLY)

Channel B balanced audio input (female XLR connector).

7 CH B LINK

Channel B balanced parallel audio output (male XLR connector). This output is linked in parallel with the channel B input and is useful to link another amplifier.

8 MODE

switch

Before turning the amplifier on, set the amplifier mode selector to the right position among BRIDGE, PARALLEL (mono) and STEREO. See the ‘Operation modes’ manual section.

9 RESET

button

Push this button to reset the amplifier when is muted due to the thermal protection.

Self-protecting Architecture

IPS Amplifiers implement several safety strategies protecting both the amplifier and the sound system, including an effective peak limiting protection for the transducers. The temperature-controlled continuous variable speed double-fan system (front to back), combined with the high-efficiency heat sinks, allows the amplifier to maintain the optimal working temperature, no matter the environmental temperature or the power output. The circuit is protected from overheating and short circuits, also including protections against infrasonic DC and Very High Frequency (VHF) peaks from non-musical signals that could damage transducers.

Specifications

Amplifier specifications

Input section

Output section

Configuration and control

Protections

Power requirement

Standard compliance

Physical specifications

Size / Weight

Shipping information
