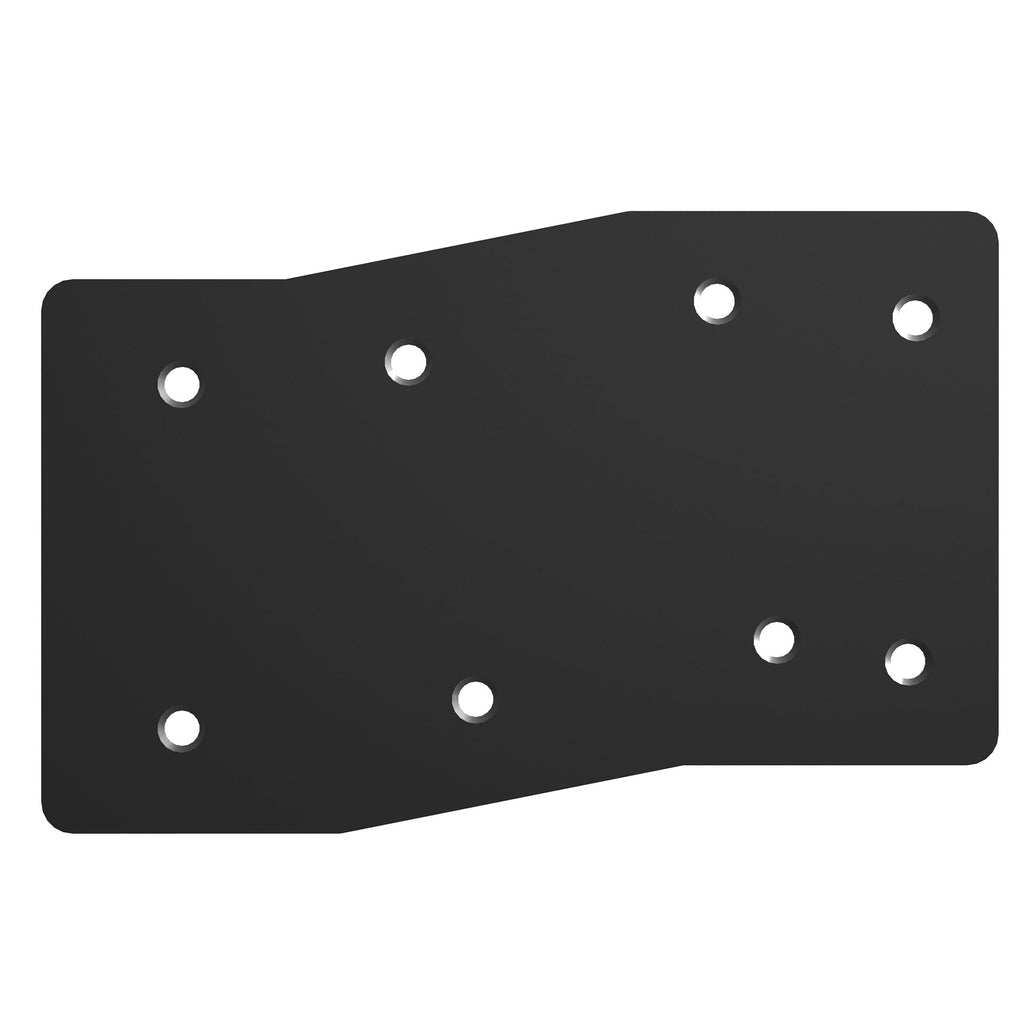

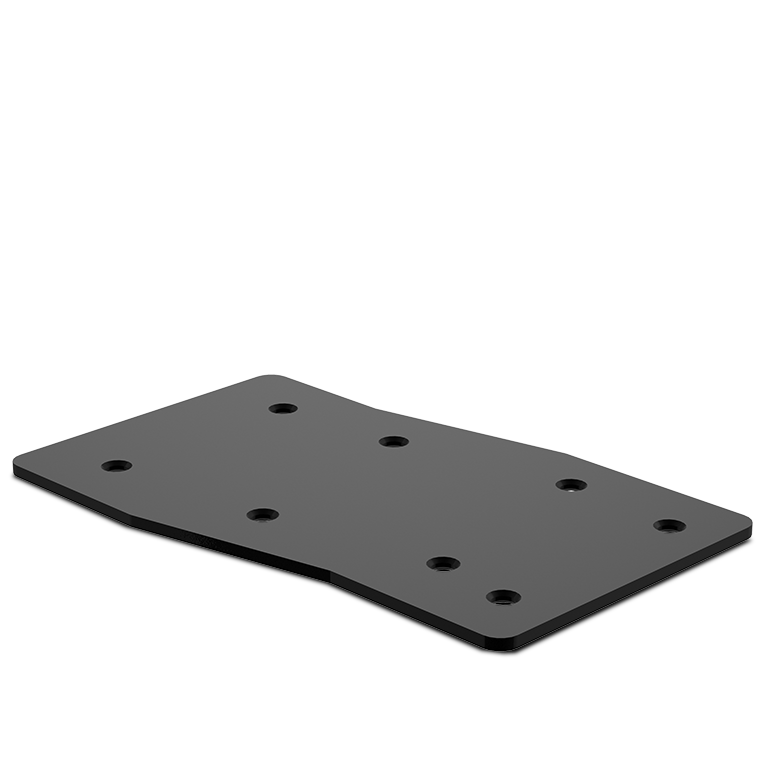

C-BR 10° Q 15 Flying Bracket
C-BR Q 15 is a flying bracket that allows to install Q 15 modules with a coupling angle of 10°, instead of the native 22.5°. It shall be used in combination with the vertical fly bar FL-B V Q 15.
Specifications
General specifications
| Compatible models: |
Q 15 Q 15-L Q 15-P |
| Number of included brackets: |
4 |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Steel |
| Color |
Black - RAL 9005 |
Size / Weight
| Height |
176 mm / 6.93 inches |
| Width |
304 mm / 11.97 inches |
| Depth |
6 mm / 0.24 inches |
| Weight |
2.5 kg / 5.51 lbs |
Shipping information
| Package Height |
125 mm / 4.92 inches |
| Package Width |
885 mm / 34.84 inches |
| Package Depth |
775 mm / 30.51 inches |
| Package Weight |
11 kg / 24.25 lbs |
