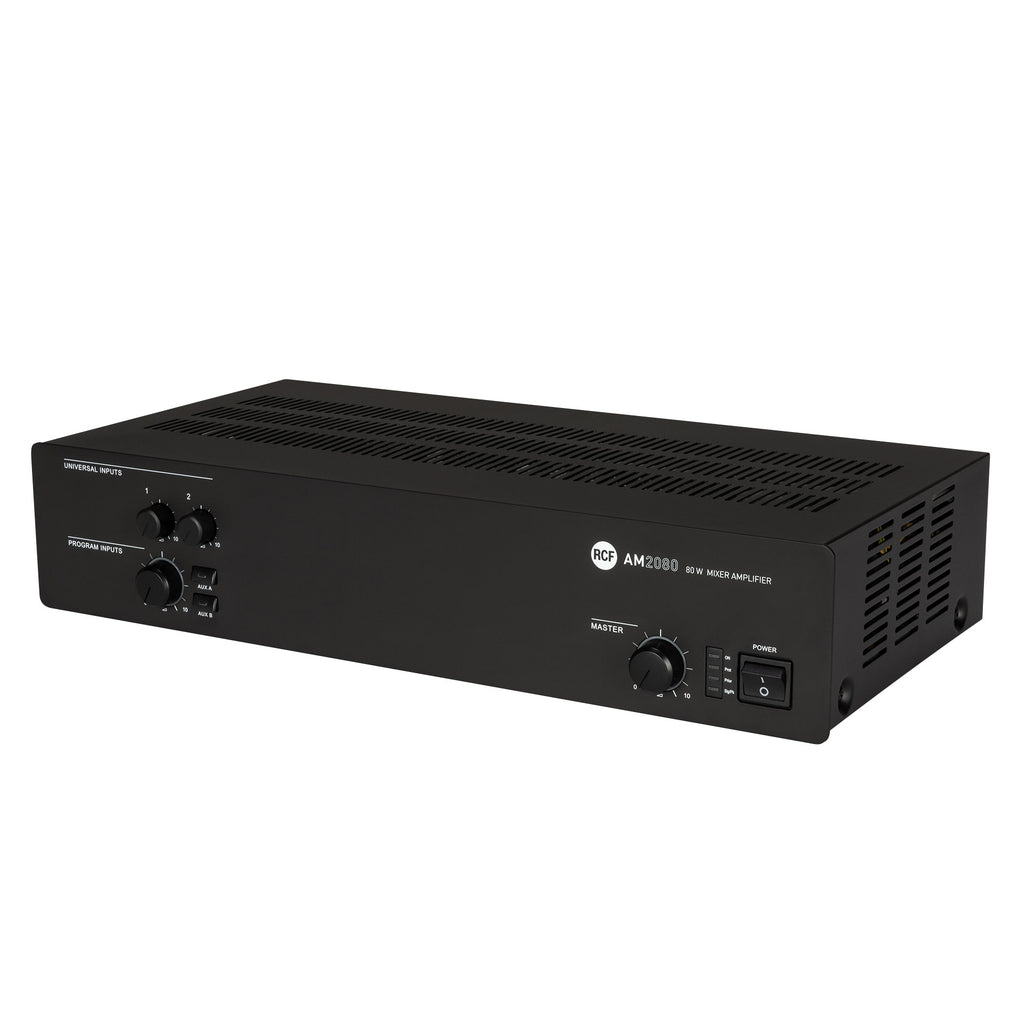

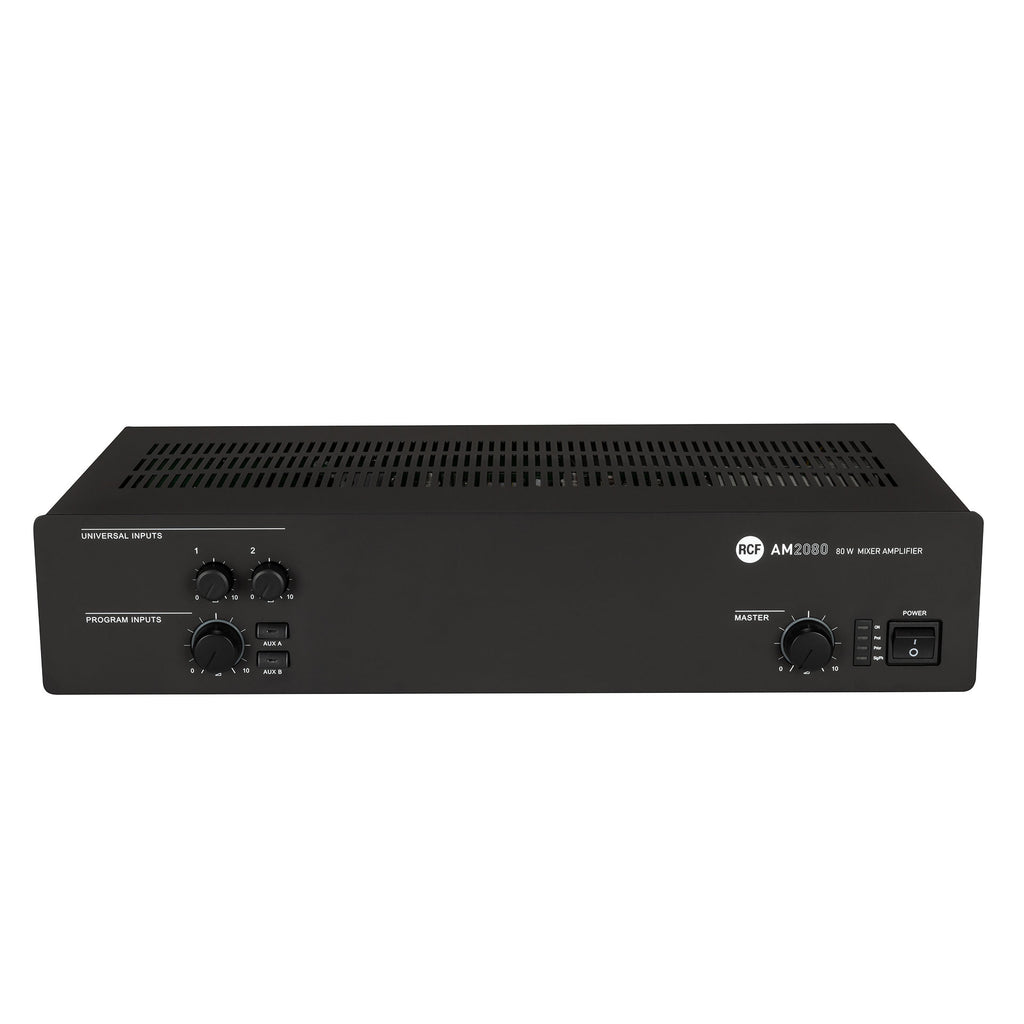

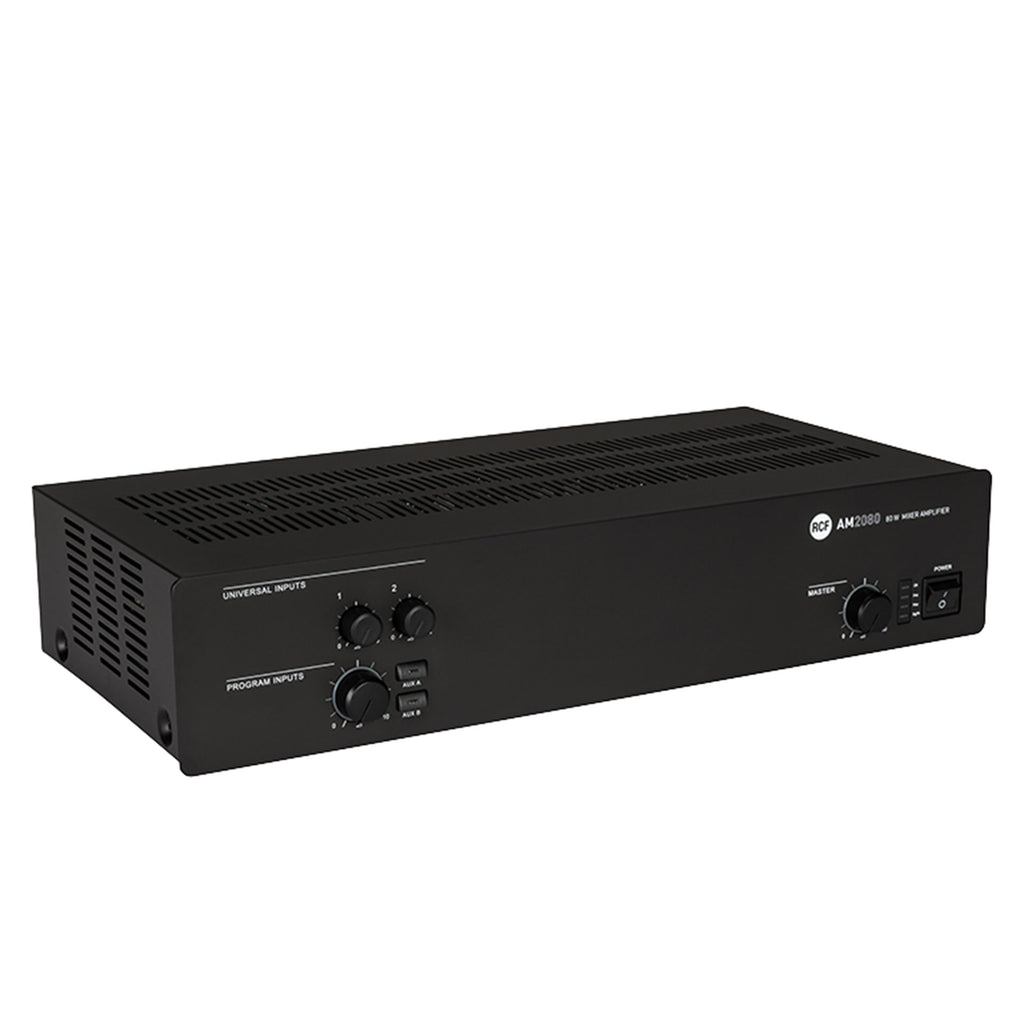

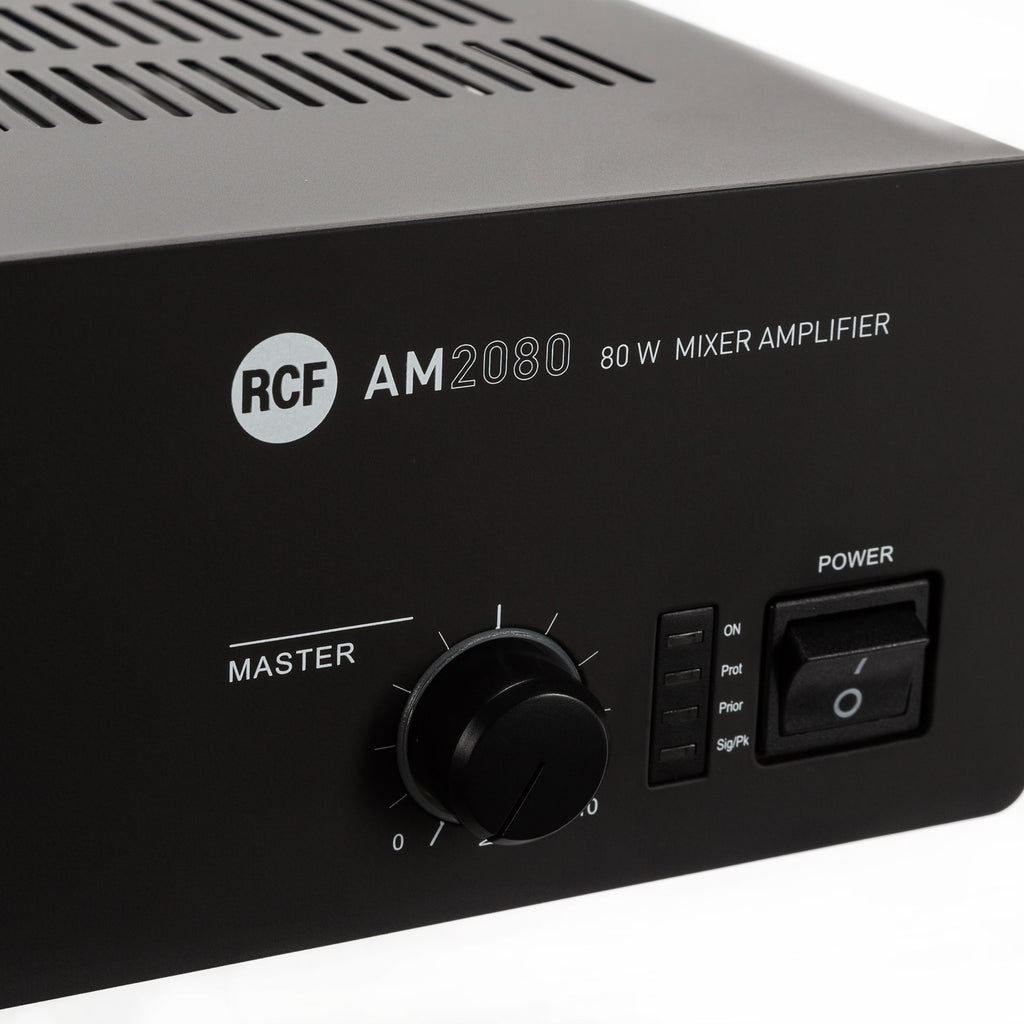

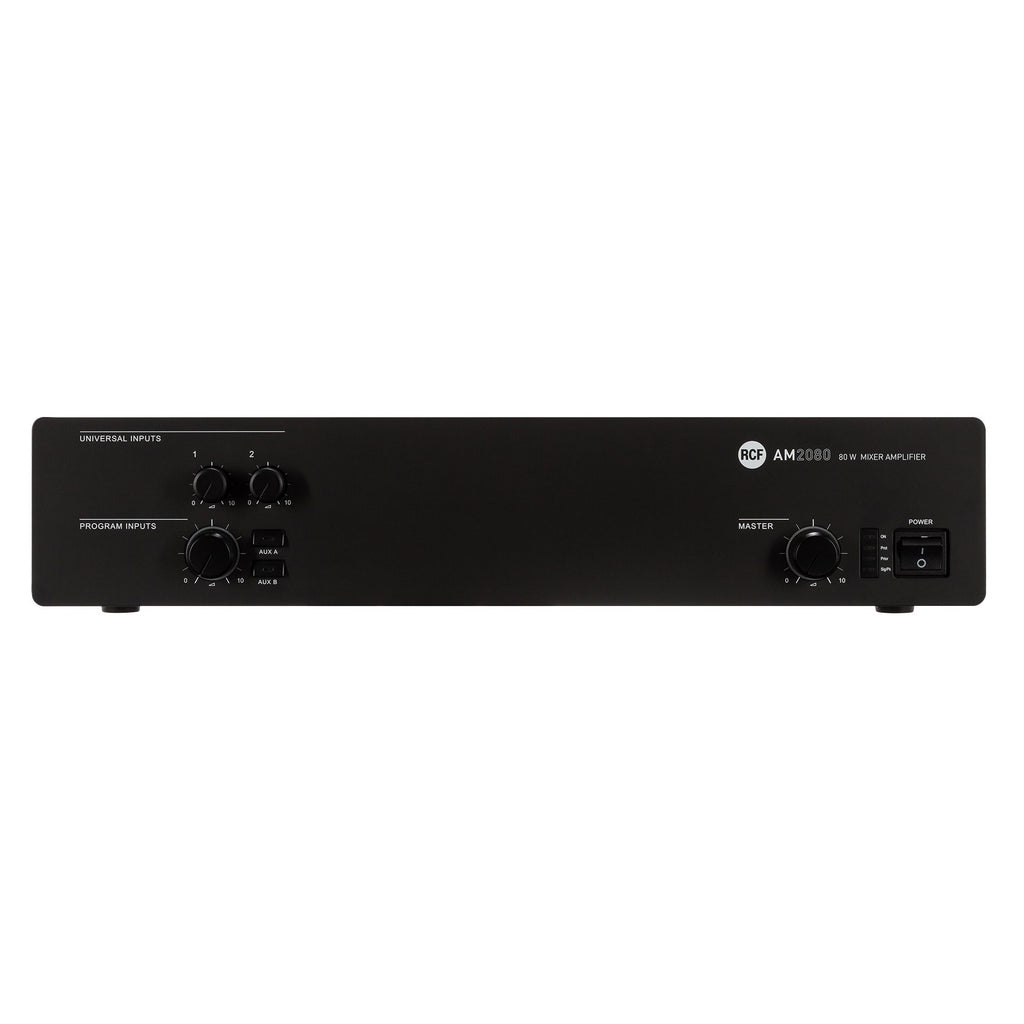

AM 2080 Mixer Amplifier
AM 2080 is a mixer-amplifiers with 2 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). The nominal power: is a 80 W amplifier. The amplifier output is available either for low impedance loudspeakers or 100 - 70 V constant voltage line.
Features
- Full digital technology Mixer Amplifier 80 W RMS
- 100 V - 70 V and 4 Ohm outputs
- 2 universal inputs with phantom facility on screw terminal connections
- XLR connector on input 1
- RJ45 connectors on input 2 for connection to BM3001 microphone
- Configurable Priority settings, VOX facility on input 1
- Selectable aux inputs with two keys on the front panel for music source
- Aux inputs with volume and tone controls
- Music On Hold and PRE outputs
- Digital Chime and Siren built-in generator
Specifications
Amplifier specifications
| Output Power |
1 x 80 W @ 4 ohm |
| Frequency Response (-3dB) |
50 Hz - 16 Hz |
| Distortion (THD+N) @ 1 kHz nominal power |
<0.3 % |
Input section
| Total number of inputs |
5 |
| Balanced |
5 |
| Unbalanced |
1 |
| Mono |
4 |
| Stereo |
2 |
| Line inputs |
2 |
| Line connectors |
RCA |
| Mic+Line inputs |
2 |
| Mic+Line connectors |
Euroblock, XLR |
| Mic+Line Phantom |
30 V DC |
| VOX |
Yes |
| Paging inputs |
1 |
| Paging connectors |
RJ45 |
| Paging command |
Contact |

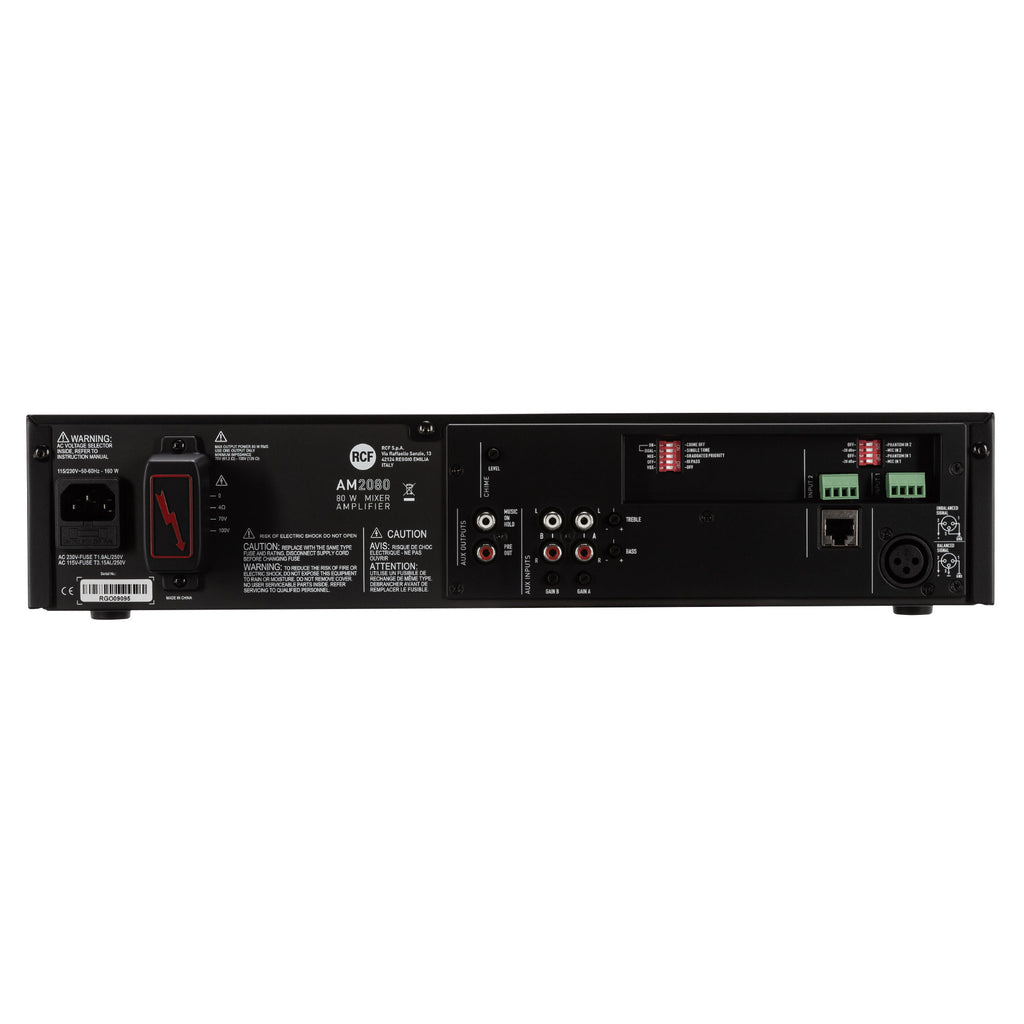

Output section
| Signal output number |
2 |
| Signal output connectors |
RCA |
| Power output connectors |
Euroblock |
Processing
| Tone controls |
Yes |
| High-pass filter |
150 Hz |
Configuration and control
| Configuration |
DIP switch, Front panel |
| Priority |
Yes |
| Music on hold |
Yes |
| Chime tone |
Yes |
Protections
| Cooling |
Convection |
| Short circuit |
Yes |
| Thermal |
Yes |
| DC |
Yes |
| Fuses |
Yes |
Power requirement
| Operating voltage |
220-240/115 V~ 50/60Hz |
| Voltage selection |
Internal |
| Power consumption (MAX) |
160 W |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Metal |
| Color |
Black |
| Rack mounting |
19", 2U |
Size / Weight
| Height |
88 mm / 3.46 inches |
| Width |
442 mm / 17.4 inches |
| Depth |
230 mm / 9.06 inches |
| Weight |
3.77 kg / 8.31 lbs |
Shipping information
| Package Height |
200 mm / 7.87 inches |
| Package Width |
330 mm / 12.99 inches |
| Package Depth |
500 mm / 19.69 inches |
| Package Weight |
5.38 kg / 11.86 lbs |
