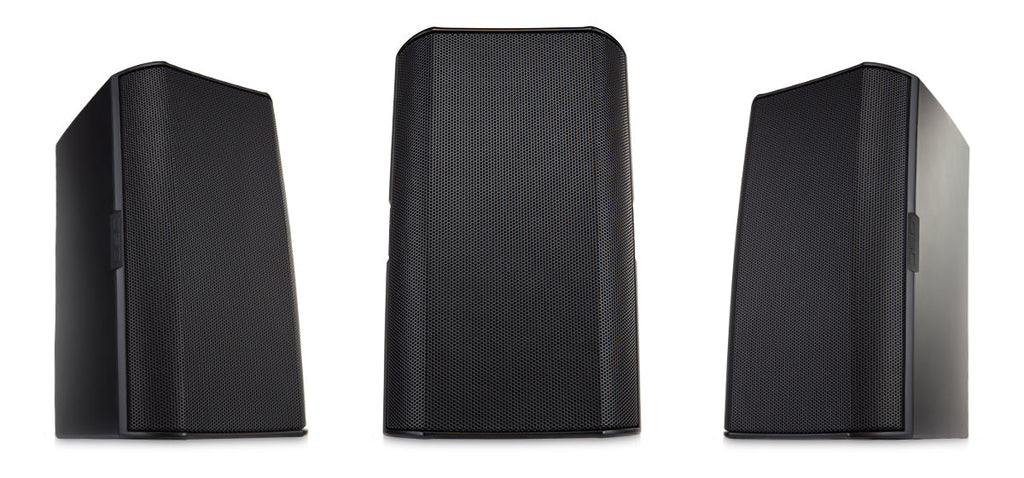

QSC AD-S12-BK
Roll over image to zoom in Click on image to zoom
QSC AD-S12-BK

QSC AD-S12-BK

QSCSKU: AD-S12-BK
Price:
$1,045.00

Description



AD-S12


Features

  • 12-inch weather treated woofer; 1.4-inch compression driver
  • 75° conical DMT coverage
  • Maximum peak SPL 126 dB
  • DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Optional Yoke mount and M10 Kit-C for additional installation versatility
  • Advanced voicing filter sets using QSC Intrinsic Correction™, available through either Q-SYS or CXD amplifier platform
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, and BIM information available online

System Details AD-S12
Effective frequency range1 52 Hz - 20 kHz
Rated noise power / voltage2 300 watts / 50 volts (rms)
Broadband Sensitivity3 95 dB SPL
Coverage angle (-6 dB) 75° conical DMT
Directivity factor (Q) 12
Directivity Index 11 dB
Maximum continuous SPL4 120 dB
Maximum peak SPL4 126 dB
Rated impedance 8 ohms
Recommended amplifier power
(loudspeaker "program" power)		 600 watts
Transformer taps n/a
HF transducer 1-inch exit / 1.4-inch voice coil compression driver
LF transducer 12-inch weather resistant paper cone woofer, 2.5-inch / 64 mm voice coil

Input connector type Euroblock connector with parallel output terminals
Enclosure material Painted ABS polymer
Grille material Powder coated aluminum
Enclosure Details
Ingress protection IP-54
Operating environment Designed for indoor and outdoor use
Testing The AD Series loudspeakers qualified for outdoor use using the following tests:

  • Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
  • Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
  • High and low temperature: tested to QSC internal standards between -20° & 50° C
Product Dimensions
(HWD) inches		 23.4 x 13.9 x 12.7
Product Dimensions
(HWD) mm		 594 x 354 x 323
Net weight 35.2 lb / 16 kg
Shipping weight 46.3 lb / 21 kg
Shipping dimensions 34.5-inch x 17.9-inch x 17.2-inch (765 x 455 x 437 mm)
Included accessories X-Mount mounting system, Euroblock connector, Input panel cover
Optional accessories YMS12 yoke mount, M10 Kit-C

1 Free-field, -10 dB from on-axis sensitivity
2 IEC60268-1 noise signal for 2 hours
3 On-Axis, free-field sensitivity, 2.83V, 1 m
4 Calculated from rated noise voltage and sensitivity


All specifications are subject to change without notice.
