PreSonus Monitor Station 2

PreSonusSKU: MONITOR-STATION-2

Price:
Sale price$349.99

Description

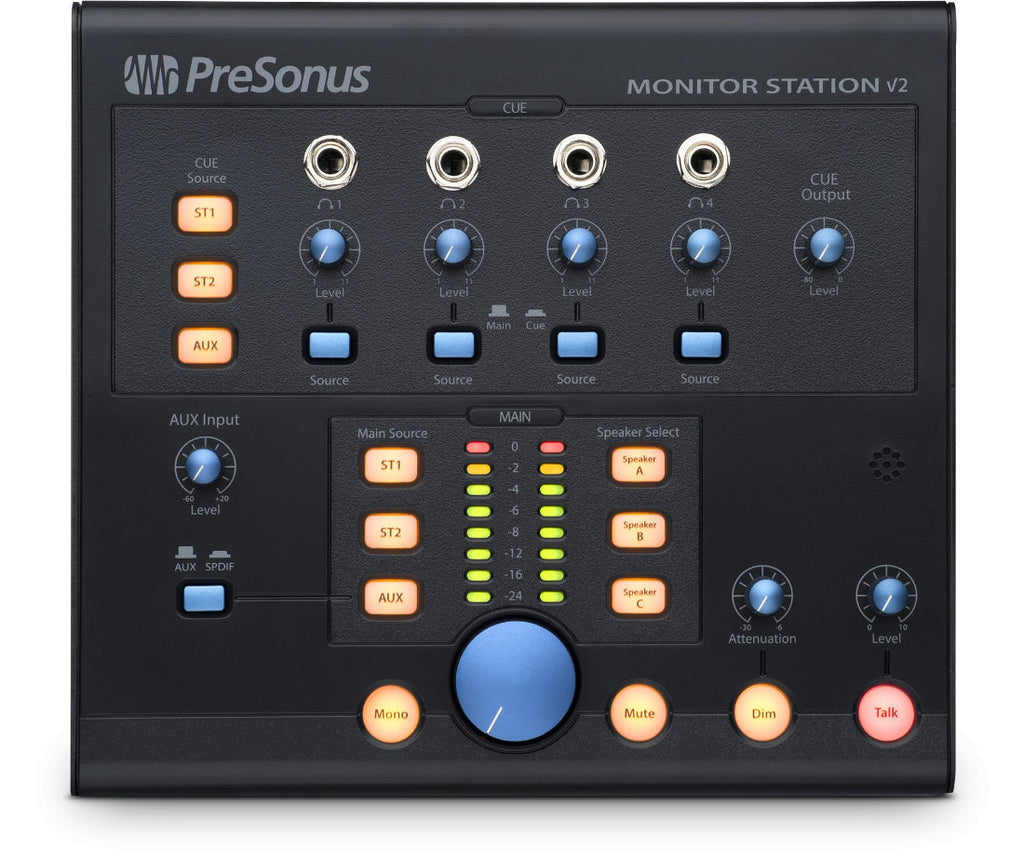

Monitor Station V2

Equip your studio with pro monitoring features for a song.

Manage multiple audio sources and sets of monitor speakers, track using illegally loud headphone amplifiers, and talk back to your drummer—all from your desktop.



Features

Inputs and Outputs

  • 2 Stereo pairs of ¼-inch TRS inputs
  • 1 Stereo pair of RCA Aux inputs
  • 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
  • 3 Stereo pairs of ¼-inch TRS speaker outputs with level controls
  • 1 Stereo pair of ¼-inch TRS Main outputs
  • 1 Stereo pair of ¼-inch TRS Cue outputs
  • 4 ¼-inch TRS screaming-loud stereo headphone outputs

Controls

  • Large Main level control
  • 3 Individual Main Source (ST1, ST2, Aux) select switches
  • 3 Individual Speaker Select switches
  • Cue section with Source select (ST1, ST2, Aux) and output-level control
  • Aux-S/PDIF Select switch
  • Aux Input level control
  • Main Mute, Mono, and Dim switches with variable Dim attenuation

Additional Features

  • 8-segment color LED input meters with selectable reference level
  • Built-in electret-condenser talkback microphone with input-gain control and Talkback button
  • Convenient desktop design

Technical Specifications
Audio Inputs
Internal Talkback Microphone
Gain Range +15 to +55 dB
Type Electret condenser
Sensitivity -42 dB
Stereo 1 and Stereo 2 Inputs
Type ¼” TRS Active Balanced
Input Impedance (Balanced) 10 k?
S/N Ratio (1 kHz @ +10 dBu, Unity Gain) >105 dB
THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) <0.0075%
Frequency Response (±0.5 dB) 10 Hz to 65 kHz
Noise Floor (20 Hz to 20 kHz, 150? input termination) -96 dBu
Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N) +22 dBu
Auxiliary Inputs
Type RCA Active Unbalanced
Input Impedance 47.5 k?
S/N Ratio (1 kHz @ 0 dBu, Unity Gain) >115 dB
THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) <0.01%
Frequency Response (±0.5 dB) 10 Hz to 50 kHz
Gain Range 80 dB to +10 dB
S/PDIF
Types RCA 75? coax
Dynamic Range 113 dB
THD+N 0.0025% (1 kHz @ -1 dBFS)
Maximum output at 0 dBFS +18 dBu
Sample Rates 44.1, 48, 88.2, 96 kHz
Input Meters (ST1, ST2, and Aux only)
Type Dual 8-segment LED w/peak hold
Sensitivity Range -24 dB to 0 dB
Audio Outputs
Type ¼” TRS Active Balanced
Output Impedance (Balanced) 51?
THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain) <0.01%
Frequency Response (±0.5 dB) 10 Hz to 50 kHz
Speaker A, B, and C
Trim Range -80 dB to 0 dB
Main Level Range -80 dB to 0 dB
Dim Attenuation Range -30 dB to -6dB
Cue
Cue Level Range -80 dB to 0 dB
Dim Attenuation (Talkback activated) -20 dB
Headphones
Type ¼” TRS Active Stereo
Maximum Output (60? load) 150 mW / channel
Frequency Response (±1.0 dB) 10 Hz to 50 kHz
Power
Power Supply Type External DC Transformer/Internal Line
Input Connector Type Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter
Monitor Station Input Voltage Range 18 VDC
Power Requirements (Continuous) 10W
Physical
Dimensions
Height 2.5” (63.5 mm)
Depth 8.5” (216 mm)
Width 9” (228.6 mm)
Weight 6 lbs. (4.54 kg)
As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
