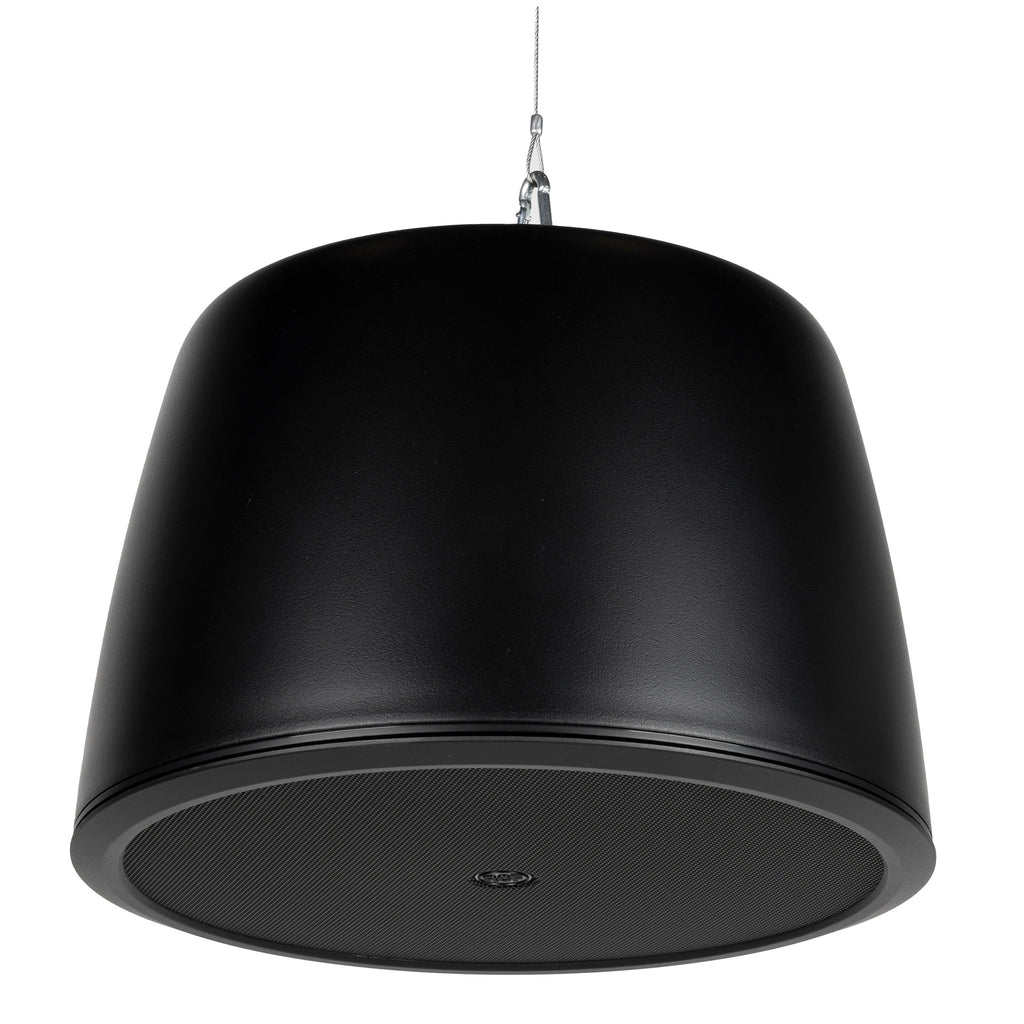

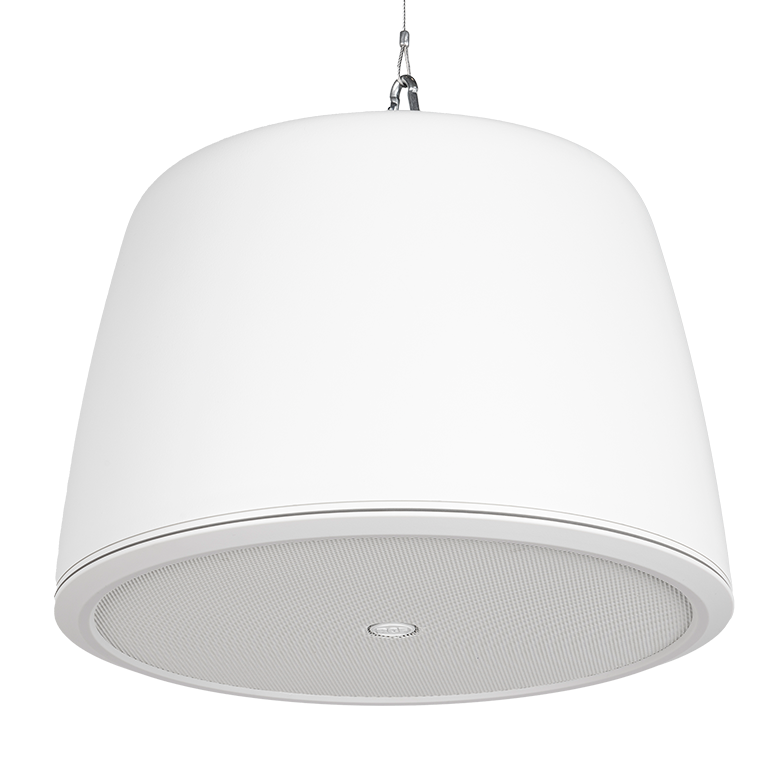

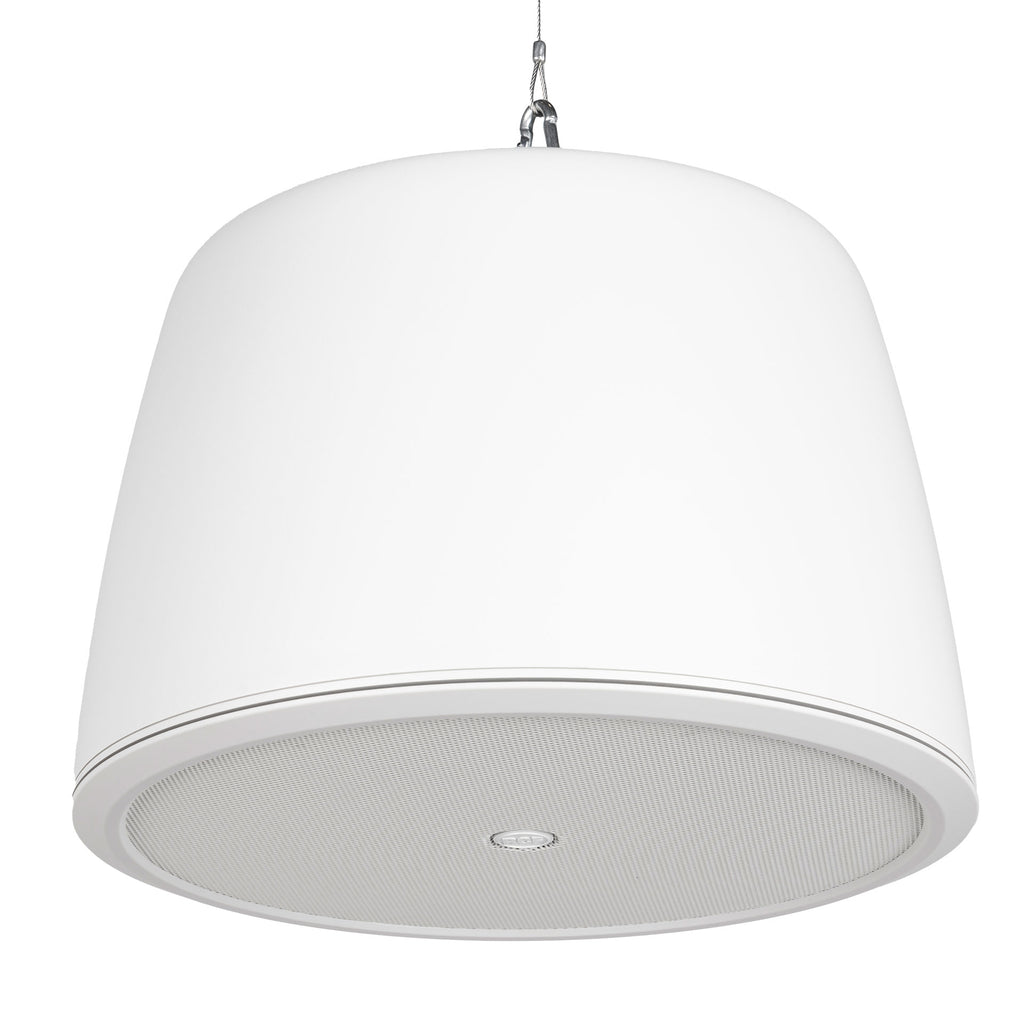

BUSINESS MUSIC | INSTALLED | PMR 60T | TWO-WAY PENDANT MONITOR SPEAKER | 80W RMS power handling | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
70 Hz - 20000 Hz |
| Max SPL @ 1m |
114 dB |
| Coverage angle |
130° |
| System Sensitivity |
89 dB |
| Power section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
80 W RMS |
| Peak Power Handling |
320 W PEAK |
| Protections |
Bulb lamp |
| Crossover Frequencies |
2500 Hz |
| Transducers |
| Dome Tweeter |
1 x 1.0'' neo, 1.0'' v.c |
| Woofer |
1 x 6.5'', 1.2'' v.c |
| Input/Output section |
| Input connectors |
Euroblock |
| Output connectors |
Constant Voltage Transformer |
| 70/100 V |
Power selection 1 |
| 80 W - 125 ohm |
Power selection 2 |
| 40 W - 250 ohm |
Power selection 3 |
| 20 W - 500 ohm |
Power selection 4 |
| 10 W - 1000 ohm |
Power selection 5 |
| 5 W - 2000 ohm |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
ABS |
| Grille |
Steel |
| Color |
White - RAL 9003, Black - RAL 9005 |
| Size / Weight |
| Height |
236 mm / 9.29 inches |
| Diameter |
300 mm / 11.81 inches |
| Weight |
5.1 kg / 11.24 lbs |
| Shipping information |
| Package Height |
340 mm / 13.39 inches |
| Package Width |
362 mm / 14.25 inches |
| Package Depth |
Package Weight |
| 6.5 kg / 14.33 lbs |
