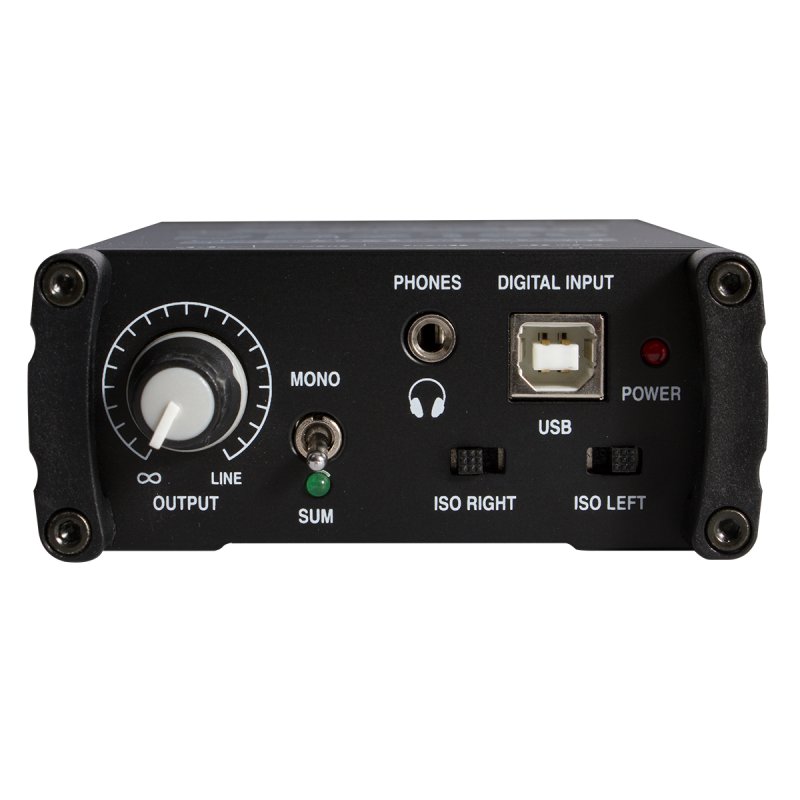

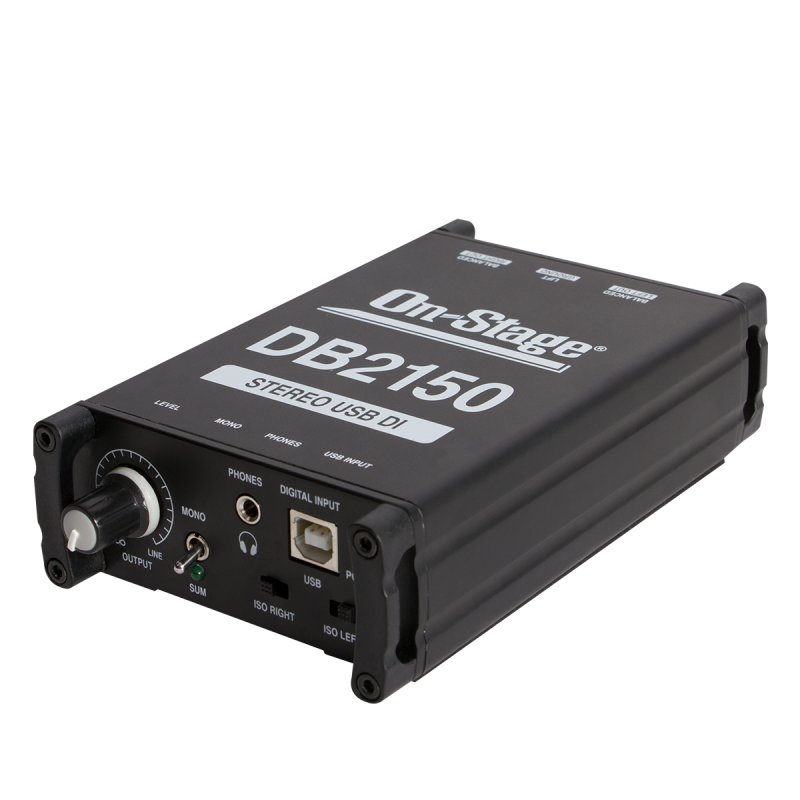

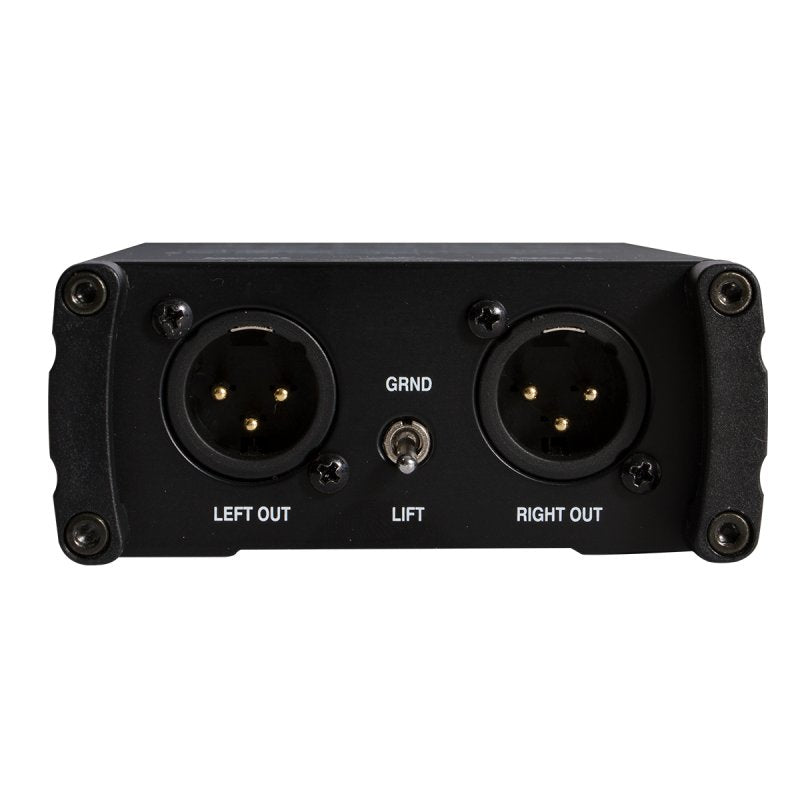

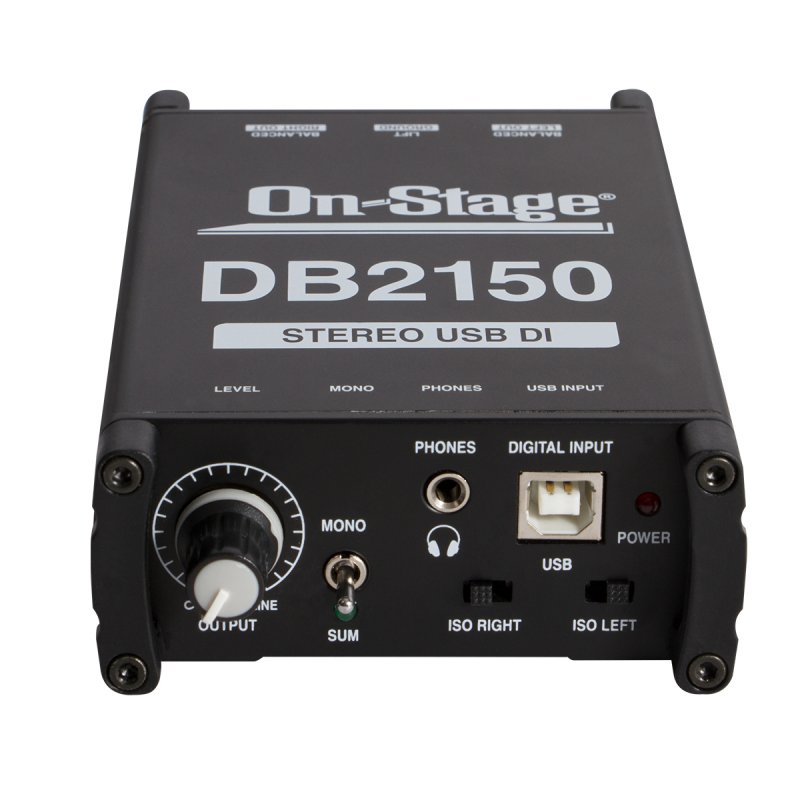

Our DB2150 Stereo USB DI Box converts digital audio to discrete stereo analog XLR signals ready to send via long cable runs to a mixer or PA system. For convenient plug-and-play use with laptops, when connected via USB, Windows and Mac computer operating systems automatically recognize this box as an available soundcard. Features include low-distortion passive circuitry, monitoring via a 3.5 mm headphone output, a ground-lift switch to eliminate ground-loop hum, transformer isolation switches for defeating channel-specific ground-loop hum, and a mono-sum switch to convert a stereo source to a mono output. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
Features

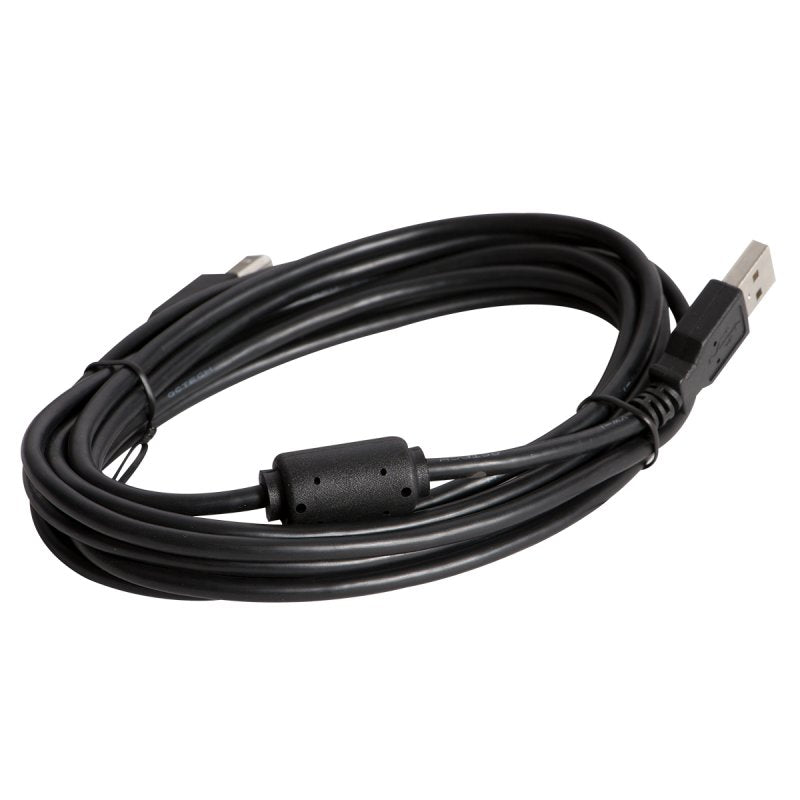

- Connects via USB for compatibility with a wide range of computers
- Automatically configured by Windows and macOS for easy, plug-and-play use
- Transformer isolation eliminates noise caused by ground loops
Specifications
| Application |
Computers, mp3 players, projectors, and DJ equipment |
| Construction |
Metal w/ nylon bumpers |
| Dimensions |
5.75" x 3.5" x 1.5" |
| Dynamic Range |
90dB |
| Frequency Response |
10Hz - 20kHz |
| Ground lift |
Yes |
| Input |
USB 2.0 Type A |
| Iso Switch |
Yes |
| Mono Sum |
Yes |
| Output |
XLR (stereo), 3.5mm headphone |
| Output Impedance |
200 Ohms |
| Sample Rate |
96k |
| Weight |
0.70 lb |
