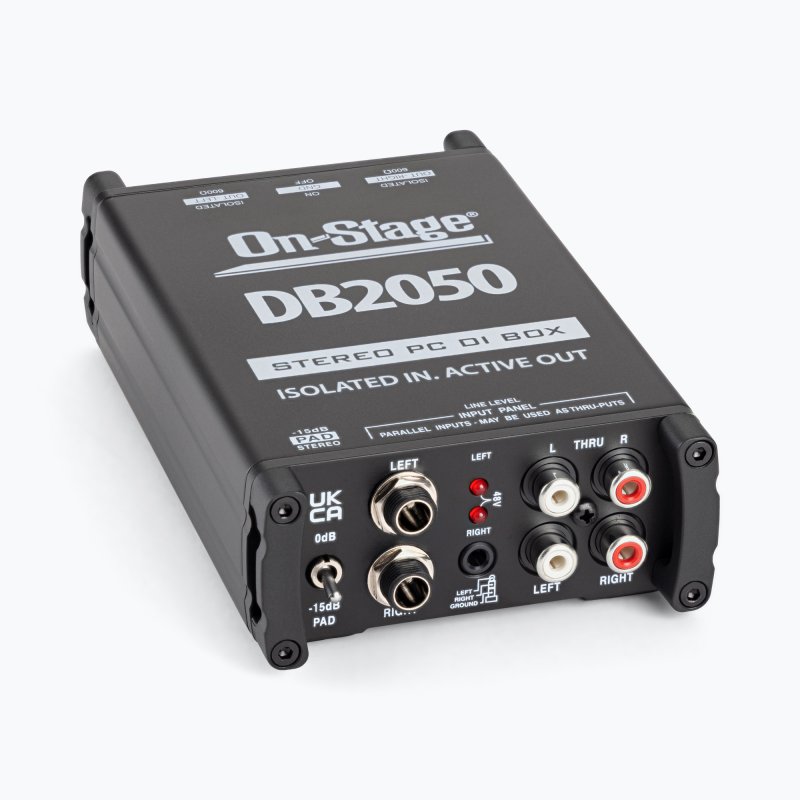

Our DB2050 Active Multimedia DI Box converts any line-level stereo source to a low-impedance discrete stereo XLR signal ready to send via a long cable run to a mixer or PA system. Features include a throughput connector to pass unaltered signal to a stage amp, a -15 dB pad switch to prevent clipping, and a ground-lift switch to defeat ground-loop hum. A variety of input connectors enable convenient use with various sources. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
Features
- Output signal can be sent via a long cable to a mixer or PA system without frequency loss
- Converts a line-level stereo input to a balanced, low-impedance stereo (XLR) output
- Active circuit features a high-quality transformer for low distortion and an isolated signal path
- -15 dB pad switch prevents clipping
Specifications
| Application |
Computers, mp3 players, keyboards, projectors, and DJ equipment |
| Construction |
Metal w/ nylon bumpers |
| Dimensions |
6" x 3.5" x 1.5" |
| Ground lift |
Yes |
| Input Resistance |
50K Ohms |
| Inputs |
Stereo 1/4" / 3.5mm / RCA |
| Outputs |
Isolated stereo XLR |
| Pad |
15dB |
| Polarity Switch |
Yes |
| Power |
Phantom |
| Product Type |
Direct Box |
| Weight |
0.70 lb |
