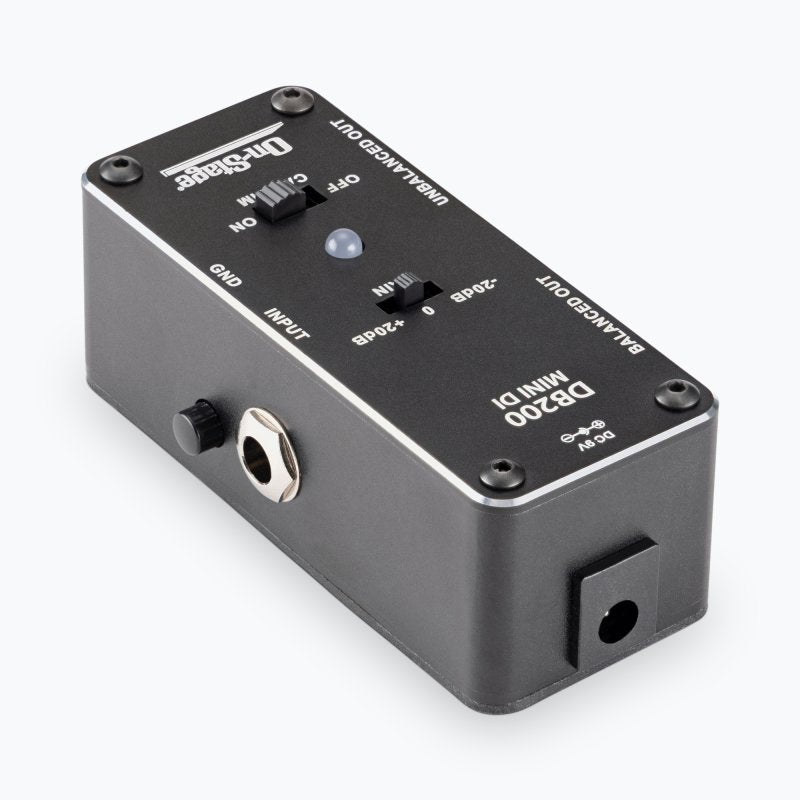

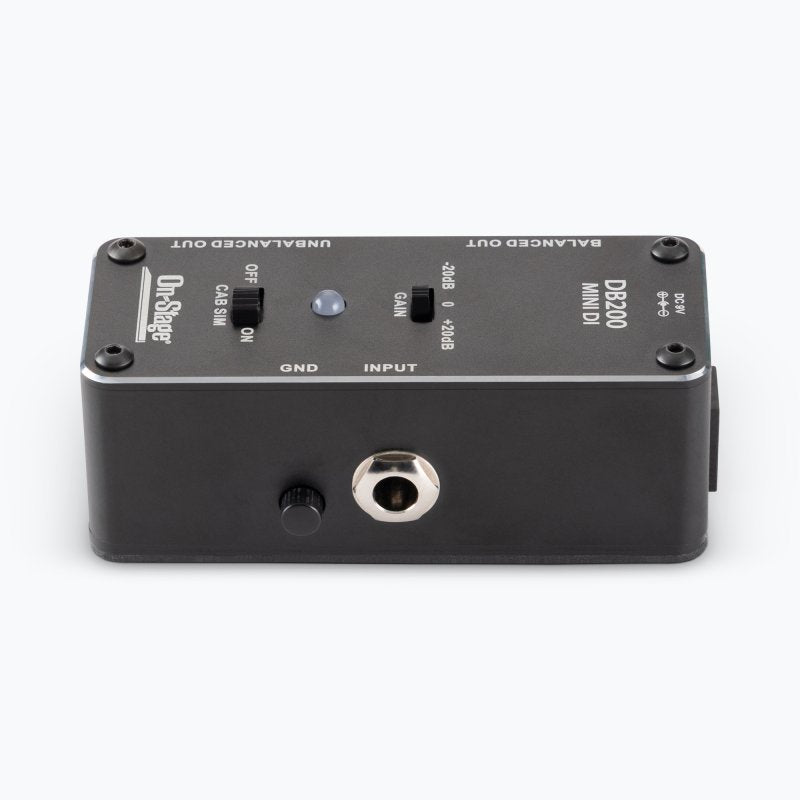

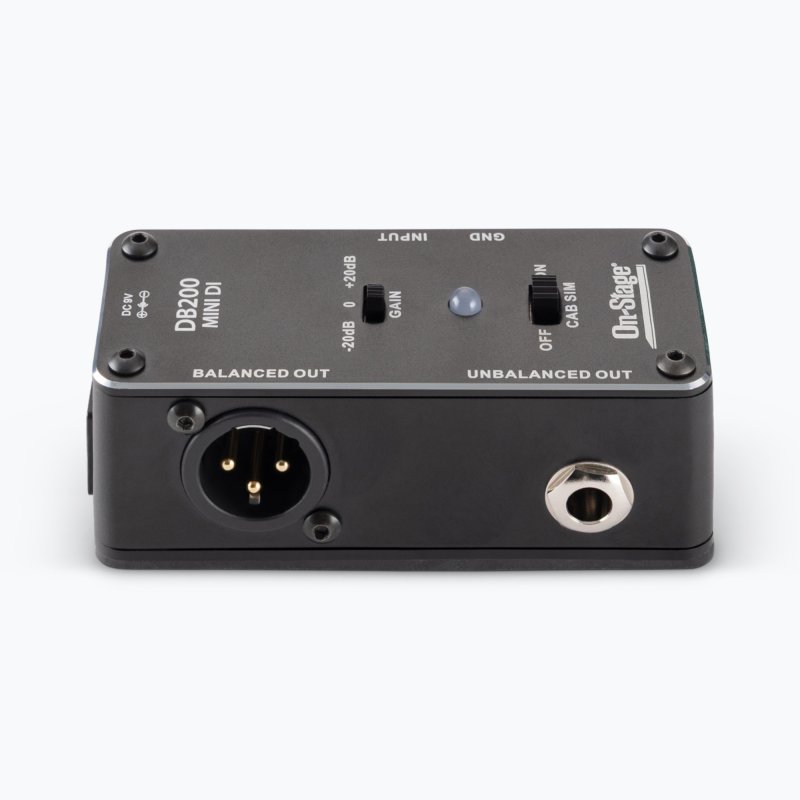

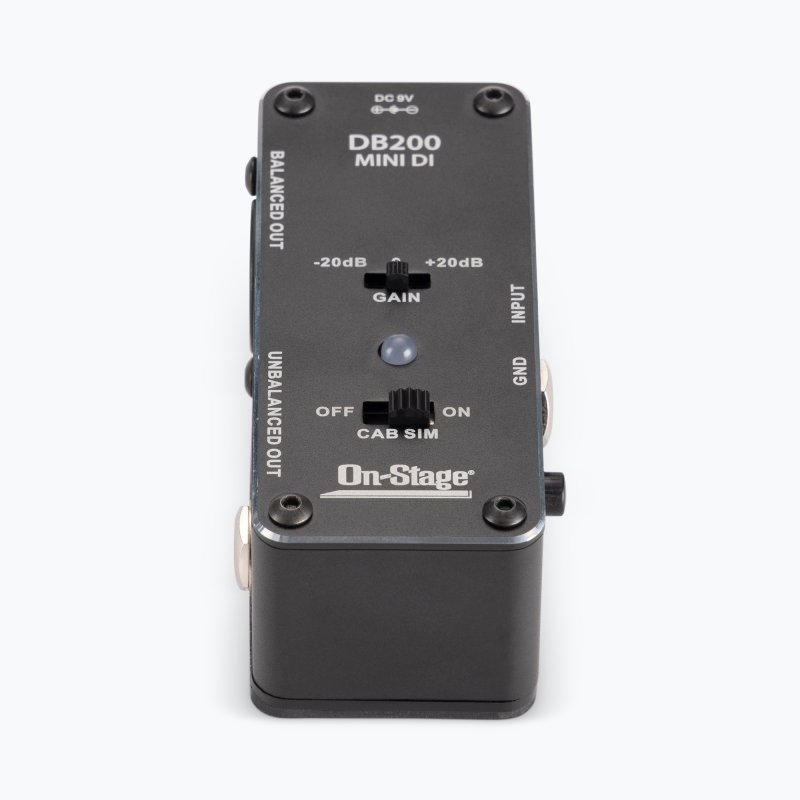

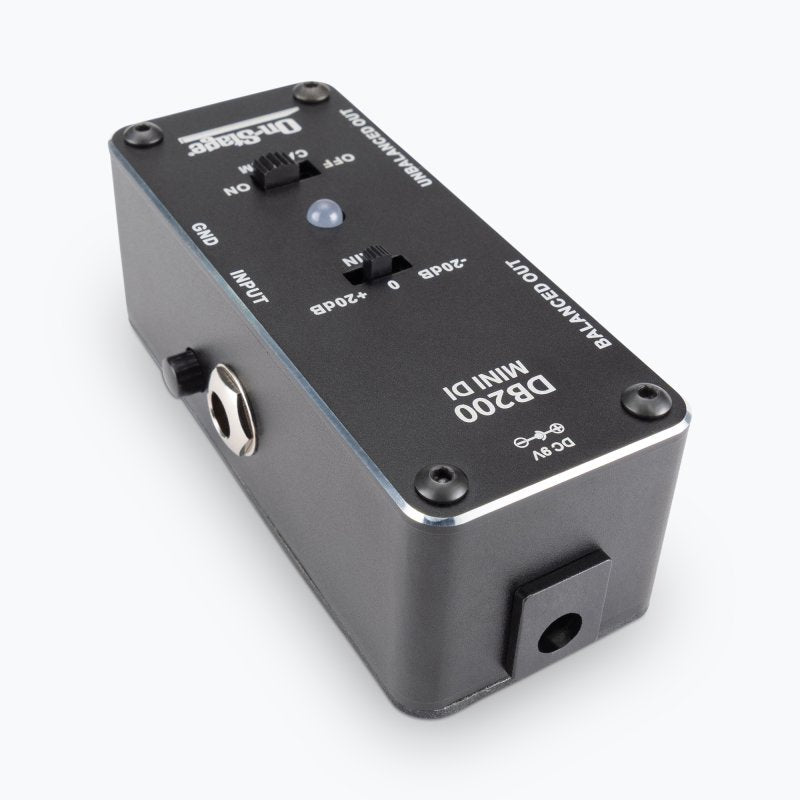

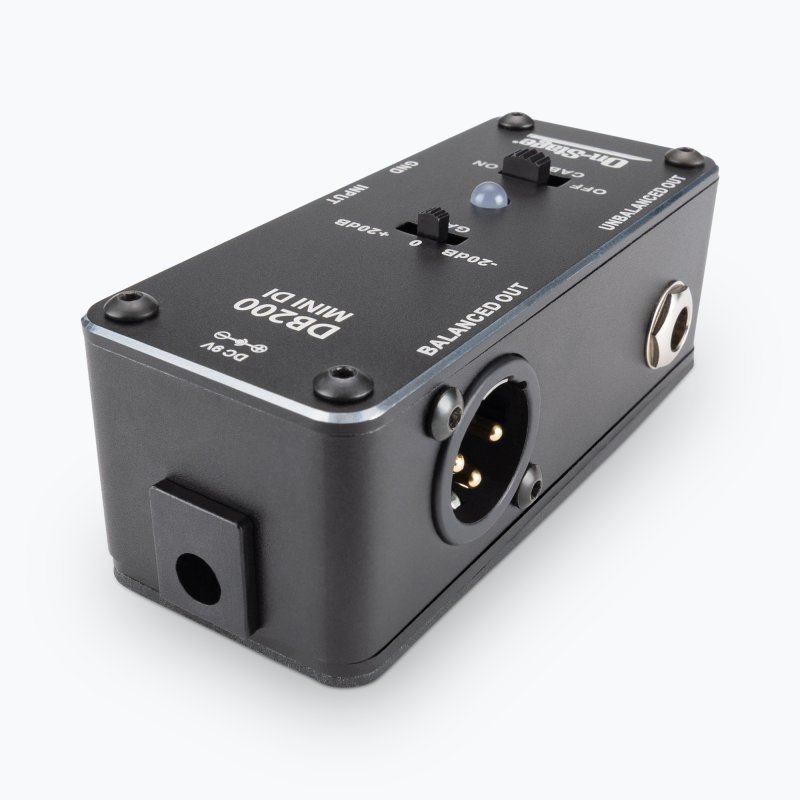

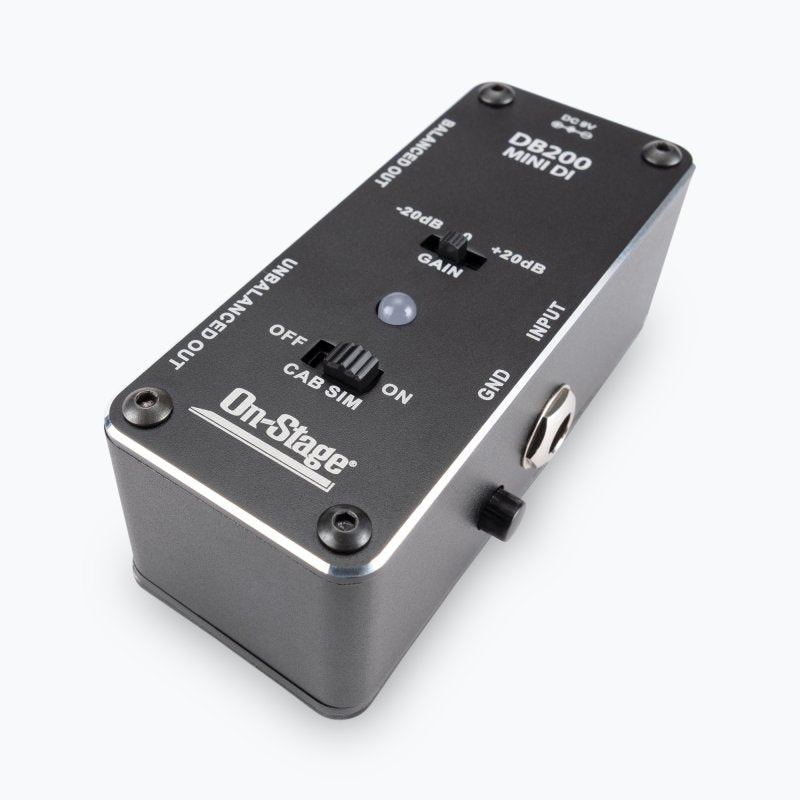

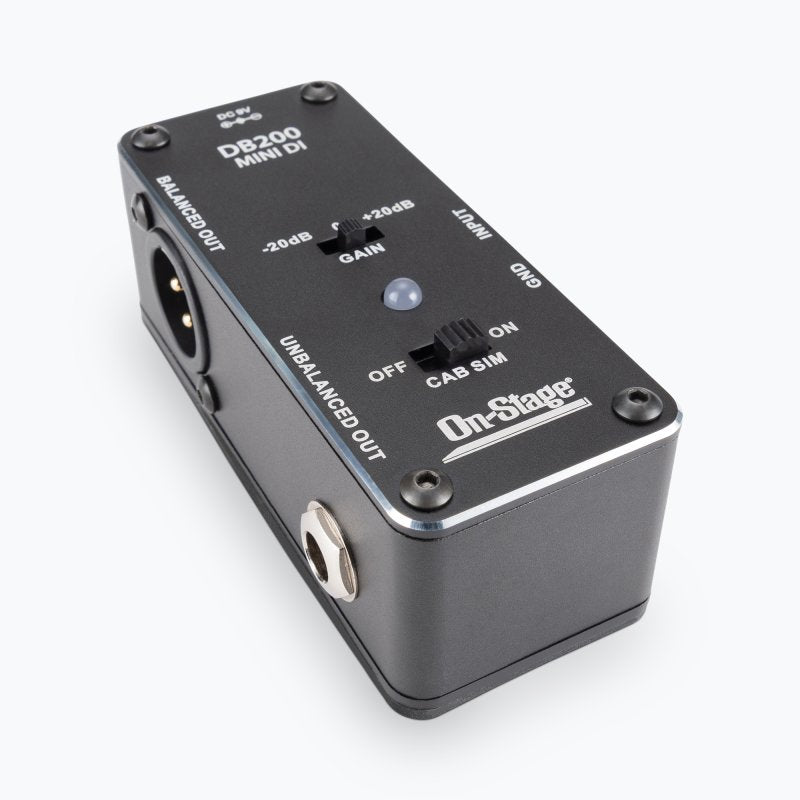

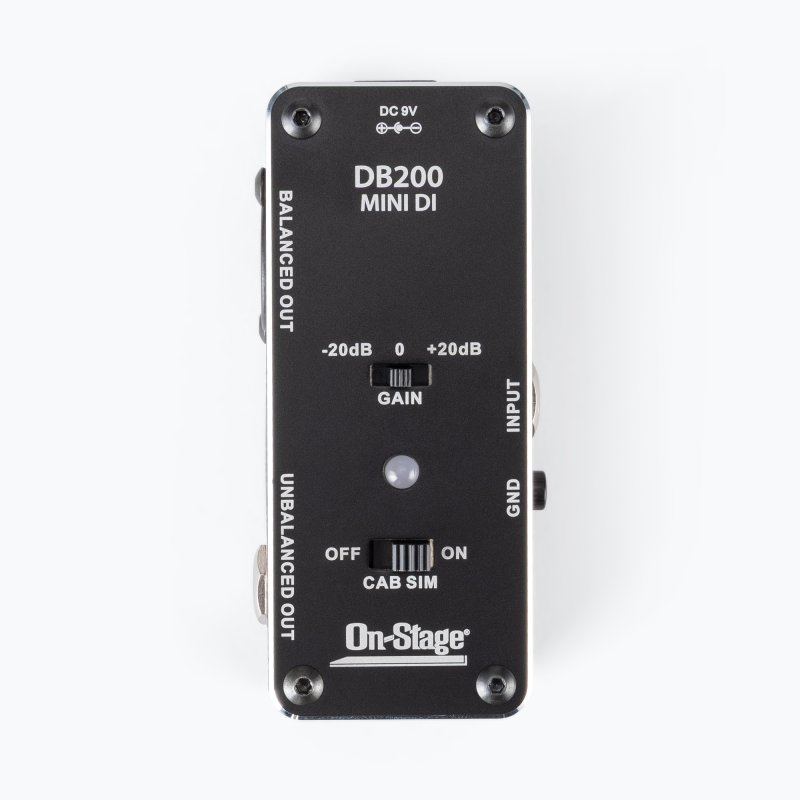

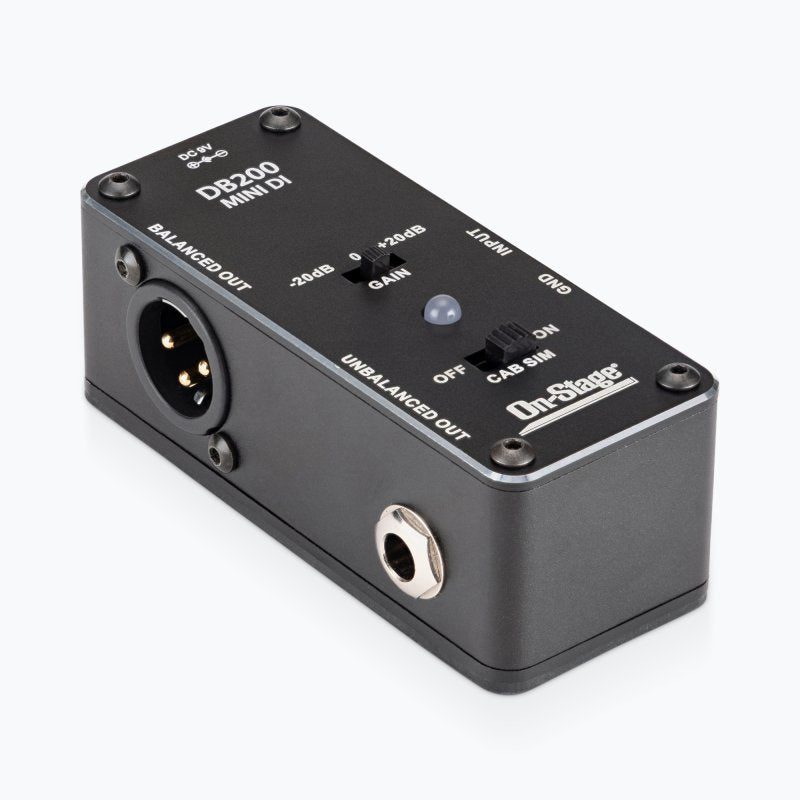

Our DB200 Mini DI Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. A cab simulator switch enables sending the input signal through an emulated amp directly to a mixer without using a physical amp. There's a switch for either +20 dB of gain to boost weak signals or a -20 dB pad to prevent clipping from louder sources. A ground-lift switch defeats ground-loop hum. When not using the DI, the true-bypass switch eliminates the circuitry of the pedal from the signal path. Balanced and unbalanced outputs provide the option to send the signal to an amp, a mixer, or both. This pedal includes hook-and-loop strips for convenient pedalboard mounting. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
Features
- Accepts a wide range of audio sources including guitars, basses, and keyboards
- Compact footprint saves space on pedal boards (includes hook-and-loop mounting strips)
- Cab simulator sends the input signal through an emulated amp to a mixer or PA system
- Gain/pad switch boosts weak signals or prevents clipping
Specifications
| Color |
Black |
| Current Draw |
12mA |
| Dimensions |
3.6" x 1.5" x 1.3" |
| Input Impedance |
1M Ohms |
| Output Impedance |
1k Ohms |
| Power Supply |
9V DC, center negative (not included) |
