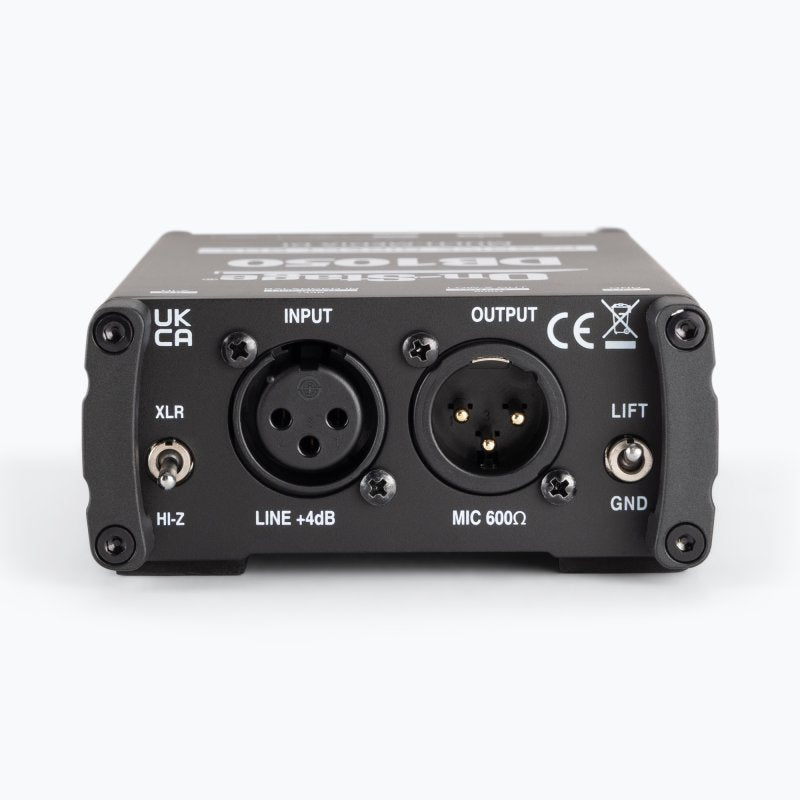

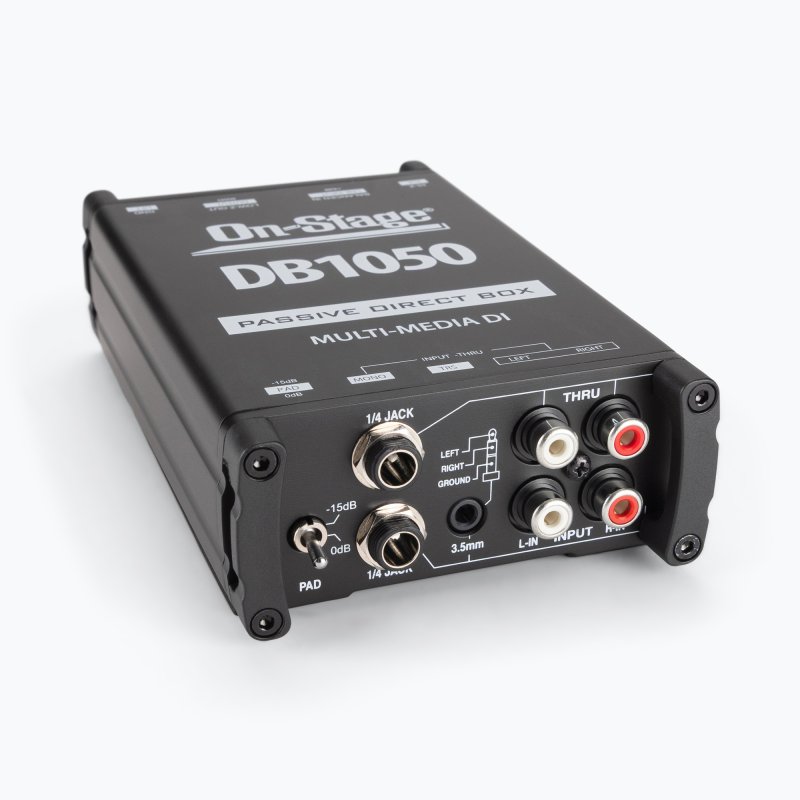

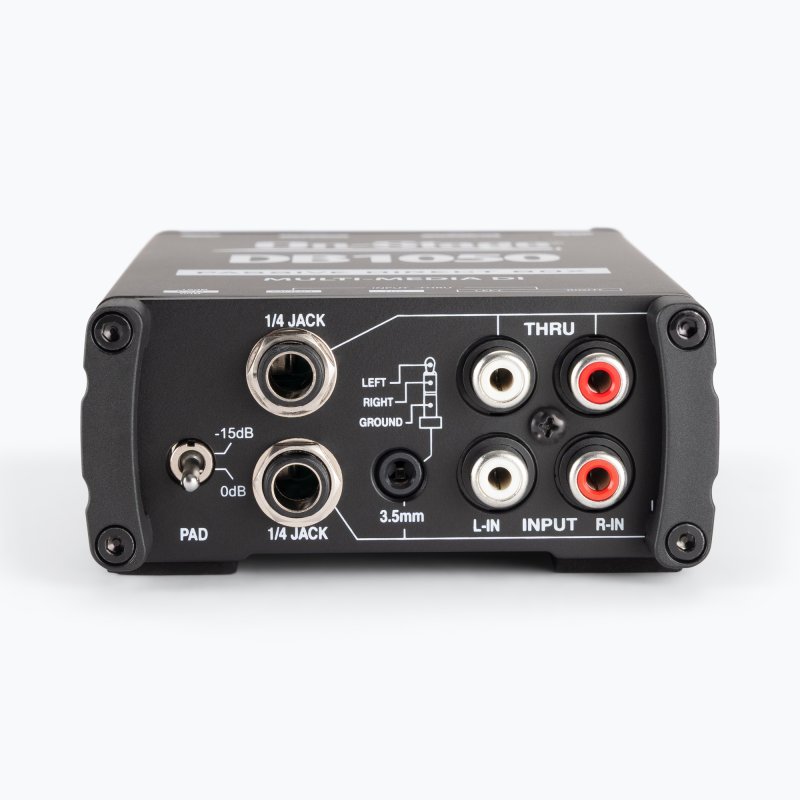

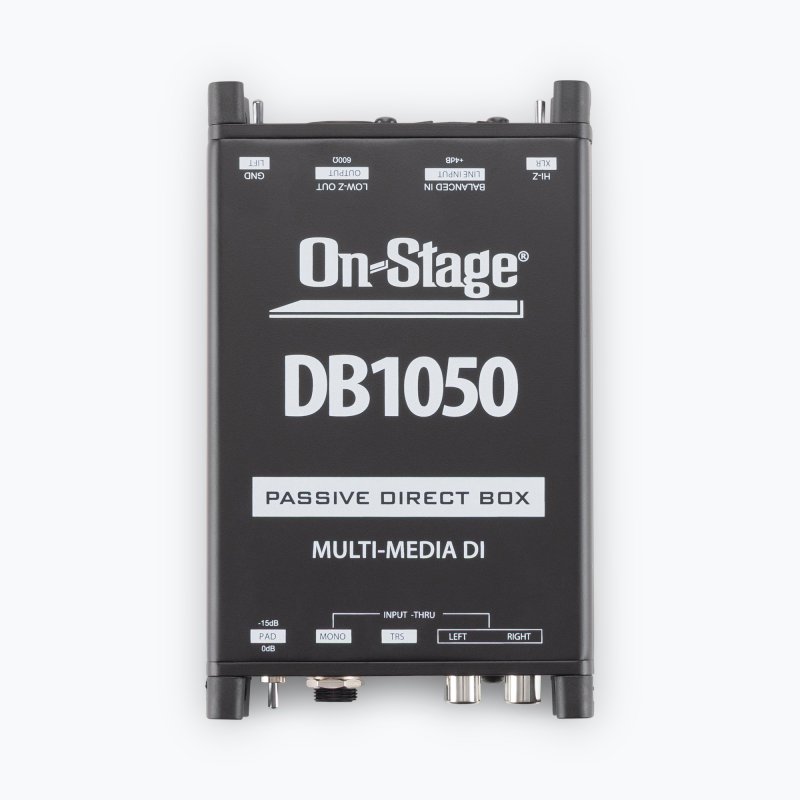

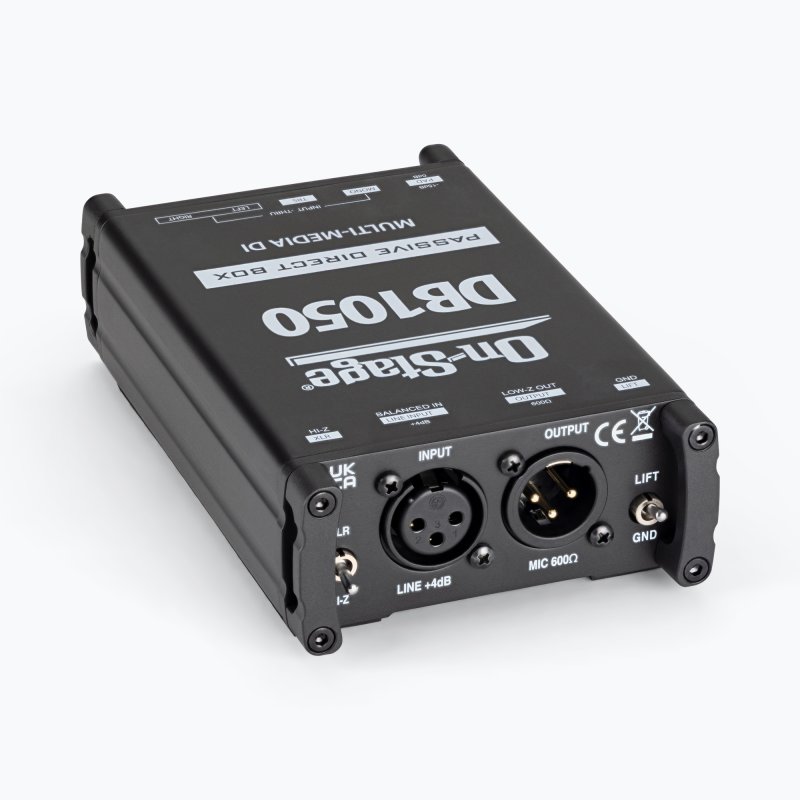

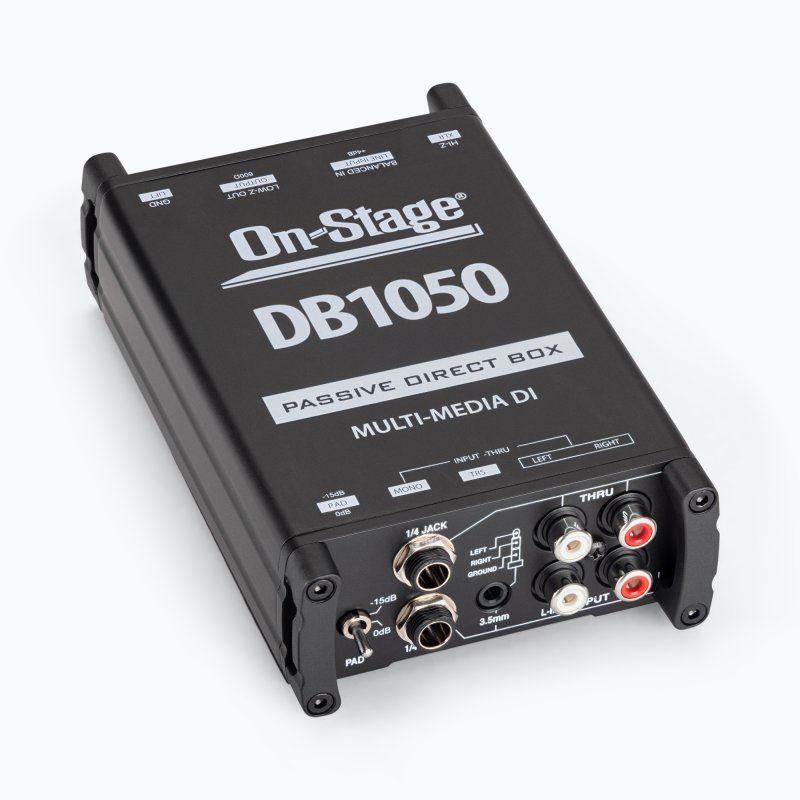

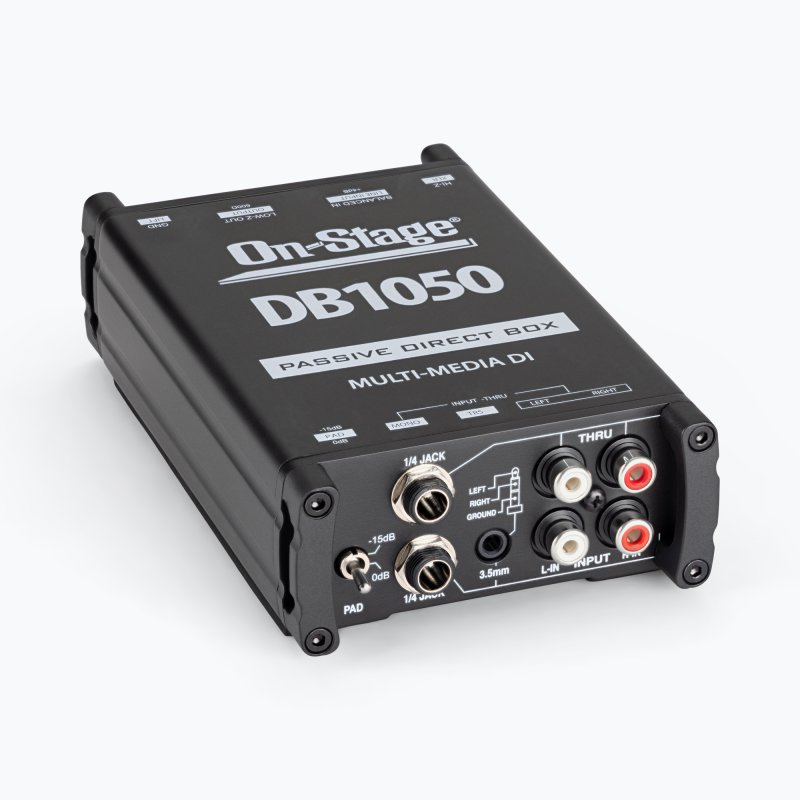

Our DB1050 Passive Multimedia DI Box converts any line-level stereo source to a low-impedance XLR mono signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -15 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, throughput connectors to pass unaltered signal to a stage amp, a Hi-Z/XLR input selector, and a variety of input connectors to enable convenient use with various sources. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
Features
- Output signal can be sent via a long cable to a mixer or PA system without frequency loss
- Passive circuit does not require a power supply or batteries
- High-quality transformer for low distortion and an isolated signal path
- Converts a line-level stereo input to a balanced, low-impedance mono (XLR) output
Specifications
| Application |
Computers, mp3 players, keyboards, projectors, and DJ equipment |
| Construction |
Metal w/ nylon bumpers |
| Dimensions |
6" x 3.5" x 1.5" |
| Frequency Response |
10Hz - 40kHz |
| Ground lift |
Yes |
| Input Resistance |
220K Ohms |
| Inputs |
Stereo 1/4", 3.5mm, stereo RCA, and XLR |
| Output |
Mono XLR Low-Z out |
| Pad |
15dB |
| Power |
Passive/not required |
| Product Type |
Direct Box |
| Weight |
0.70 lb |
