TOURING | NXL 14-A | COMPACT ACTIVE POINT SOURCE SPEAKER | Technical Specifications | 128 dB max SPL | 2100W Class-D Bi-Amplification
Technical Specifications
| Acoustical specifications |
| Frequency Response |
70 Hz - 20000 Hz |
| Max SPL @ 1m |
128 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
70° |

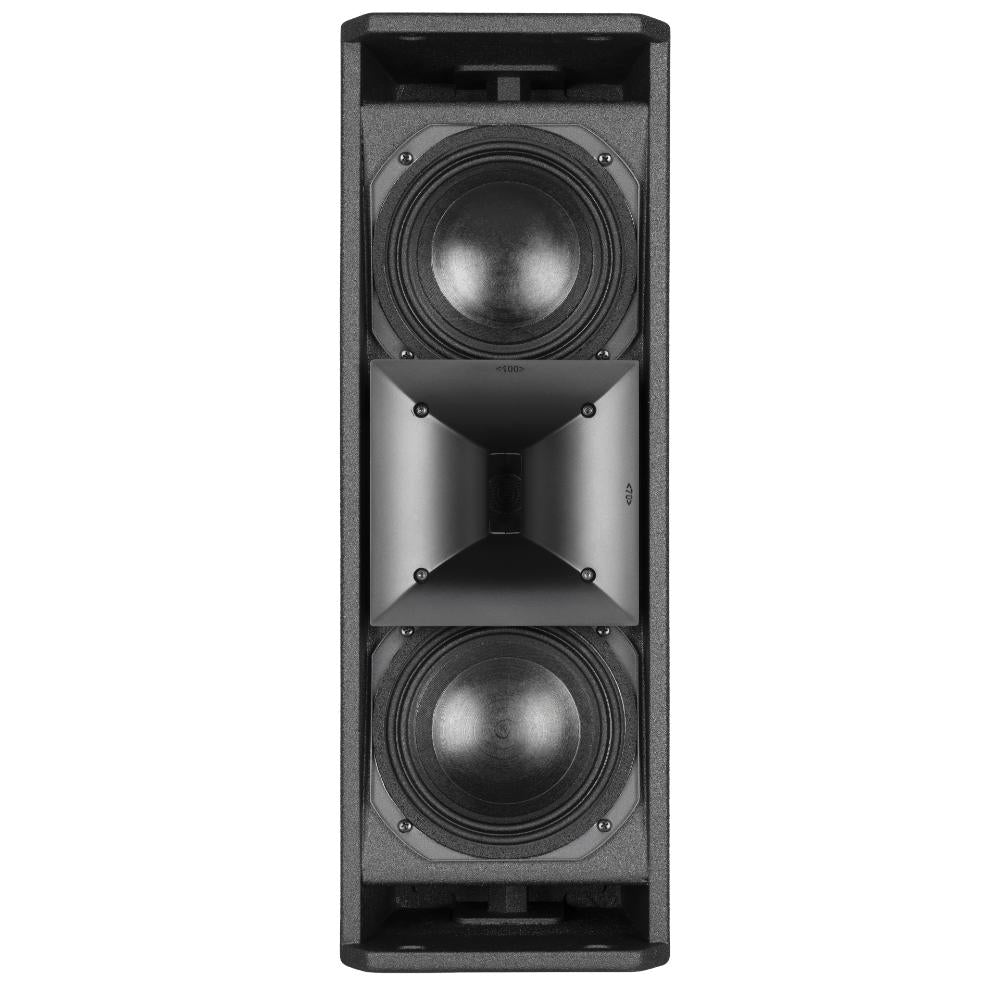

| Transducers |
| Compression Driver |
1 x 1.0'' neo, 1.75'' v.c |
| Woofer |
2 x 6.0'' neo, 2.0'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
Combo XLR/Jack |
| Output connectors |
XLR |
| Input sensitivity |
-2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
1200 |
| Protections |
Excurs. |
| Limiter |
Fast Limiter |
| Controls |
| Linear/Boost/Stage Presets, Volume. |
| Power section |
| Total Power |
2100 W Peak |
| High frequencies |
700 W Peak |
| Low frequencies |
1400 W Peak |
| Cooling |
Convection |

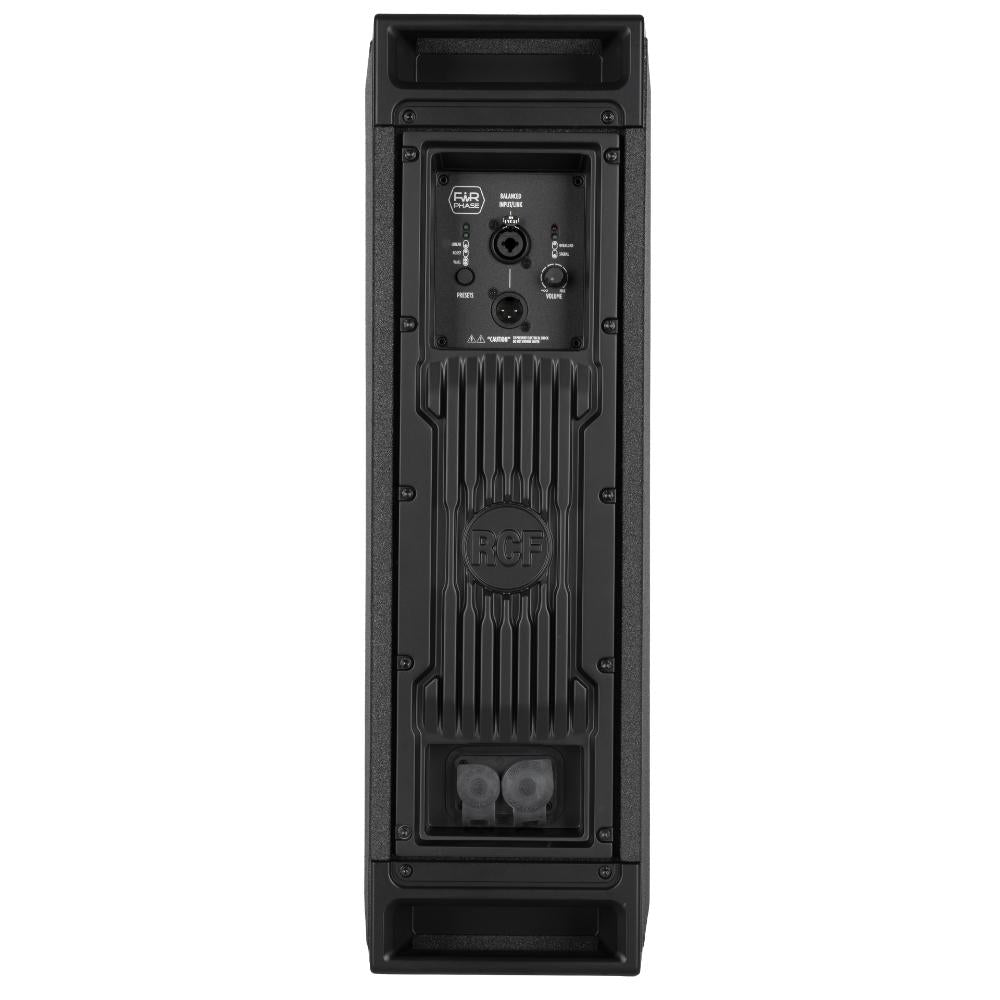

| Connections |
| Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |
2X M10 TOP AND BOTTOM |
| 2X PIN D.10 |
Handles |
| 2 TOP AND BOTTOM |

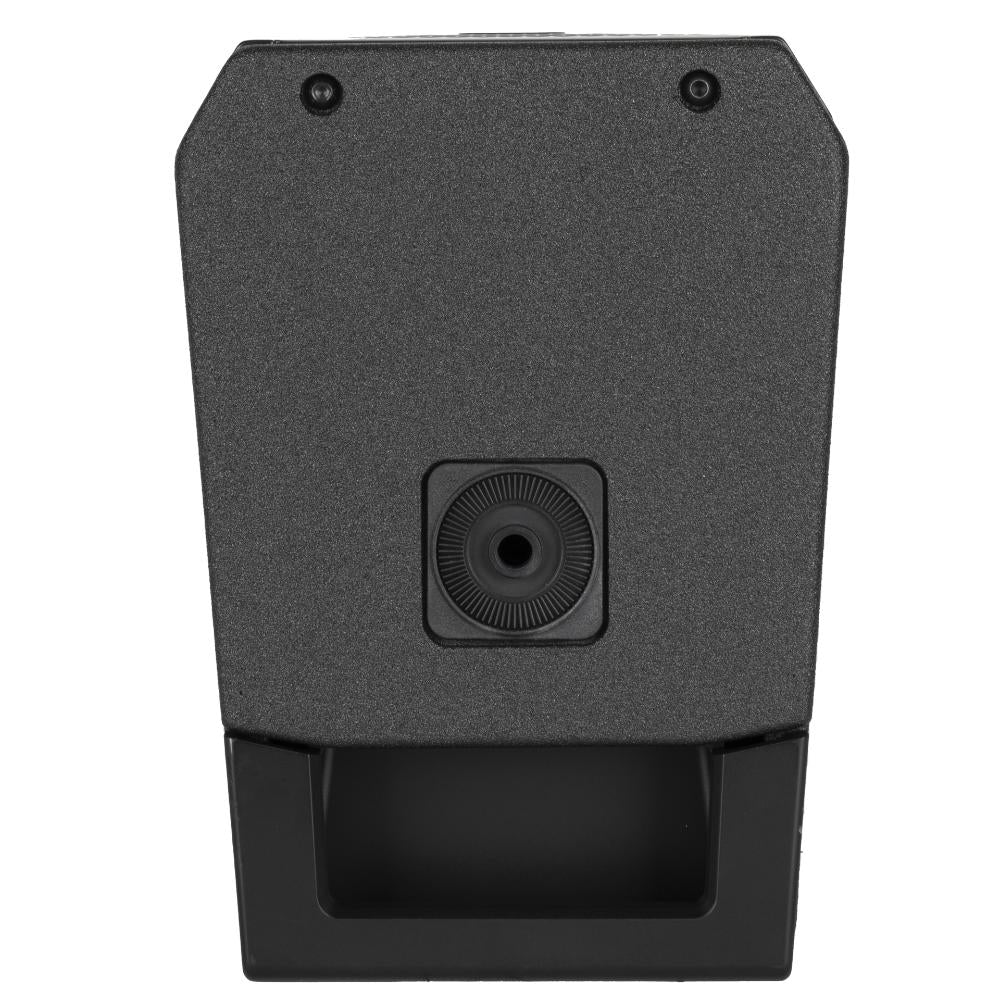

Pole mount/Cap |
| Quick-fit socket |
Grille |
| Steel |

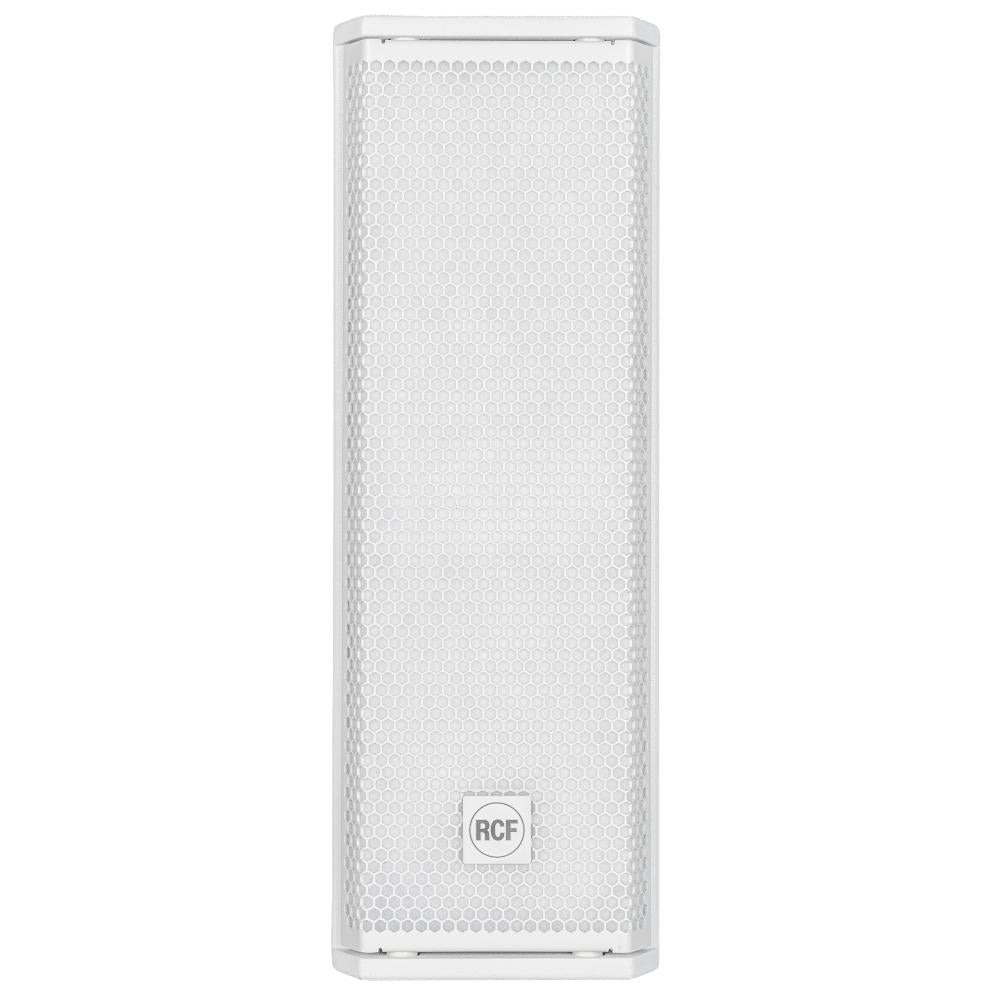

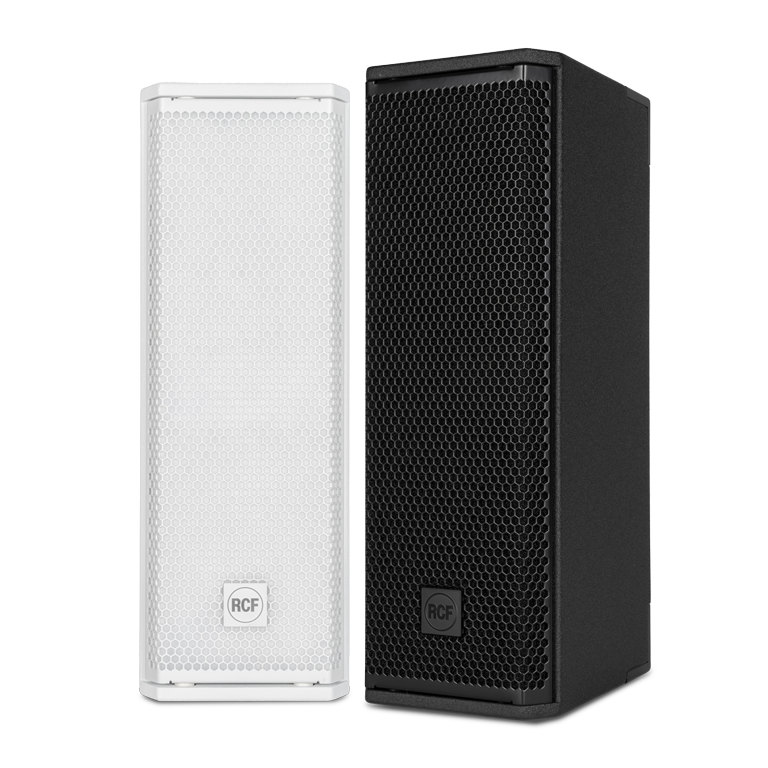

Color |
| Black - RAL 9005, White - RAL 9003 |
| Size / Weight |
| Height |
567 mm / 22.32 inches |
| Width |
197 mm / 7.76 inches |
| Depth |
270 mm / 10.63 inches |
| Weight |
12.8 kg / 28.22 lbs |
| Shipping information |
| Package Height |
600 mm / 23.62 inches |
| Package Width |
232 mm / 9.13 inches |
| Package Depth |
302 mm / 11.89 inches |
| Package Weight |
14.6 kg / 32.19 lbs |
