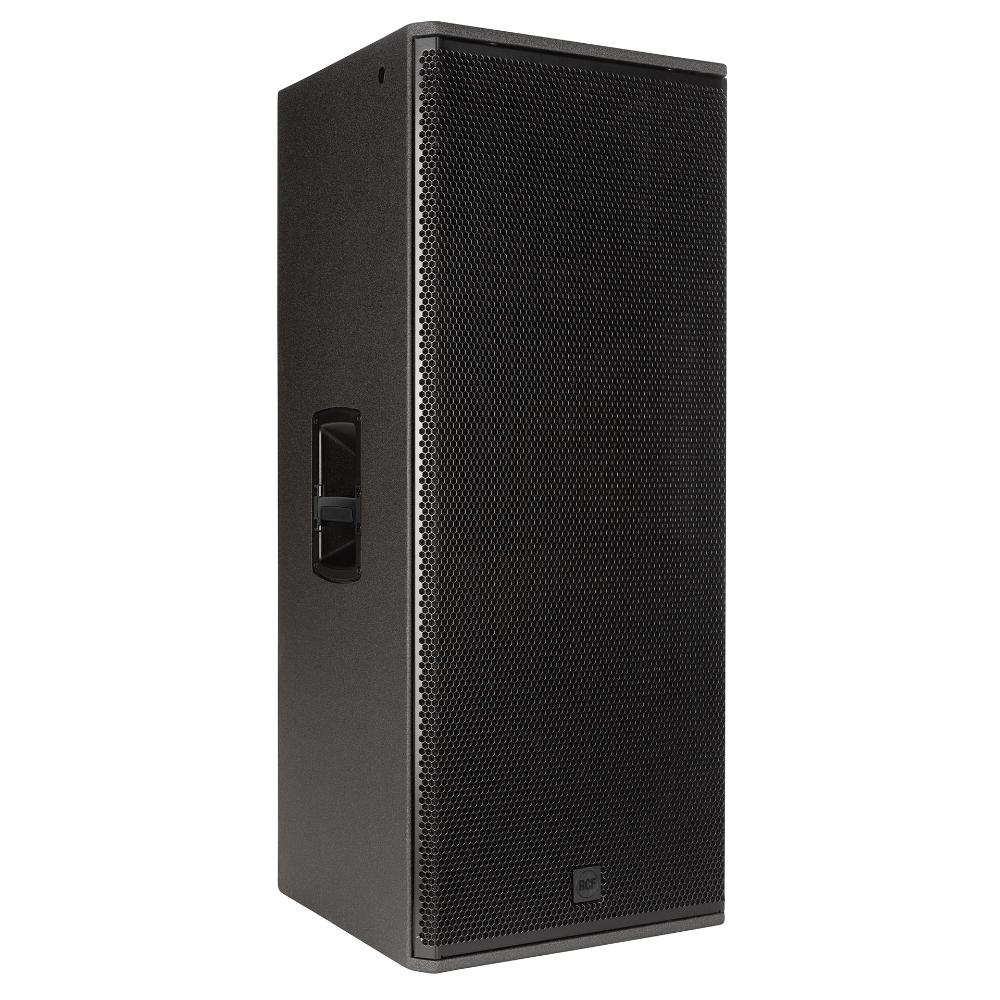

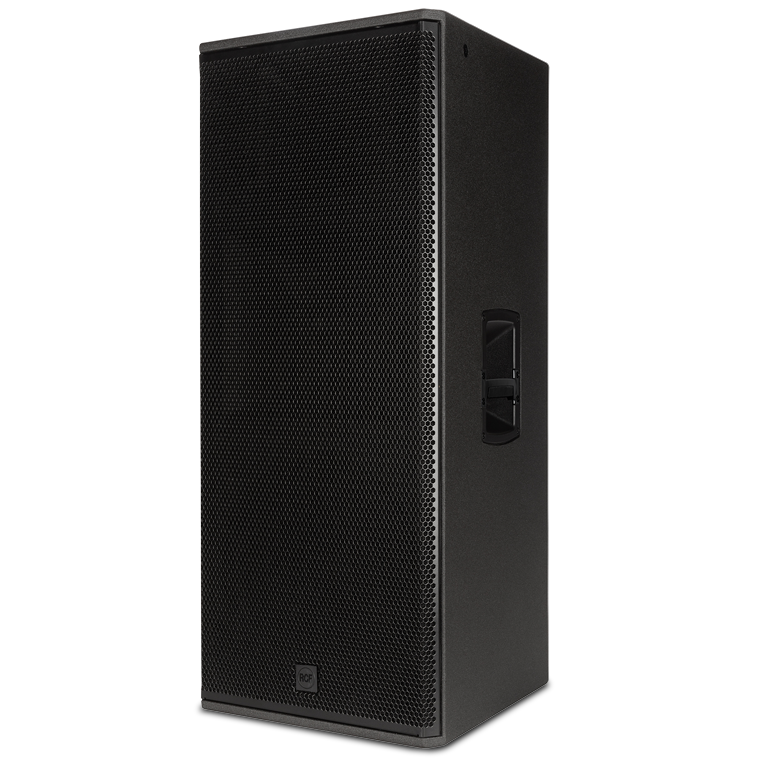

TOURING | NX 985-A | PROFESSIONAL THREE-WAY ACTIVE SPEAKER | Up to 138 dB Sound Pressure Level | 2100W Class-D Amplifier | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response |
40 Hz - 20000 Hz |
| Max SPL @ 1m |
138 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
60° |

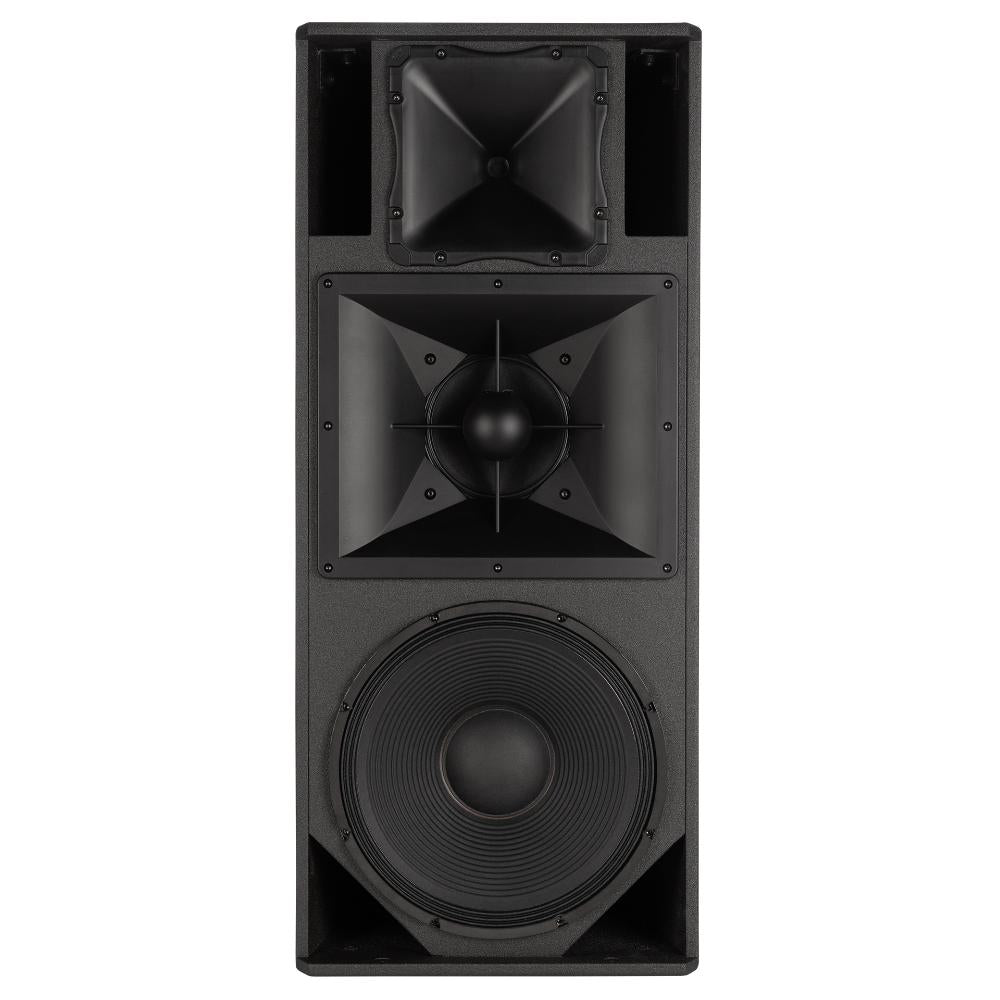

| Transducers |
| Compression Driver |
1 x 1.0'' neo, 1.75'' v.c |
| Midrange |
1 x 8'' neo, 2.5'' v.c |
| Woofer |
1 x 15'', 3.0'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
Combo XLR/Jack |
| Output connectors |
XLR |
| Input sensitivity |
-2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
Bass/Mid:320Hz, Mid/High:1200Hz |
| Protections |
Thermal, Excurs., RMS |
| Limiter |
Soft Limiter |
| Controls |
| Linear, 2 Speakers, High Pass, Volume |
| Power section |
| Total Power |
2100 W Peak |
| High frequencies |
200 W Peak |
| Mid frequencies |
500 W Peak |
| Low frequencies |
1400 W Peak |
| Cooling |
Convection |

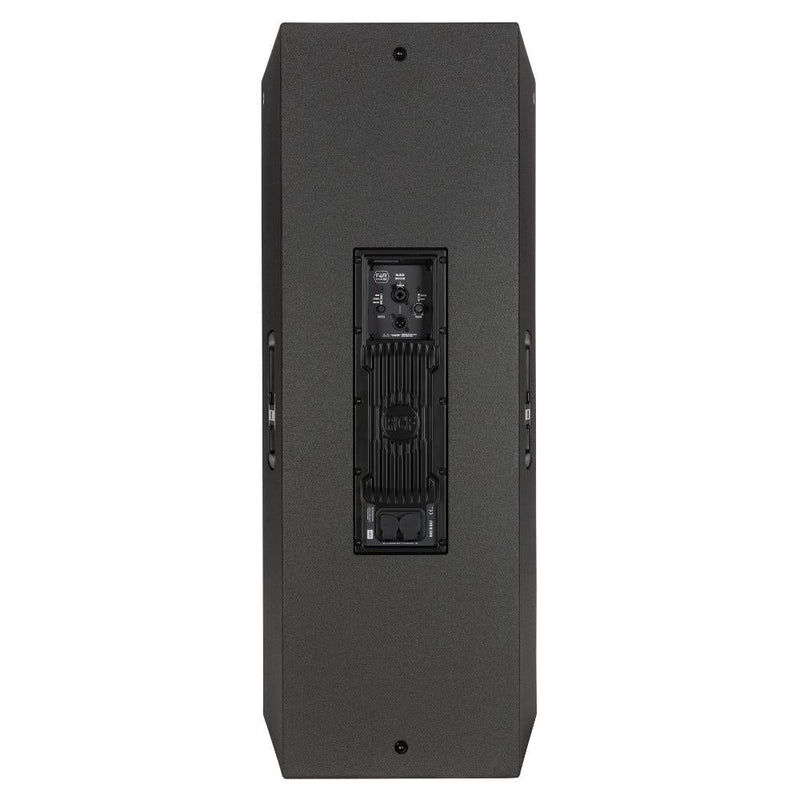

| Connections |
| Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |
| 3 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 2 x M10 rear |

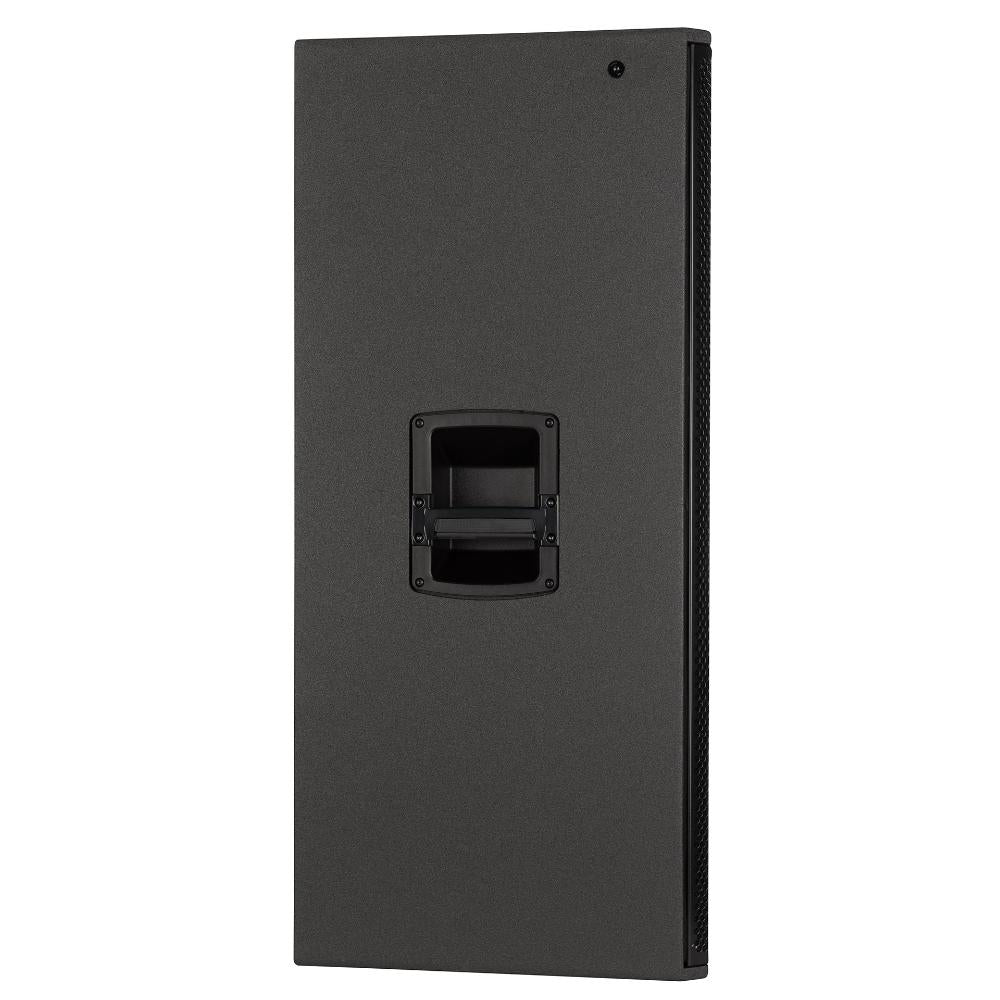

Handles |
| 1 x Side |

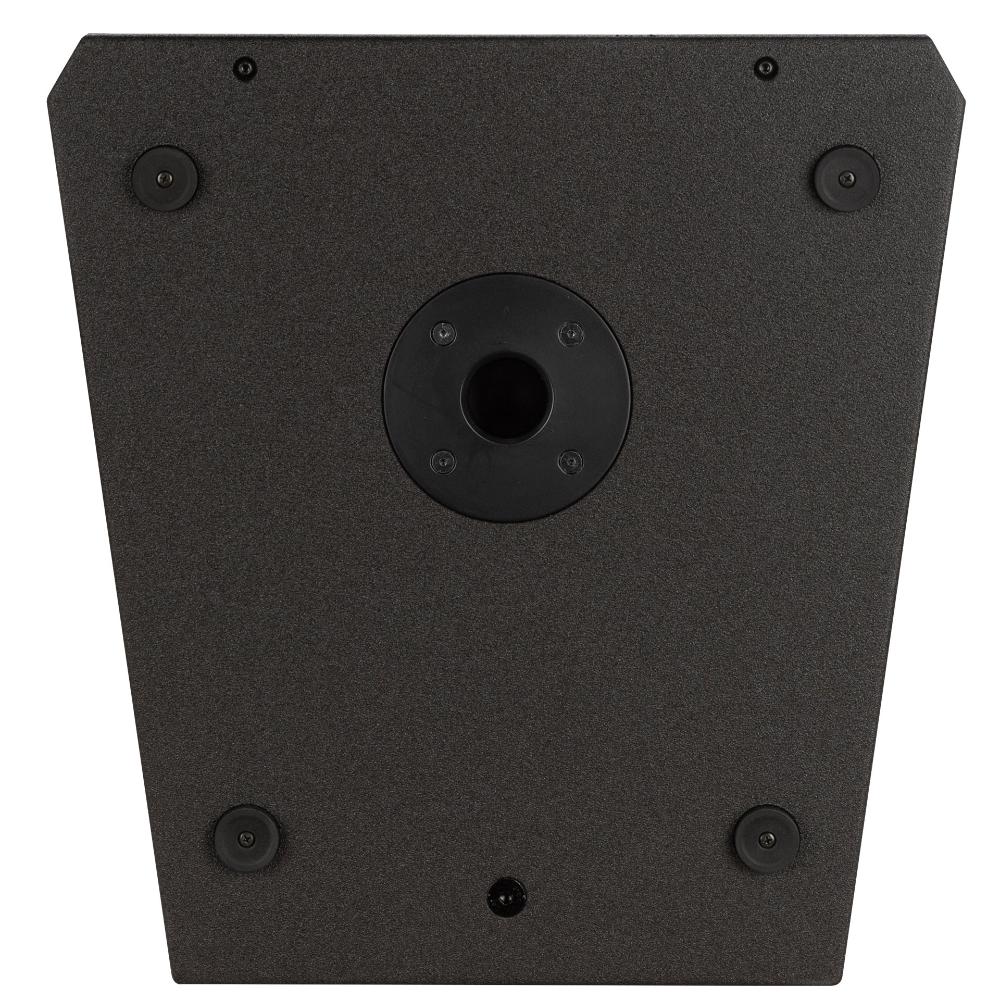

Pole mount/Cap |
| 35 mm insert |
Grille |
| Steel |
Color |
| Black |
| Size / Weight |
| Height |
1075 mm / 42.32 inches |
| Width |
461 mm / 18.15 inches |
| Depth |
475 mm / 18.7 inches |
| Weight |
45 kg / 99.21 lbs |
| Shipping information |
| Package Height |
530 mm / 20.87 inches |
| Package Width |
1110 mm / 43.7 inches |
| Package Depth |
490 mm / 19.29 inches |
| Package Weight |
51 kg / 112.44 lbs |
