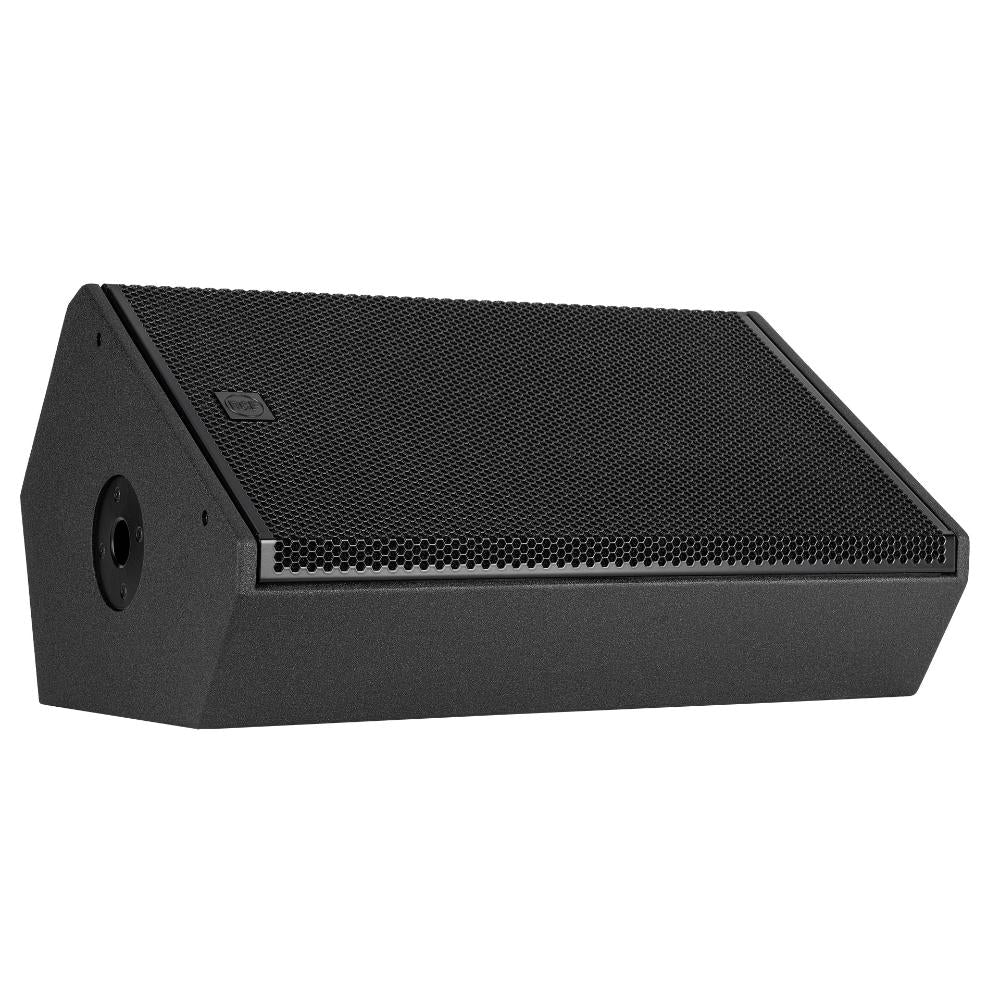

RCF NX915-SMA

Active 15" 2-way High Output Stage Monitor

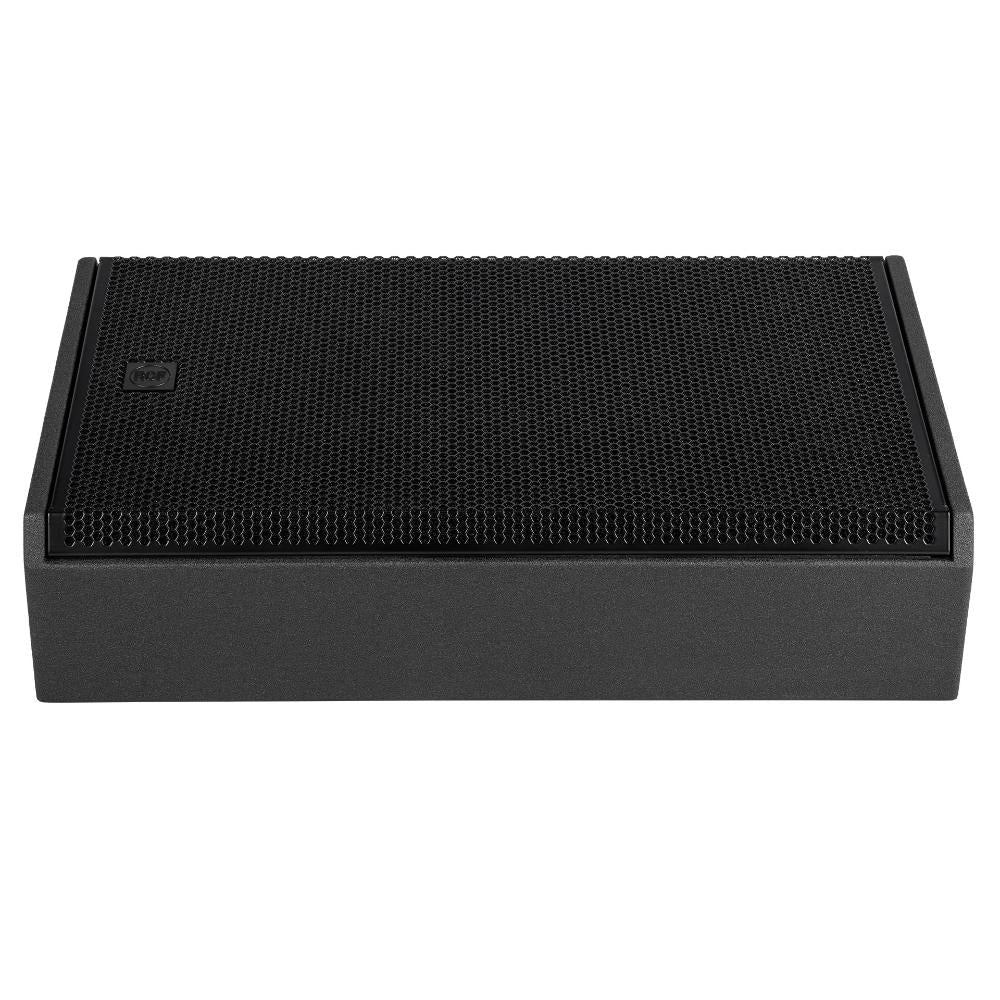

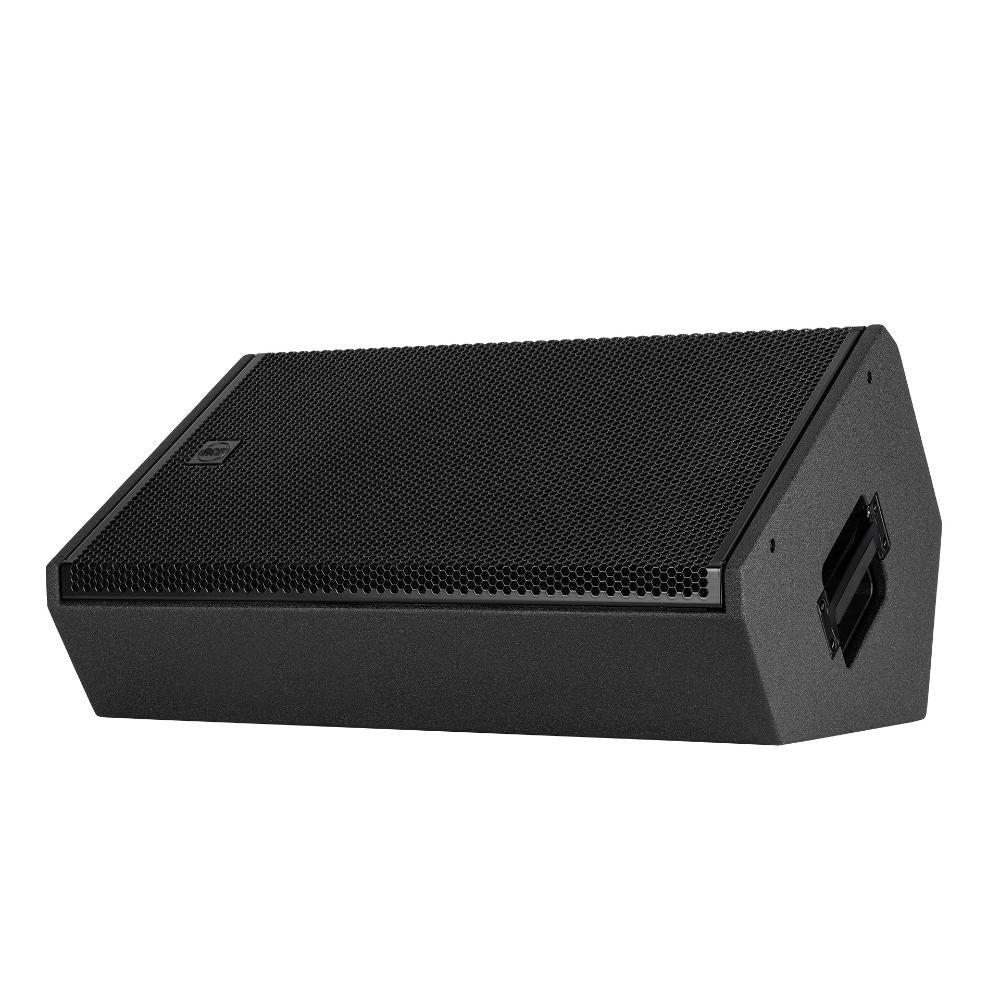

NX 915-SMA speaker is a stage monitor designed for sound providers, musicians, bands, and DJs. The combination of a 1.75” compression driver, 15” woofer, two-channel 2,100W amplifier, and the TRW waveguide produces coherent 100° x 70° coverage for the listening area with up to 131dB SPL of distortion-free sound. Used as a stage monitor, stand-alone speaker system, or satellite paired with a subwoofer, the NX 915-SMA blends high performance and reliability in a compact package. Combining RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 915-SMA Series speakers deliver absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and set up on stage or on a pole.

Features:

• Up to 131 dB Sound Pressure Level
• 2100W Class-D bi-amplification
• 45-20000 Hz linear frequency response
• 1.75" Compression Driver
• 15" Woofer
• FiRPHASE zero degrees phase technology
• Bass Motion Control woofer excursion management
• 70ºx100º Constant Directivity Coverage Angle
• Perfectly tailored for horizontal or vertical deployment

Specifications:
ACOUSTICAL SPECIFICATIONS

• Frequency Response: 45 Hz ÷ 20000 Hz
• Max SPL @ 1m: 131 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 70°

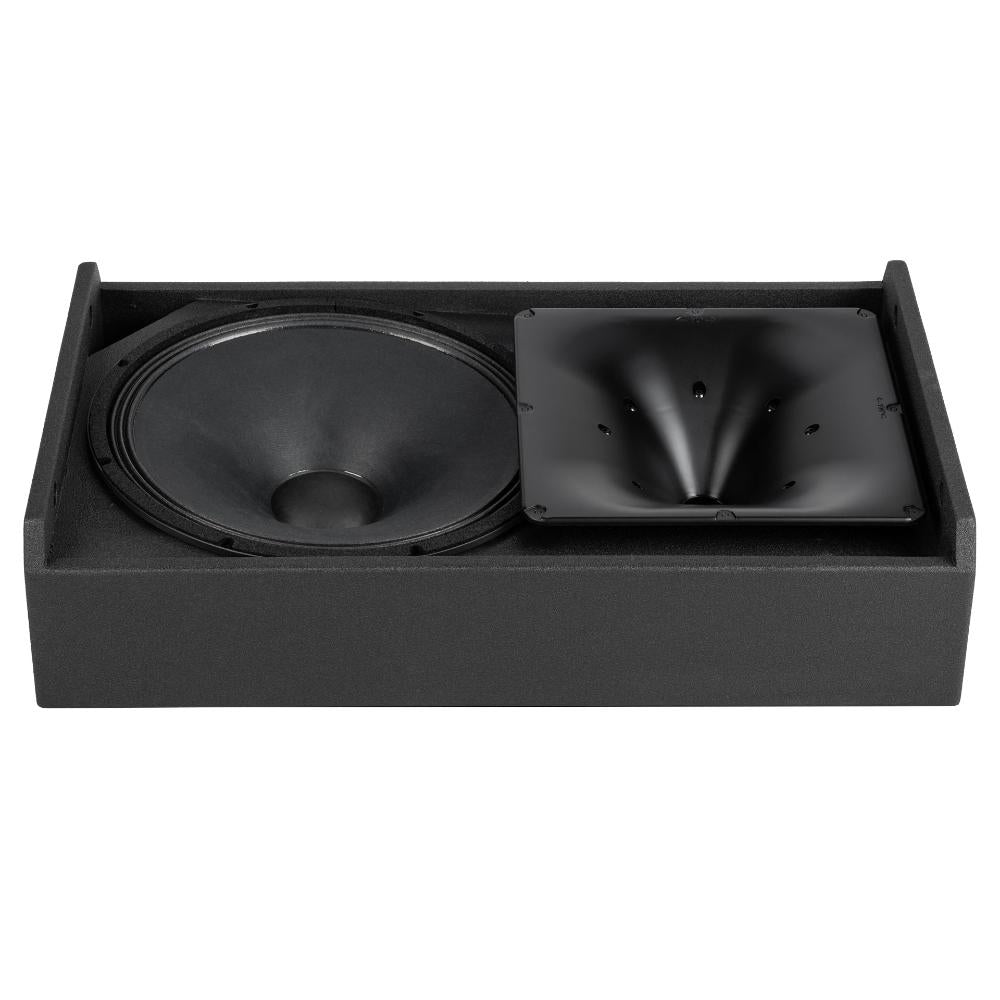

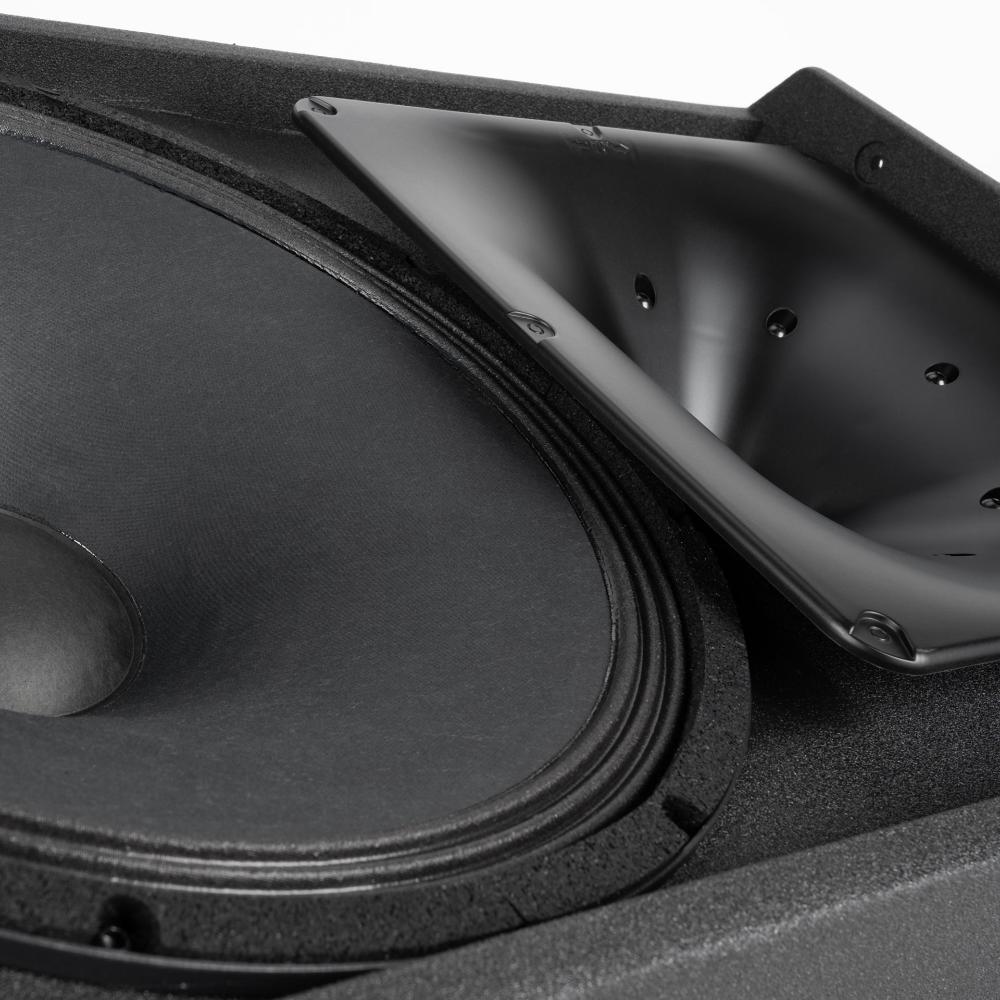

TRANSDUCERS

• Compression Driver: 1 x 1.0'', 1.75'' v.c
• Woofer: 15'', 2.5'' v.c

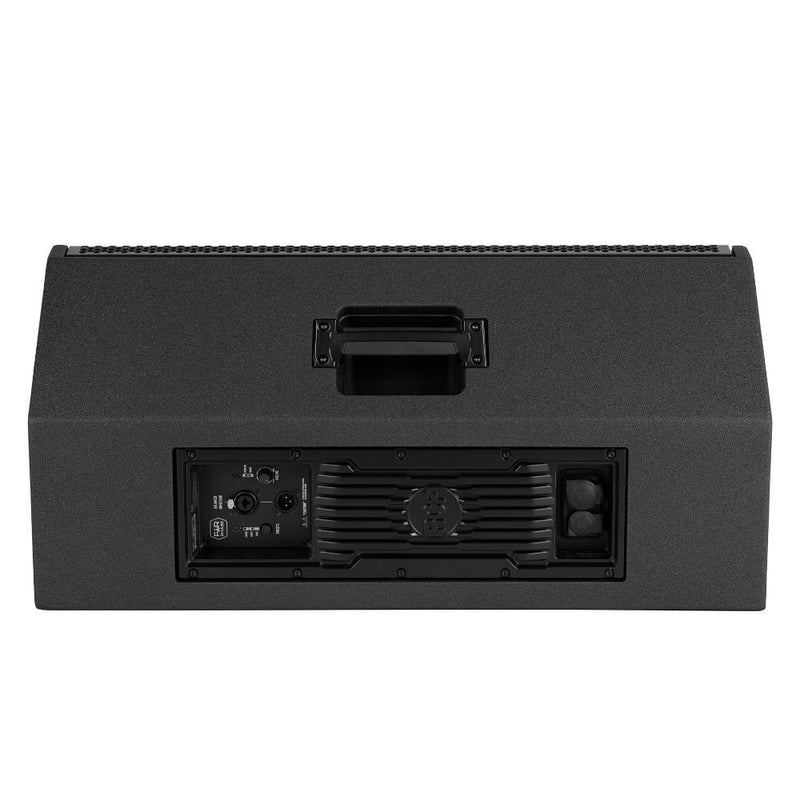

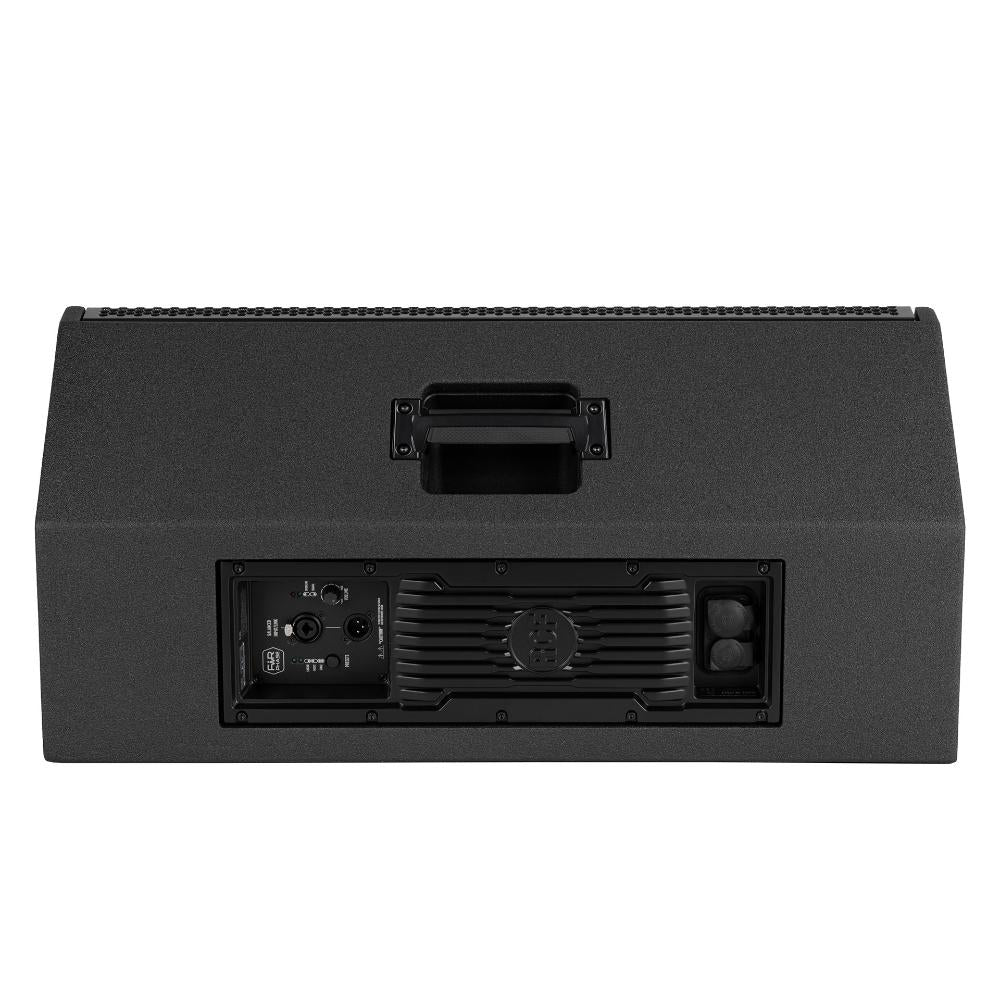

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 1600 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter

POWER SECTION

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant
• PHYSICAL SPECIFICATIONS

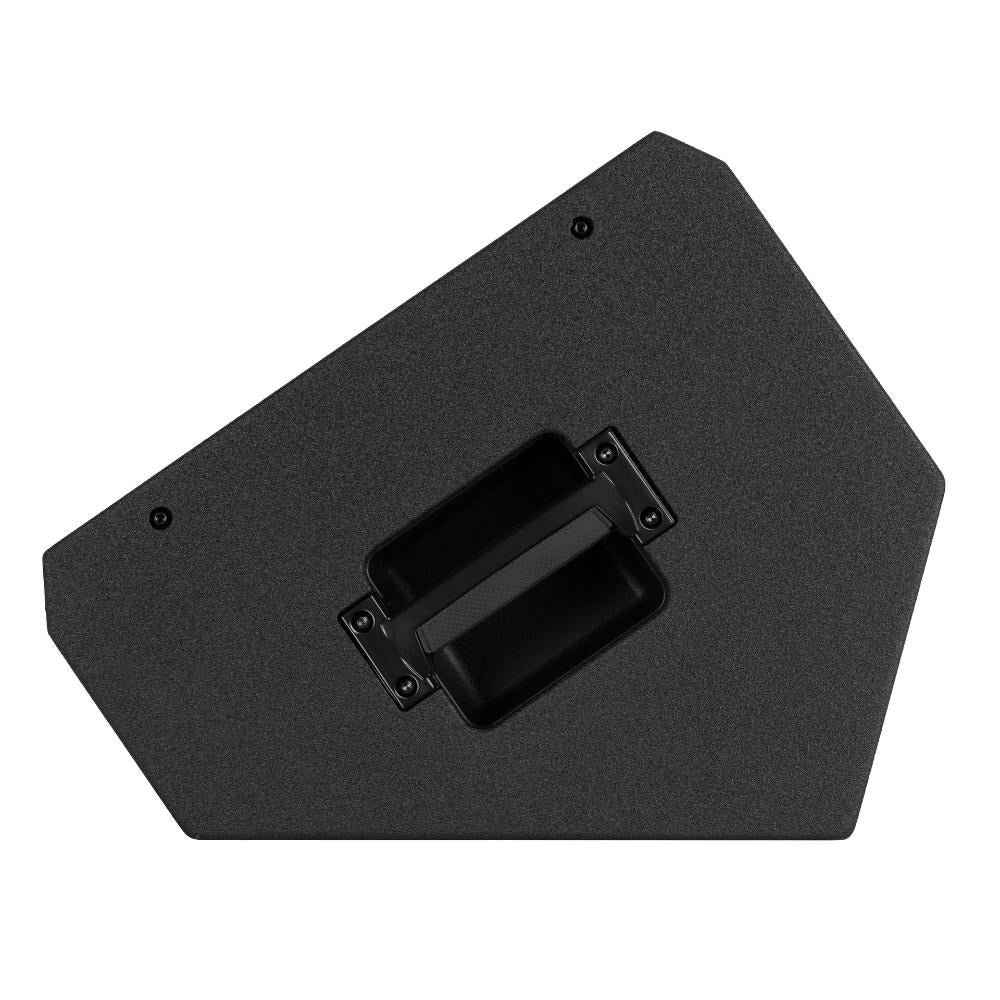

• Handles: 1 on side and 1 on top

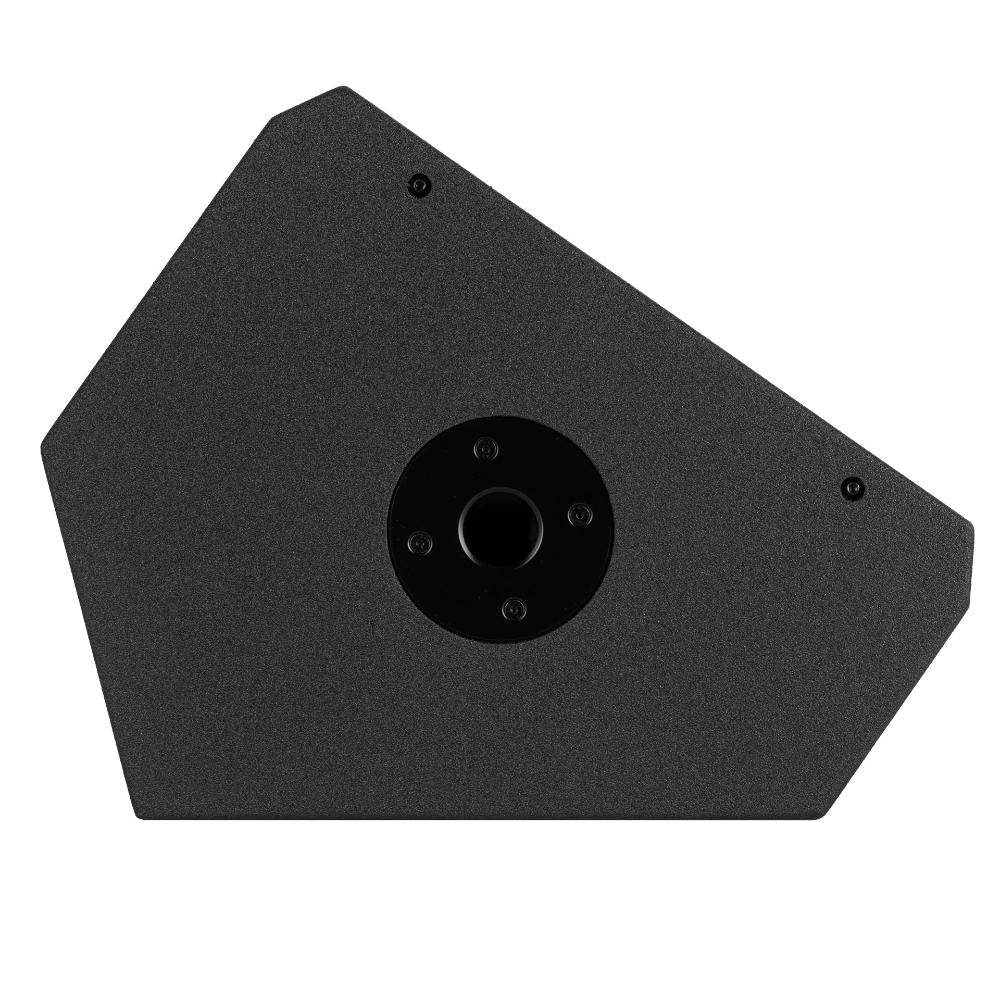

• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 357.3 mm / 14.07 inches
• Width: 705 mm / 27.76 inches
• Depth: 456.6 mm / 17.98 inches
• Weight: 17.3 kg / 38.14 lbs
