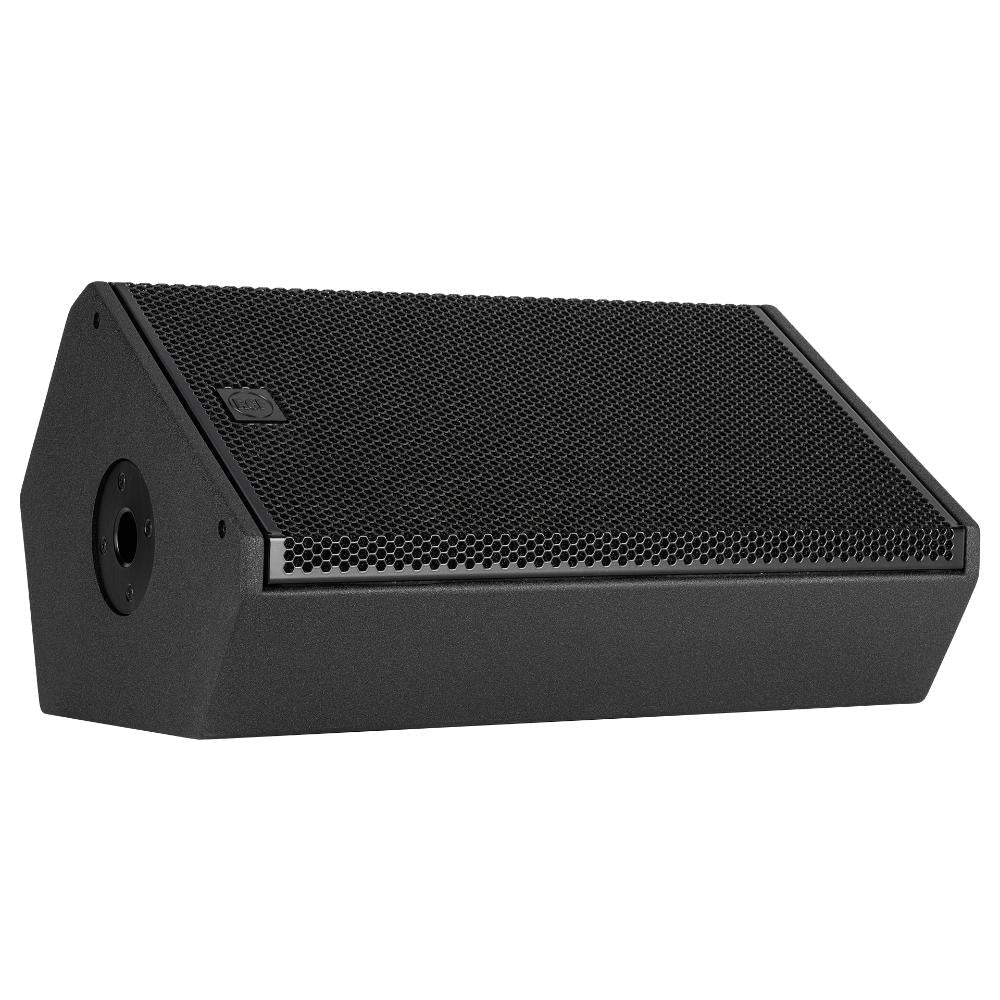

RCF NX912-SMA

Active 12" 2-way High Output Stage Monitor

NX 912-SMA speaker is a stage monitor designed for sound providers, musicians, bands, and DJs. The combination of a 1.75” compression driver, 12” woofer, two-channel 2,100W amplifier, and the TRW waveguide produces coherent 100° x 70° coverage for the listening area with up to 130dB SPL of distortion-free sound. Used as a stage monitor, stand-alone speaker system, or satellite paired with a subwoofer, the NX 912-SMA blends high performance and reliability in a compact package. Combining RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 912-SMA Series speakers deliver absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and set up on stage or on a pole.

Features:

• Up to 130 dB Sound Pressure Level
• 2100W Class-D bi-amplification
• 50-20000 Hz linear frequency response
• 1.75" Compression Driver
• 12" Woofer
• FiRPHASE zero degrees phase technology
• Bass Motion Control woofer excursion management
• 70°x100° Constant Directivity Coverage Angle

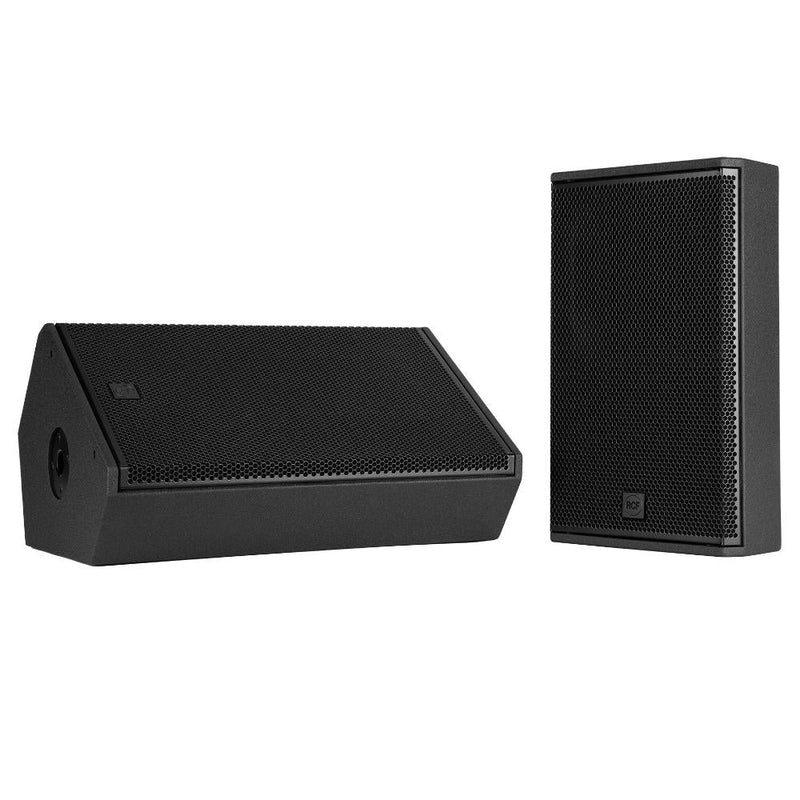

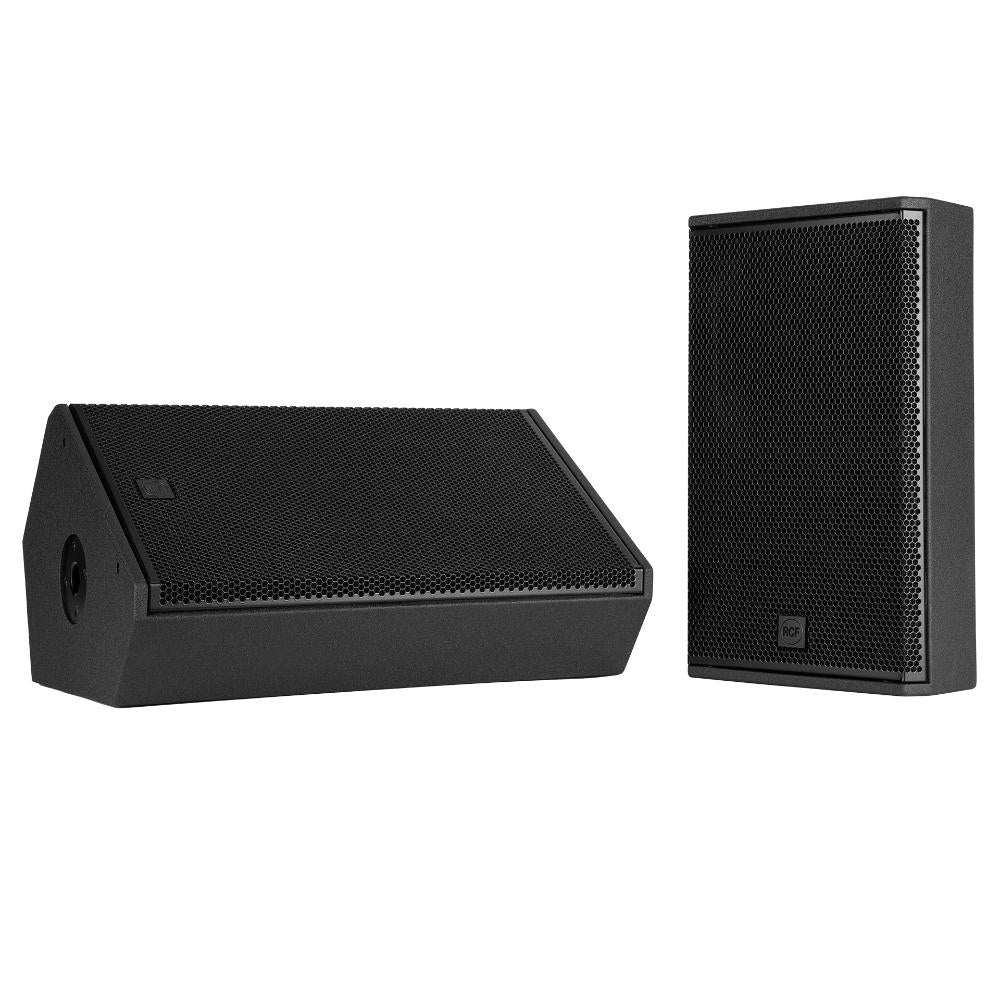

• Perfectly tailored for horizontal or vertical deployment

Specifications:
ACOUSTICAL SPECIFICATIONS

• Frequency Response: 50 Hz ÷ 20000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 70°

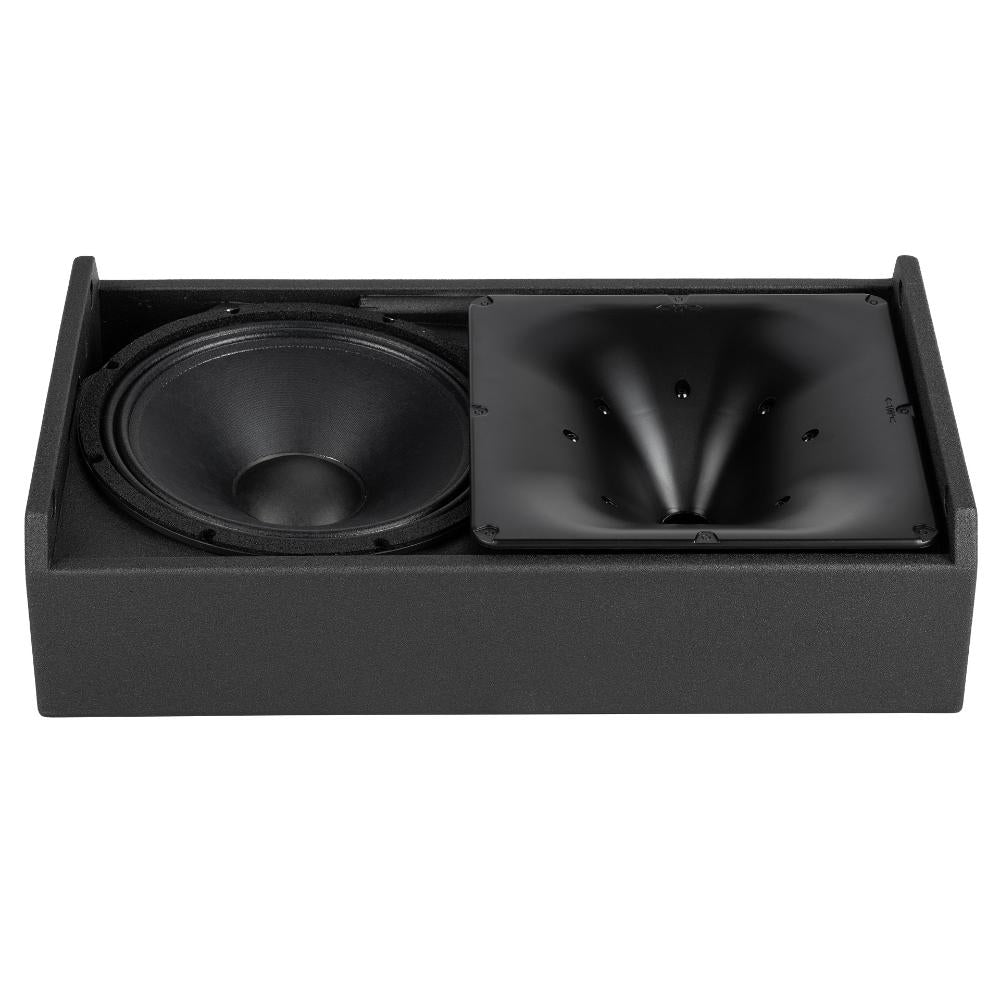

TRANSDUCERS

• Compression Driver: 1 x 1.0'', 1.75'' v.c

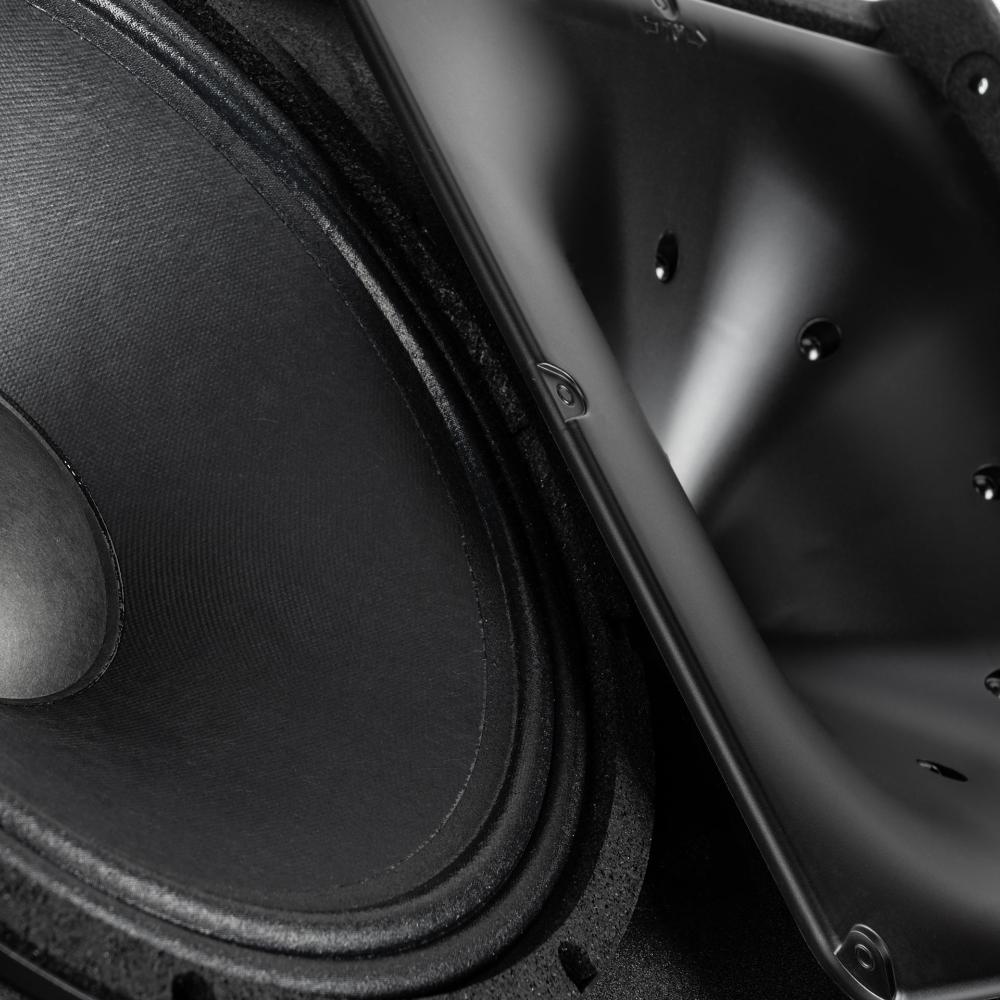

• Woofer: 12'', 2.5'' v.c

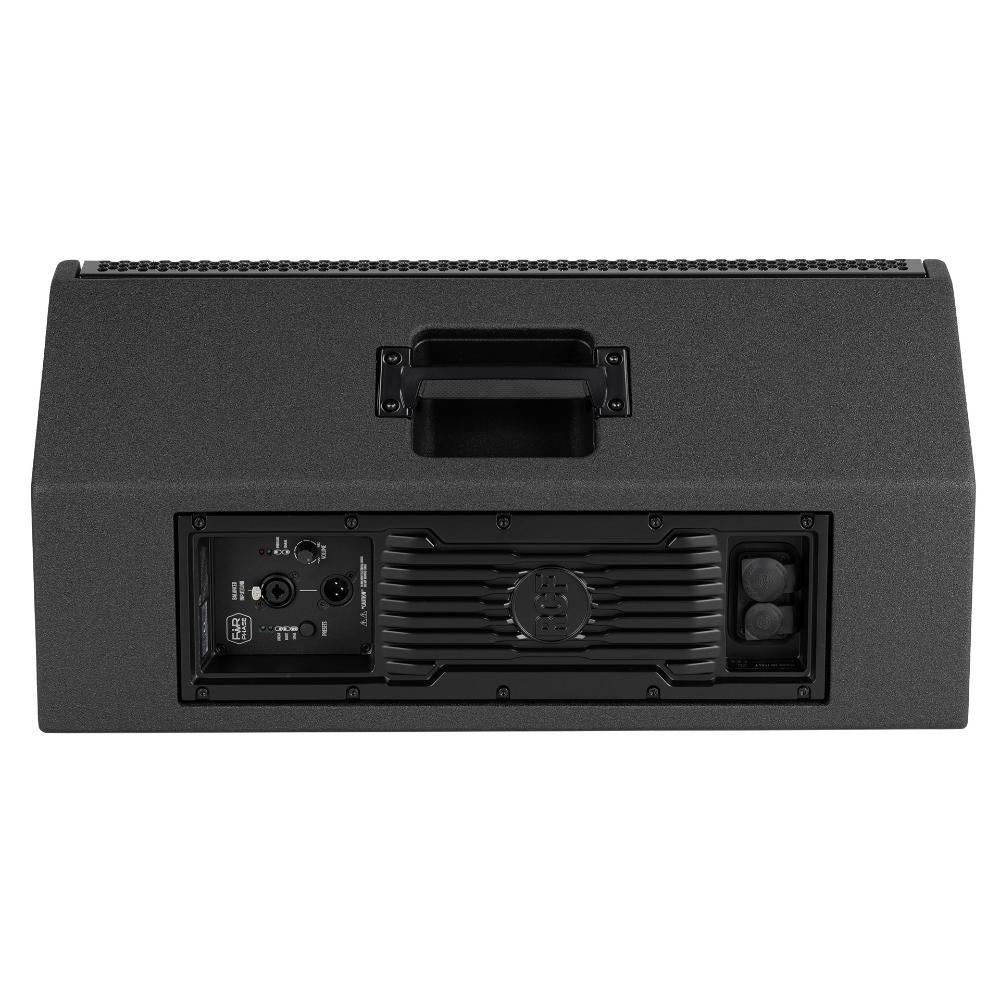

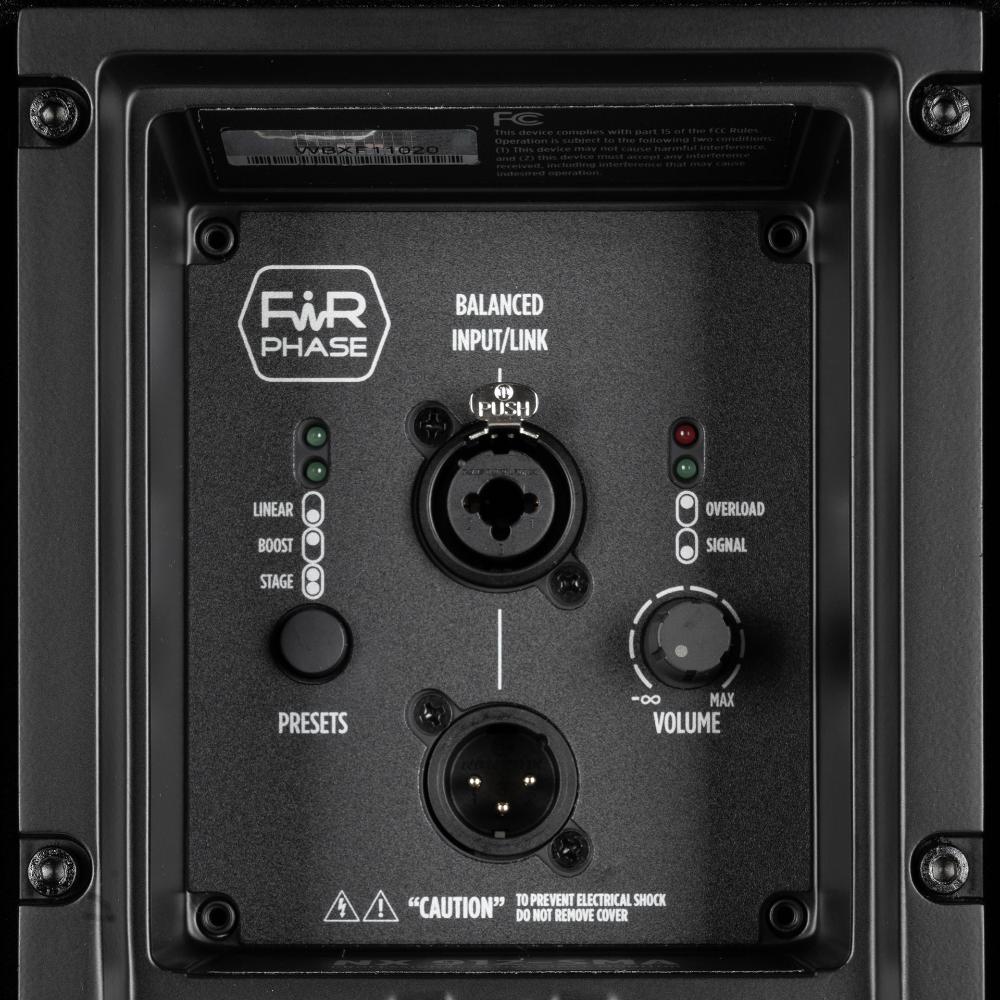

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 1600 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter

POWER SECTION

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection

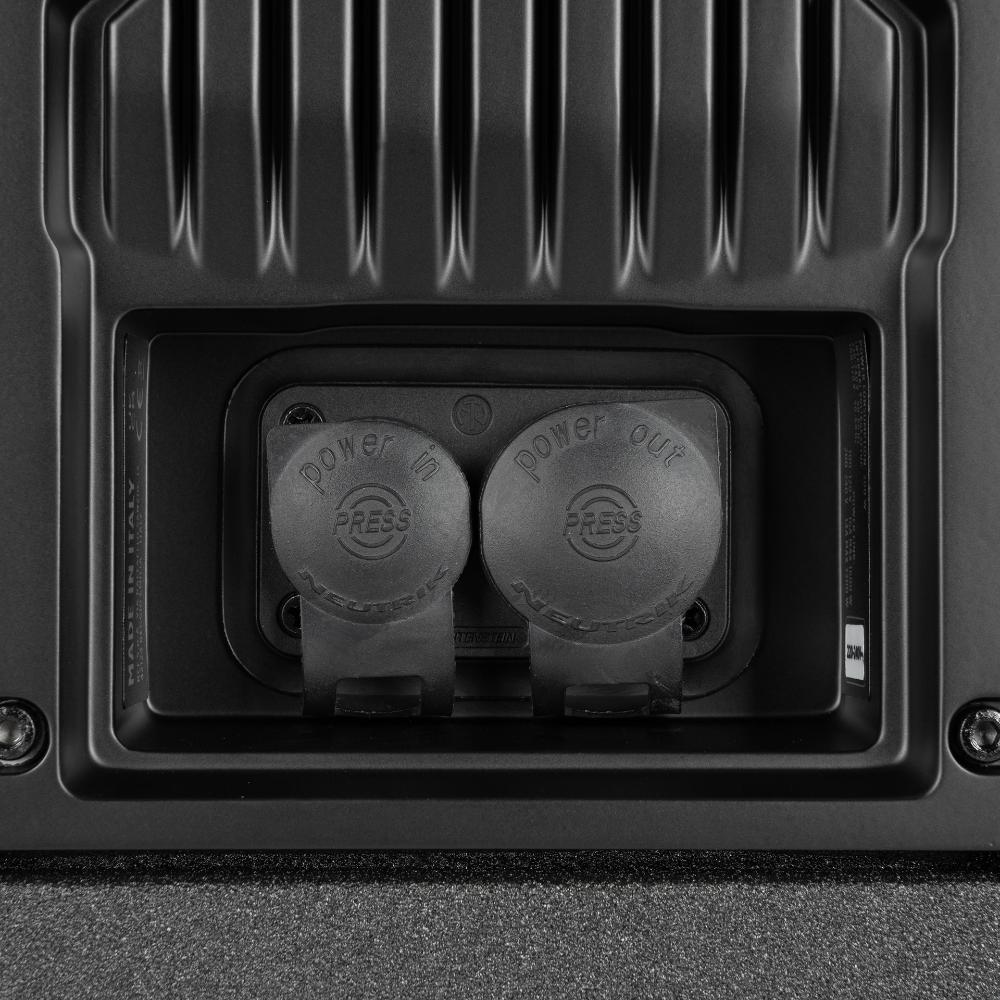

• Connections: Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

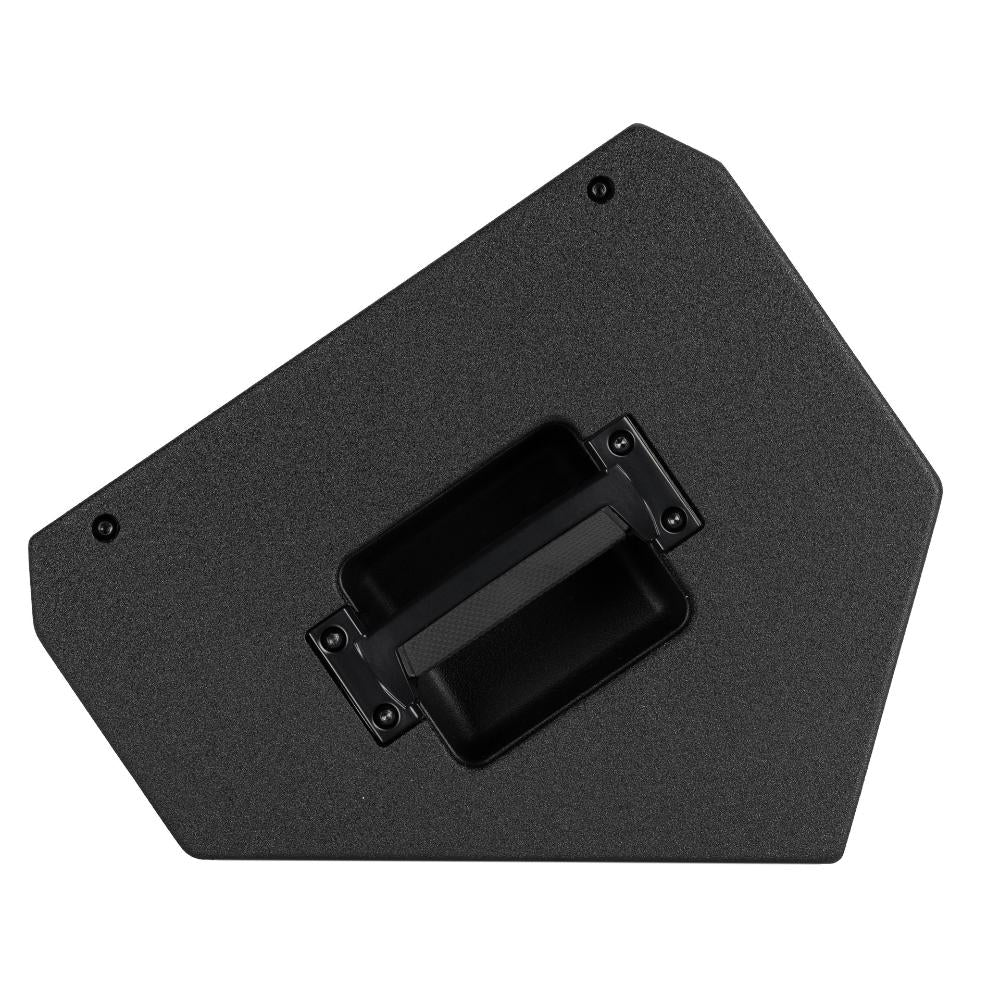

• Handles: 1 on side and 1 on top

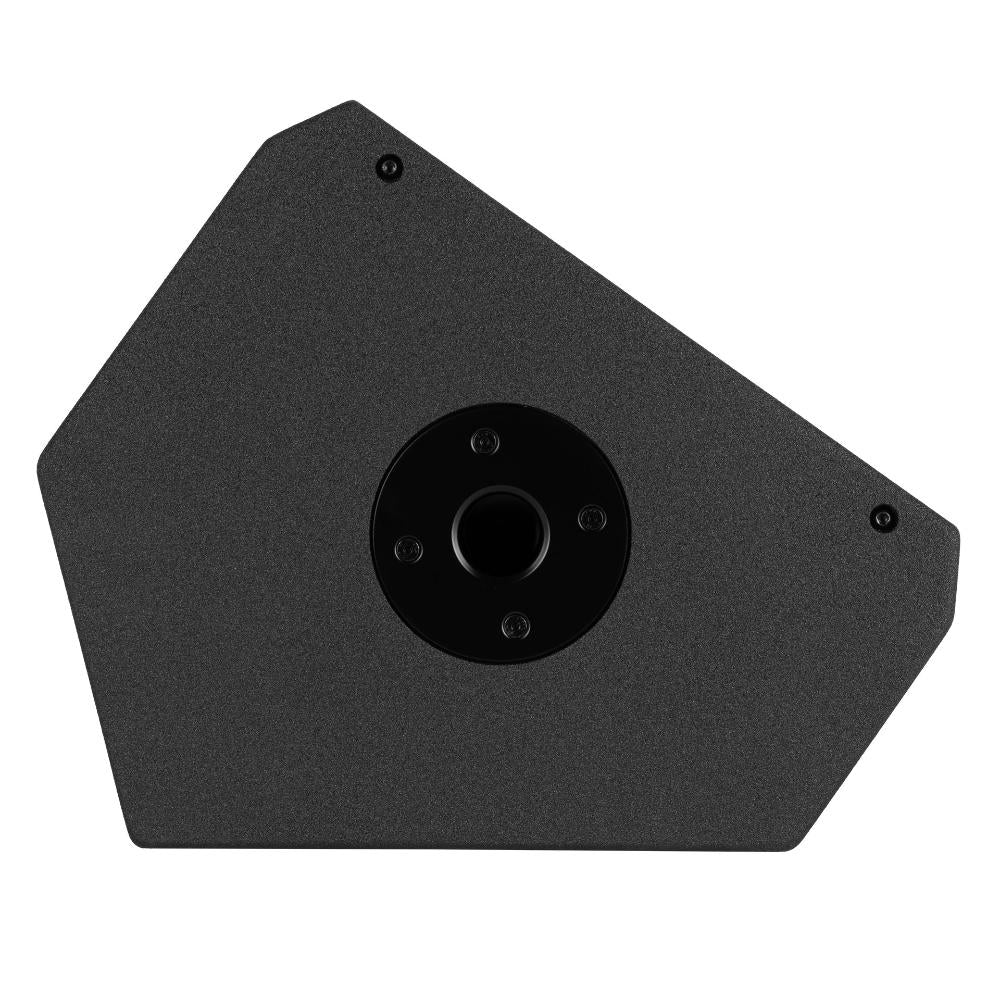

• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 320 mm / 12.6 inches
• Width: 620 mm / 24.41 inches
• Depth: 394 mm / 15.51 inches
• Weight: 20 kg / 44.09 lbs
