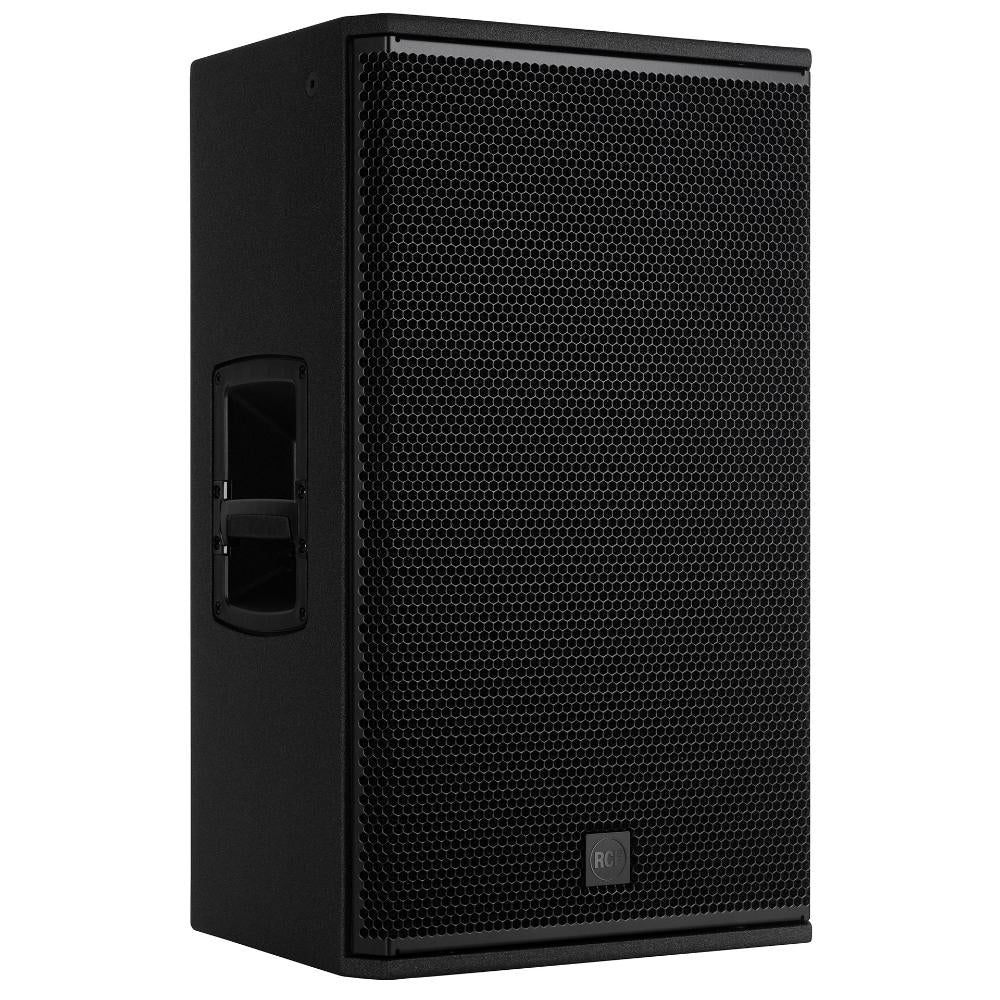

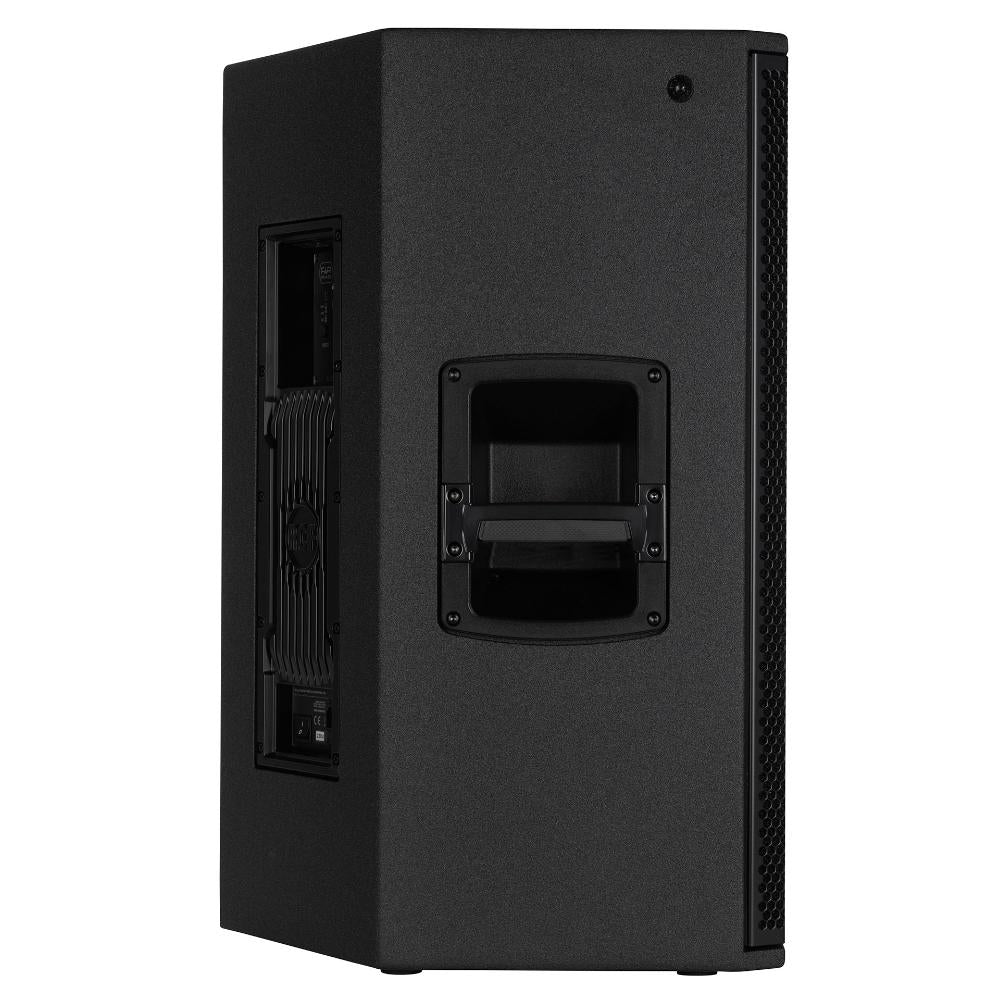

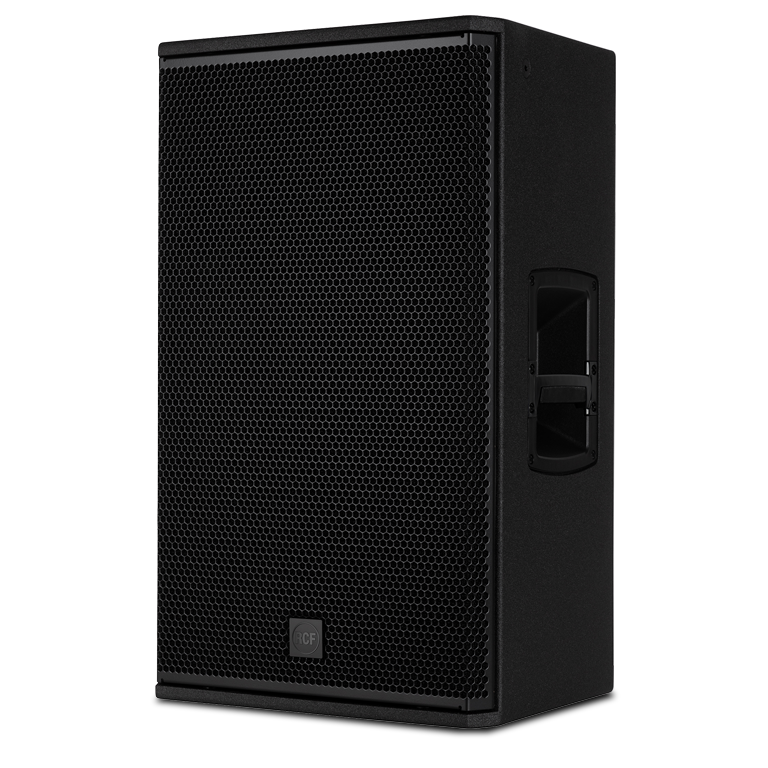

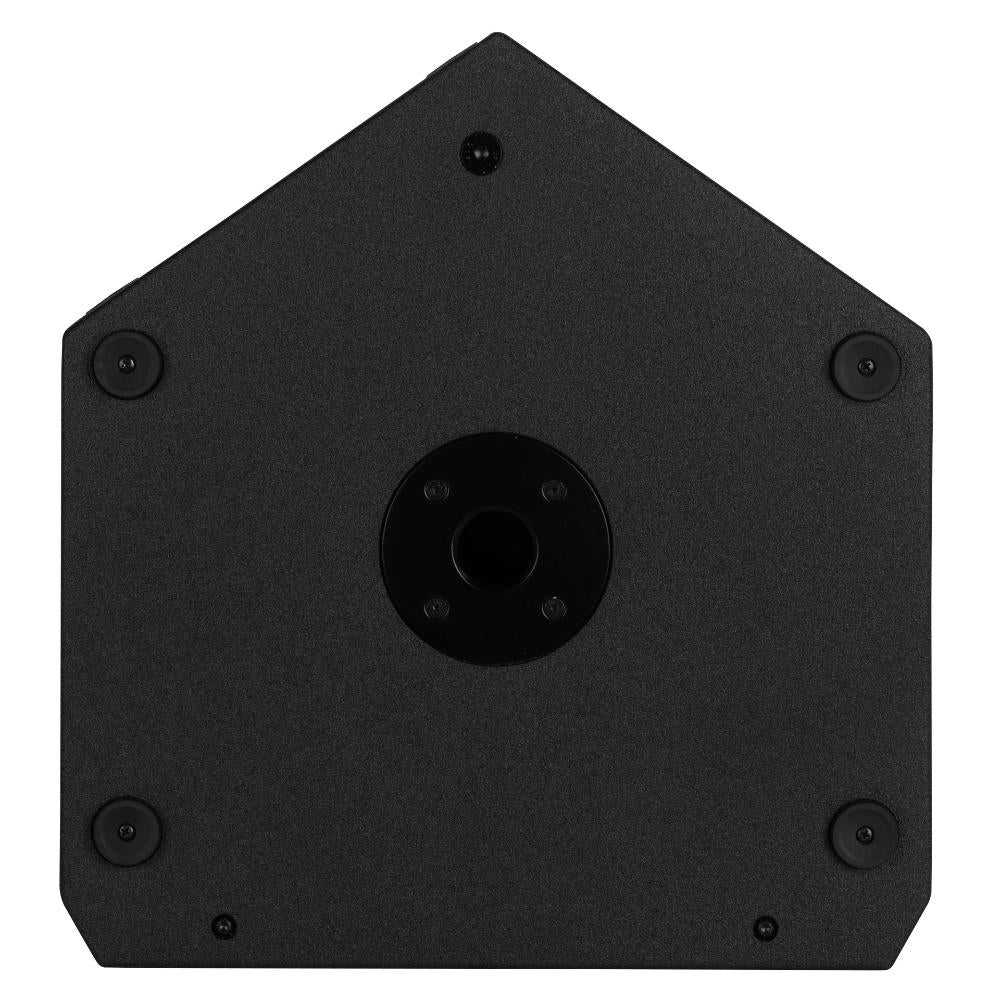

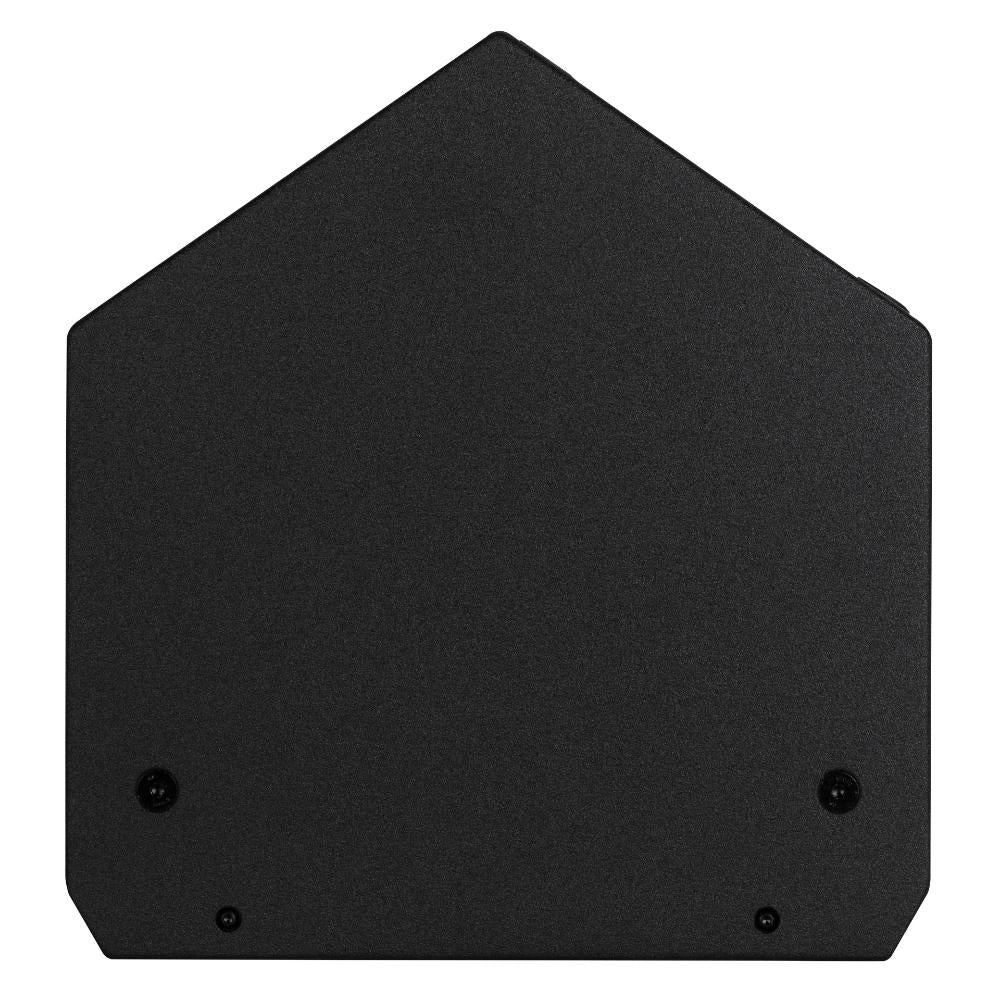

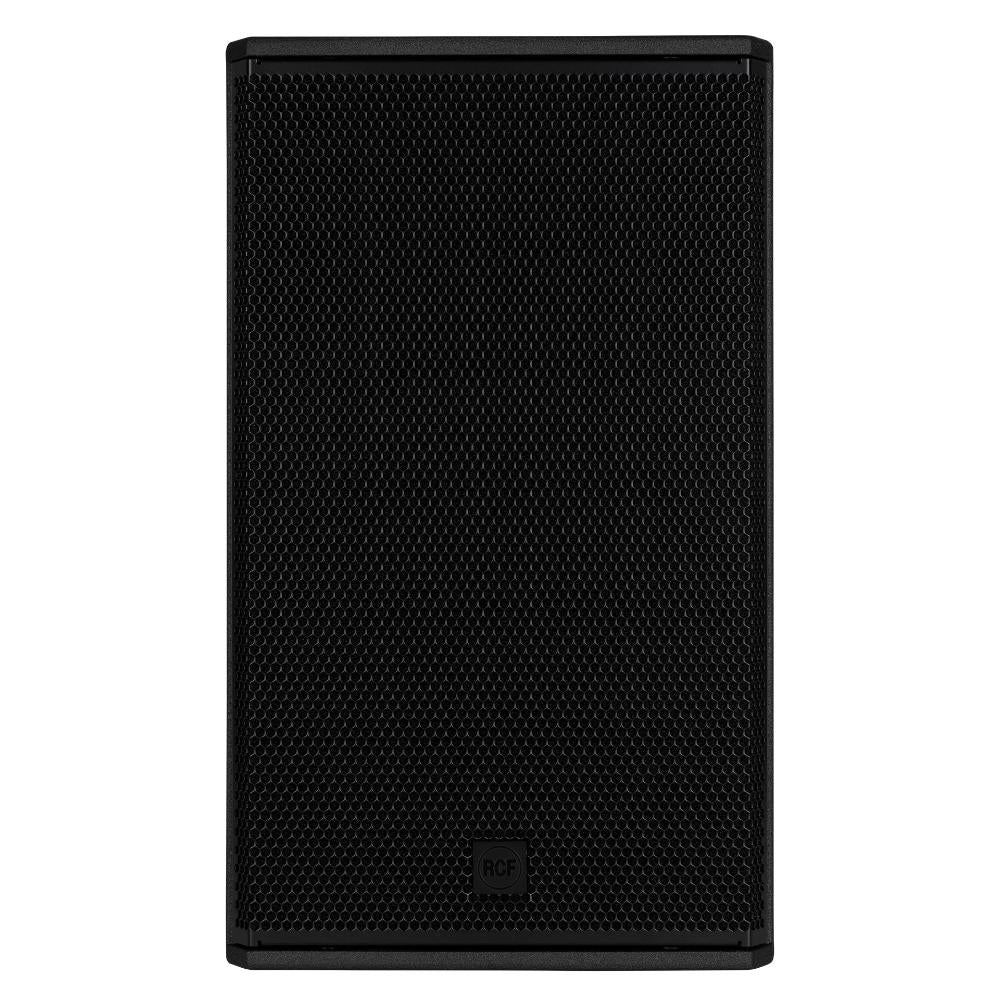

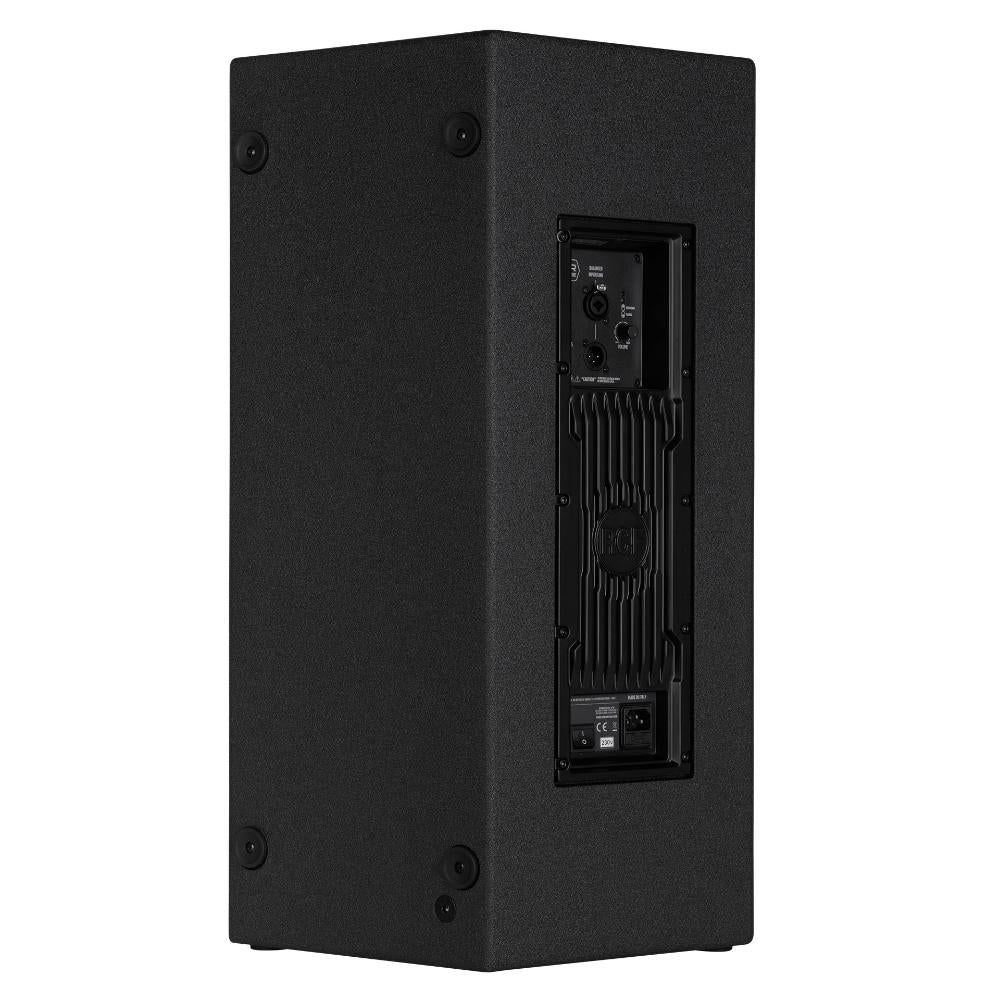

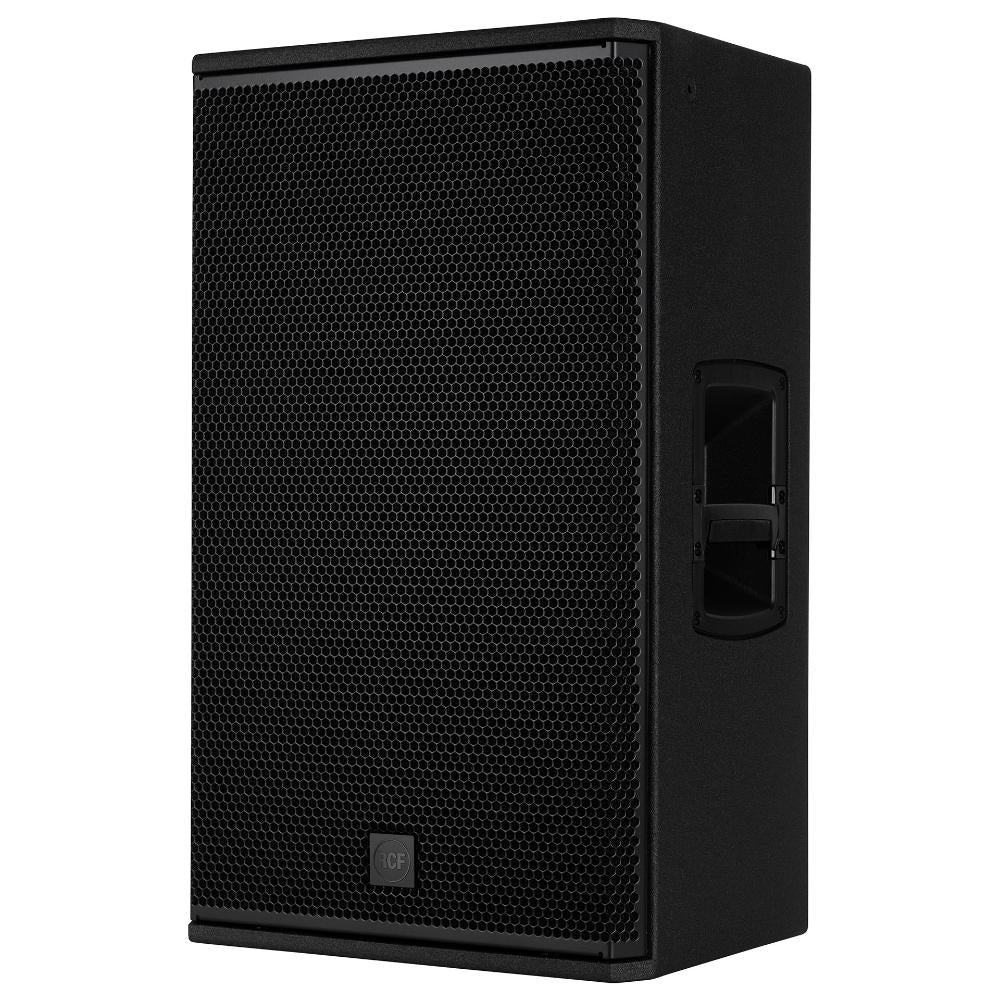

TOURING | NX 915-A | PROFESSIONAL ACTIVE SPEAKER | Up to 131 dB Sound Pressure Level | 2100W Class-D Bi-Amplification | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response |
45 Hz - 20000 Hz |
| Max SPL @ 1m |
131 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
60° |
| Transducers |
| Compression Driver |
1 x 1.0'', 1.75'' v.c |
| Woofer |
1 x 15'', 2.5'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR, Jack |
| Output connectors |
XLR |
| Input sensitivity |
-2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
1600 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
| Linear, Boost, Stage, Volume |
| Power section |
| Total Power |
2100 W Peak |
| High frequencies |
700 W Peak |
| Low frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
| VDE |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |
| 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear |
Handles |
| 1 x Each Side |
Pole mount/Cap |
| 35 mm insert |
Grille |
| Steel |
Color |
| Black |
| Size / Weight |
| Height |
705 mm / 27.76 inches |
| Width |
420 mm / 16.54 inches |
| Depth |
451 mm / 17.76 inches |
| Weight |
24.1 kg / 53.13 lbs |
| Shipping information |
| Package Height |
751 mm / 29.57 inches |
| Package Width |
506 mm / 19.92 inches |
| Package Depth |
474 mm / 18.66 inches |
| Package Weight |
26.6 kg / 58.64 lbs |
