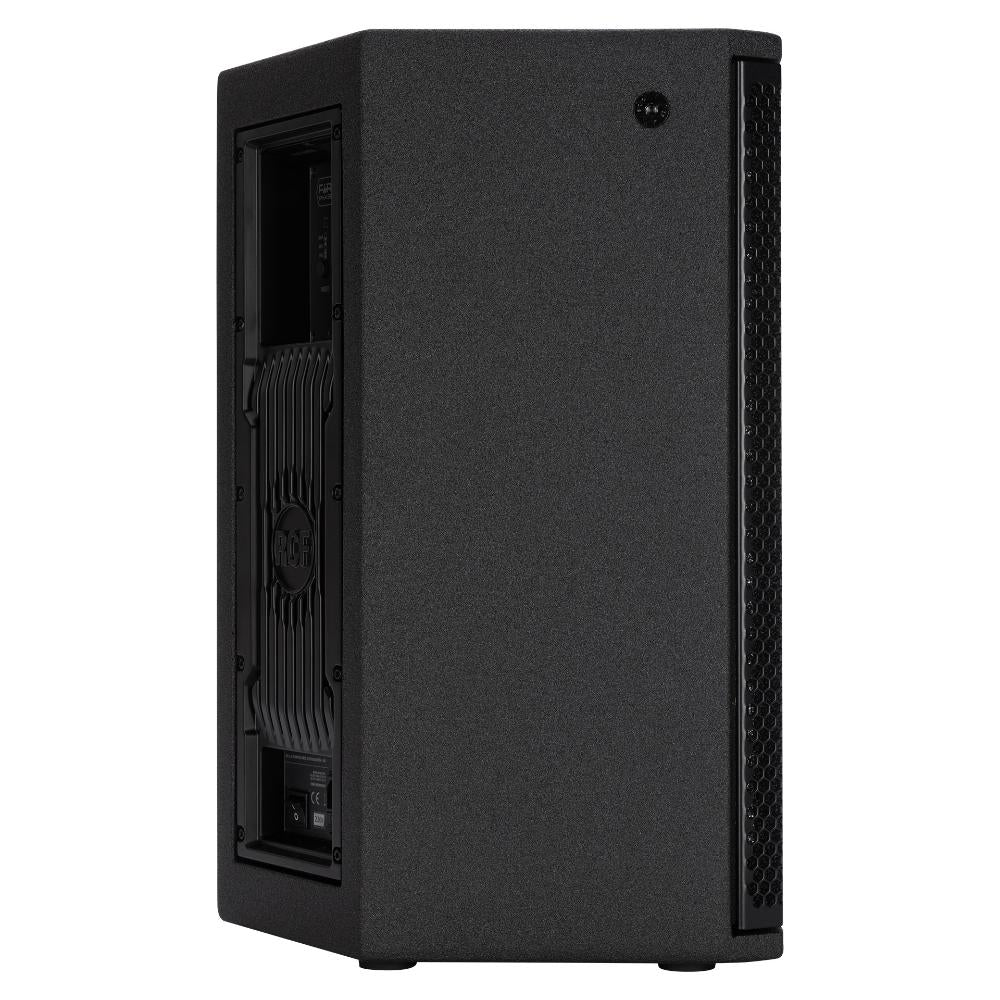

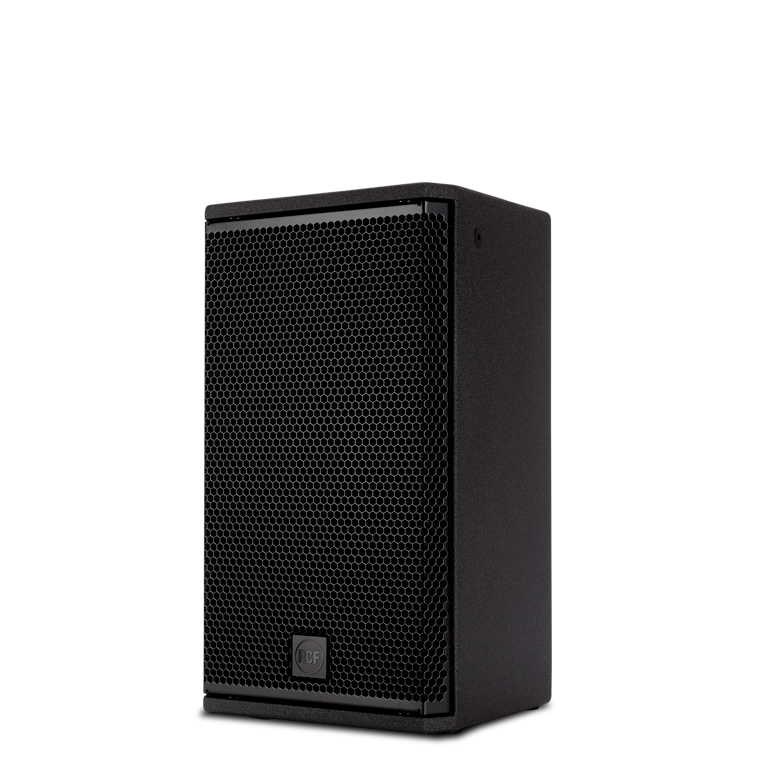

TOURING | NX 910-A | PROFESSIONAL ACTIVE SPEAKER | Up to 130 dB Sound Pressure Level | 2100W Class-D Bi-Amplification | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response |
50 Hz - 20000 Hz |
| Max SPL @ 1m |
130 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
60° |

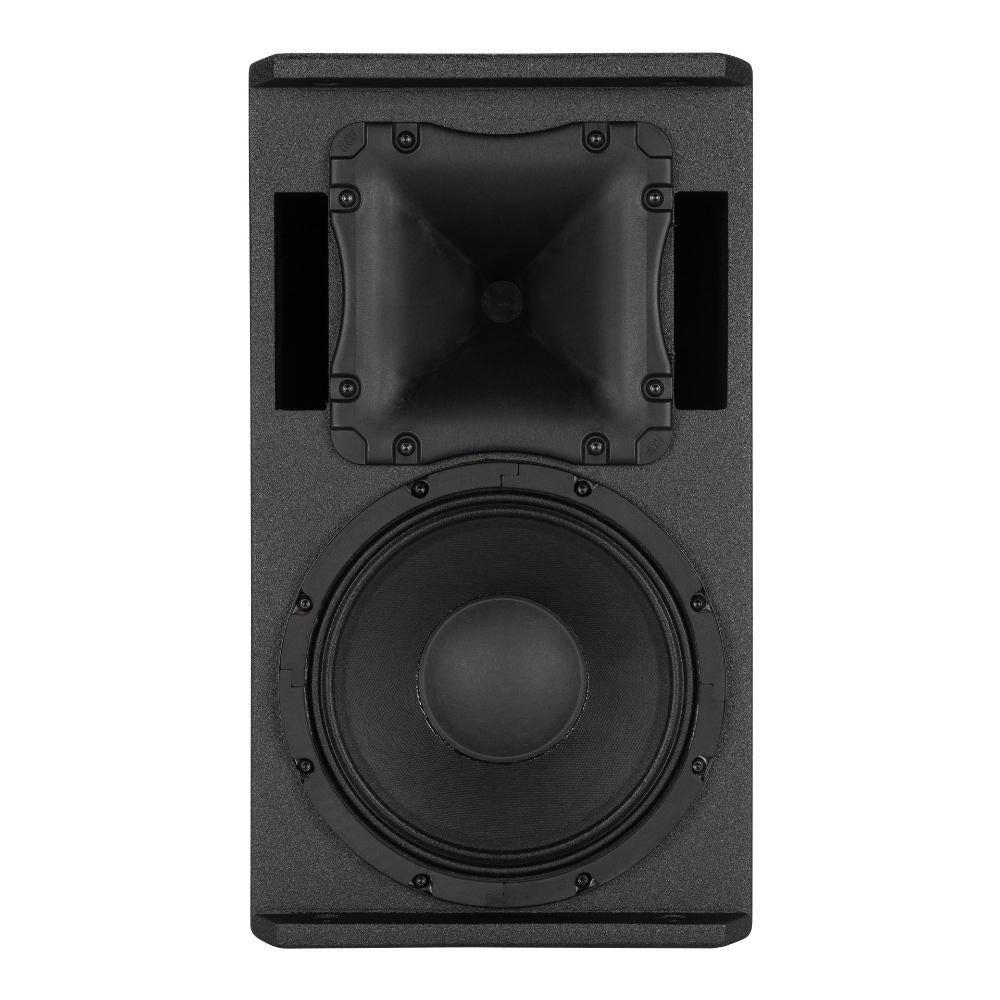

| Transducers |
| Compression Driver |
1 x 1.0'', 1.75'' v.c |
| Woofer |
1 x 10'', 2.5'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |

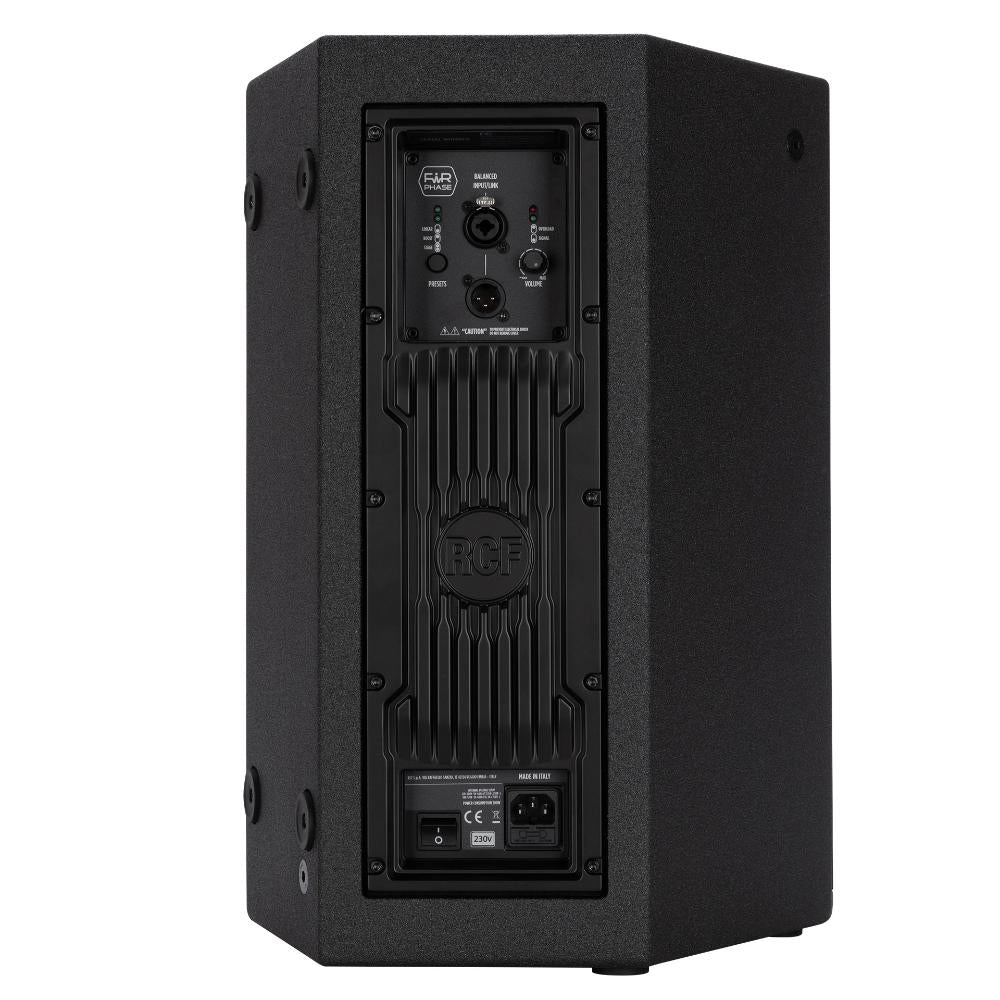

| Input connectors |
XLR, Jack |
| Output connectors |
XLR |
| Input sensitivity |
-2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
1600 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
| Linear, Boost, Stage, Volume |
| Power section |
| Total Power |
2100 W Peak |
| High frequencies |
700 W Peak |
| Low frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
| VDE |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |

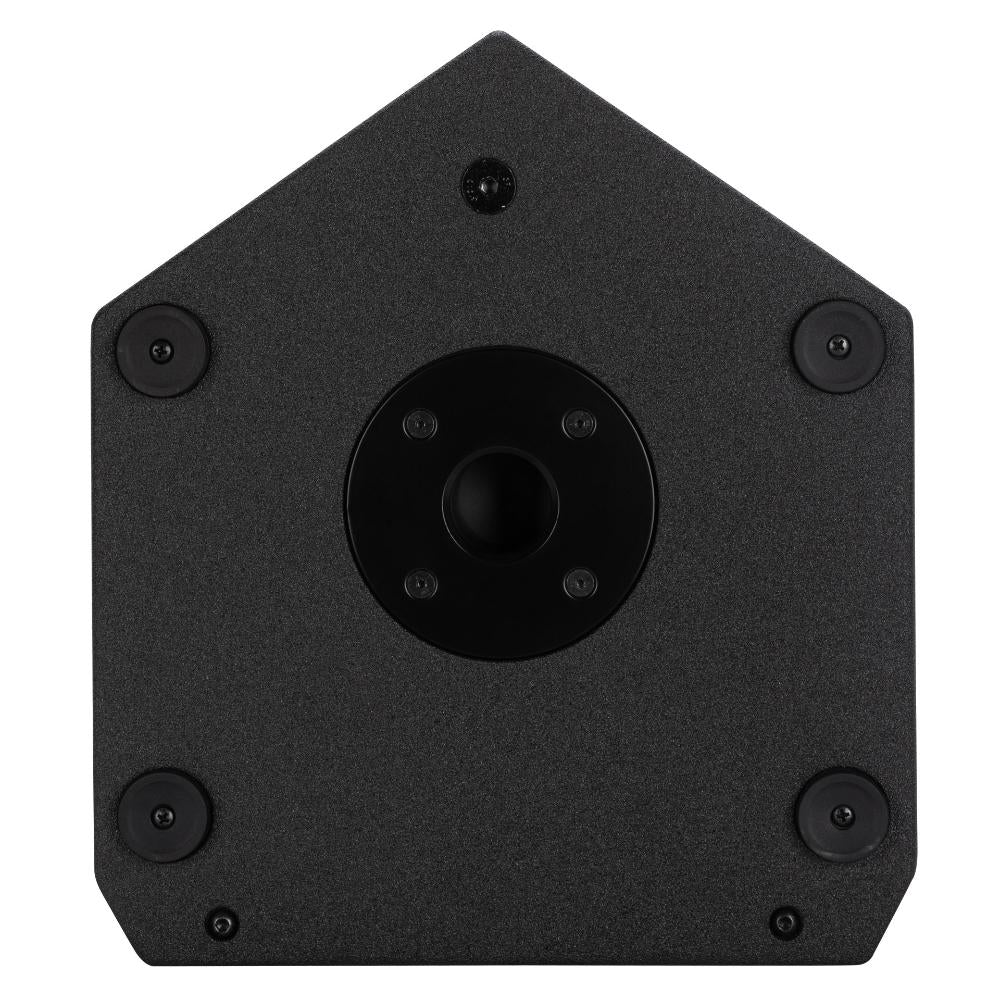

| 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear |

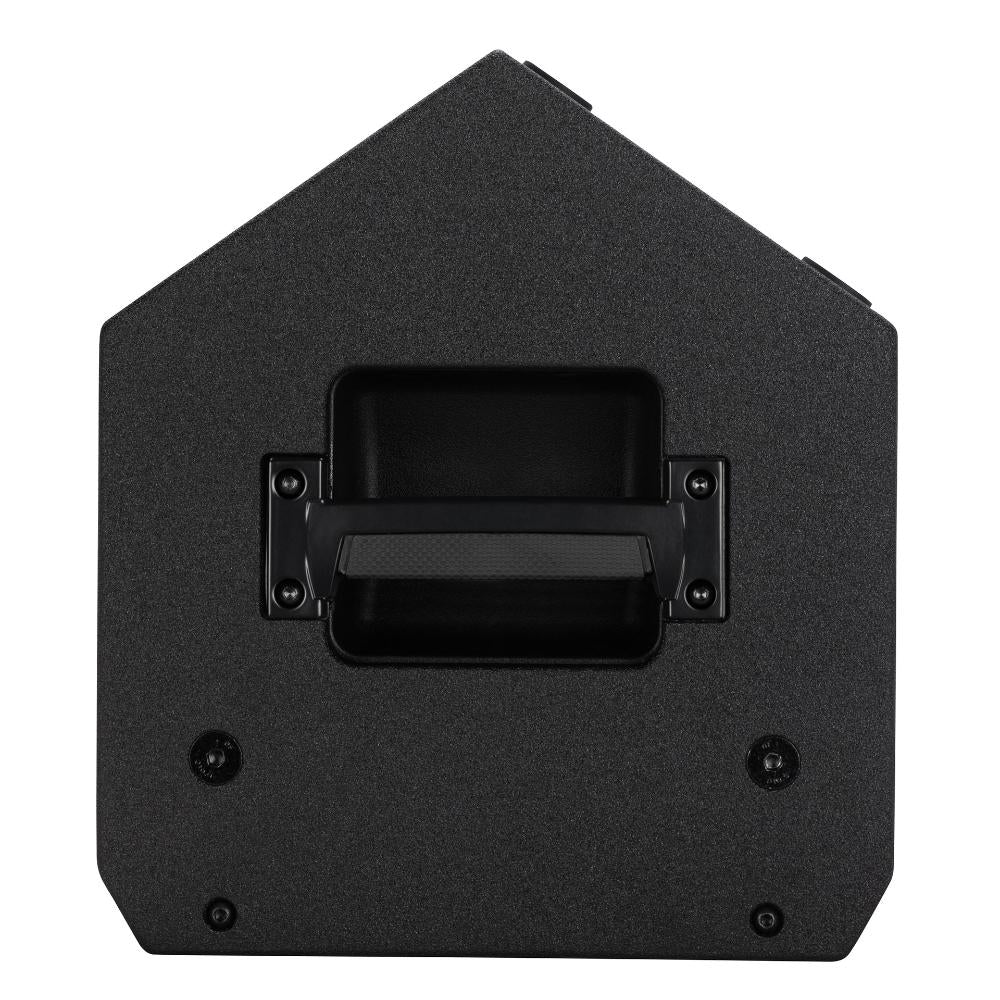

Handles |
| 1 Top |

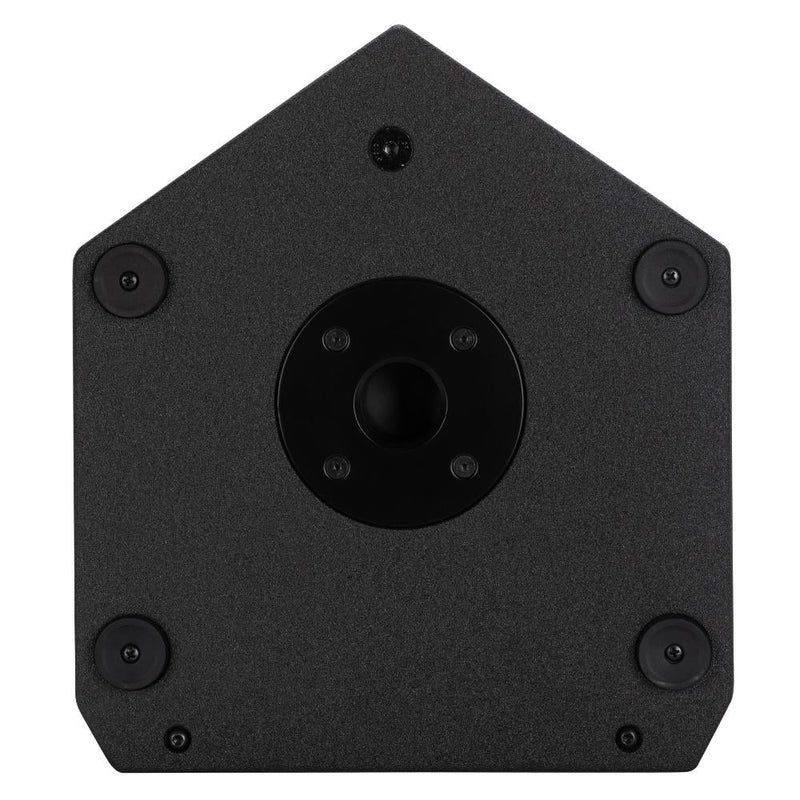

Pole mount/Cap |
| 35 mm insert |
Grille |
| Steel |
Color |
| Black |
| Size / Weight |
| Height |
510 mm / 20.08 inches |
| Width |
295 mm / 11.61 inches |
| Depth |
333 mm / 13.11 inches |
| Weight |
16.4 kg / 36.16 lbs |
| Shipping information |
| Package Height |
556 mm / 21.89 inches |
| Package Width |
388 mm / 15.28 inches |
| Package Depth |
348 mm / 13.7 inches |
| Package Weight |
18.1 kg / 39.9 lbs |
