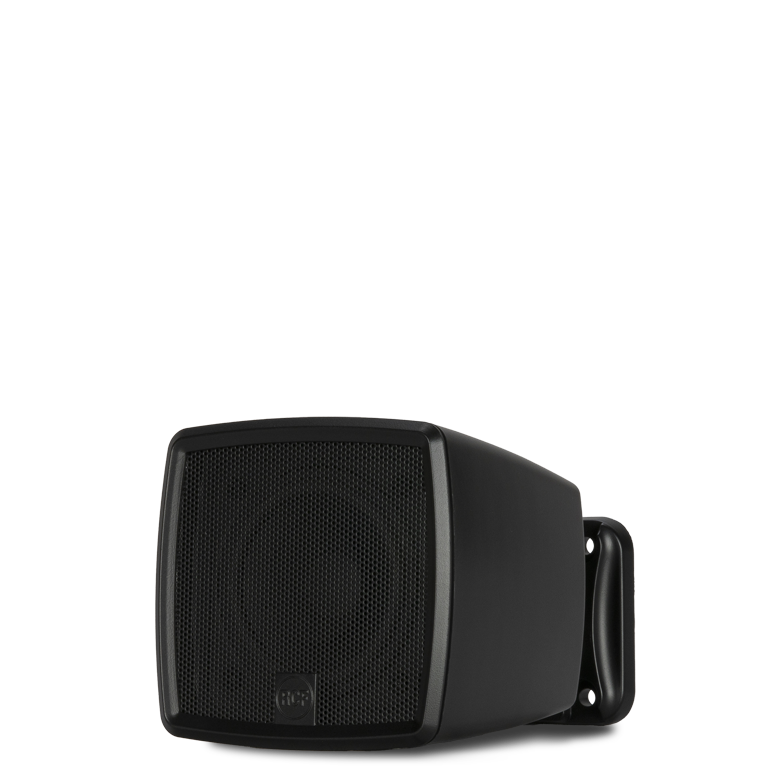

RCF MMR 30T Micro Monitor Speaker

MMR 30T is a full-range wall-mount speaker designed for a wide range of indoor and outdoor applications. Thanks to its refined finishes and discreet design, it blends seamlessly into any architectural context. Featuring a 3" full-range transducer and 10 W RMS power handling, this compact speaker also comes with an integrated transformer for connection to 70/100 V constant-voltage lines. Its high-quality components guarantee clear, balanced reproduction for background music and speech, reaching remarkable sound pressure levels for such a small device. The connection is simple and secure through removable two-pole screw terminals. The included wall-mount bracket provides swivel and tilt adjustment for precise orientation.

Features

• 10W power handling
• 101 dB max SPL
• 200 Hz - 20 kHz frequency range
• 130° conical coverage
• 3" full range transducer
• ABS enclosure with aluminum grille
• Wall mount bracket included
• IP55 protection rating

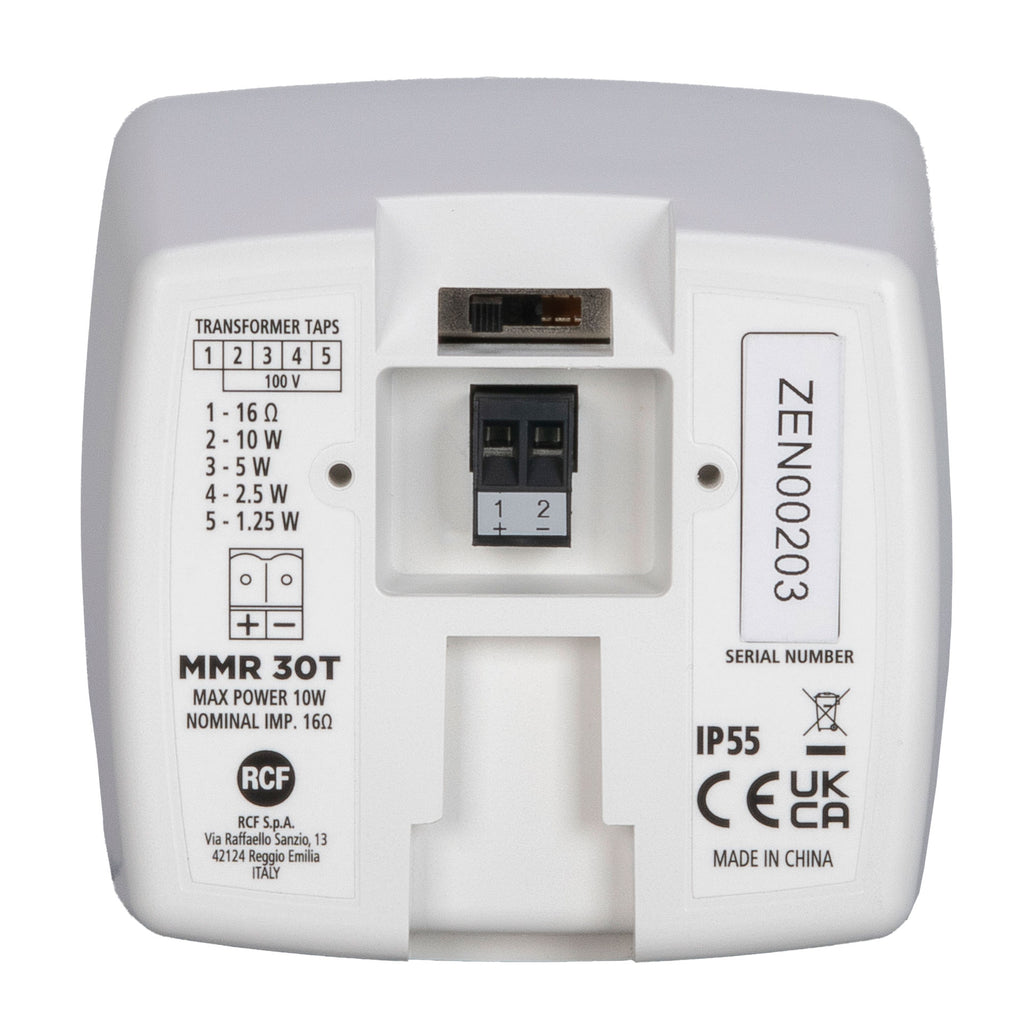

• 2-pole EUROBLOCK connector

Multipurpose Sound

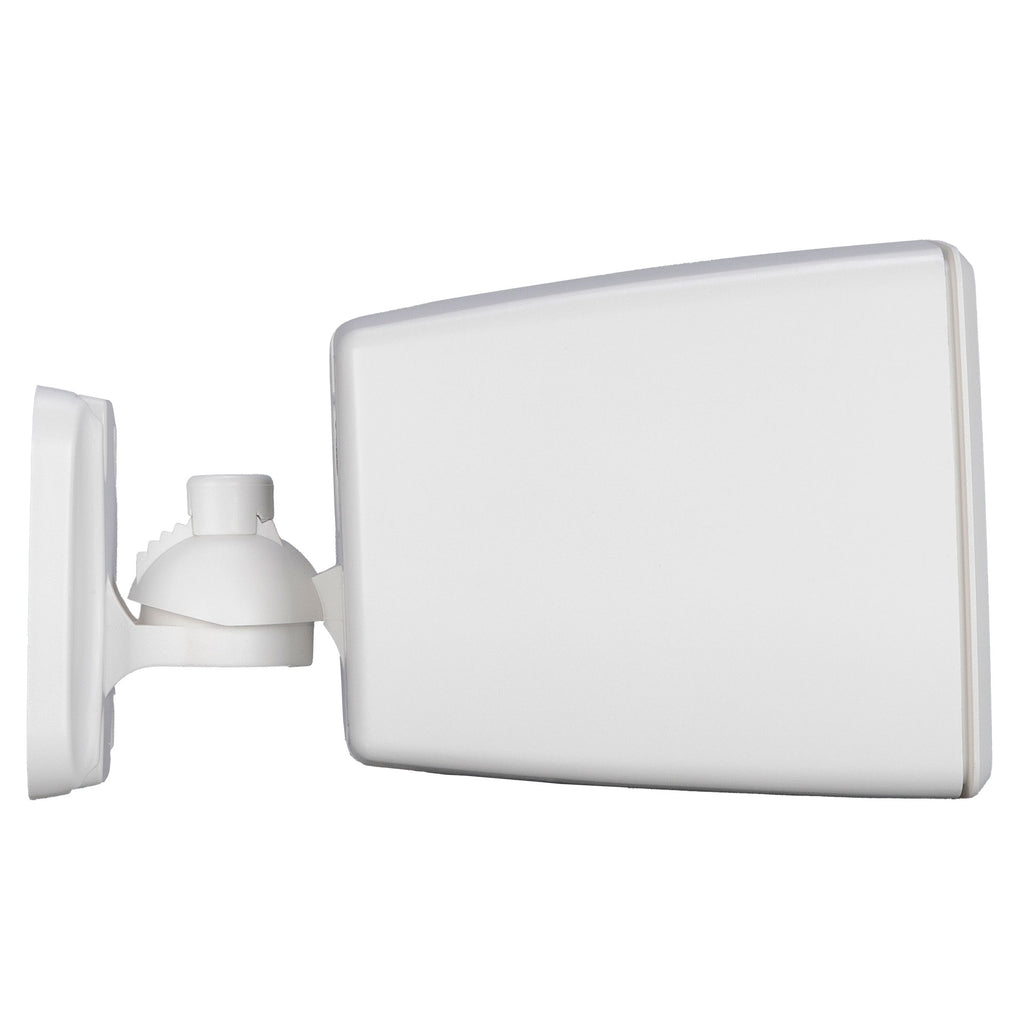

Flexible Wall-Mount Installation

Flexible Wall-Mount Installation

Built with a robust yet lightweight ABS enclosure, MMR 30T is engineered for easy and reliable mounting. Its minimal footprint allows installation in tight spaces without compromising audio quality, while the included wall-mount bracket provides swivel and tilt adjustment for precise orientation. The Euroblock connector offers straightforward wiring. Available in black RAL 9005 and white RAL 9003, the speaker blends naturally into a wide range of interior and exterior designs.

Uncompromised Performance

Constant Voltage Speakers

Constant-voltage speaker systems, also called high impedance or 70V/100V audio distribution systems, refer to networks of loudspeakers equipped with line transformers connected to an audio amplifier with high-impedance output. This approach offers several advantages such as:

High voltage (70V or 100V) enables long cable runs between amp and speakers with reduced power loss: low-level current allows smaller cable diameters Speakers can be wired in parallel in large numbers, limited only by available amplifier power Different speaker types with different power requirements can share the same speaker line simultaneously, making the system wiring easier Adding or removing a speaker is very quick and simple, it does not require to re-wire the overall circuit

Specifications
