JMAZ MAD PAR 4IP 6PK

The JMAZ MAD PAR 4IP 6PK 60W RGBWA+UV LED Battery Powered Outdoor Uplight Kit features 6 x 60W RGBWA+UV LED units in a durable, injection-molded case. With 73 color presets, 50 sound-active modes, and 72 fade programs, this IP65-rated kit delivers vibrant lighting for any outdoor setup. Includes wireless DMX, IR control, diffuser filters, remotes, chargers, and comprehensive accessories for flexible, long-lasting performance.

Main Features

• Injection Molded Case w/6 MAD PAR 4IP Units
• Each Unit: 60W (4 x 15W) RGBWA+UV LEDs + IP65 Outdoor Rated
• Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode
• Charging Time: 4 Hours (Each Unit)
• CCT: 2300K – 8500K
• 73 Preset Color Programs
• 50 Advanced Sound Active Mode
• 72 Auto / Fade Bulit In Programs
• 10° Beam Angle / 20° Beam Angle w/Diffuser Included
• Protocols: Wireless DMX, IR Remote
• Includes: Injection Molded Case, 3 x Remotes, 6 Diffuser Filters, 6 x A
• /C Charger, 1 x 6 Way Charger, 2 x Manual
• *** PATENT PENDING***

Technical Specifications

Light Source

• 60W (4 x 15W) RGBWA+UV LEDs
• LED Life Expectancy: 50,000 hrs

Color System

• RGBWA+UV Color Mixing 8/16 bit
• CCT: 2300K to 8500K

Optics

• Advanced Quadrilateral Lens Optic: 10° Beam Angle
• Diffuser Angle (Included): 20° Beam Angle

Dynamic Effect

• Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode
• Charging Time: 4 Hours
• Selectable Battery Saving Mode: 25%, 50%, 75%, 100%

73 Preset Color Programs

• 50 Advanced Sound Active Mode
• 72 Auto / Fade Built-In Programs

Stand Alone Color Mixing

Electronic Dimmer

• Fading/Jumping Macros Light Change And Jump
• Shutter/Strobe: Electronic
• Strobe Rate: 0-25 Hz

Preset Color Temperature

• 4 Favorite Color Customization Triggered via DMX / IR Remote

Control

• Control Protocol: Wireless DMX, IR Remote
• Personalities: 6/8/16 CH DMX Modes
• OLED Graphical Display

Electronics

• Linear LED Dimmer: 0-100% Smooth
• Strobe Shutter: 1-25Hz
• Dimming Modes: 4

Body

• Die-Cast Aluminum and Steel Structure

Physical

• Adjustable Tilt Base: 0-40 Degree
• Cooling: Fanless
• Certification / Qualifications
• RoHS, CE, FCC
• IP Rating: IP 65
• Operating Temperature:

–10 ° C ( 14 ° F) To

60 ° C ( 140 ° F)

Electrical

• Input Voltage: 100 V – 240 V AC, 50/60 Hz
• Input Voltage: 100 V – 240 V AC, 50/60 Hz
• Power Consumption: 60W
• PWM: 1.5KHz
• Battery Voltage: 11.1V
• Battery Capacity: 10,400 mAH, 115.5 Wh/hour
• Charger: 12.6V, 3A
• Rechargeable Battery Type: Lithium Ion ***UL Listed***

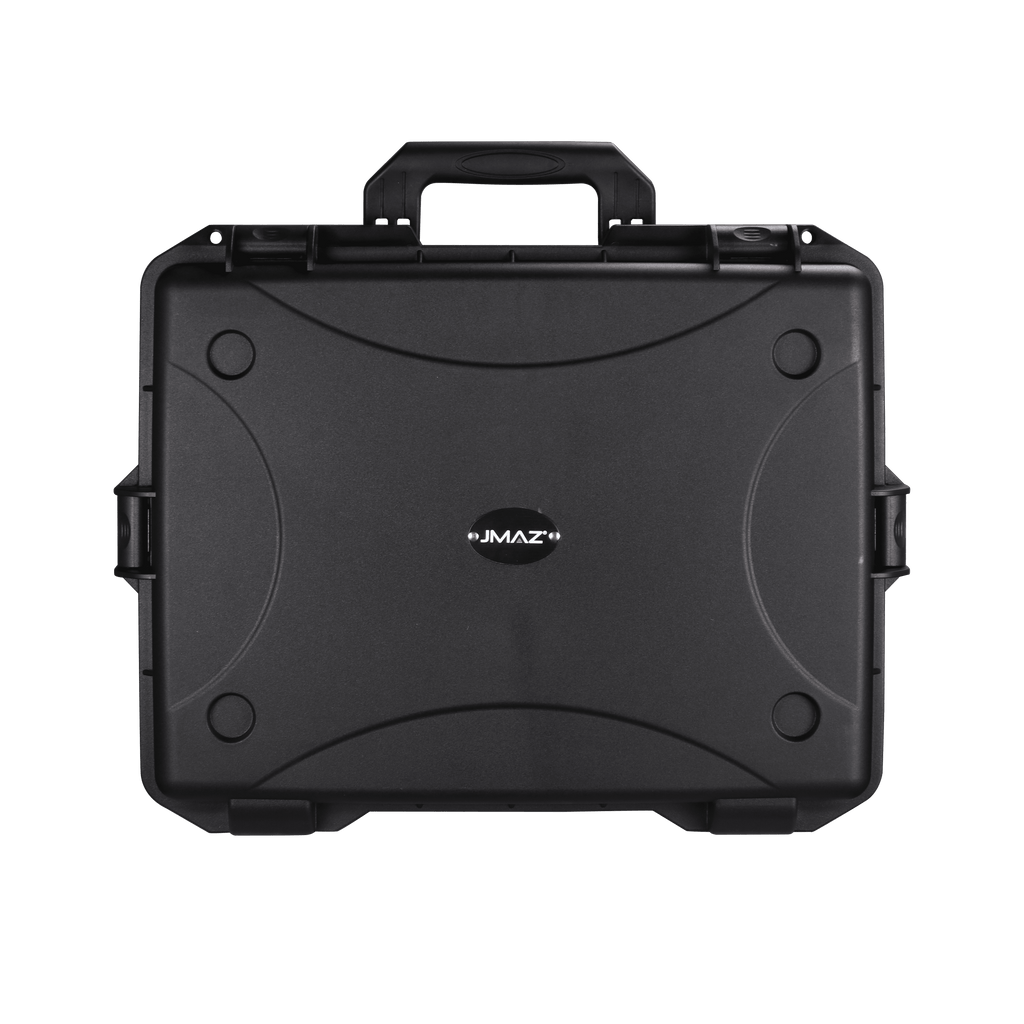

• 1 x IP65 Waterproof Injection Mold Case (Holds 6 Units)
• 6 x Mad Par 4IP
• 6 x 20 Degree Diffuser
• 6 x A/C Charger

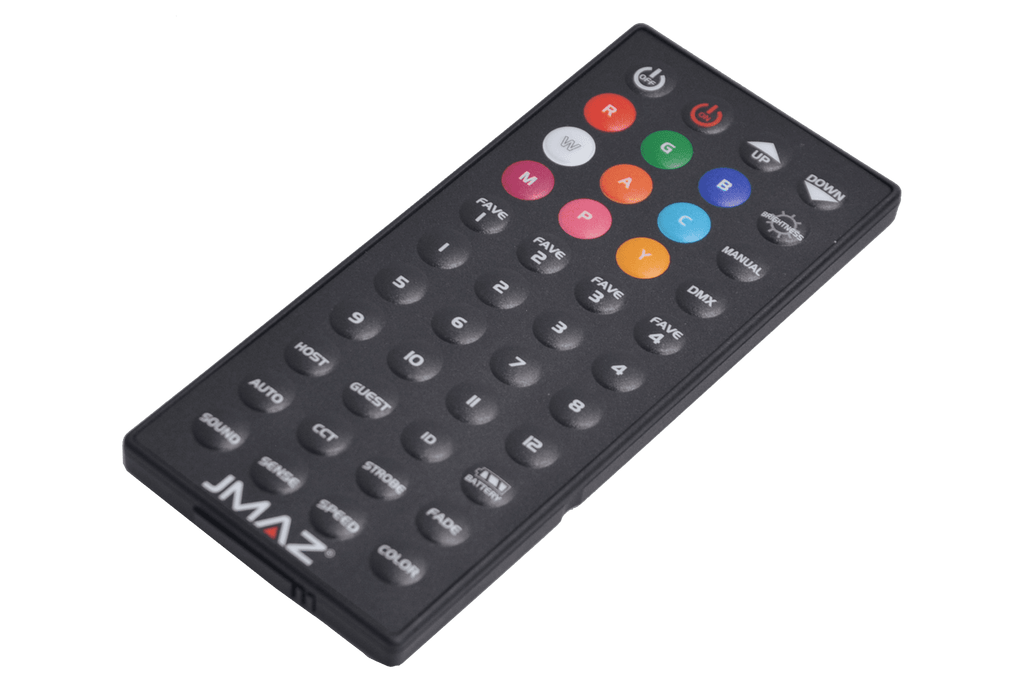

• 3 x IR Remote
• 1 x 6in1 Power Charger
• 1 x User Manual

Item Dimensions & Weight

• Case:
• Dimensions: 22 x 17 x 8.5
• Weight: 32 lbs (w/ Units)
• Weight: 9 lbs (Case Only)
• Unit:
• Dimensions: 7.2″ x 5.9″ x 3″
• Weight: 4.4 lbs

Warranty

• 2 Years (6 Month Battery)
