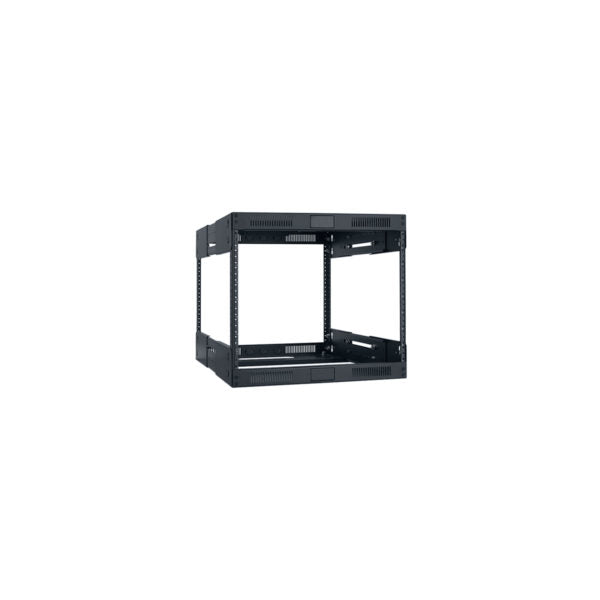

LVR8-2128: Vari-Rack 8U x 21-28?D

Made to fit where a standard rack won't, the innovative VARI-RACK™ allows a custom fit on-the-fly with a top/base that can be set to any depth between 21 and 28 inches, and corner post rails with printed marks to guide field cuts if height needs trimming. Ideal for cabinets, closets or credenzas. Ships unassembled.

SPECIFICATIONS

• Rack Space:  8U
• Height:  17.84 in.
• Width:  19.21 in.
• Depth:  21.00–28.00 in. (adjustable)

FEATURES

• 14-gauge steel top/base (center opening varies according to depth selected)
• Front vents, cutouts with covers for optional low voltage devices
• Rear vents and holes for cable/wire management
• Top knockouts for wireless antennas and conduit
• Obround opening in base
• 11-gauge steel corner post rails tapped 10-32
• Load capacity 400 lbs.
• Smooth black powder epoxy finish
• Ships unassembled (top/base are factory assembled except for depth setting)

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The unassembled (knockdown) rack shall be Lowell Model No. LVR8-2128, which shall provide 8 rack units of panel space and measure 19.21"W x 17.84"H and have a depth that can be set anywhere between 21" to 28" during assembly. Base and top components shall ship pre-assembled except for the depth selection. Corner post mounting rails shall be 11-gauge steel tapped 10-32 with a printed rack unit scale. Rack finish shall be smooth black powder epoxy paint
