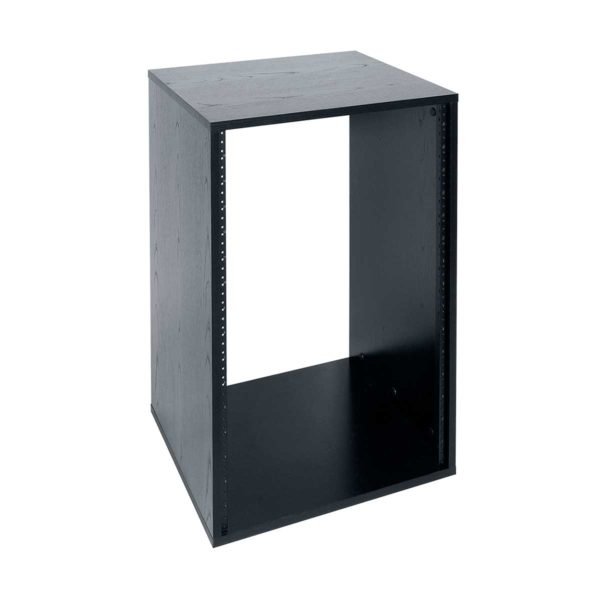

LLR-1618-B: Laminated Rack 16U x 18?D

Laminated AV rack is made of a sturdy wood composite with premium Cathedral Black woodgrain laminate finish. It is well suited for the home office or entertainment area.

SPECIFICATIONS

• Rack Space:  16U
• Height:  29.40 in.
• Width:  20.41 in.
• Depth:  18.00 in. (17.50 usable)

FEATURES

• 5/8 in. wood composite top, sides, base
• Open front and back
• Cathedral Black finish
• One-pair fixed-position mounting rails tapped 10-32 with RU scale
• Phillips-head cams and dowels
• Load capacity 200 lbs.
• Made in U.S.A.
• Ships unassembled

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• Made in U.S.A.

A&E SPECIFICATIONS

• The laminated rack shall be Lowell Model No. LLR-1618-B which shall measure 20.41”W x 18”D x 29.40”H and provide 16 rack units of panel space. The rack shall be constructed of a 5/8” wood composite with a Cathedral Black woodgrain laminate finish. It shall include one pair of 11-gauge steel mounting rails installed in front, which shall have printed rack unit increments. The rack shall ship unassembled and include cam and dowel assembly hardware. Hardware shall install from the inside and include black cover caps for a “hardware free” appearance.
