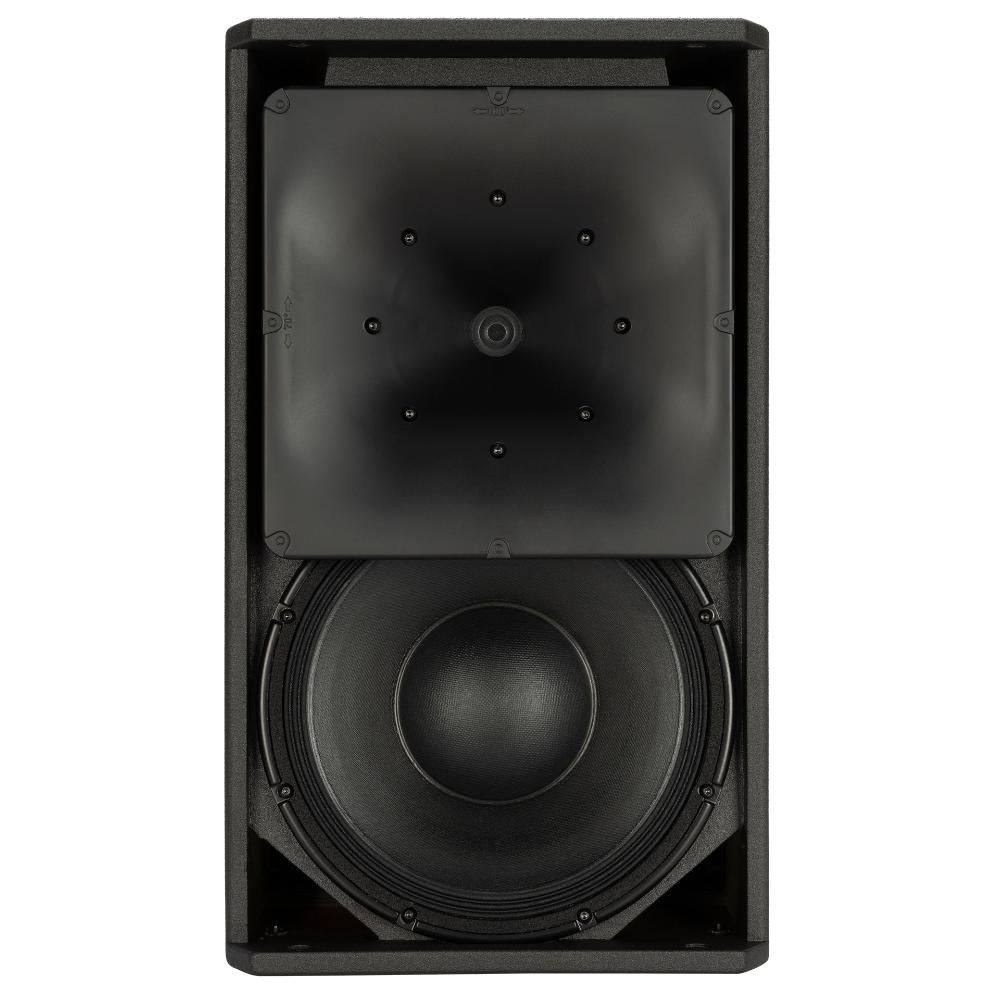

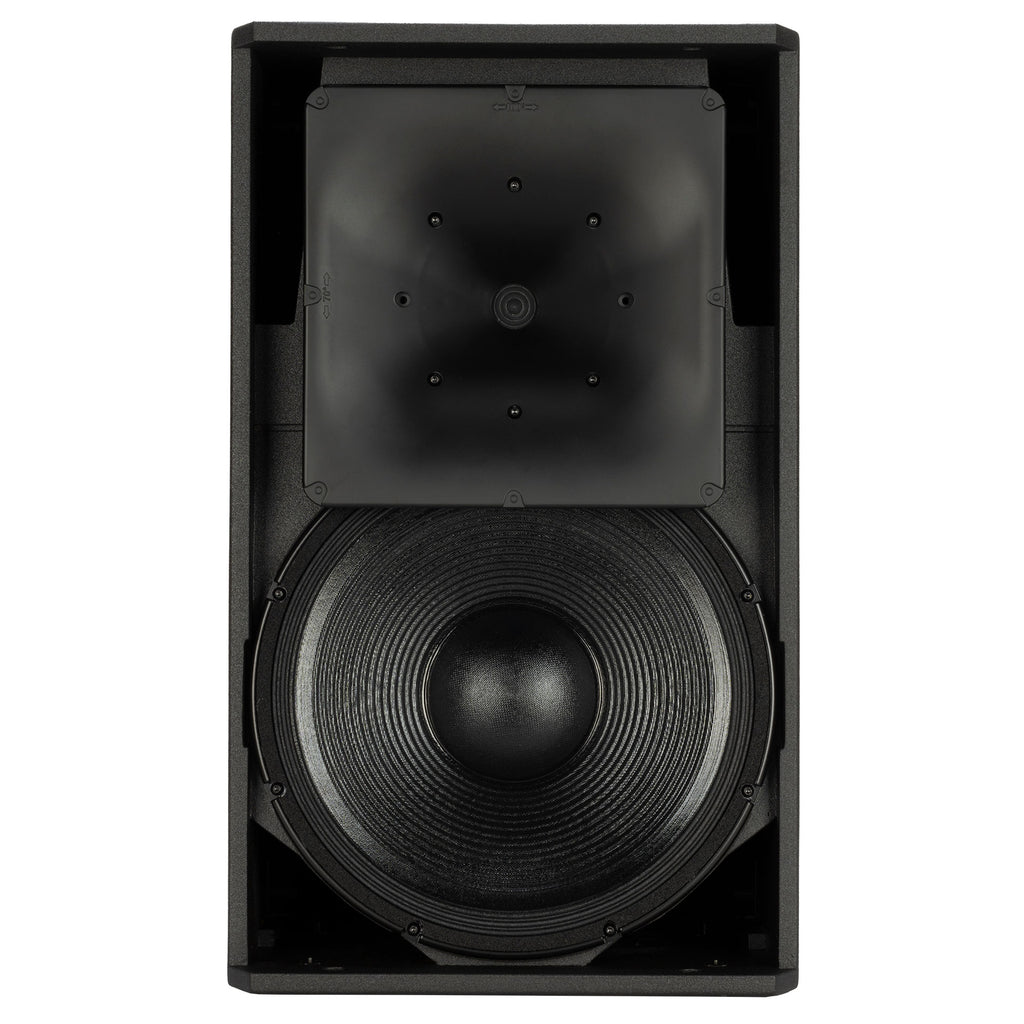

TOURING | KX 45-A | TWO-WAY POINT-SOURCE ACTIVE SPEAKER | Technical Specifications | 137 dB Max SPL | Rotatable 100° x 70° TRW horn
Technical Specifications
| Acoustical specifications |
| Frequency Response |
50 Hz - 20000 Hz |
| Max SPL @ 1m |
137 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
70° |
| Transducers |
| Compression Driver |
1.4'' neo, 4.0'' v.c |
| Woofer |
1 x 15'' neo, 3.5'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |

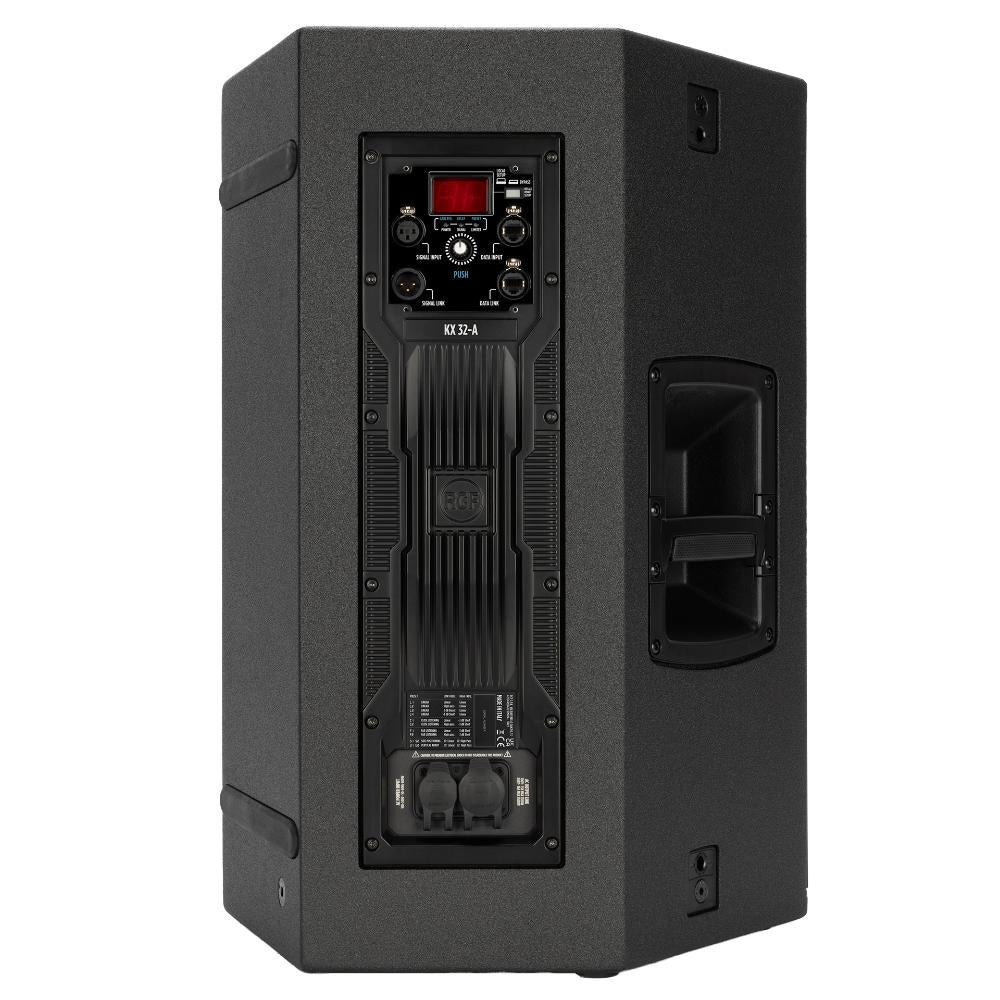

| Input connectors |
XLR, RDNet Ethercon |
| Output connectors |
Input sensitivity |
| -2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
750Hz |
| Protections |
Thermal, HF |
| Limiter |
Fast Limiter |
| Controls |
| Gain Reduction, Proces., 8 sel. presets |
Onboard |
| Power section |
| Total Power |
3200 W Peak |
| High frequencies |
1200 W Peak |
| Low frequencies |
2000 W Peak |
| Cooling |
Convection |
| Connections |
| Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |

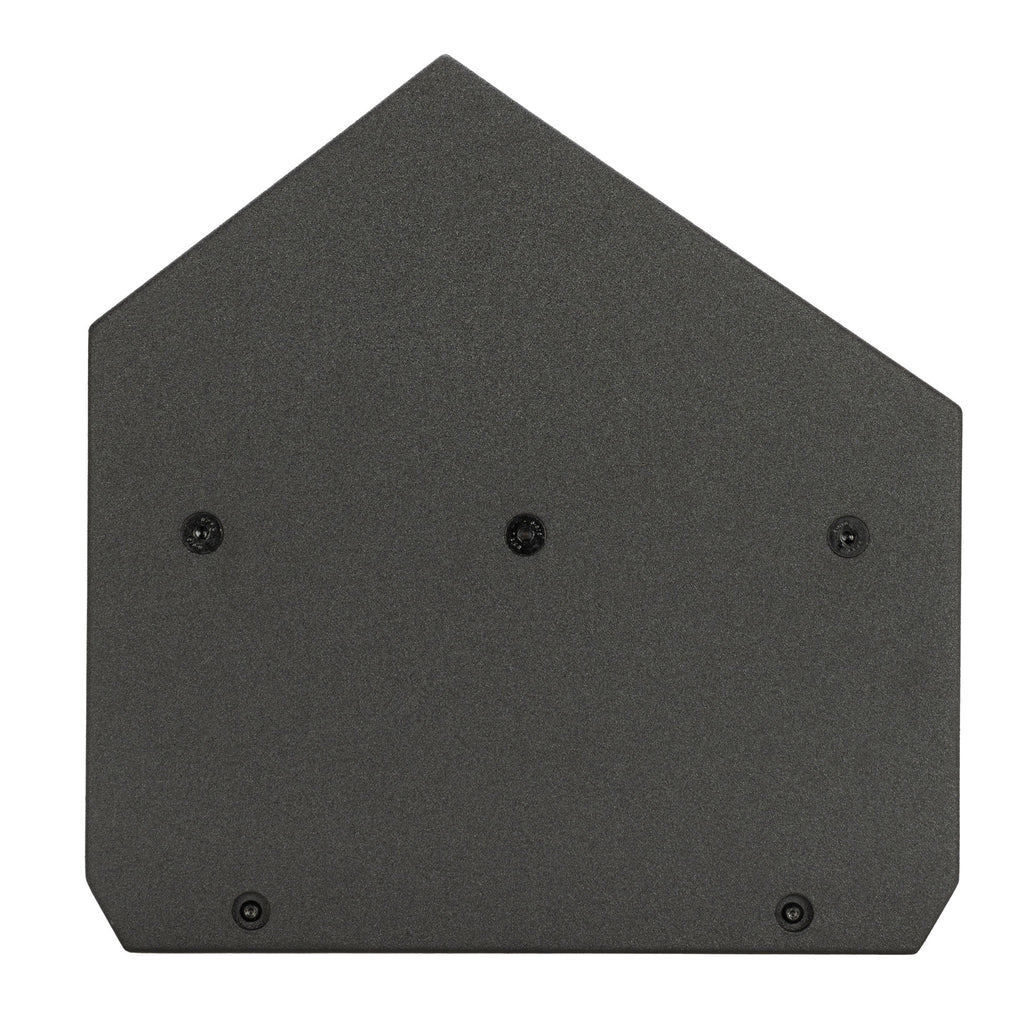

Quick lock, pole mount, 3 M10 on top, 3 M10 on bottom sides |

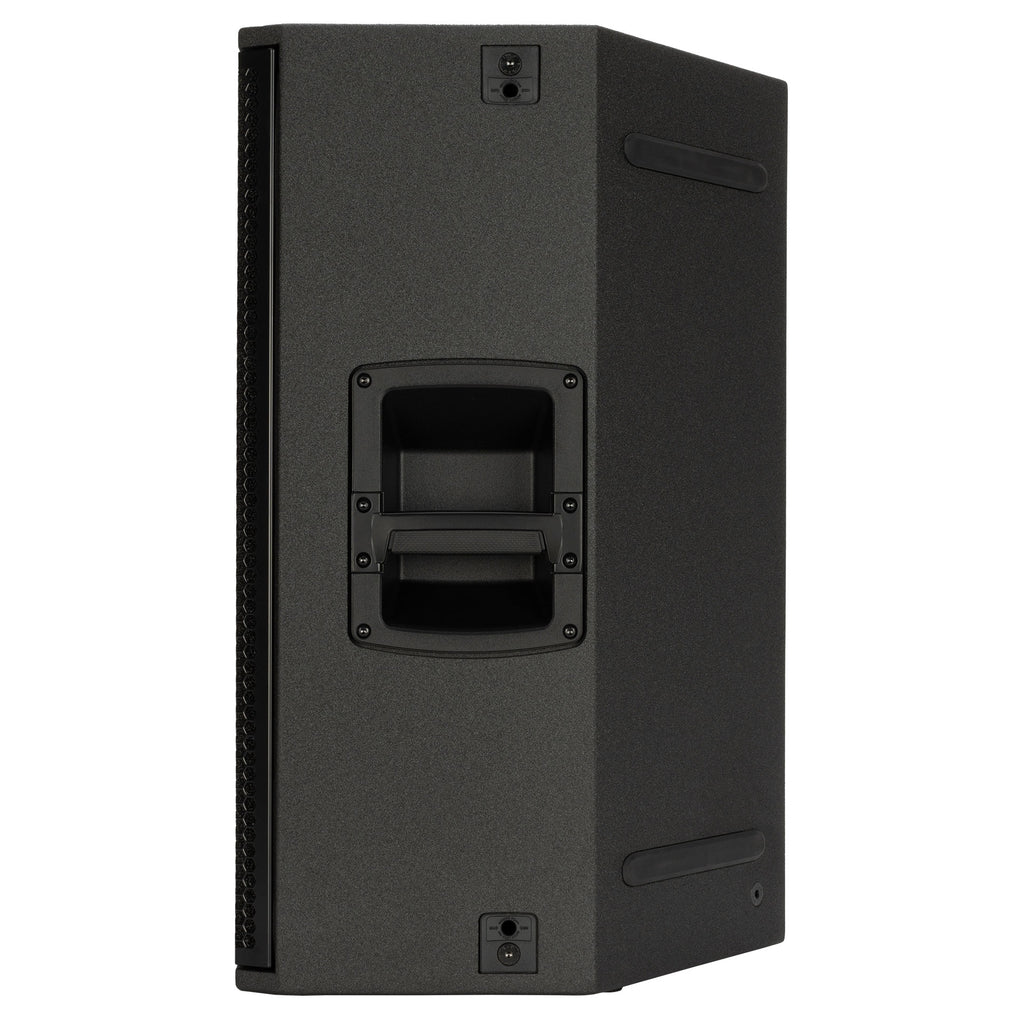

| Handles |
2 on side |

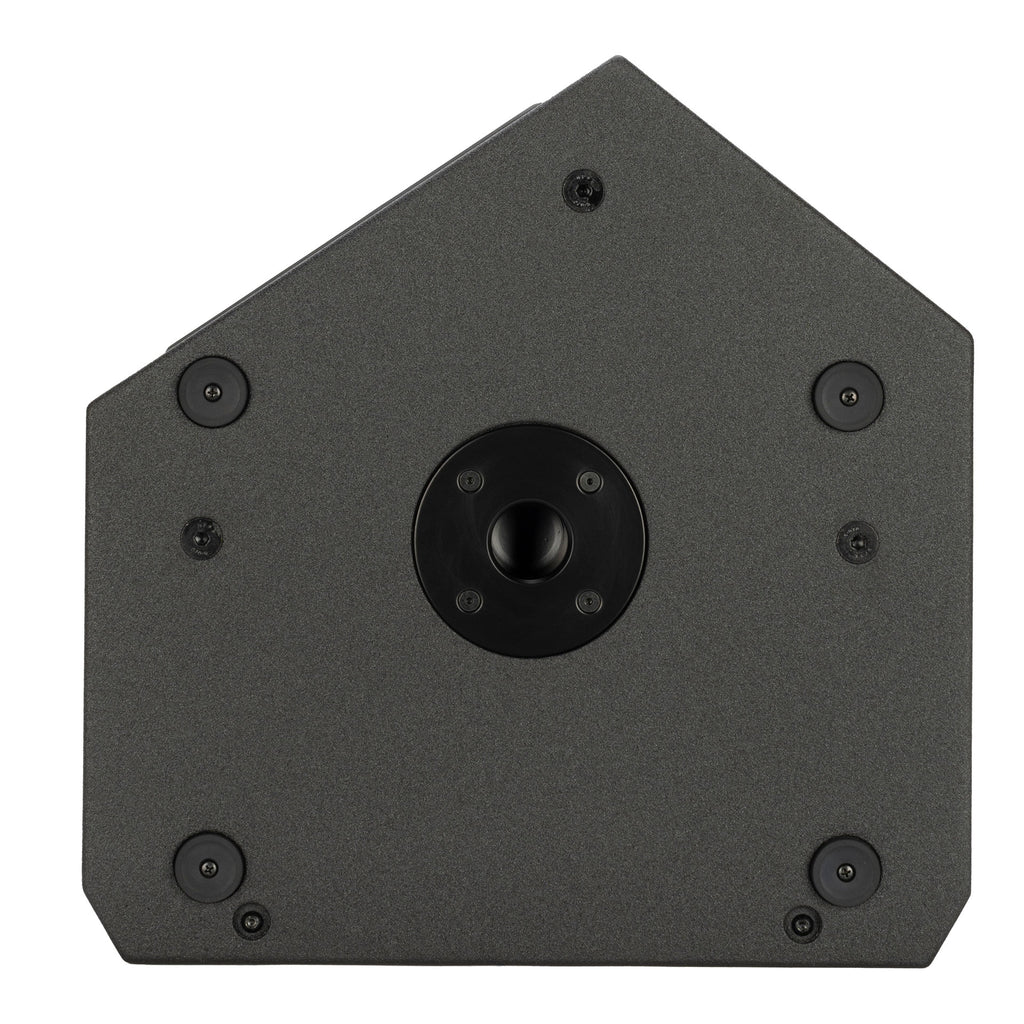

| Pole mount/Cap |
35 mm insert |

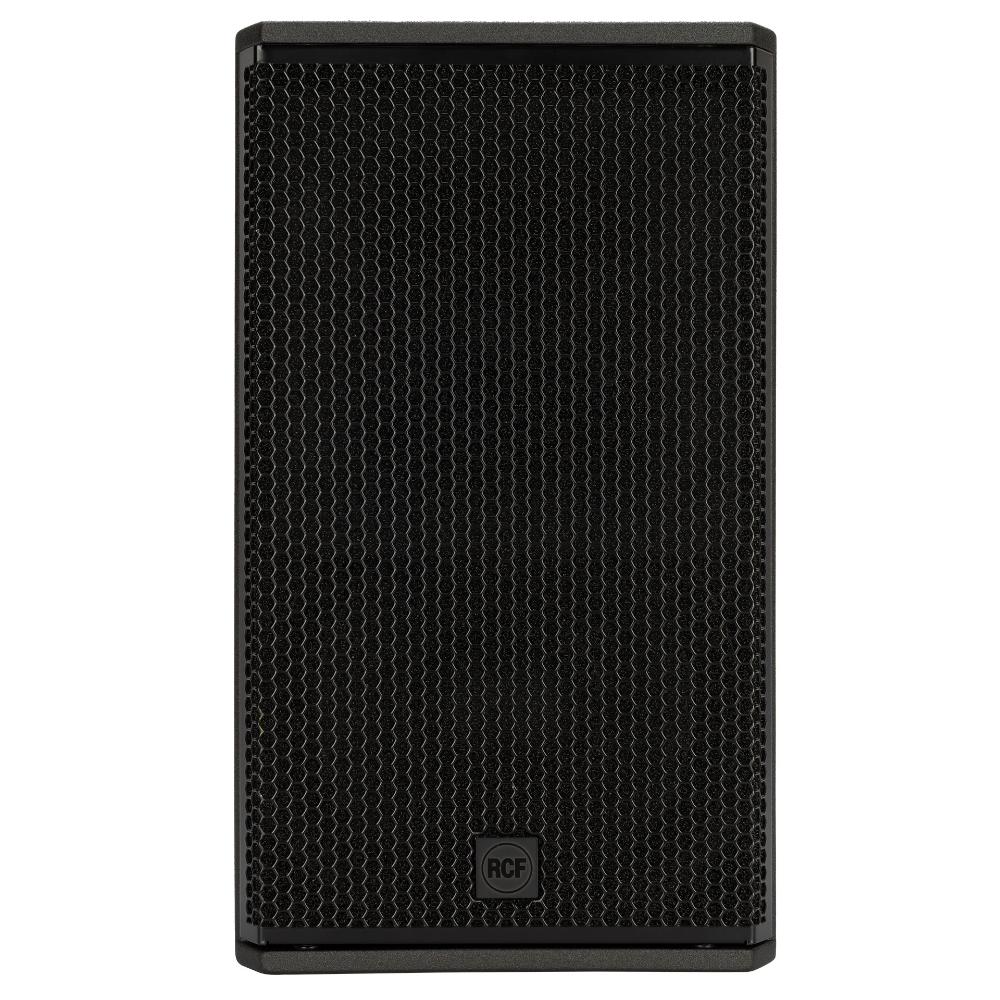

| Grille |
Steel with clothing |
| Color |
Black |
| Size / Weight |
| Height |
705 mm / 27.76 inches |
| Width |
419.6 mm / 16.52 inches |
| Depth |
430 mm / 16.93 inches |
| Weight |
28.4 kg / 62.61 lbs |
| Shipping information |
| Package Height |
801 mm / 31.54 inches |
| Package Width |
484 mm / 19.06 inches |
| Package Depth |
474 mm / 18.66 inches |
| Package Weight |
32 kg / 70.55 lbs |
