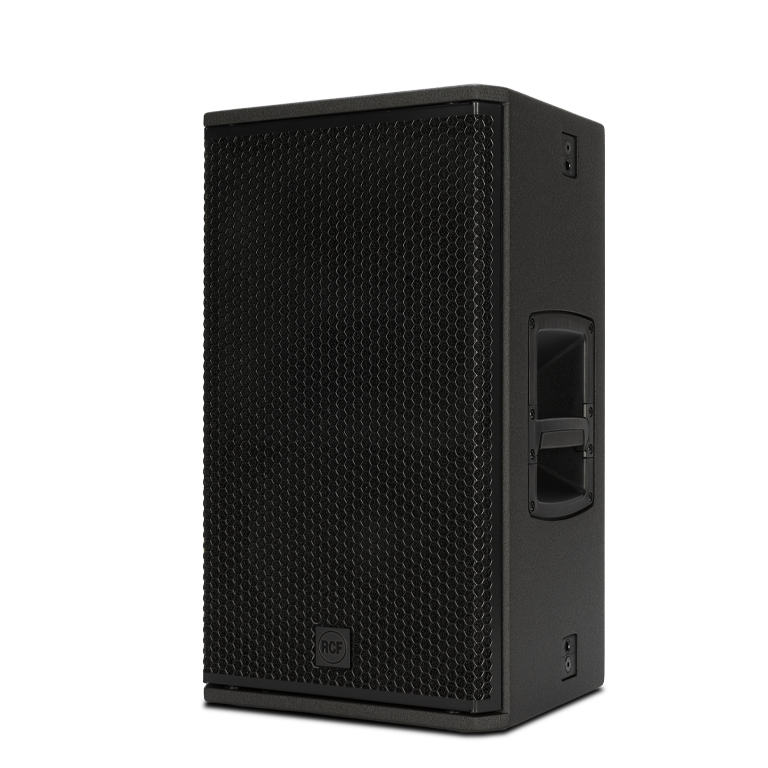

TOURING | KX 32-A | HIGH-PERFORMANCE 2-WAY POINT-SOURCE ACTIVE SPEAKER | Technical Specifications | 134 dB Max SPL | 2 channel, 3200 W Class D Amplifier
Technical Specifications
| Acoustical specifications |
| Frequency Response |
50 Hz - 20000 Hz |
| Max SPL @ 1m |
134 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
70° |

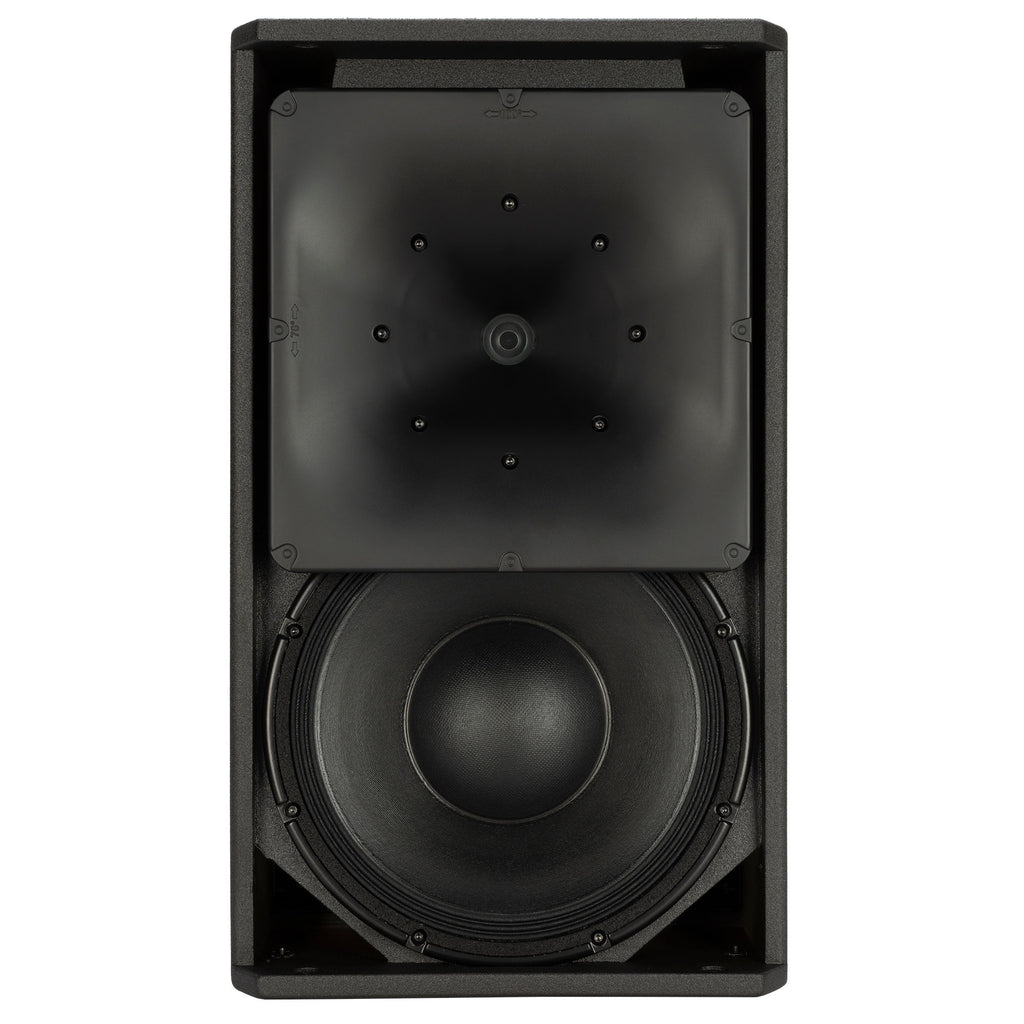

| Transducers |
| Compression Driver |
1.4'' neo, 3.0'' v.c |
| Woofer |
12'' neo, 3.5'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR, RDNet Ethercon |
| Output connectors |
Input sensitivity |
| -2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
750Hz |
| Protections |
Thermal, HF |
| Limiter |
Fast Limiter |
| Controls |
| Gain Reduction, Proces., 8 sel. presets |
Onboard |
| Power section |
| Total Power |
3200 W Peak |
| High frequencies |
1200 W Peak |
| Low frequencies |
2000 W Peak |
| Cooling |
Convection |
| Connections |
| Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |
| Quick lock, pole mount, 3 x M10 on top, 3 x M10 on bottom sides |
Handles |
| 2 on side |
Pole mount/Cap |
| 35 mm insert |
Grille |
| Steel with clothing |
Color |
| Black |
| Size / Weight |
| Height |
620 mm / 24.41 inches |
| Width |
360 mm / 14.17 inches |
| Depth |
409.3 mm / 16.11 inches |
| Weight |
23.65 kg / 52.14 lbs |
| Shipping information |
| Package Height |
716 mm / 28.19 inches |
| Package Width |
409 mm / 16.1 inches |
| Package Depth |
458 mm / 18.03 inches |
| Package Weight |
25.85 kg / 56.99 lbs |
