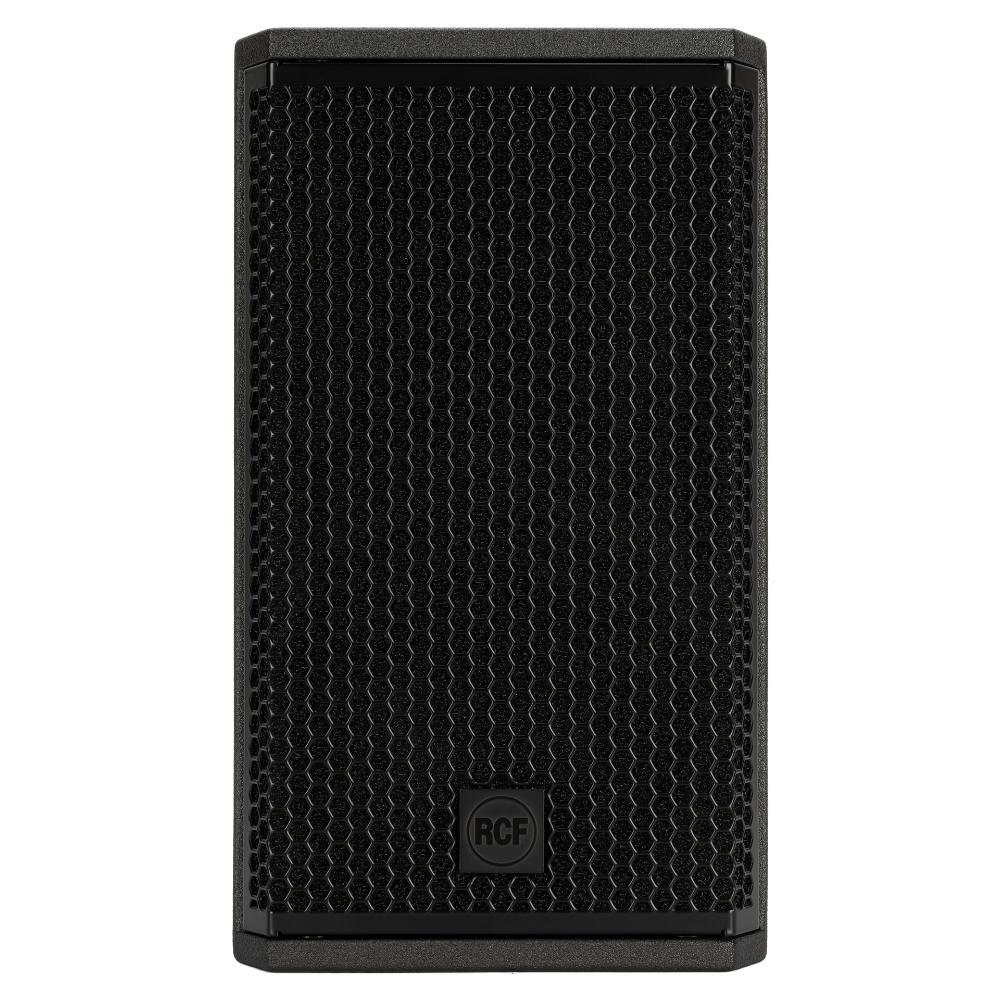

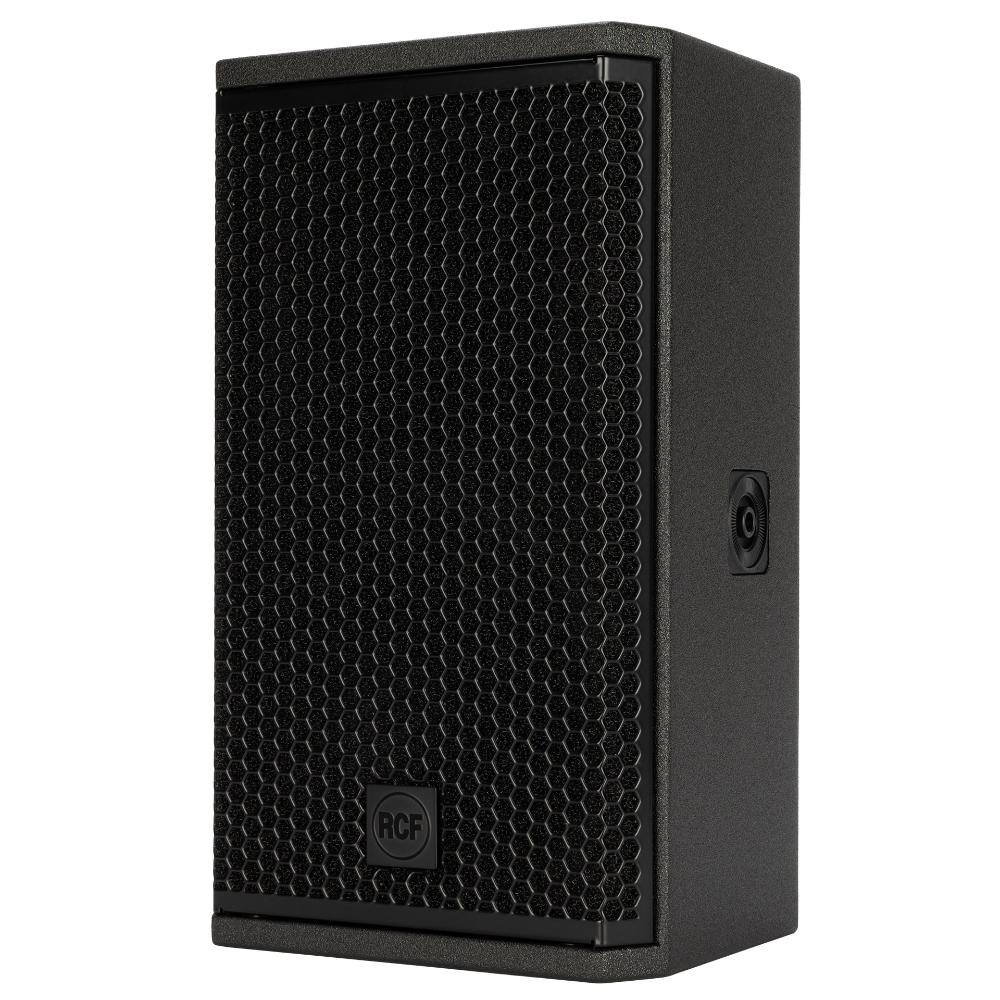

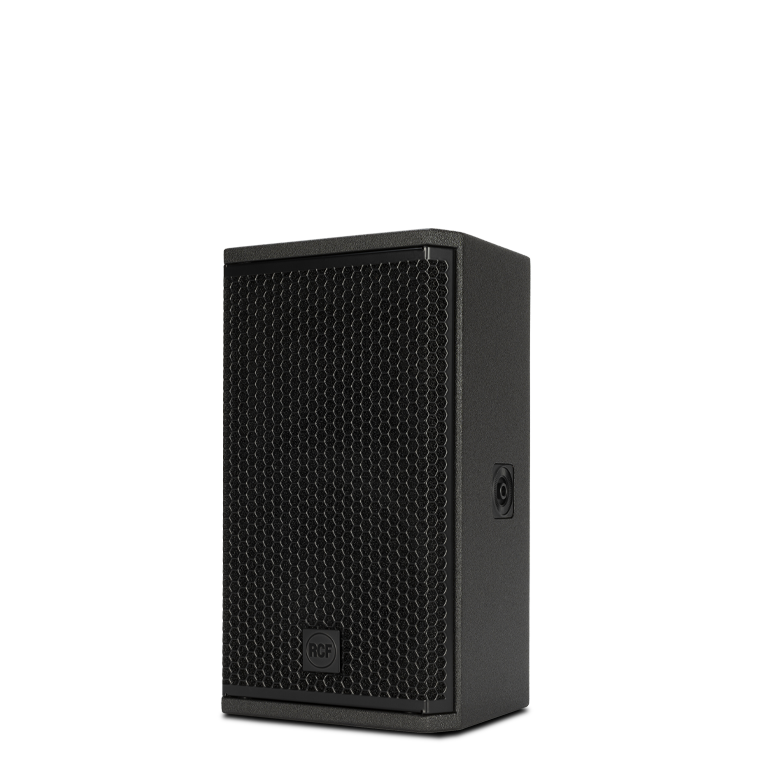

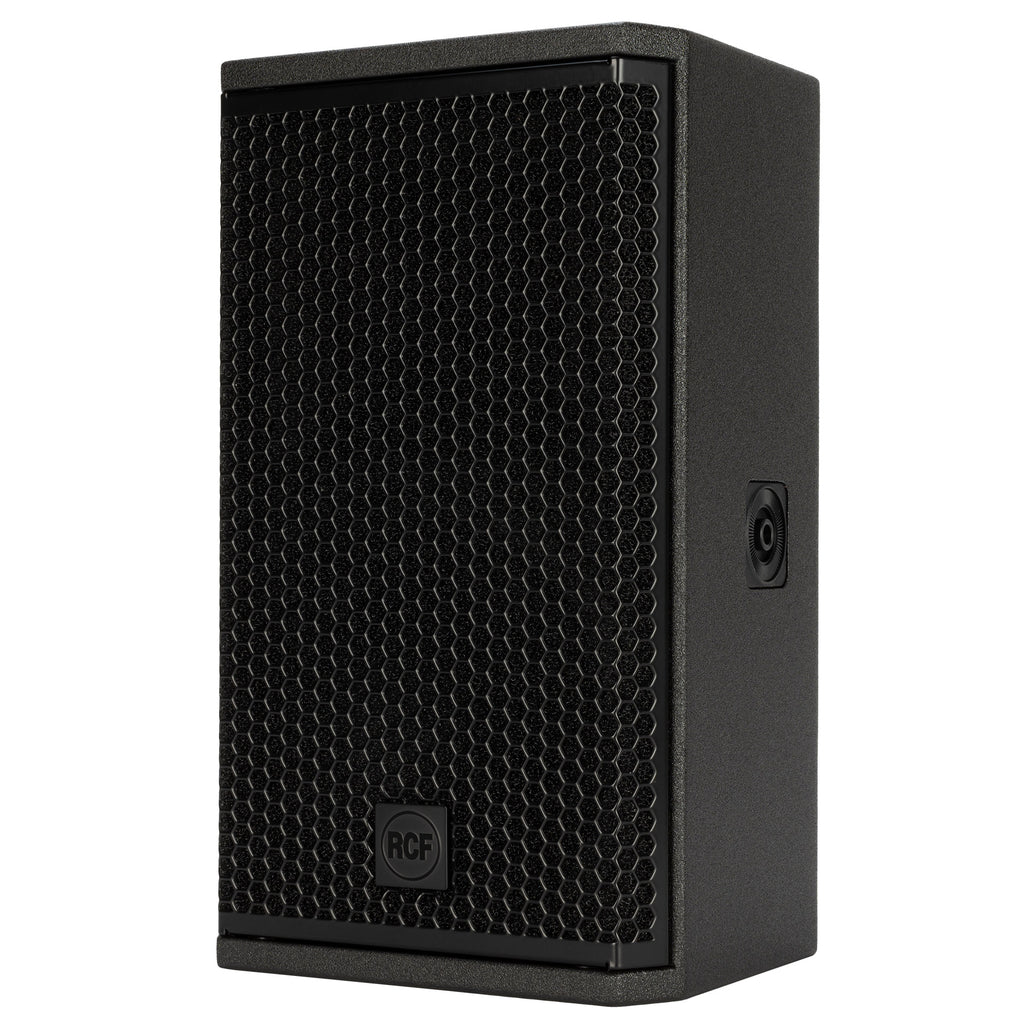

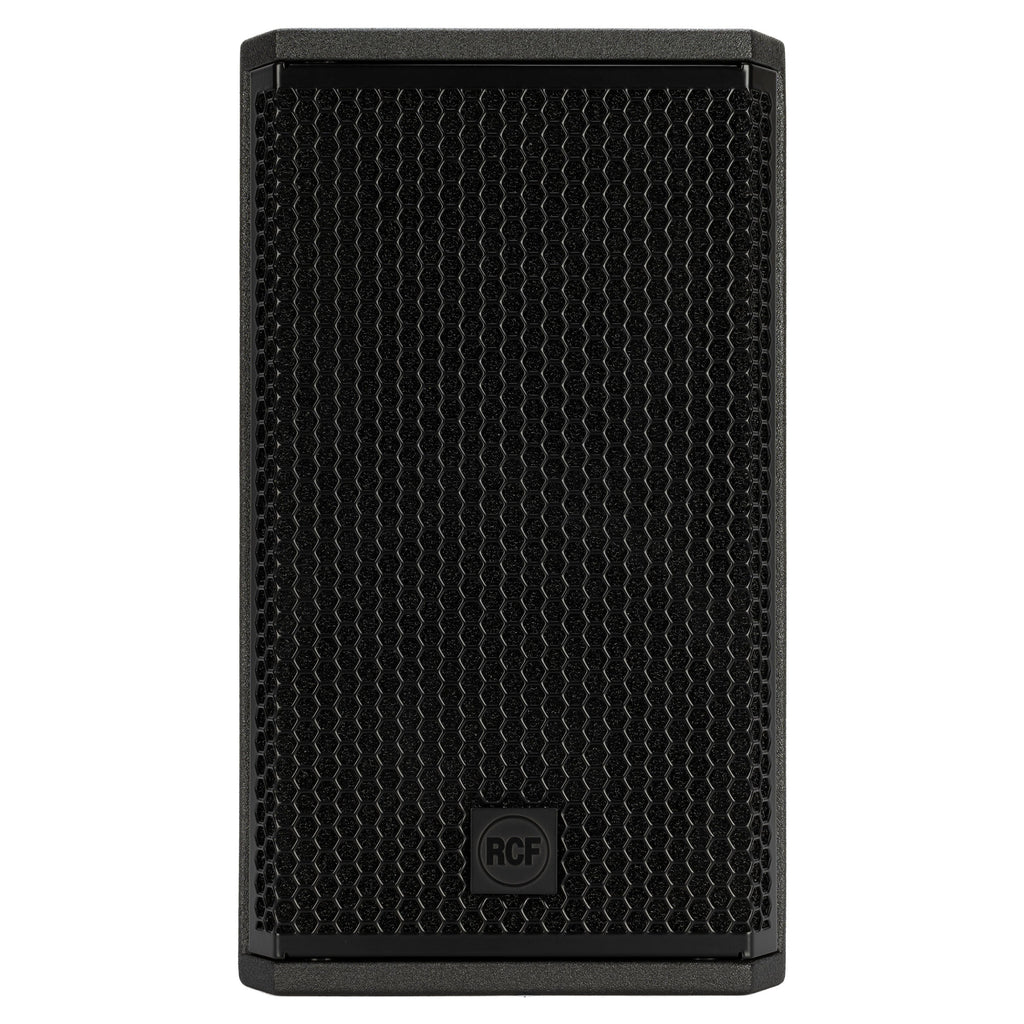

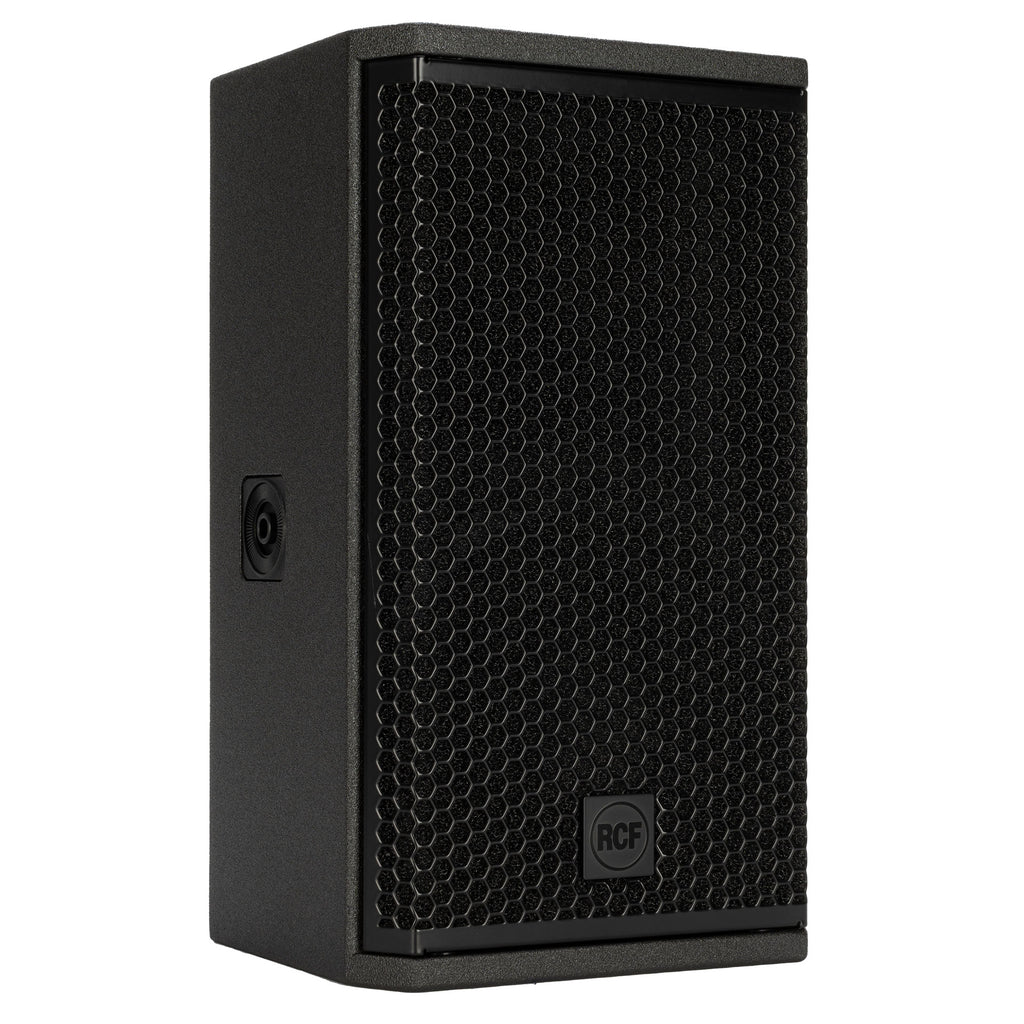

TOURING | KX 08-A | HIGH-PERFORMANCE 2-WAY POINT-SOURCE ACTIVE SPEAKER | 128 dB SPL Max | Rotatable 90° x 70° TRW horn | 8’’ neodymium woofer, 2.5’’ voice coil
Technical Specifications
| Acoustical specifications |
| Frequency Response |
65 Hz - 20000 Hz |
| Max SPL @ 1m |
128 dB |
| Horizontal coverage angle |
90° |
| Vertical coverage angle |
70° |

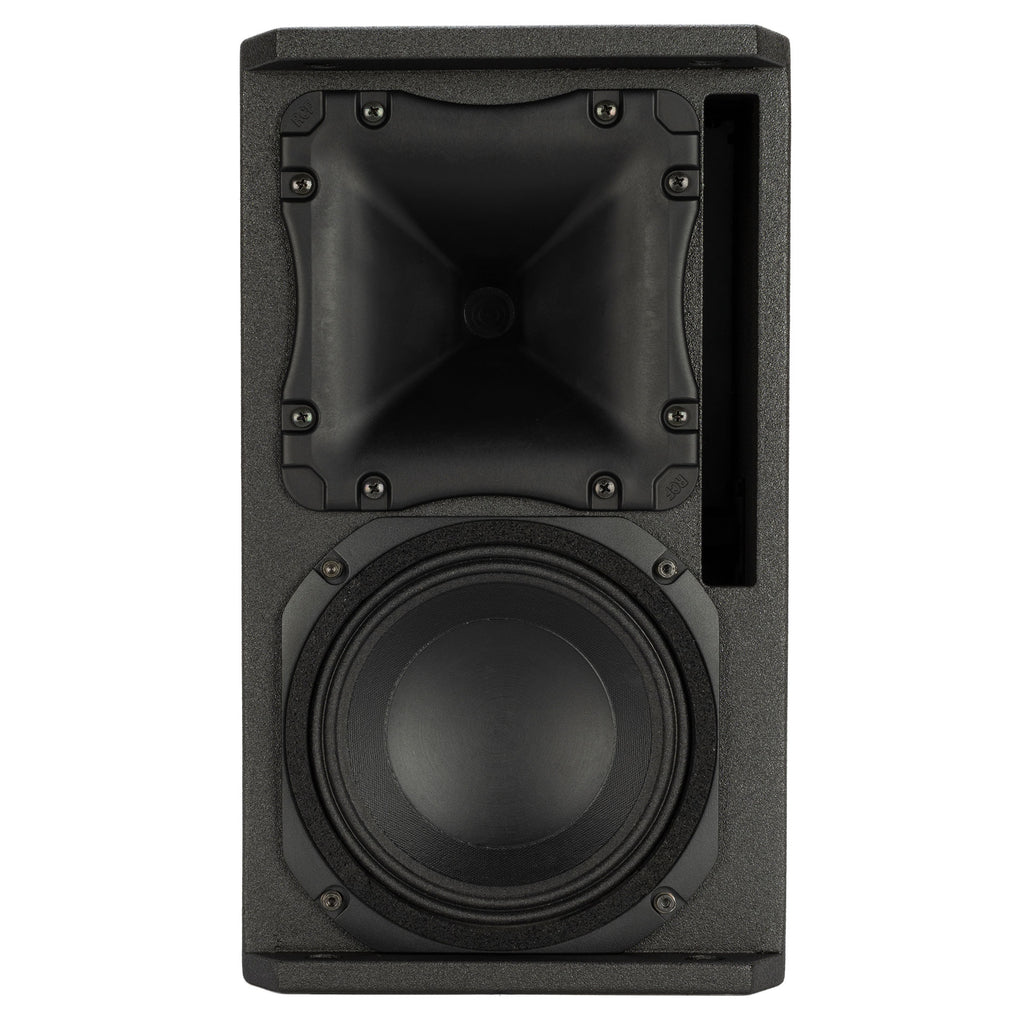

| Transducers |
| Compression Driver |
1 x 1.0'' neo, 1.75'' v.c |
| Woofer |
1 x 8'' neo, 2.5'' v.c |

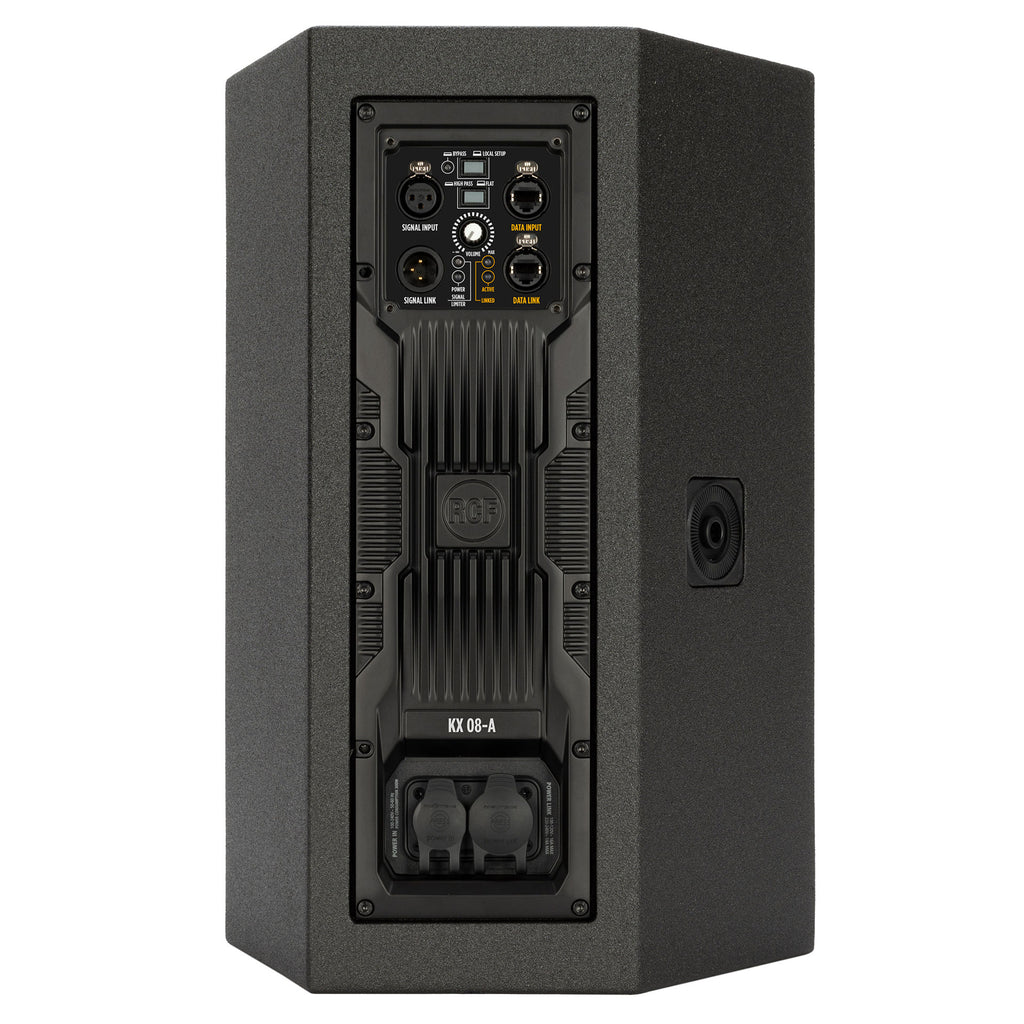

| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR, RDNet Ethercon |
| Output connectors |
Input sensitivity |
| -2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
1400Hz |
| Protections |
Thermal, HF |
| Limiter |
Fast Limiter |
| Controls |
| Bypass, Linear/High Pass, Volume |
Onboard |
| Power section |
| Total Power |
2000 W Peak |
| High frequencies |
600 W Peak |
| Mid frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
| Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |
3X M10 TOP AND BOTTOM |
| 2X PIN D.10 AND M10 SIDE |

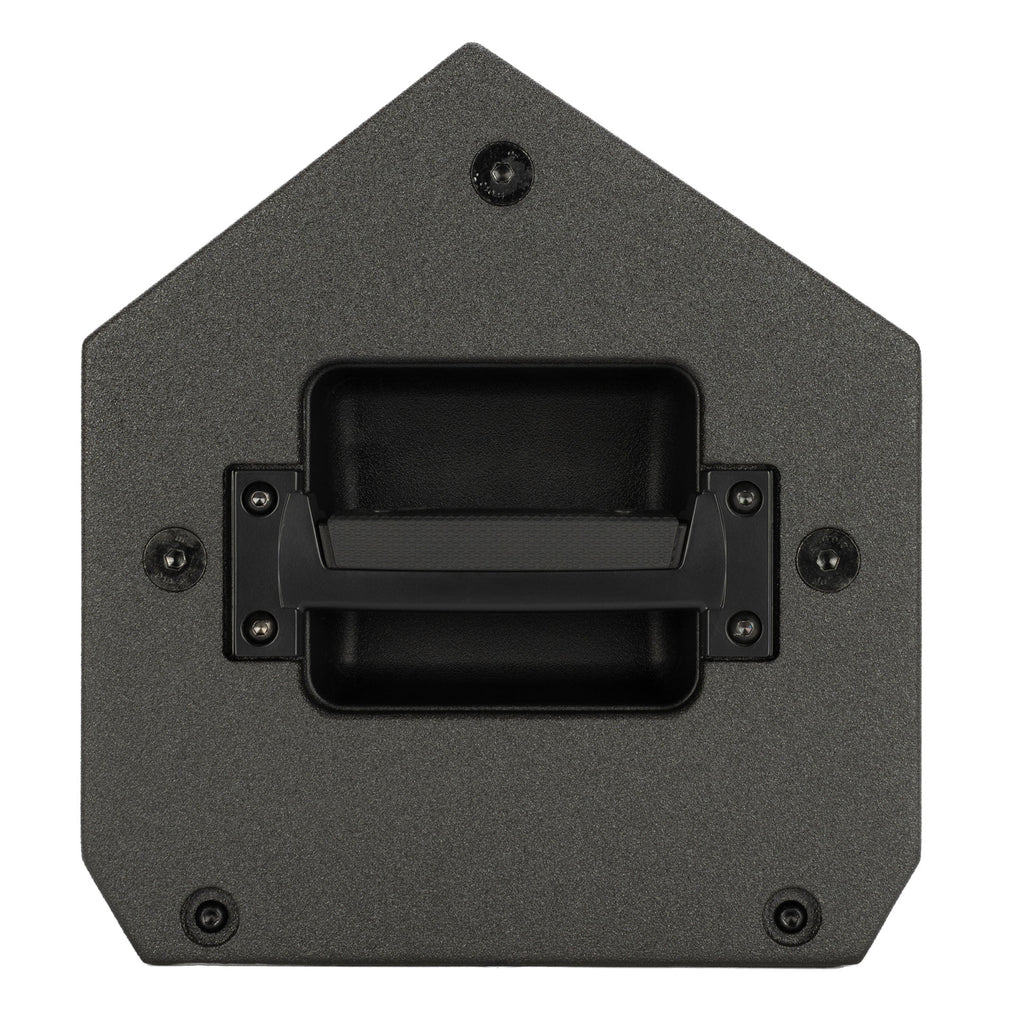

Handles |
| 1 TOP |

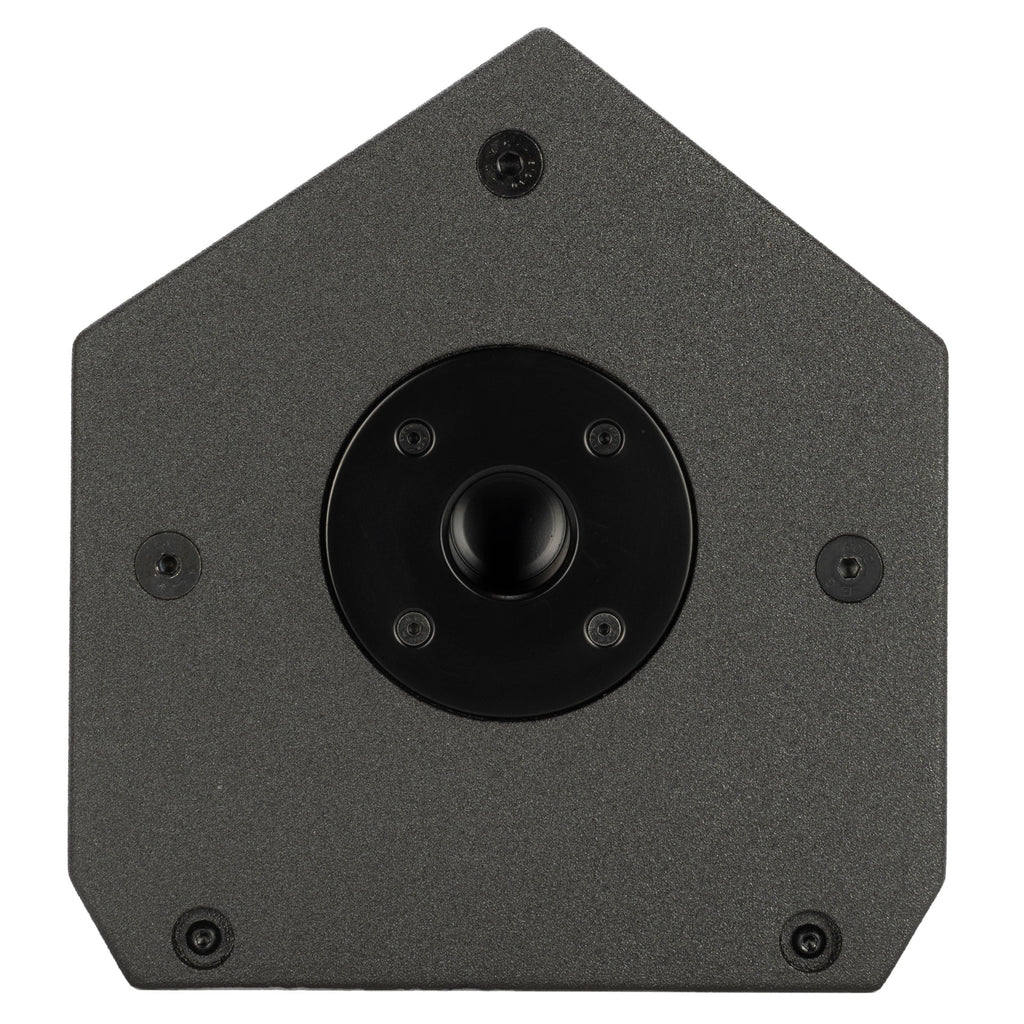

Pole mount/Cap |
| 35 mm insert |
Grille |
| Steel with clothing |
Color |
| Black |
| Size / Weight |
| Height |
450 mm / 17.72 inches |
| Width |
260 mm / 10.24 inches |
| Depth |
285.4 mm / 11.24 inches |
| Weight |
11 kg / 24.25 lbs |
| Shipping information |
| Package Height |
555 mm / 21.85 inches |
| Package Width |
345 mm / 13.58 inches |
| Package Depth |
315 mm / 12.4 inches |
| Package Weight |
12.5 kg / 27.56 lbs |
