Description

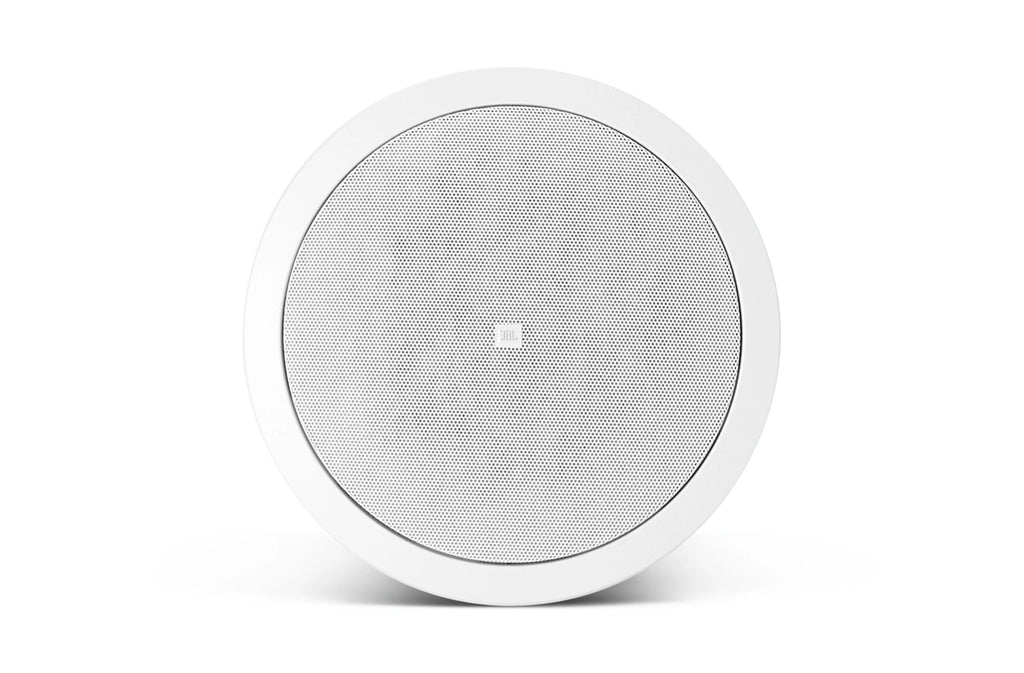

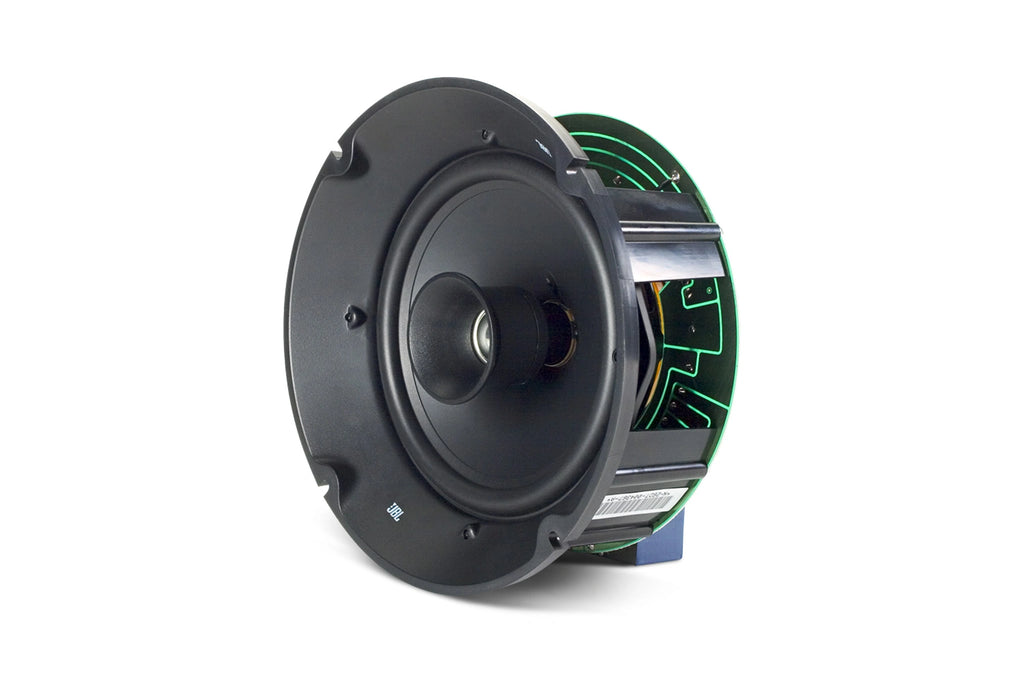

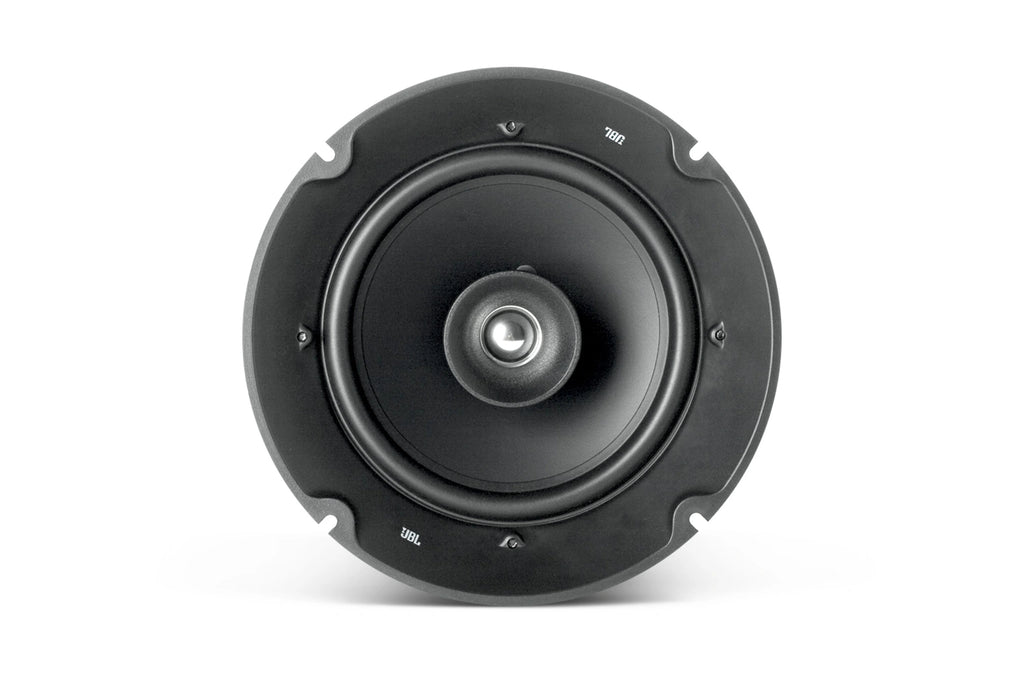

6.5" Ceiling Loudspeaker Transducer Assembly The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8") drivers.
Features
- Use instead of standard 8" driver. Fits standard backcans for 8" speakers.
- Comes complete with transducer, network and transformer.
- Advanced crossover network provides natural sound and even coverage throughout listening area.
- 60 W transformer for 70 V or 100 V distributed speaker lines.
- Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter.
Specifications
- Model: CONTROL 26-DT
- Frequency Range: 80 Hz - 20 kHz
- Power Rating: See transformer taps
- Transformer Taps: 60W, 30W, 15W (& 7.5W @ 70V)
- Coverage Angle: 90° conical
- Directivity Index (DI): 4.6 averaged 500 Hz to 4 kHz
- Maximum SPL (1m): 106 dB (top 70V/100V tap)
- Drivers: LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in)
- Input Connectors: Screw locking barrier strip for bare wire
- Outside Dimensions (H x Dia): 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
- Net Weight (each): 4.2 kg (10 lb)
- Shipping Weight (pair): 9.7 kg (21 lb)
- Sensitivity: 89 dB (100 Hz - 10 kHz)
- Safety Agency: In accordance with IEC60849 / EN60849.
- Plenum Usage: Requires third-party plenum rated backcan
- Weight: 6 lb
- Dimensions (L x W x H): 11 x 5 x 3.5 in
- UPC: 50036905084
- Country of Origin: CN
