Description

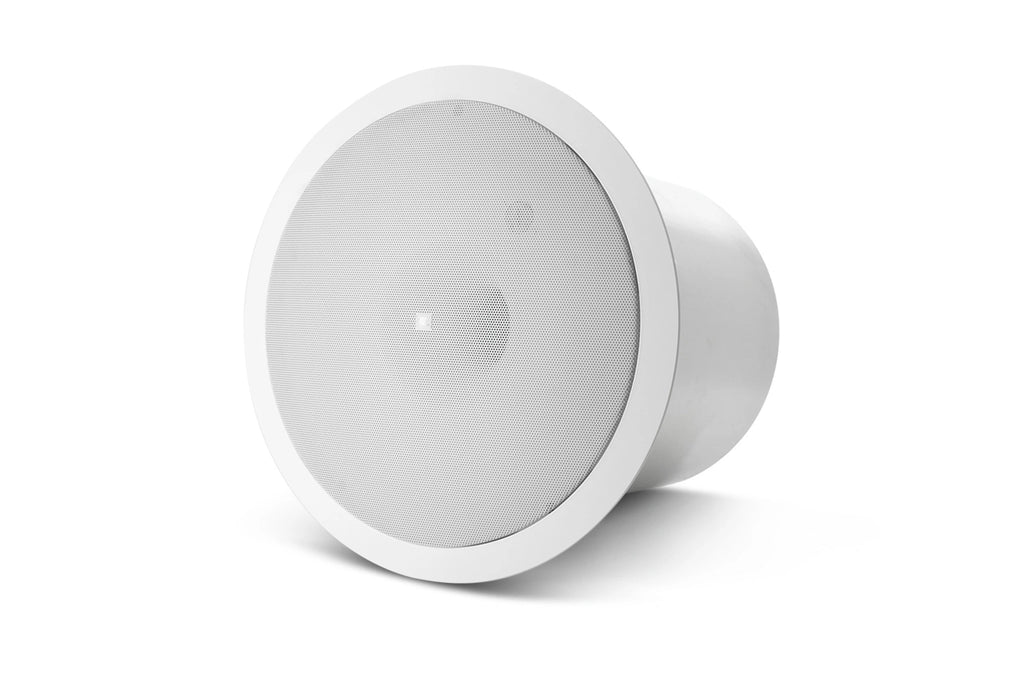

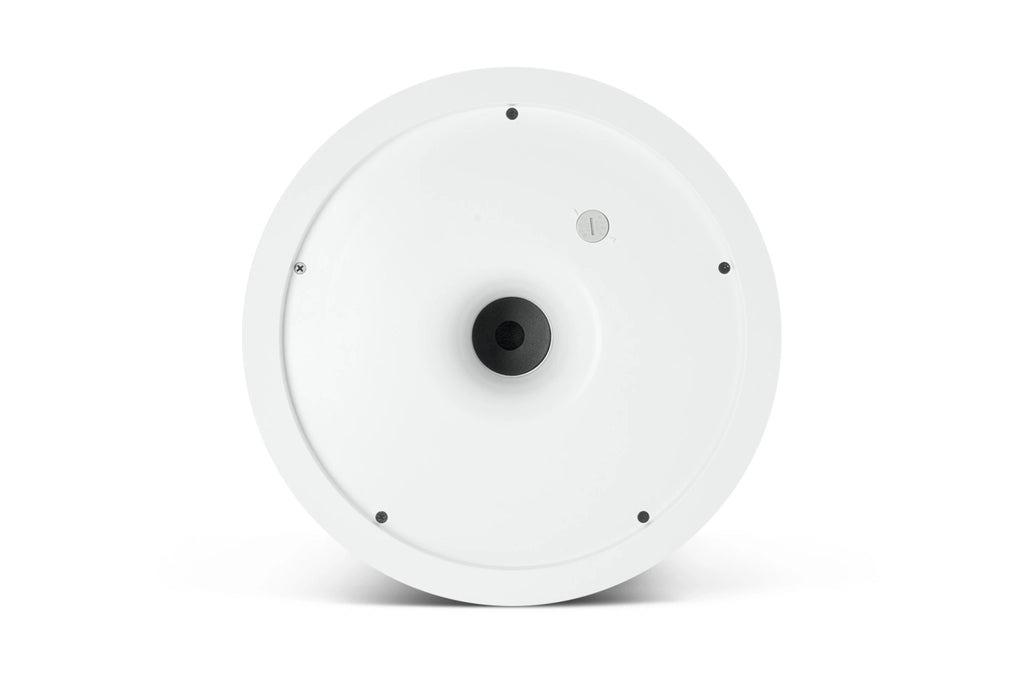

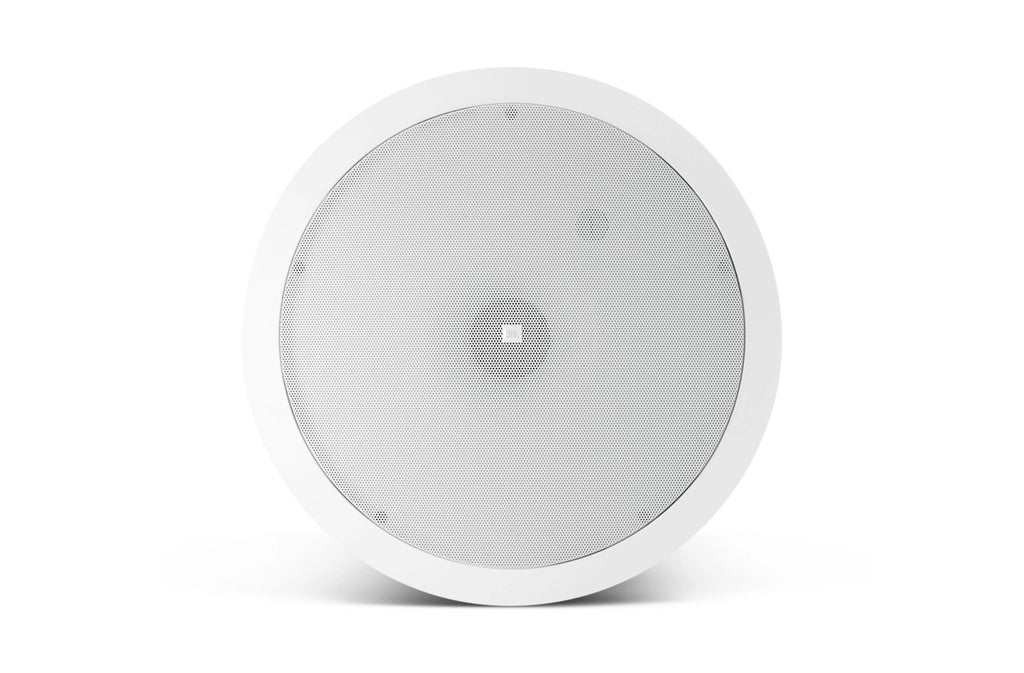

The Control 19CST uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design. Unique Nested Chamber™ design and Linear Component: Long excursion 200 mm (8 in) driver. Packaged with grille, backcan and tile rails for fast Simple installation and wire connection method.
Specifications
- Model: CONTROL 19CST
- Frequency Range: 42 Hz - 200 Hz
- Power Rating: See transformer taps
- Transformer Taps: 75W, 30W, 15W (& 7.5W @ 70V)
- Coverage Angle: 180° conical
- Maximum SPL (1m): 108 dB (70V/100V, center of ceiling) 114 dB (70V/100V, near corner)
- Nominal Impedance: 8 ohms
- Drivers: 200 mm (8.0 in) subwoofer
- Enclosure Material: Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
- Input Connectors: Removable locking connector with screw-down terminals.
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Outside Dimensions (H x Dia): 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
- Ceiling Cutout Size: 305 mm (12.0 in) diameter (cardboard cutout template included)
- Net Weight (each): 6.3 kg (14 lb)
- Shipping Weight (pair): 14.3 kg (32 lb)
- Included Accessories: C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
- Sensitivity: 95 dB SPL in ceiling near corner, 89 dB in center of ceiling
- Color: White
- Backcan: formed steel (included "blind-mount")
- Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
- Plenum Usage: Yes, backcan included
- Weight: 26 lb
- Dimensions (L x W x H): 16.12 x 16.75 x 16 in
- UPC: 50036904919
- Country of Origin: CN
