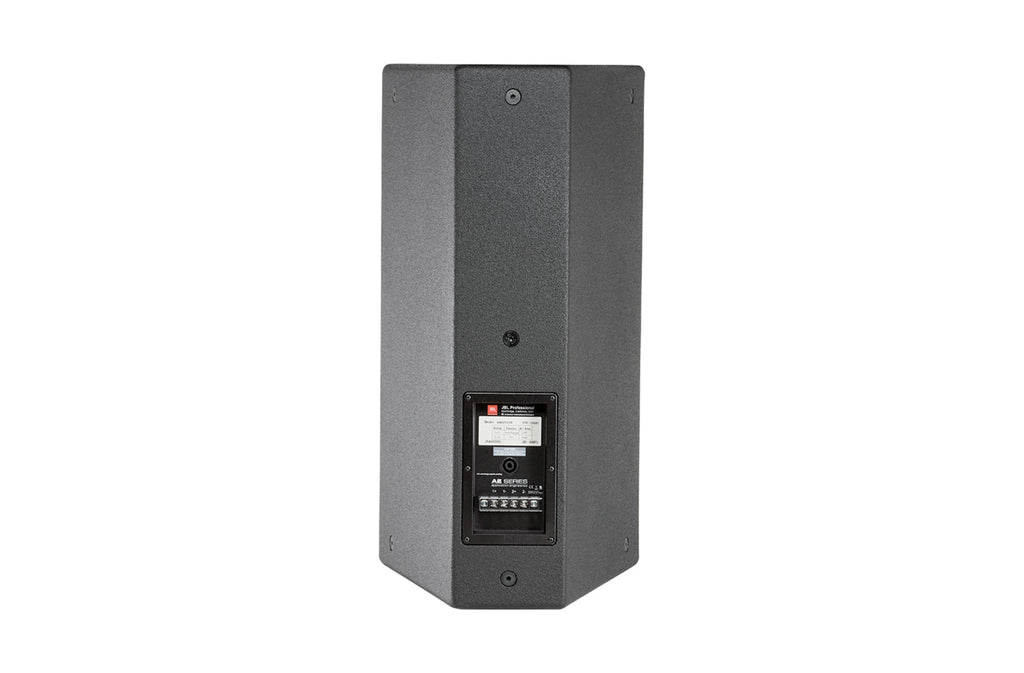

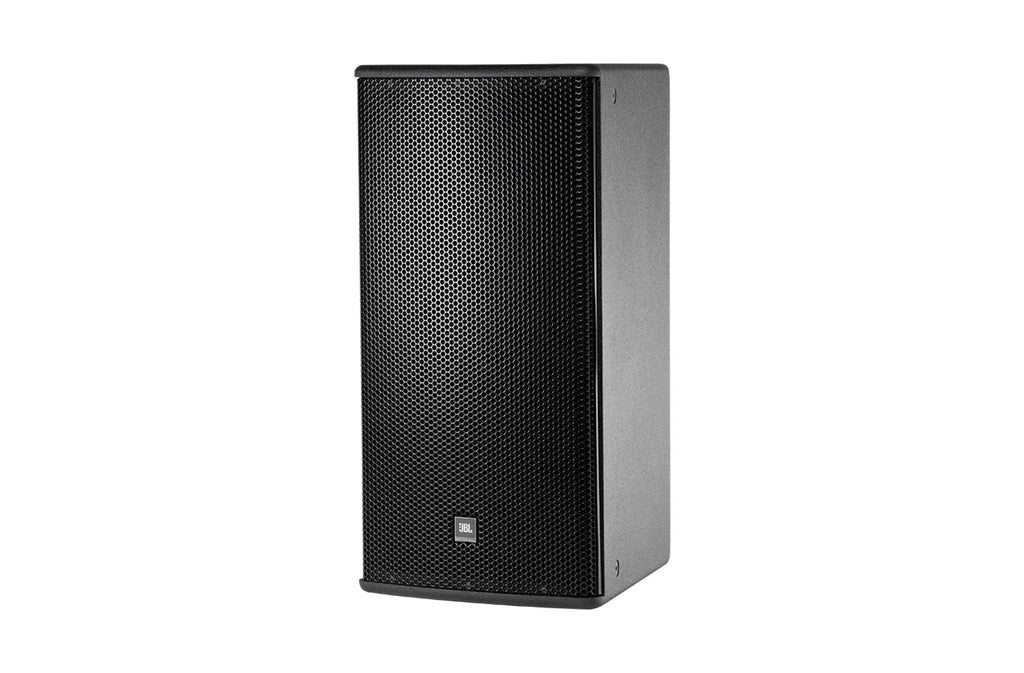

JBL AM7212/64, Two-way full range loudspeaker

High Power 12-inch 2-Way Loudspeaker with 60° x 40° Rotatable Horn The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features

• 60° x 40° Coverage
• 2262H Differential Drive® Low- Frequency Driver
• 2432H High-Frequency Compression Driver
• Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
• Rotatable waveguide for vertical or horizontal orientation
• Bi-Amp/Passive Switchable
• Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
• Available in Black, White and WRC/WRX finishes

Specifications

• Model: AM7212/64
• Frequency Range (-10dB): 36 Hz - 20 kHz
• Frequency Response (±3 dB): 42 Hz - 18 kHz
• Coverage: /64: 60° x 40°/66: 60° x 60°/95: 90° x 50°/00: 100° x 100°/26: 120° x 60°
• LF Driver: 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
• HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
• System Type: 12" Two - Way, High Power, Full - Range
• Dimensions (H x W x D): 711 x 369 x 458 mm (28 x 14.5 x 18 in)
• Net Weight (each): 23.1 kg (51 lb)
• Crossover Modes: Bi-amp/Passive switchable
• Passive Crossover Frequency: 1.8 kHz
• Transducer Power Rating (AES): LF: 1000 W (4000 W peak), 2 hr700 W (2800 W peak), 100 hrsHF: 100 W (400 W peak), 2 hrs
• System Power Rating: Passive mode: 600 W (2400 W peak), 100 hrs
• Maximum SPL (1m): Bi-amp mode:LF: 126 dB-SPL cont avg (132 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Passive mode:123 dB-SPL cont avg (129 dB peak)
• System Sensitivity (1w @ 1m): Passive mode: 95 dB SPL
• Nominal Impedance: 8 ohms
• Nominal LF Driver Impedance: 8 ohms
• Nominal HF Driver Impedance: 8 ohms
• Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
• Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
• Environmental: Mil-Std 810; IP-x3 per IEC529.
• Weight: 59 lb
• Dimensions (L x W x H): 20 x 16 x 30 in
• UPC: 691991011344
• Country of Origin: MX
