Description
Desktop recorder features a large search dial for easy clip searching and playback. It's the perfect media player for ATEM Mini! Supports H.264, ProRes or DNxHD files on SD/UHS-II cards or USB disks.
The desktop HyperDeck that's the perfect live production clip player!
HyperDeck Shuttle is a recorder and player that's designed to be used on the desktop! It's more than a master recorder, as it's also a clip player. The large search dial lets you quickly scroll through media to find the clip you want. Depending on the model, you get support for ProRes, DNx, H.264 and H.265 files in NTSC, PAL, 720p, 1080p, and 2160p video standards. It even has a built in teleprompter! There are models with 12G-SDI and HDMI so you can connect to switchers and cameras. Plus it records to SD cards, UHS-II cards or USB-C disks. The HyperDeck Shuttle 4K Pro model has 10G Ethernet and internal M.2 storage, so it can share media on your local network or record to network storage.
HyperDeck Shuttle HD Desktop recorder features a large search dial for easy clip searching and playback. It's the perfect media player for ATEM Mini! Supports H.264, ProRes or DNxHD files on SD/UHS-II cards or USB disks.
Powerful touchscreen model records to H.265, ProRes and DNx in all SD, HD and Ultra HD standards up to 2160p60. Includes 10G Ethernet, scopes, internal network storage, 12G-SDI and HDMI connections.

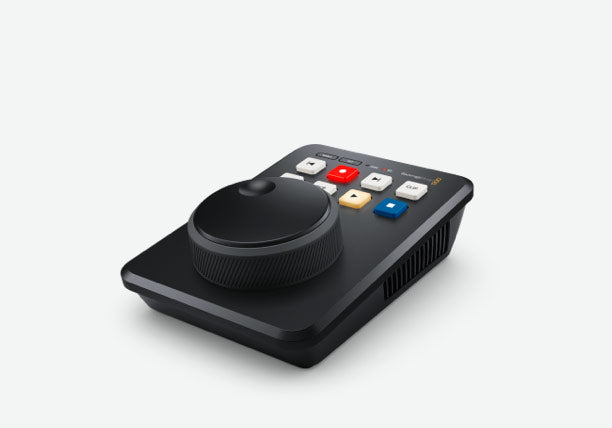

HyperDeck Shuttle is perfectly designed for the desktop. This means the front panel can be operated with a single hand! The gentle angle allows your hand to rest on the search dial, and the control buttons are positioned under your fingertips. Scrolling media is fast as the machined metal search dial has a natural inertia, and the soft rubber surface feels nice to the touch. That's perfect when you're searching through lots of media. The HyperDeck Shuttle 4K Pro model boasts a large 7-inch LCD screen for live monitoring, complete with a "heads up display" overlay. Plus, it features full menus with all the deck settings! The rear panel includes all video, audio and network connections.
Record true broadcast masters in high quality ProRes, H.264, H.265 and DNx files. You can also select between PCM or AAC audio. That's perfect for higher quality mastering when used with ATEM Mini switchers. You get everything needed to send shows to broadcasters and upload them to YouTube.
Specifications
Connections
- HDMI Video Inputs: 1
- HDMI Video Outputs: 1
- HDMI Audio Inputs: 8 channels embedded audio.
- HDMI Audio Outputs: 8 channels embedded audio.
- Recorder Configuration: Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol.
- Ethernet: 1Gb/s
- Computer Interface: 1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, software configuration and updates.
Standards
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 2K DCI Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
- Audio Sampling: Television standard 24-bit, 48 kHz sample rate.
- Video Sampling: 4:2:2 YUV
- Color Precision: 10-bit
- Color Space: REC 601, REC 709.
- Multi Rate Support: Auto detection of SD and HD.
Media
- Media: 1 x SD card slot 1 x USB-C 3.0 expansion port for external recording of SD, HD and 2K DCI.
- Media Type: UHS-I and UHS-II SD cards.
- Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Control
- Built in Control Panel: 10 buttons for transport and device control plus metal search dial.
- External Control: HDMI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Teleprompter
- Multi Rate Support: Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p defaulting to the highest rate.
- Supported File Formats: Rich text (.rtf) with support for most rich text formatting. Plain text (.txt)
Power Requirements
- Power Supply: 1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use.
- Power Usage: 20 W max.
Environmental Specifications
- Operating Temperature: 0° to 40° C (32°to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing
Physical
- Weight: 1.66 lb
- Dimensions: 7x7x3
