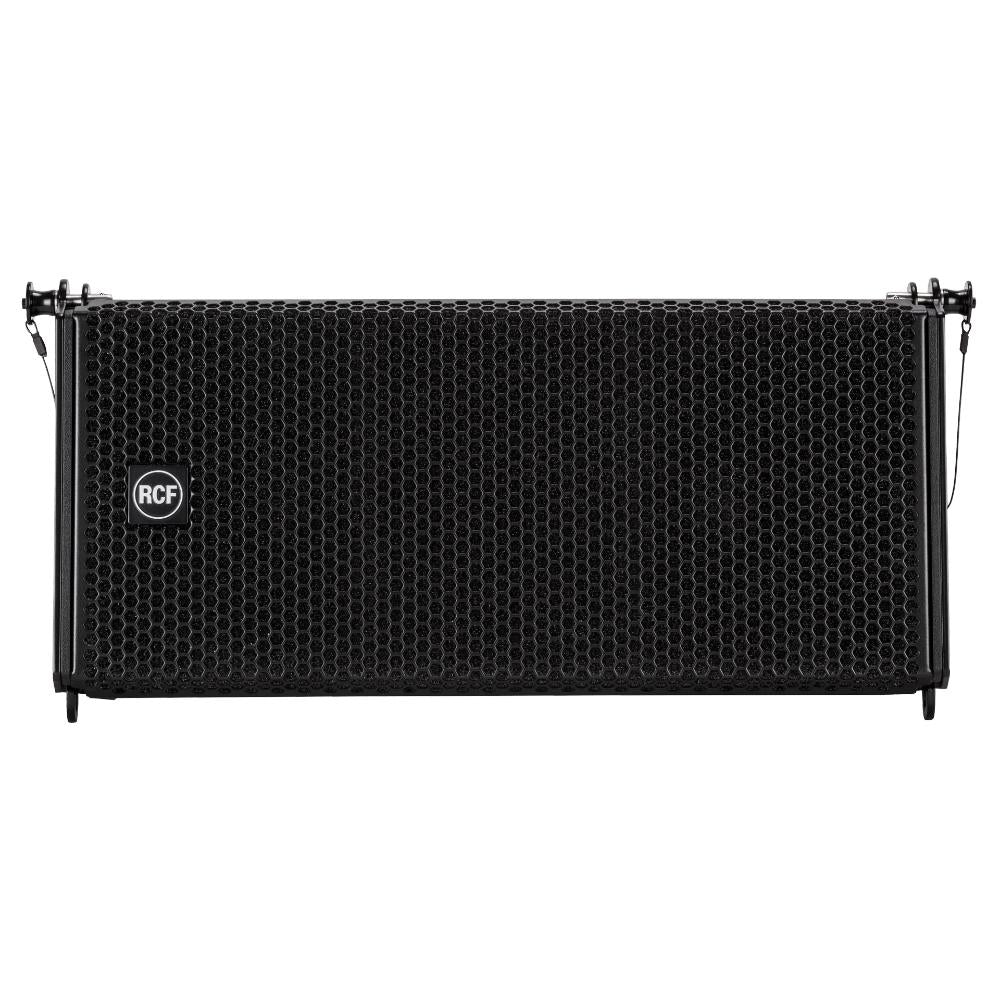

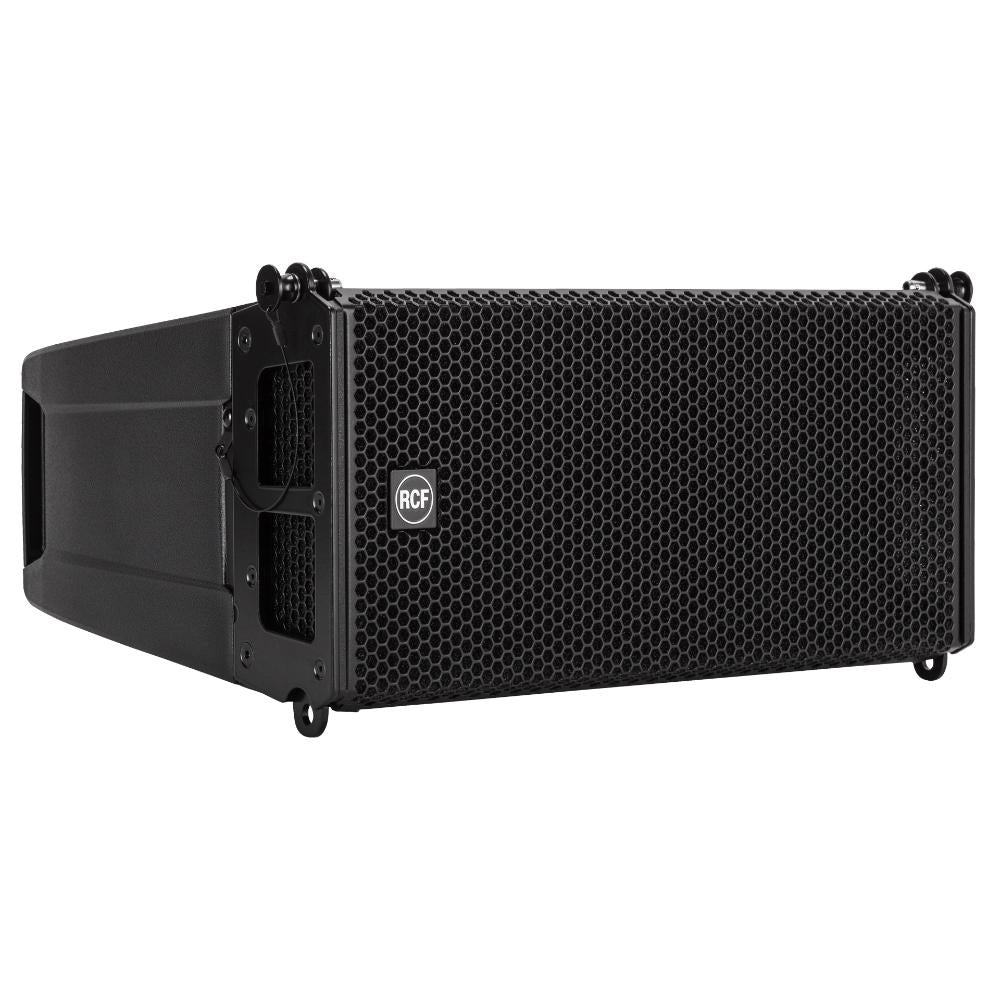

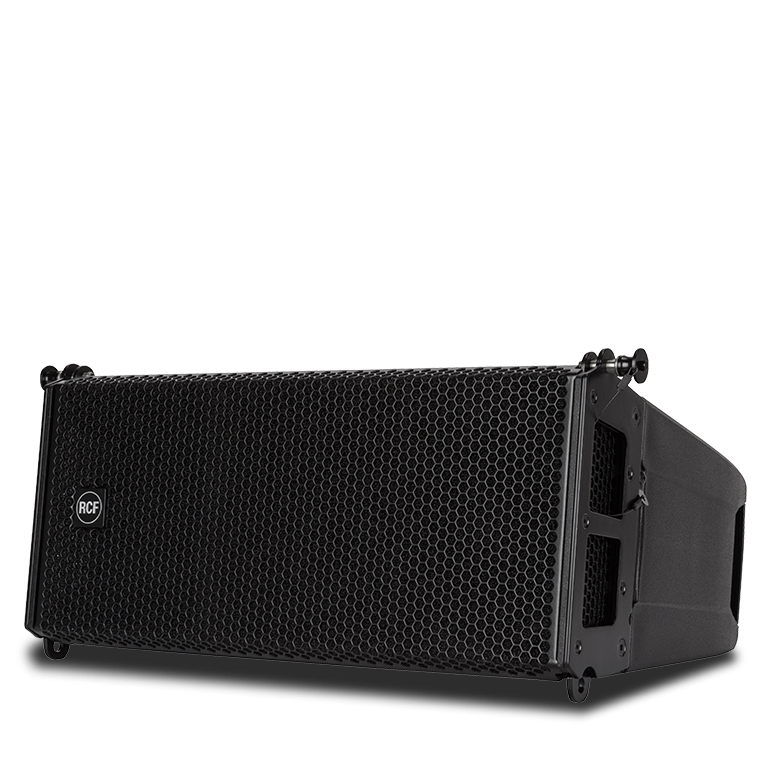

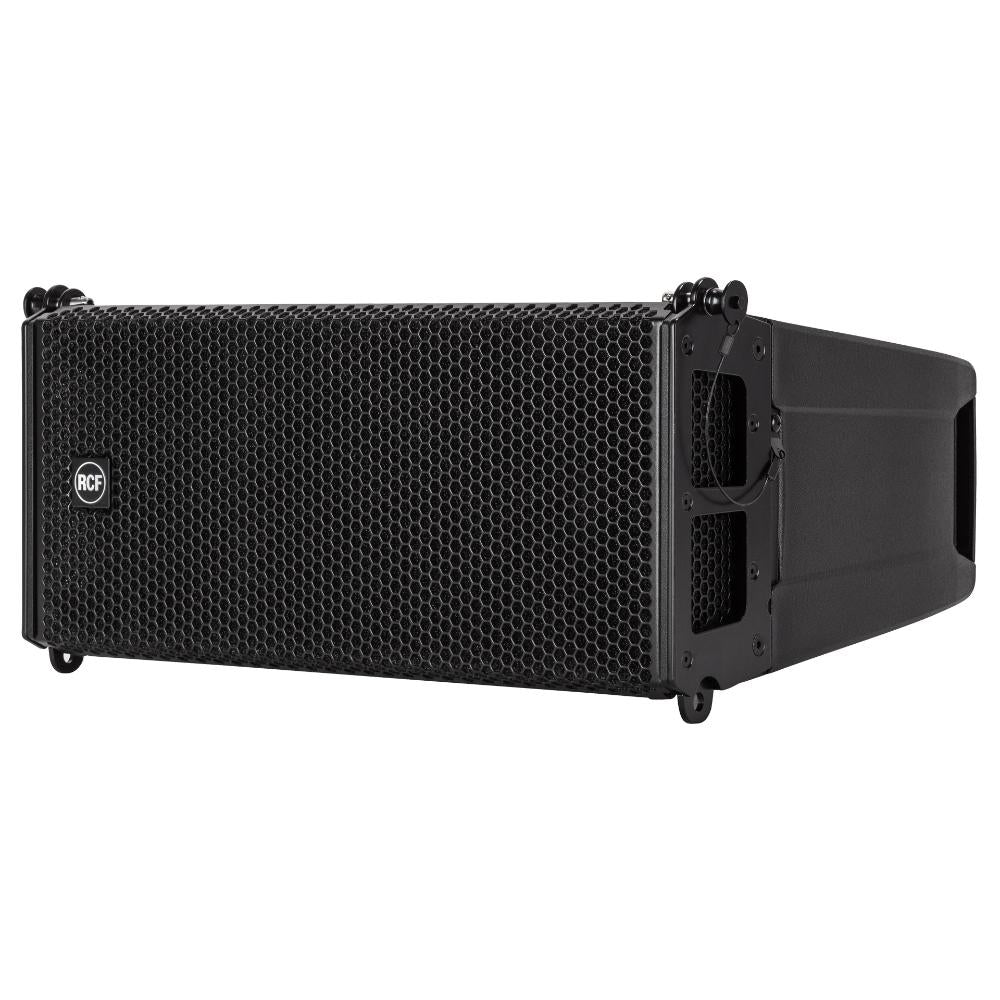

TOURING | HDL 6-A | ACTIVE LINE ARRAY MODULE | 1400 W, two-way amplification | 1.7" voice coil neodymium compression driver | 2 x high power neodymium 6.0"woofers
Technical Specifications
| Acoustical specifications |
| Frequency Response |
65 Hz - 20000 Hz |
| Max SPL @ 1m |
131 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
10° |
| Transducers |
| Compression Driver |
1 x 1.0'' neo, 1.75'' v.c |
| Woofer |
2 x 6.0'' neo, 2.0'' v.c |

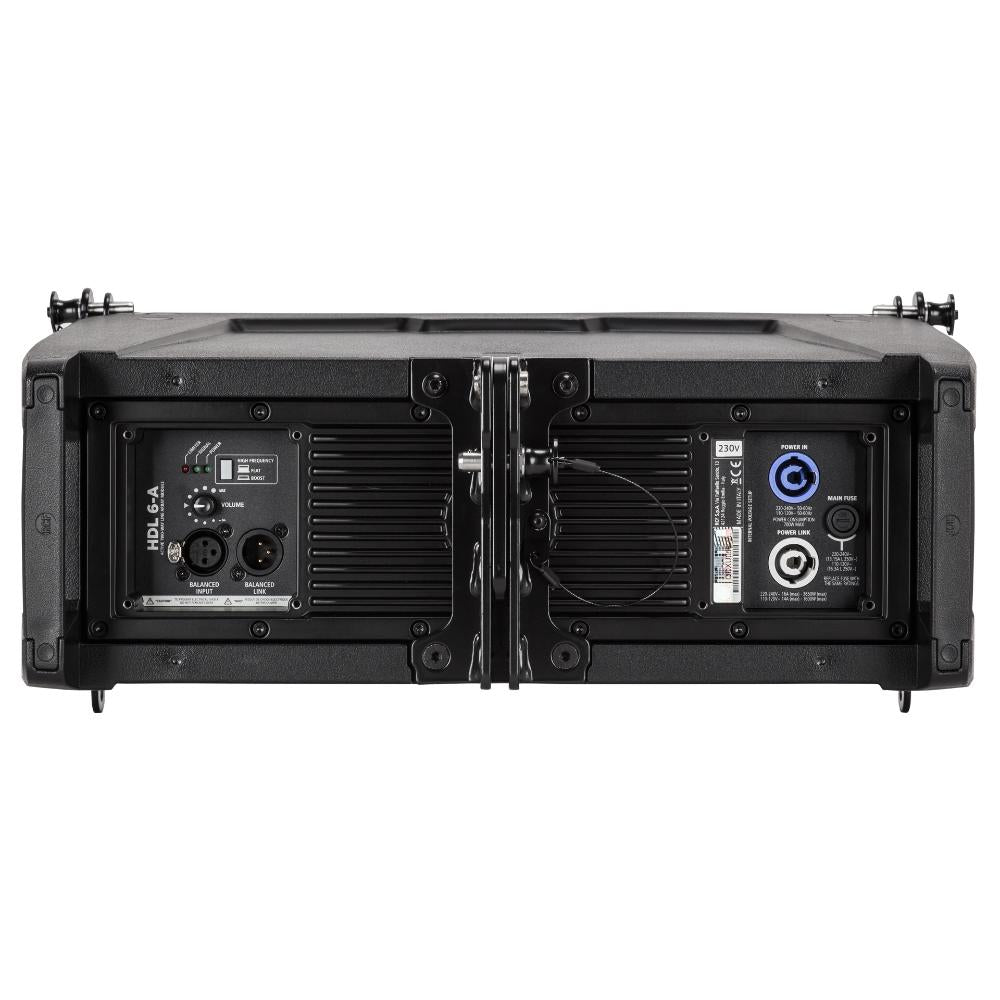

| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR |
| Output connectors |
Input sensitivity |
| +4 dBu |
| Processor section |
| Crossover Frequencies |
900 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
| HF correction |
| Power section |
| Total Power |
1400 W Peak, 700 W RMS |
| High frequencies |
400 W Peak, 200 W RMS |
| Low frequencies |
1000 W Peak, 500 W RMS |
| Cooling |
Convection |
| Connections |
| Powercon IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
PP Composite |
| Hardware |
Array fittings |
| Handles |
2 Back |
| Grille |
Steel |
| Color |
Black, White |
| Size / Weight |
| Height |
237 mm / 9.33 inches |
| Width |
470 mm / 18.5 inches |
| Depth |
377 mm / 14.84 inches |
| Weight |
11.6 kg / 25.57 lbs |
| Shipping information |
| Package Height |
260 mm / 10.24 inches |
| Package Width |
550 mm / 21.65 inches |
| Package Depth |
425 mm / 16.73 inches |
| Package Weight |
13 kg / 28.66 lbs |
