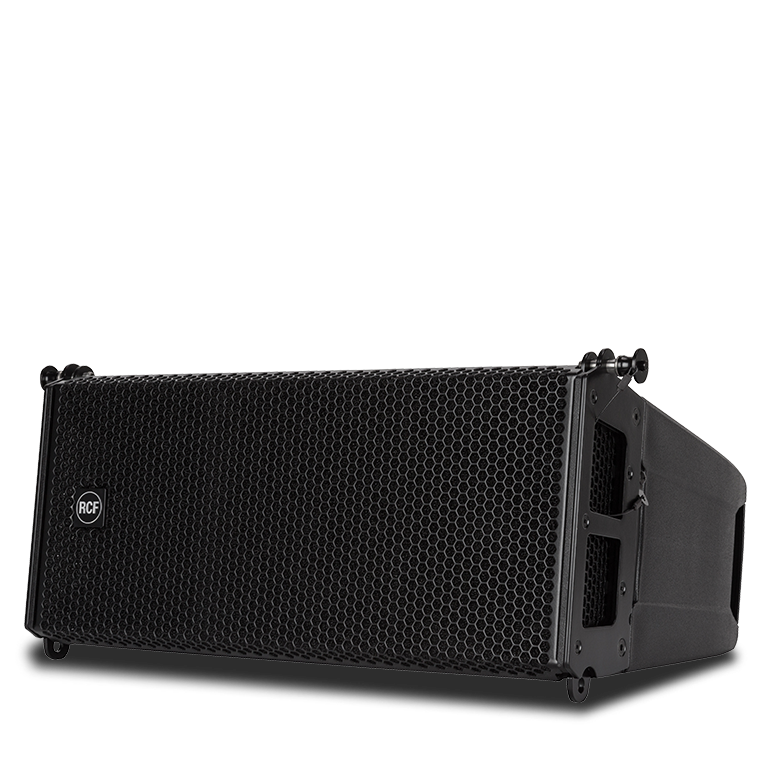

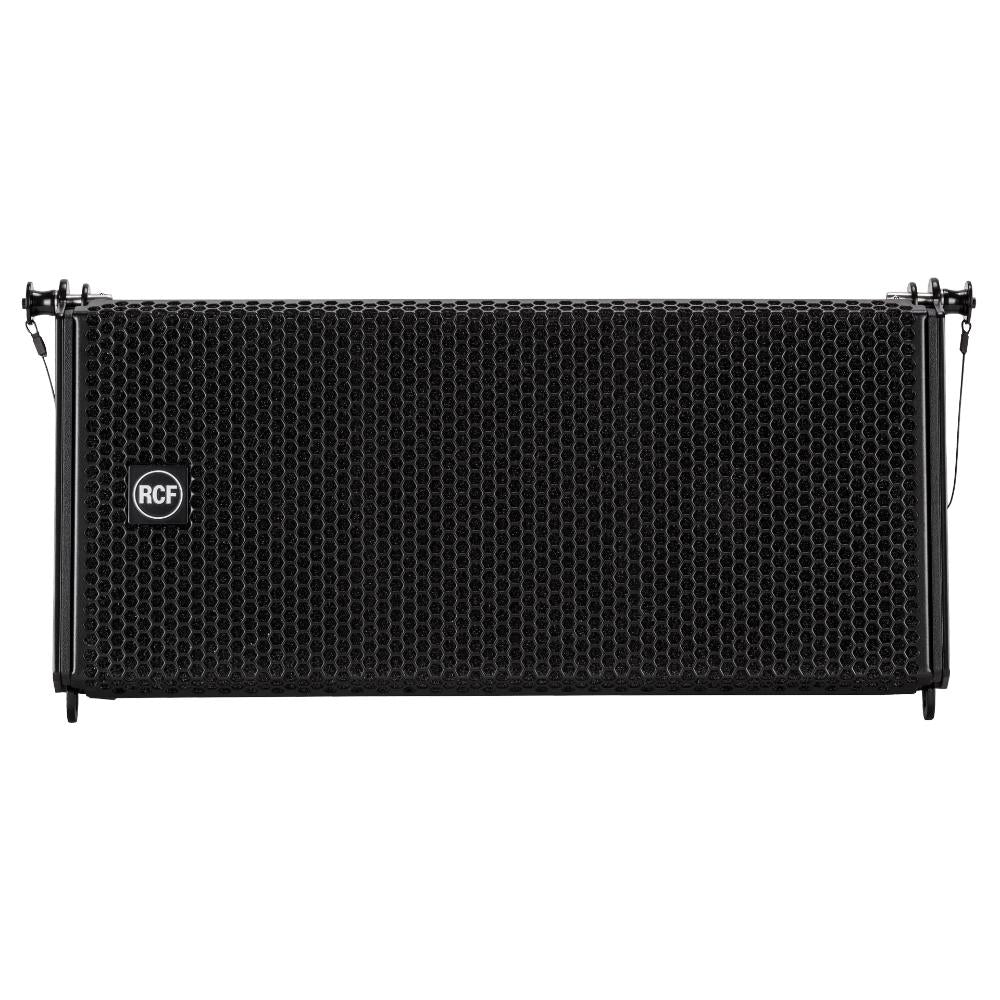

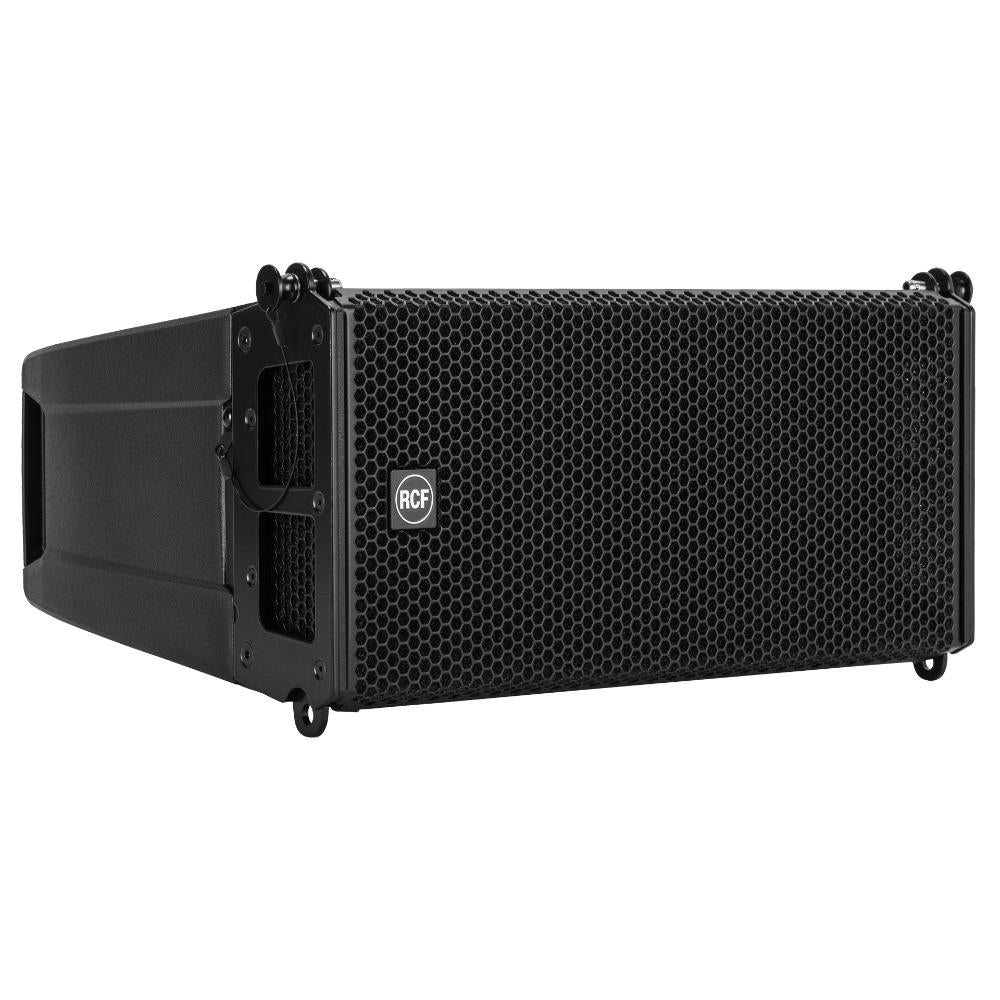

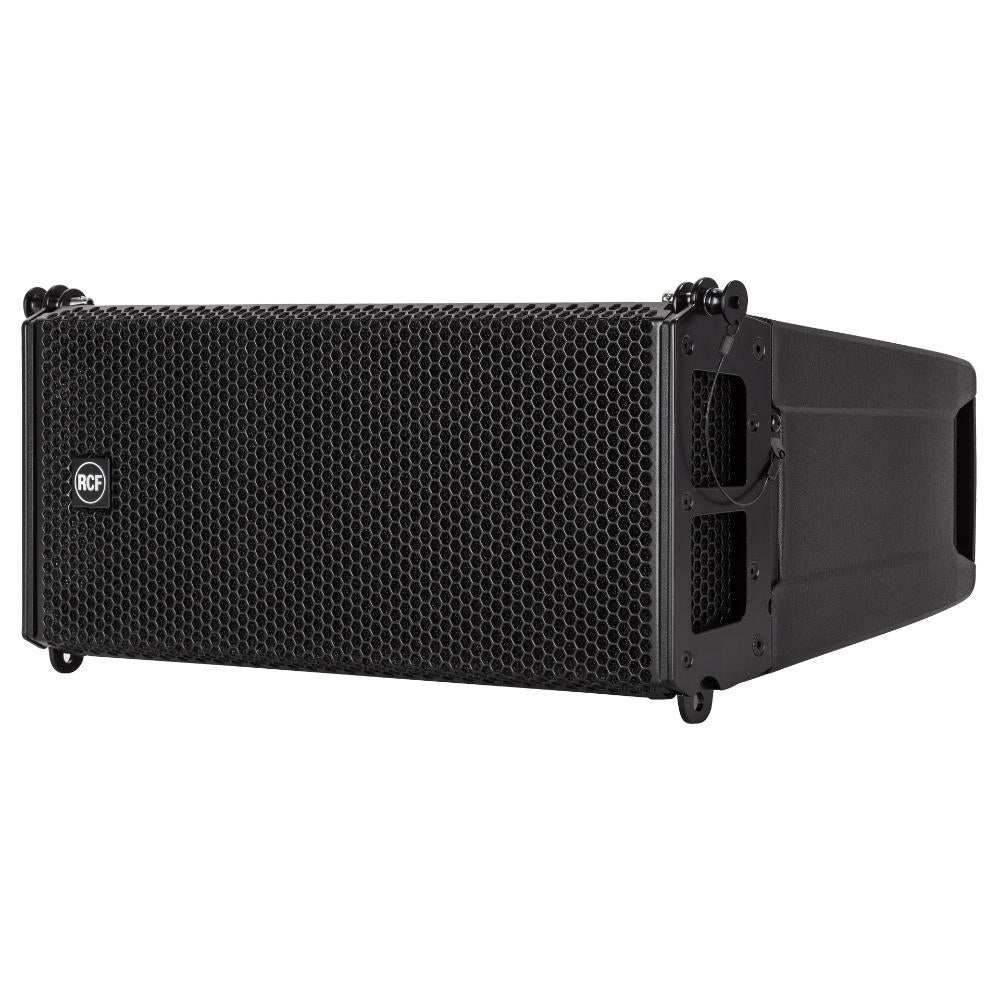

TOURING | HDL 10-A | ACTIVE LINE ARRAY MODULE | 1400 Watt Peak power - 700 Watt RMS | 2 x 8" Woofers | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response |
65 Hz - 20000 Hz |
| Max SPL @ 1m |
133 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
15° |
| Transducers |
| Compression Driver |
1 x 2.0'', 2.5'' v.c |
| Woofer |
2 x 8'', 2.0'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR |
| Output connectors |
Input sensitivity |
| -2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
800 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
| Cluster, HF, High curving, Indoor |
| Power section |
| Total Power |
1400 W Peak, 700 W RMS |
| High frequencies |
400 W Peak, 200 W RMS |
| Low frequencies |
1000 W Peak, 500 W RMS |
| Cooling |
Convection |
| Connections |
| Powercon IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
PP Composite |
| Hardware |
Rigging flyware |
| Handles |
2 side |
| Grille |
Steel |
| Color |
Black, White |
| Size / Weight |
| Height |
294 mm / 11.57 inches |
| Width |
569 mm / 22.4 inches |
| Depth |
434 mm / 17.09 inches |
| Weight |
20.4 kg / 44.97 lbs |
| Shipping information |
| Package Height |
375 mm / 14.76 inches |
| Package Width |
650 mm / 25.59 inches |
| Package Depth |
500 mm / 19.69 inches |
| Package Weight |
23 kg / 50.71 lbs |
