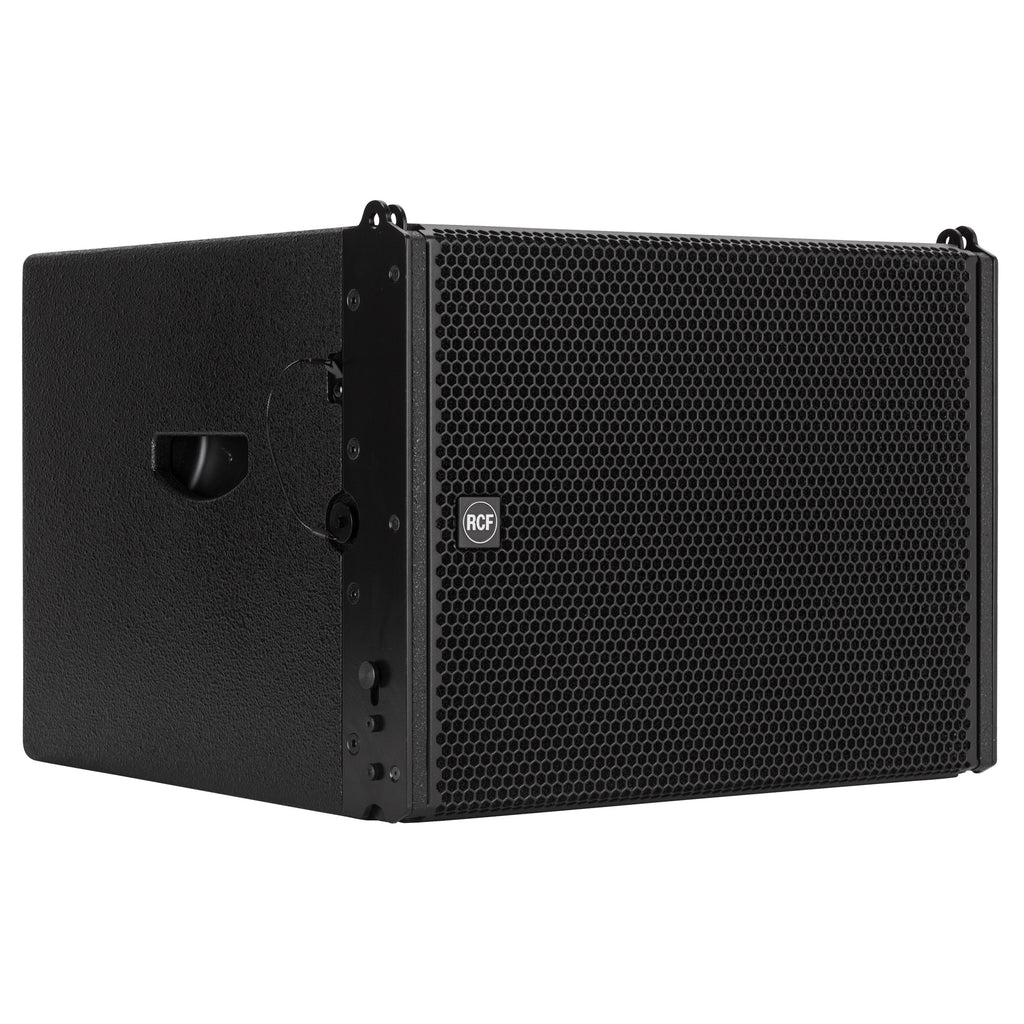

TOURING | HDL 12-AS | ACTIVE FLYABLE HIGH POWER SUBWOOFER | 1400 Watt Peak power - 700 Watt RMS | 1 x 12" Woofer | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response |
40 Hz - 120 Hz |
| Max SPL @ 1m |
131 dB |
| Transducers |
| Woofer |

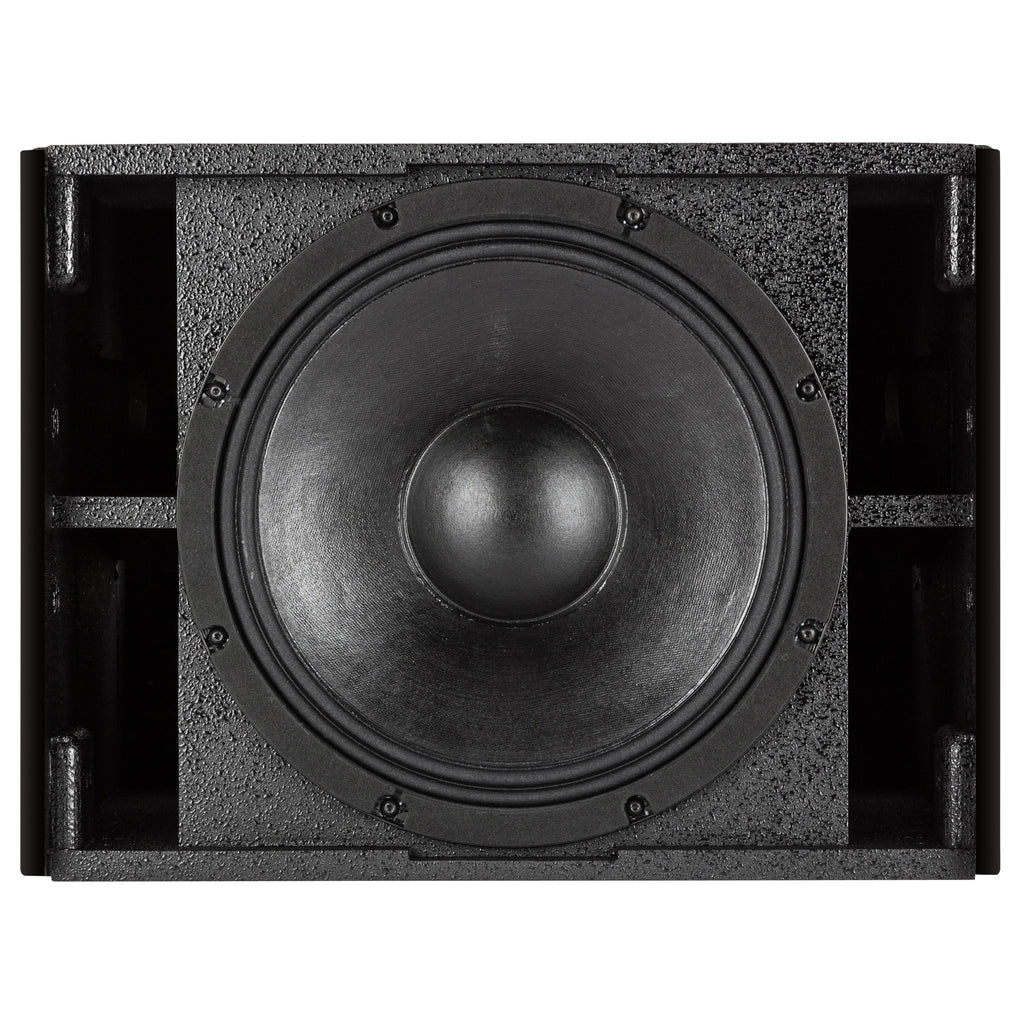

1 x 12'', 3.0'' v.c |

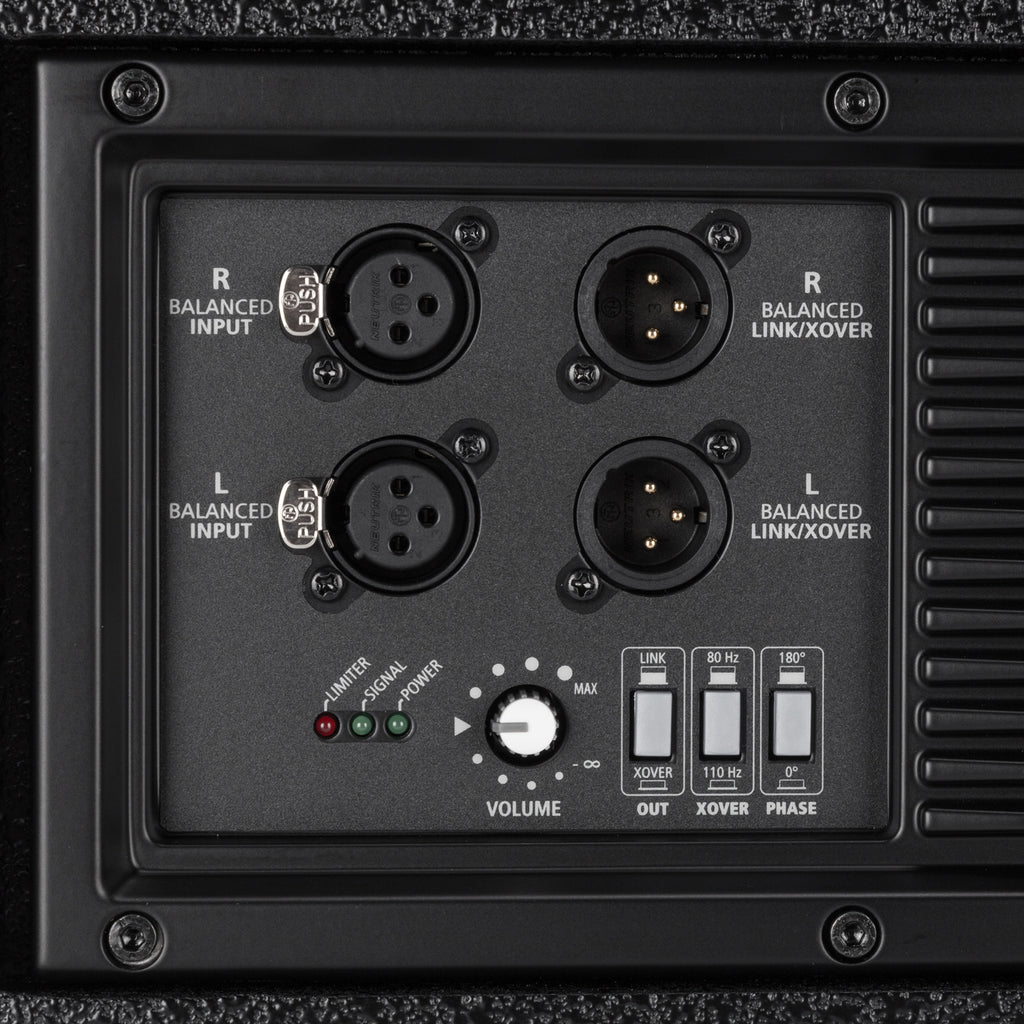

| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR |
| Output connectors |
Input sensitivity |
| -2 dBu/+4 dBu |
| Processor section |
| Hi-Pass Frequencies |
40Hz |
| Low-Pass Frequencies |
80Hz, 110Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
| Volume, EQ, Phase, Xover |
| Power section |
| Total Power |
1400 W Peak, 700 W RMS |
| Low frequencies |

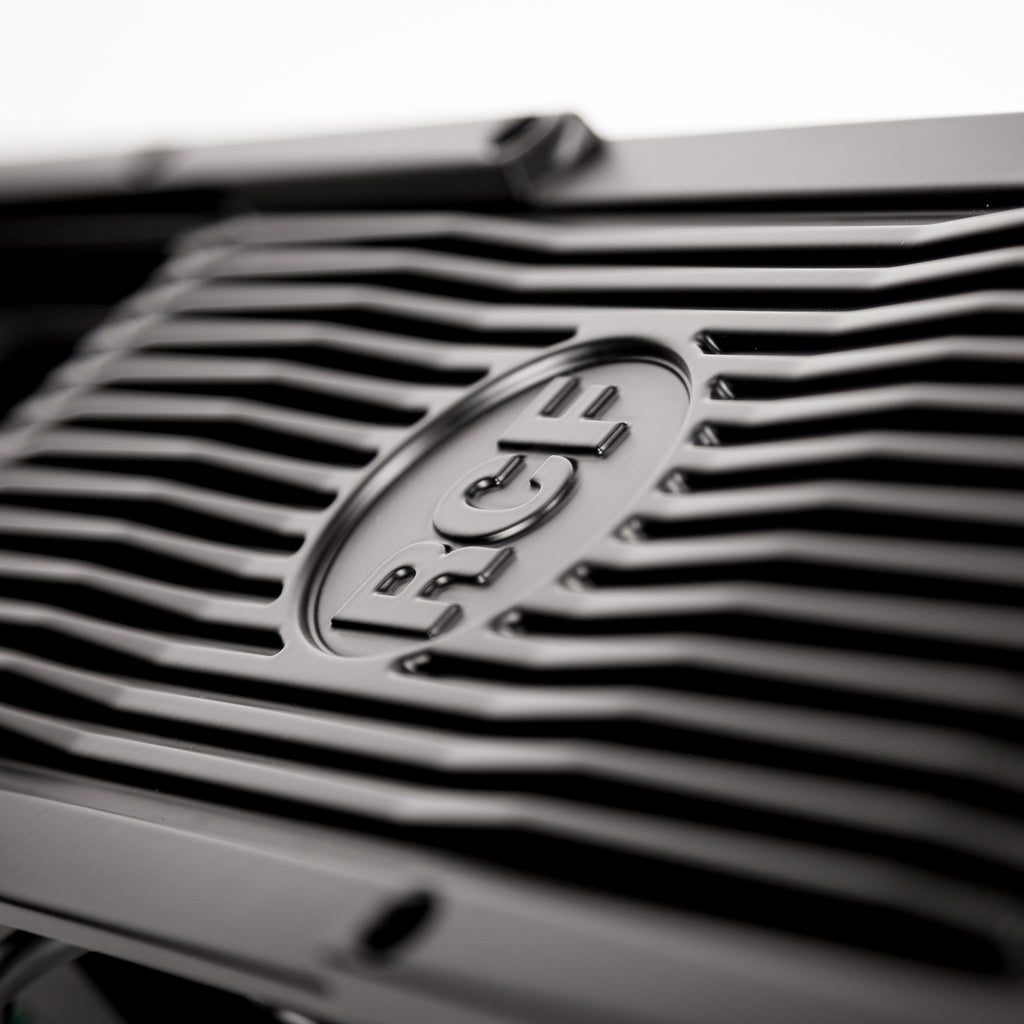

Cooling |
| Convection |
| Connections |

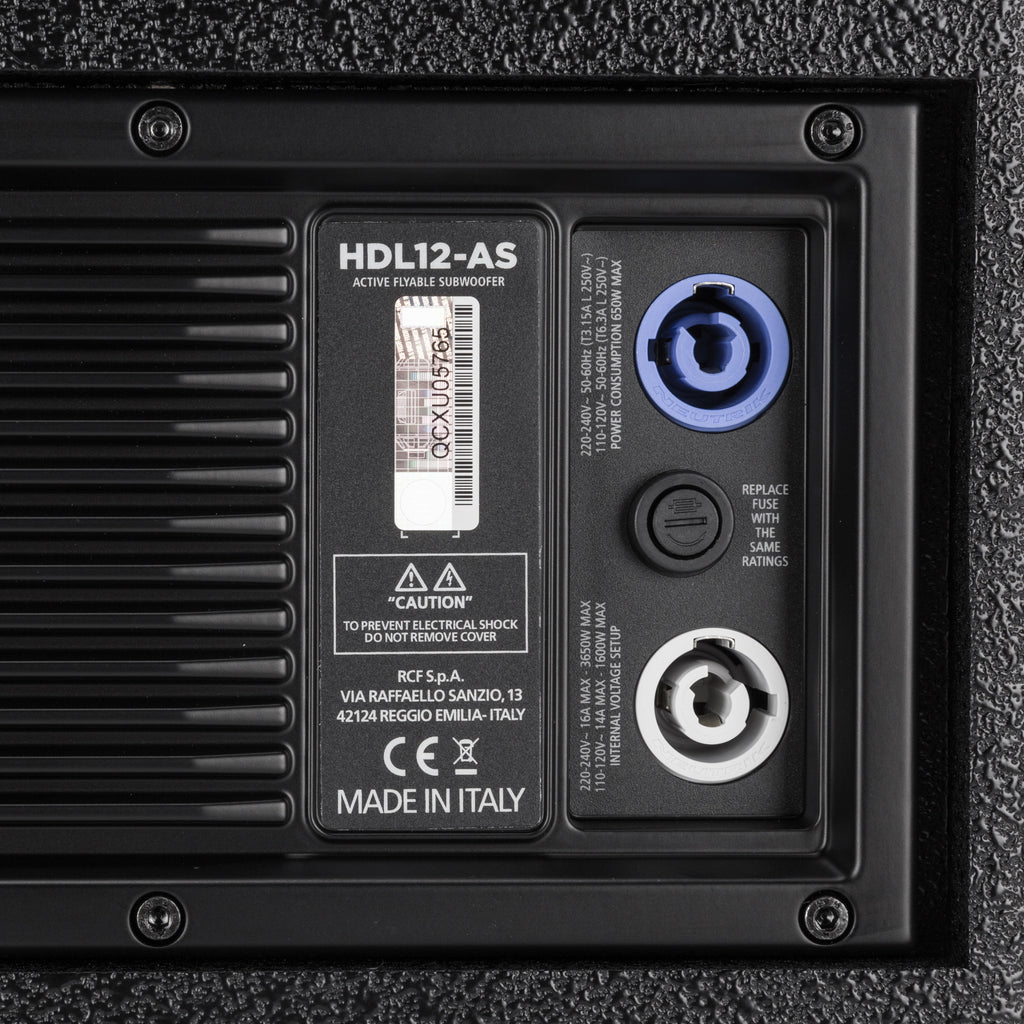

| Powercon IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |

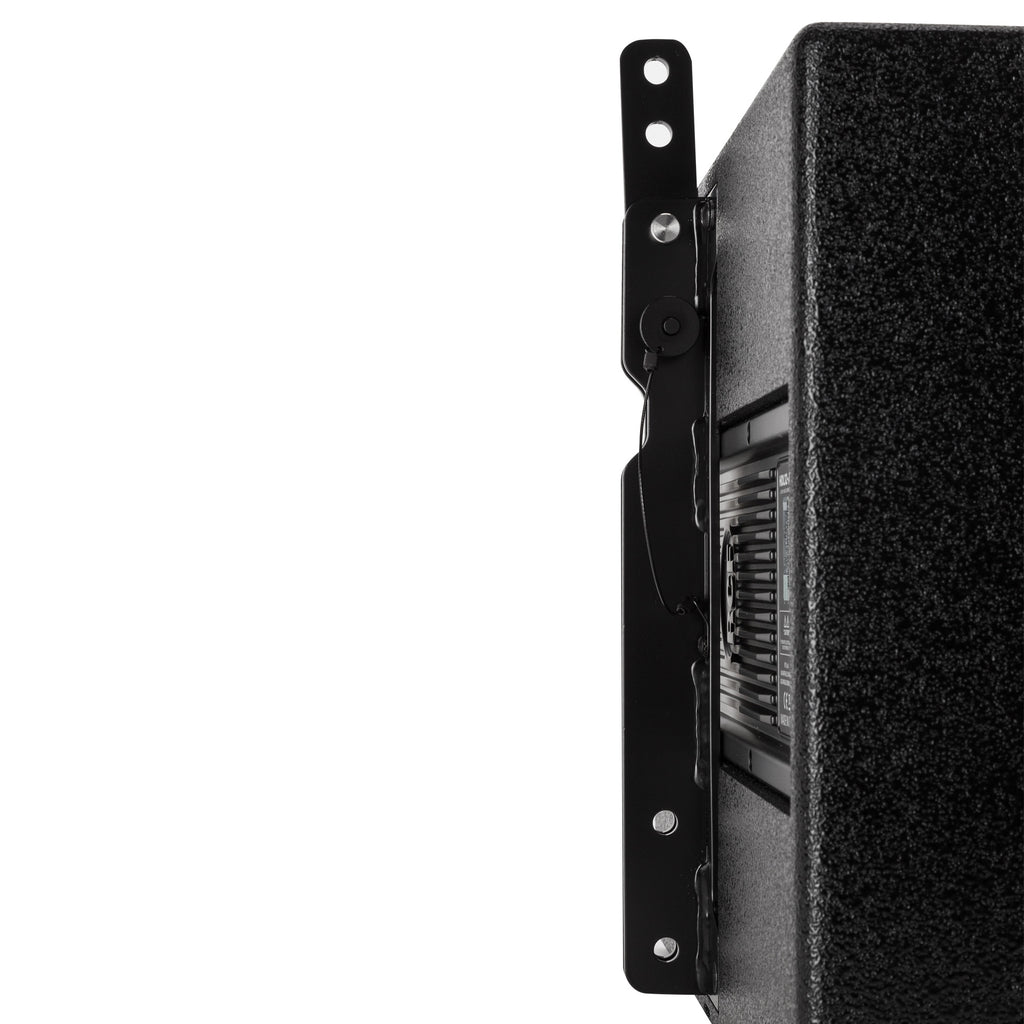

Array fittings, pole |

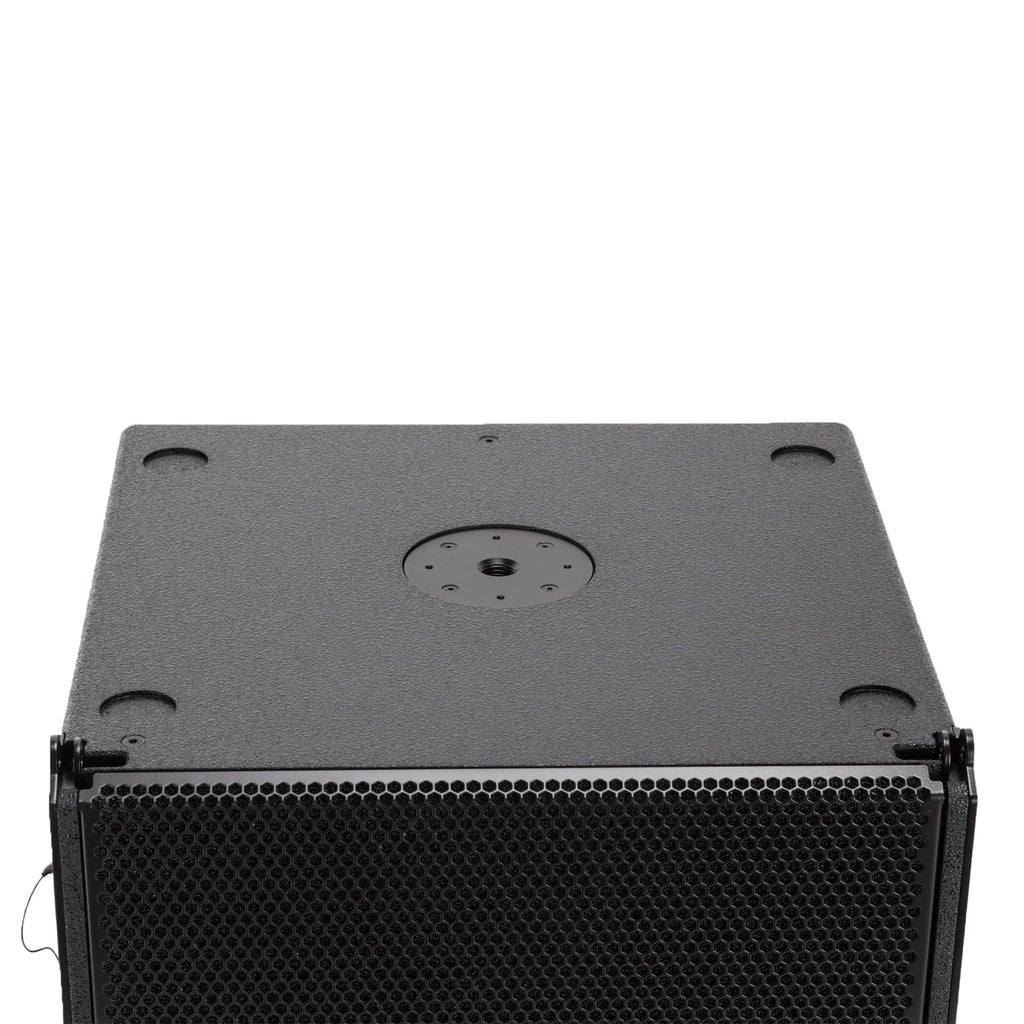

| 1 X M20 |
Handles |
| 2 side |
Grille |
| Steel |
Color |
| Black, White |
| Size / Weight |
| Height |
379 mm / 14.92 inches |
| Width |
470 mm / 18.5 inches |
| Depth |
508 mm / 20 inches |
| Weight |
25 kg / 55.12 lbs |
| Shipping information |
| Package Height |
435 mm / 17.13 inches |
| Package Width |
560 mm / 22.05 inches |
| Package Depth |
520 mm / 20.47 inches |
| Package Weight |
28 kg / 61.73 lbs |
