Global Truss DT-GP10-90C-KIT, 10 ft OD DT-GP 12 in End Plate Truss Circle Kit, 90 Degree Arcs
Global Truss DT-GP10-90C-KIT, 10 ft OD DT-GP 12 in End Plate Truss Circle Kit, 90 Degree Arcs
Roll over image to zoom in Click on image to zoom
Global Truss DT-GP10-90C-KIT, 10 ft OD DT-GP 12 in End Plate Truss Circle Kit, 90 Degree Arcs
Global Truss DT-GP10-90C-KIT, 10 ft OD DT-GP 12 in End Plate Truss Circle Kit, 90 Degree Arcs

Global Truss DT-GP10-90C-KIT, 10 ft OD DT-GP 12 in End Plate Truss Circle Kit, 90 Degree Arcs

Save $2,174.95
GLOBAL TRUSS AMERICASKU: GP0521
Price:
$4,350.00 $6,524.95

Description

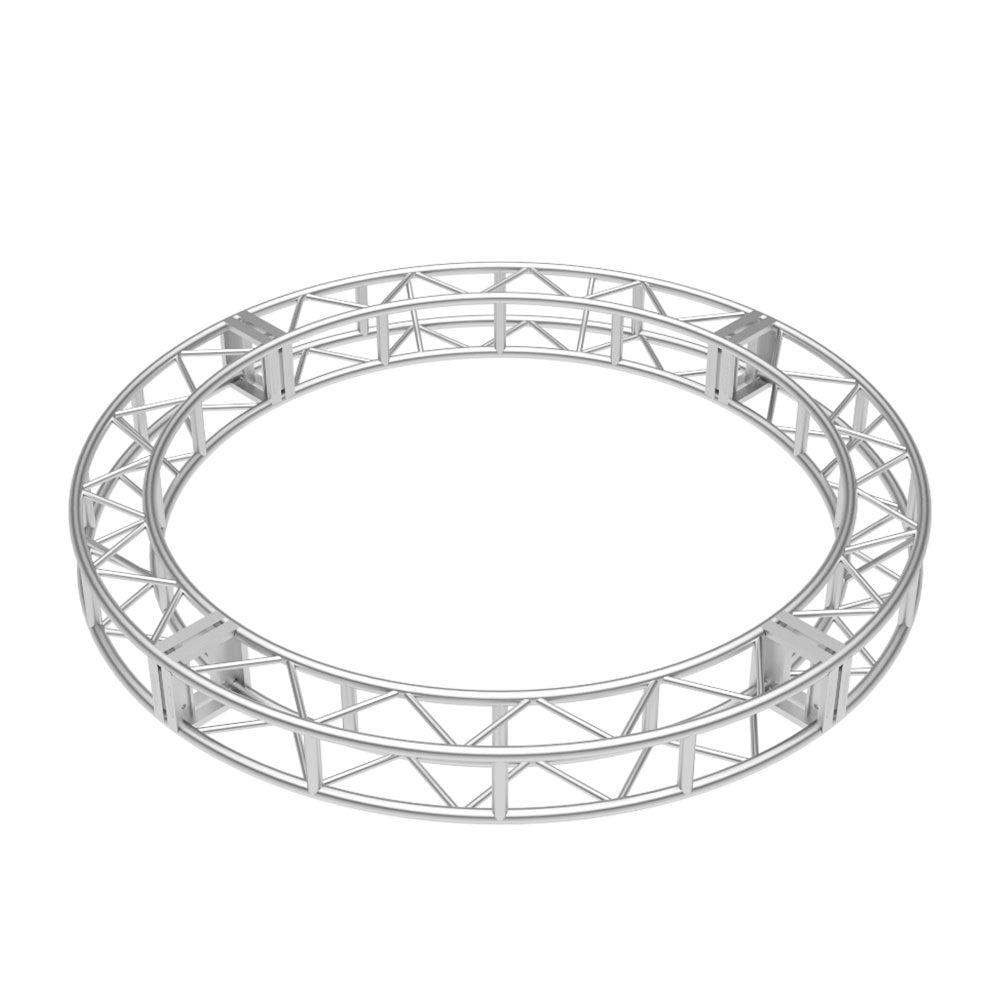

Global Truss DT-GP10-90C-KIT: 10 ft OD DT-GP 12 in End Plate Truss Circle Kit, 90 Degree Arcs

DT-GP Square Truss: 12" Bolt Together Box Truss. Engineered and manufactured to conform to the standards required to receive the TÜV SÜD stamp, our line of products offers truss solutions for all applications.

Specifications

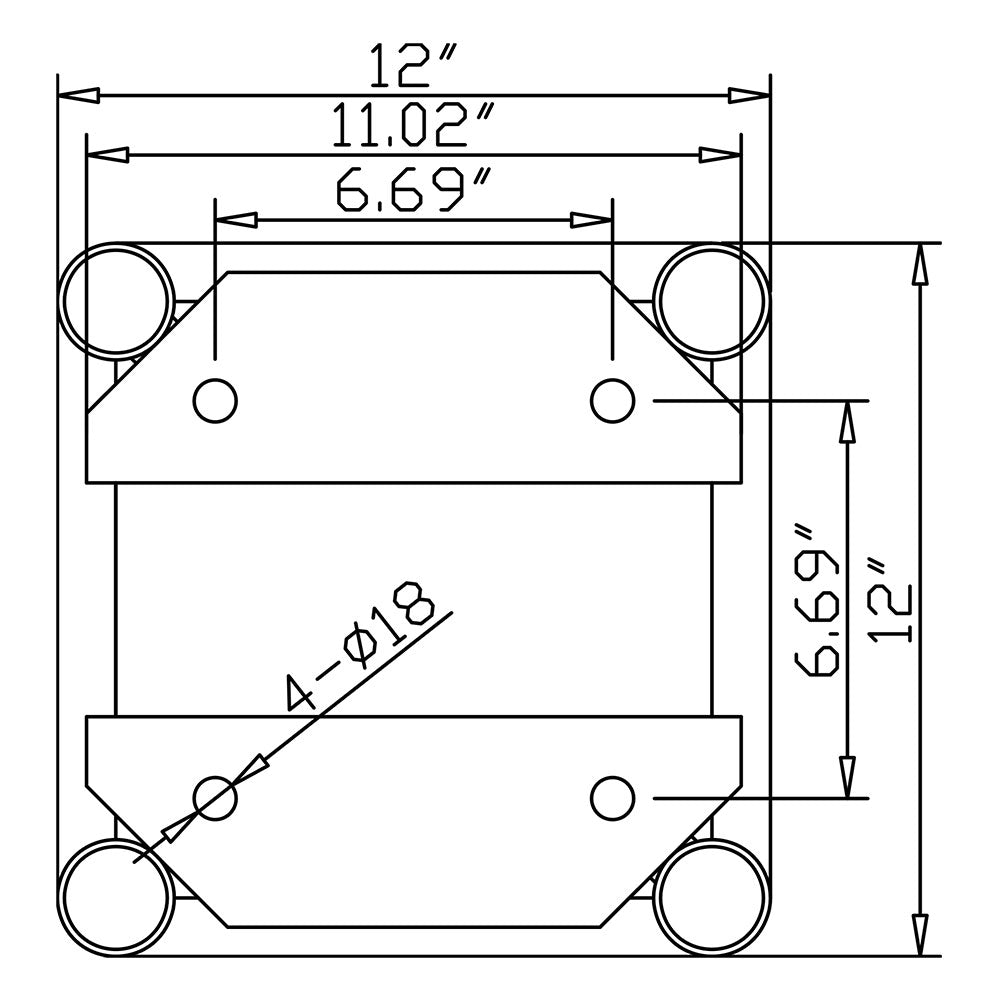

  • 12-Inch End Plate Bolt Together Truss
  • Outside Diameter: 10ft
  • Inside Diameter: 8ft
  • 12" Overall Truss Width
  • 90 Degree Arcs
  • 1.96" 50mm Outer Diameter Tubing
  • 0.11" 3mm Wall Thickness
  • 0.98" 25mm Diagonal Bracing
  • 0.08" 2mm Wall Thickness
  • 5/8" Grade 8 Bolts, Nuts and Washer Included
  • Kit Components: 4x DT-GP10-90ARC
  • Unit Weight: 196 Lbs.
