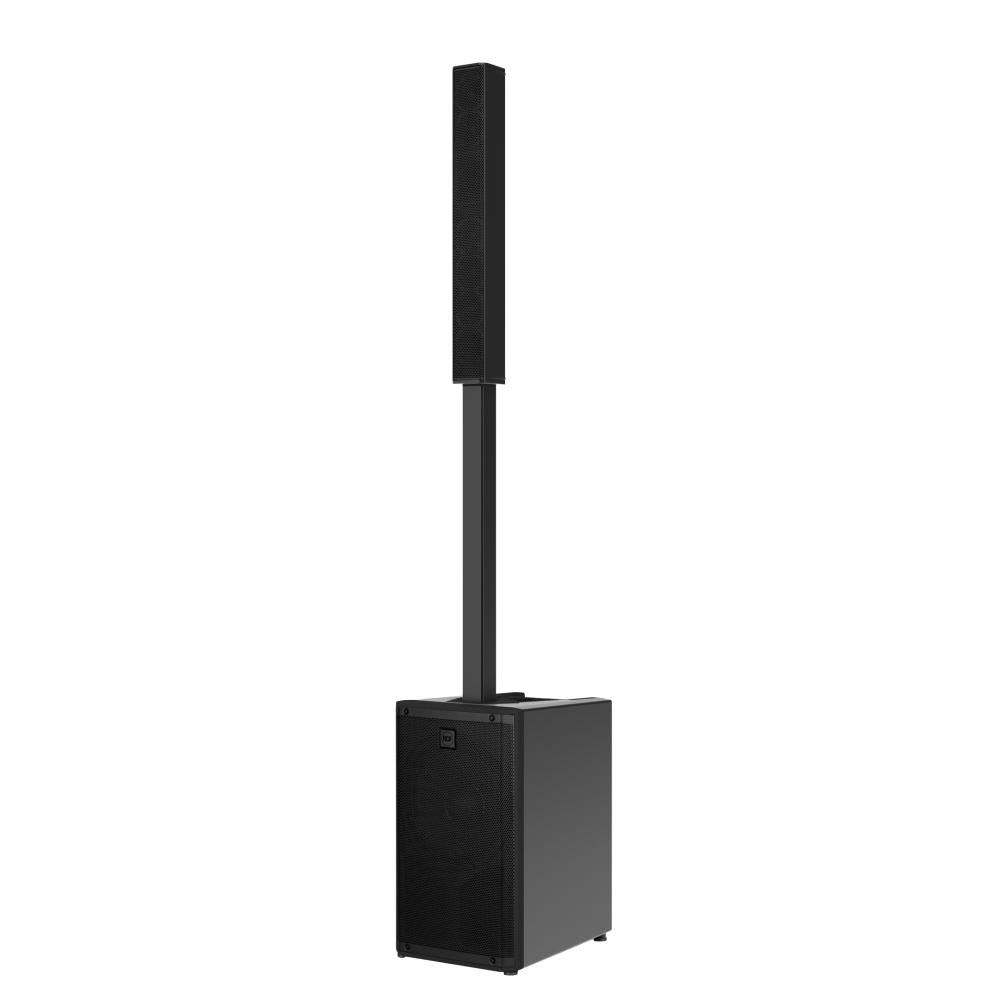

NEW | EVOX JMIX9 | ACTIVE THREE-WAY COLUMN MUSIC SYSTEM | 8-Ch True-Stereo Digital Mixer w/ Bluetooth® | Technical Specifications | 130 dB Max SPL
Technical Specifications
| Acoustical specifications |
| Frequency Response |
40 Hz - 20000 Hz |
| Max SPL @ 1m |
130 dB |
| Horizontal coverage angle |
120° |
| Vertical coverage angle |
40° |

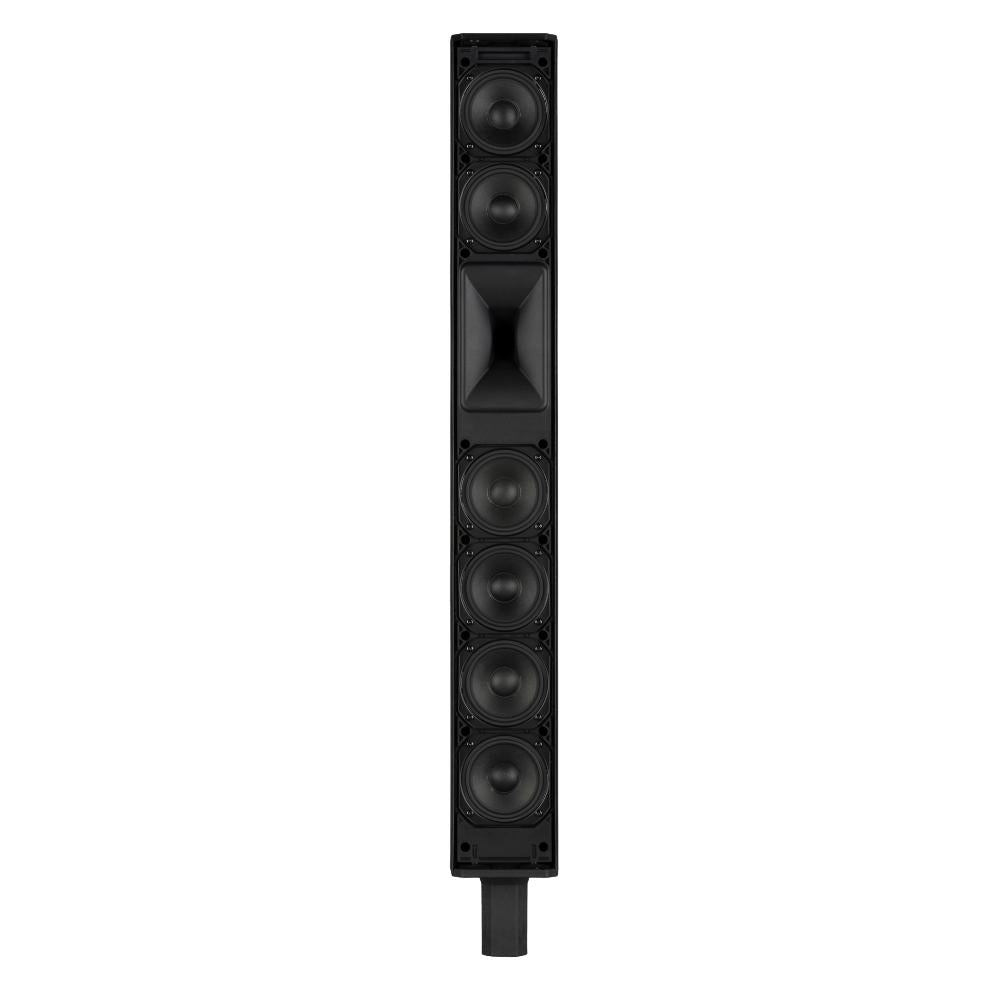

| Transducers |
| Compression Driver |
1 x 0.75'' neo, 1.75'' v.c |
| Fullrange |
6 x 3.0'' neo, 1.0'' v.c |
| Woofer |
1 x 12'', 2.5'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
Combo XLR/Jack |
| Output connectors |
XLR |
| Input sensitivity |
-2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
200 Hz/1800 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
| Digital mixer controlled by touch screen and encoders |
| Power section |
| Total Power |
2100 W Peak |
| High frequencies |
700 W Peak |
| Low frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
| VDE |
Electronic specifications |
| 20 Hz - 20 Hz |
THD+N, 20dB gain, 0dBu out |
| 0.003% A-Weighted |
Processing |
| Processing Channels |
8 |
| Signal Processing |
32 Bit |
| A/D-D/A conversion |
24 Bit @ 48.0 kHz |
| Dynamic range |
114 |
| Inputs |
Mic |
| 4 |
Remote Controlled Storable Gain |
| Yes |
Gain Range |
| 0 dB - 36 dB |
Input Noise Level |
| -114 dBu A-Weighted |
Mic Inputs Impedance |
| 3 kohm |
Low Cut |
| 20 Hz - 400 Hz |
Phantom Power +48V |
| Mono Line |
Gain Selection |
| Line Input Impedance |
10 kohm |
| A/D Dynamic range |
120 dB |
| Stereo Line |
2 |
| 0 dB - 0 dB |
Stereo Line Input Impedance (kOhm) |
| 24 kohm |
Outputs |
| Main MIX |
1 |
| FX Send |
AUX Send |
| AUX Output |
Phones |
| Outputs specifications |
Main Out Impedance |
| 150 ohm |
Main Out Level |
| 20 dBu |
Aux Out Impedance (ohm) |
| Aux Out Level |
Phones Out impedance (ohm) |
| 100 ohm |
Phones Out Level |
| 20 dBm |
D/A Dynamic Range |
| 118 dB |
Compressors |
| RCF Compressors |
Compressors on MIC/LINE CH1 to CH4 Inputs |
| EQ |
Input Channels EQ |
| 1 Semi Parametric / 2 Shelving |
Description |
| 3 Band EQ: High and Low band shelving, MID band peak on INPUT |
| 8 Band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output. |
Auxiliary sends |
| AUX |
1 PRE/POST |
| FX POST |
Internal Effects |
| Send Effects |
Mastering processors |
| Main OUT processors |
Main OUT type |
| MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT. |
Electrical specifications |
| Power supply |
Internal |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
PP Composite |
| Handles |
1 Top |
| Pole mount/Cap |
Quick-fit socket |
| Grille |
Steel |

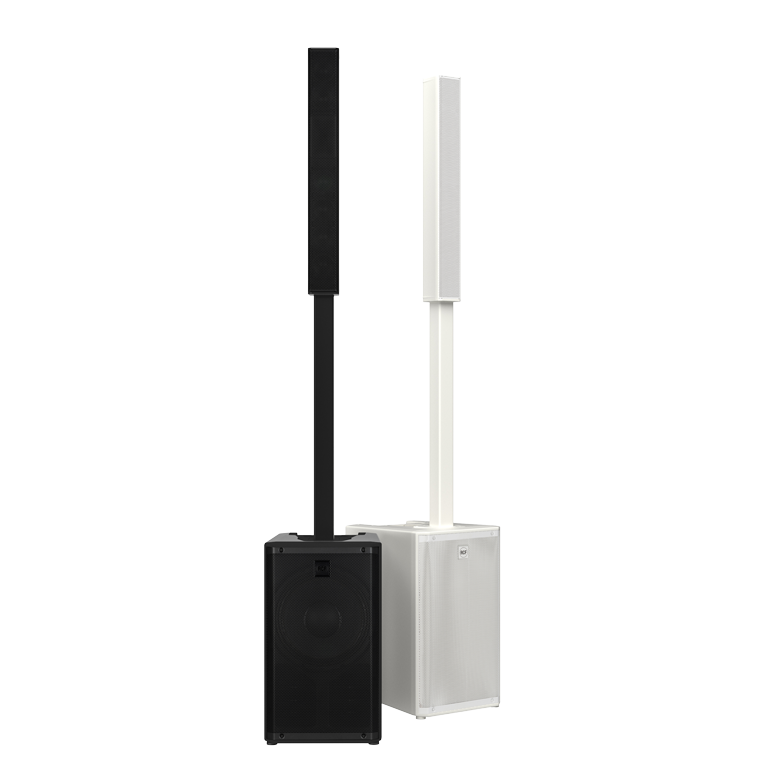

| Color |
Black, White - RAL 9003 |
| Size / Weight |
| Height |
2080 mm / 81.89 inches |
| Width |
350 mm / 13.78 inches |
| Depth |
460 mm / 18.11 inches |
| Weight |
28.8 kg / 63.49 lbs |
| Shipping information |
| Package Height |
676 mm / 26.61 inches |
| Package Width |
451 mm / 17.76 inches |
| Package Depth |
581 mm / 22.87 inches |
| Package Weight |
32.5 kg / 71.65 lbs |
