Description

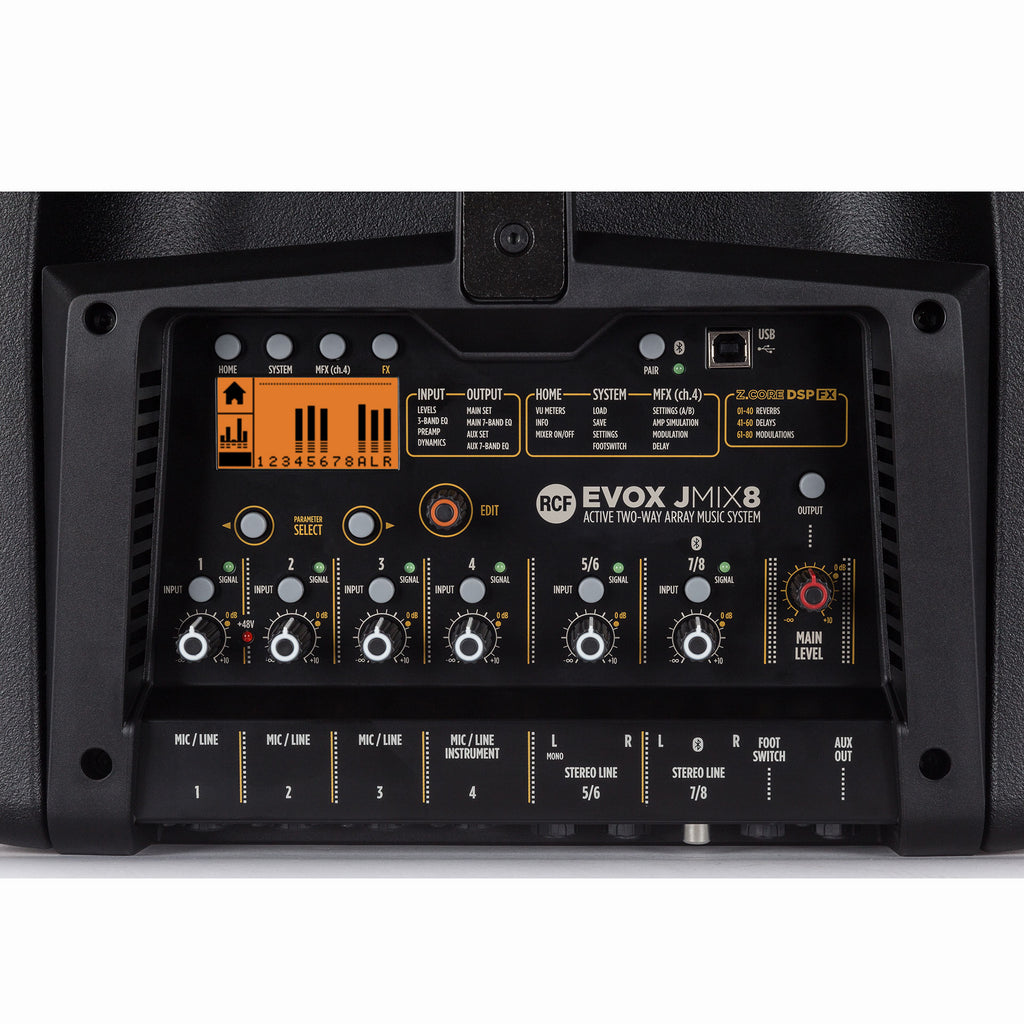

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer
Features
- 128 dB Max SPL
- 1400 Watt 2-way power

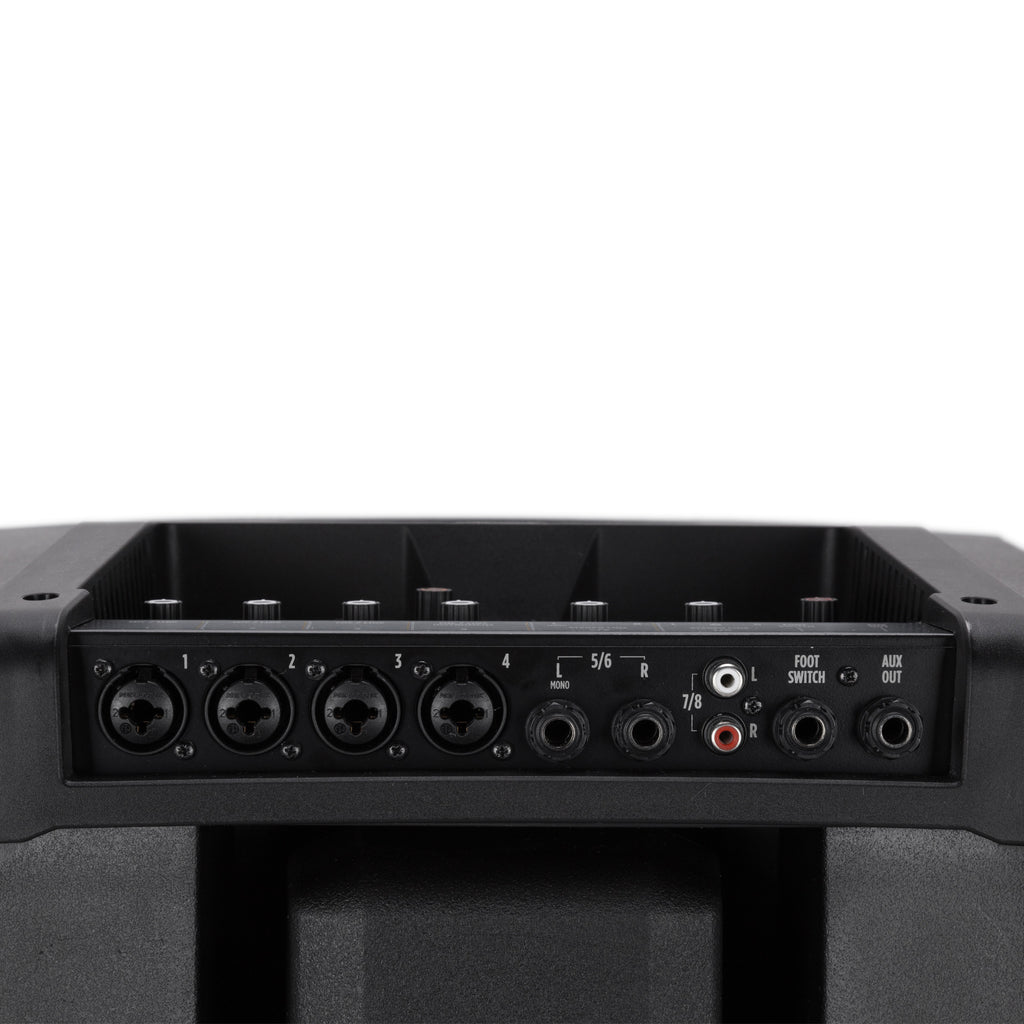

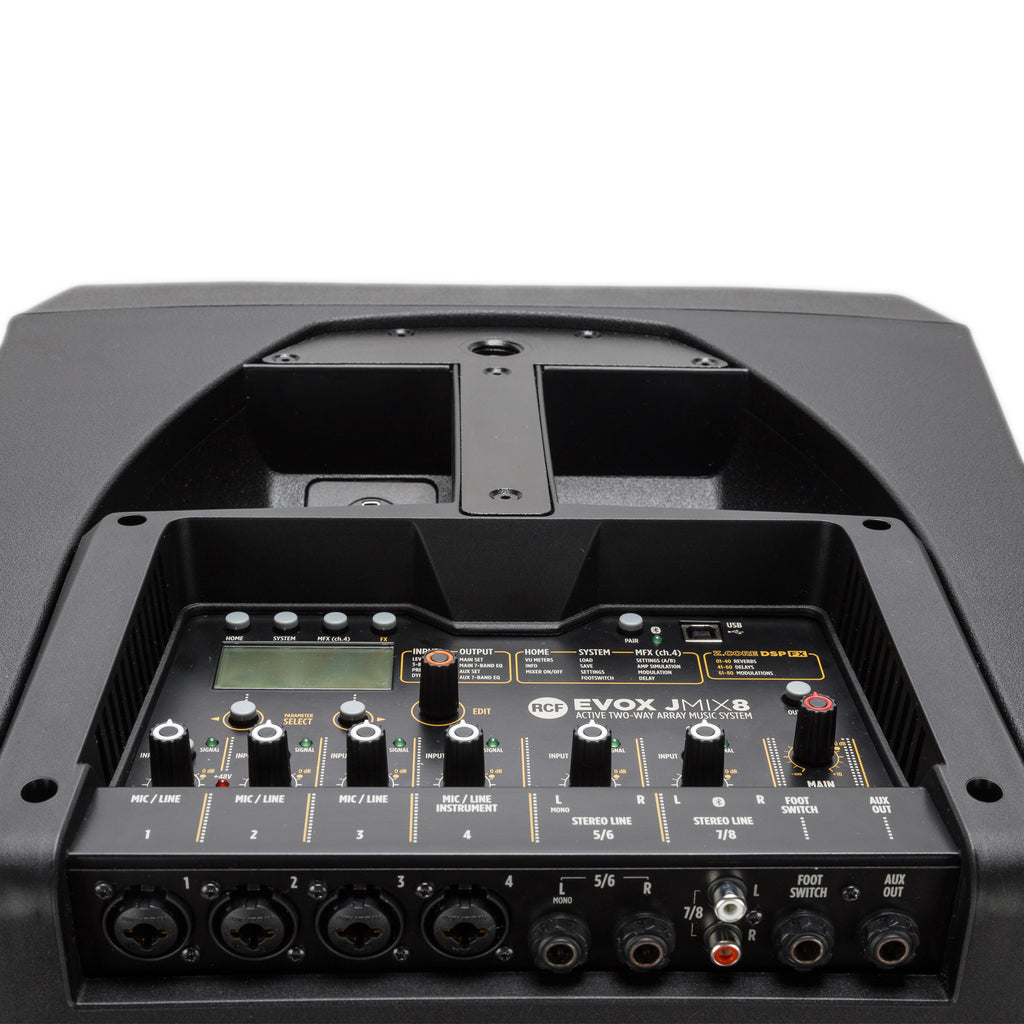

- 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
- DSP Processing with FiRPHASE

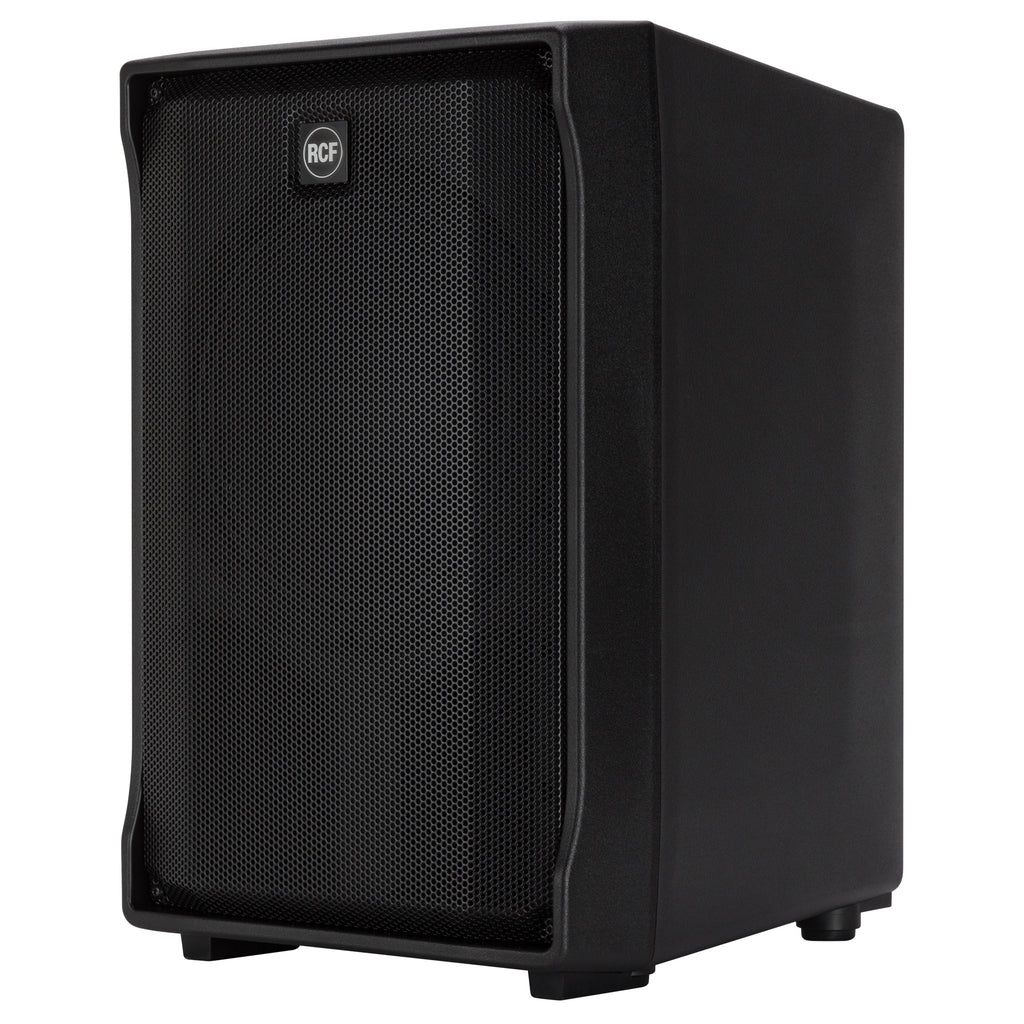

- 12" woofer, high power 2.5" voice coil
- 8 x 2" ultra compact fullrange 1.0" voice coil
- 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
- 24,4/53.8 kg/lbs
EVOX APP
The RCF EVOX App ensures a comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer's parameters even while playing. RCF EVOX J The EVOX App is available for iOS and Android operating systems.
BRING THE PARTY WITH YOU
Superior transducers

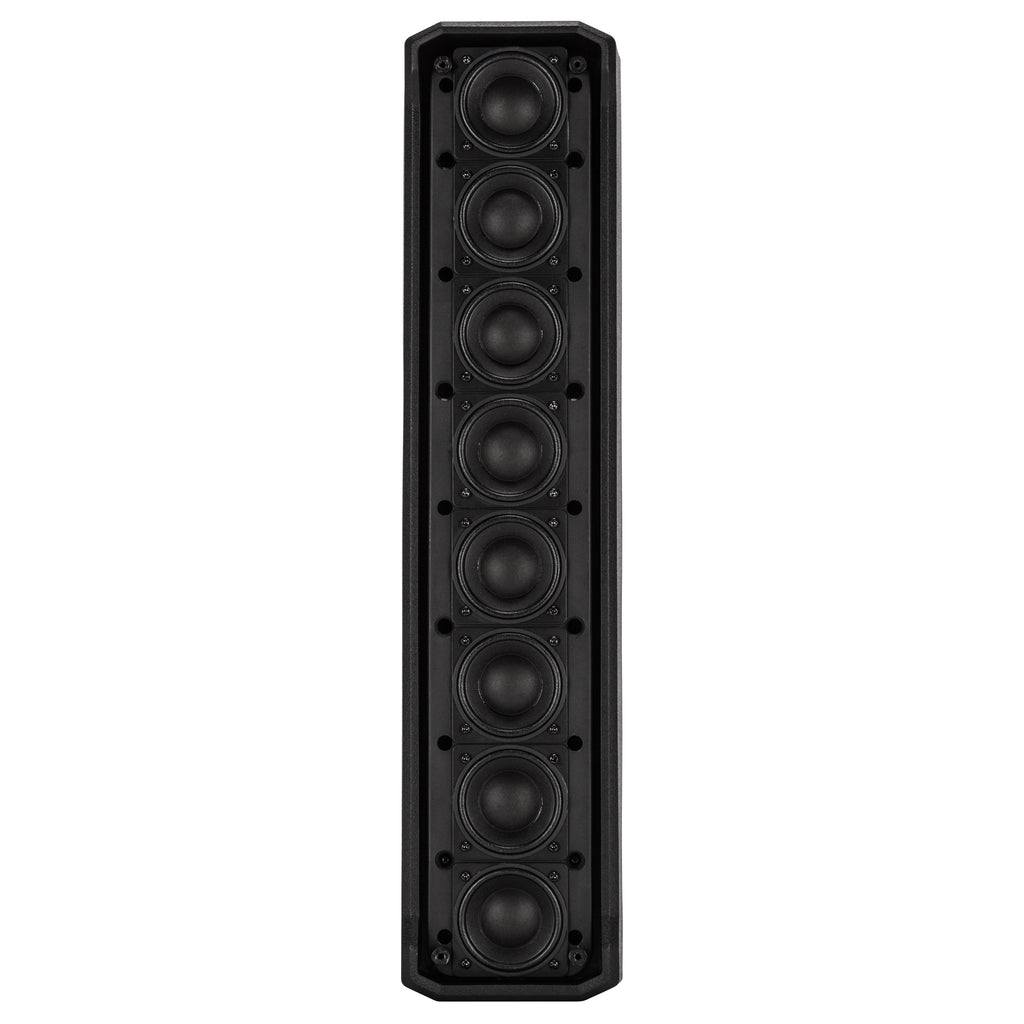

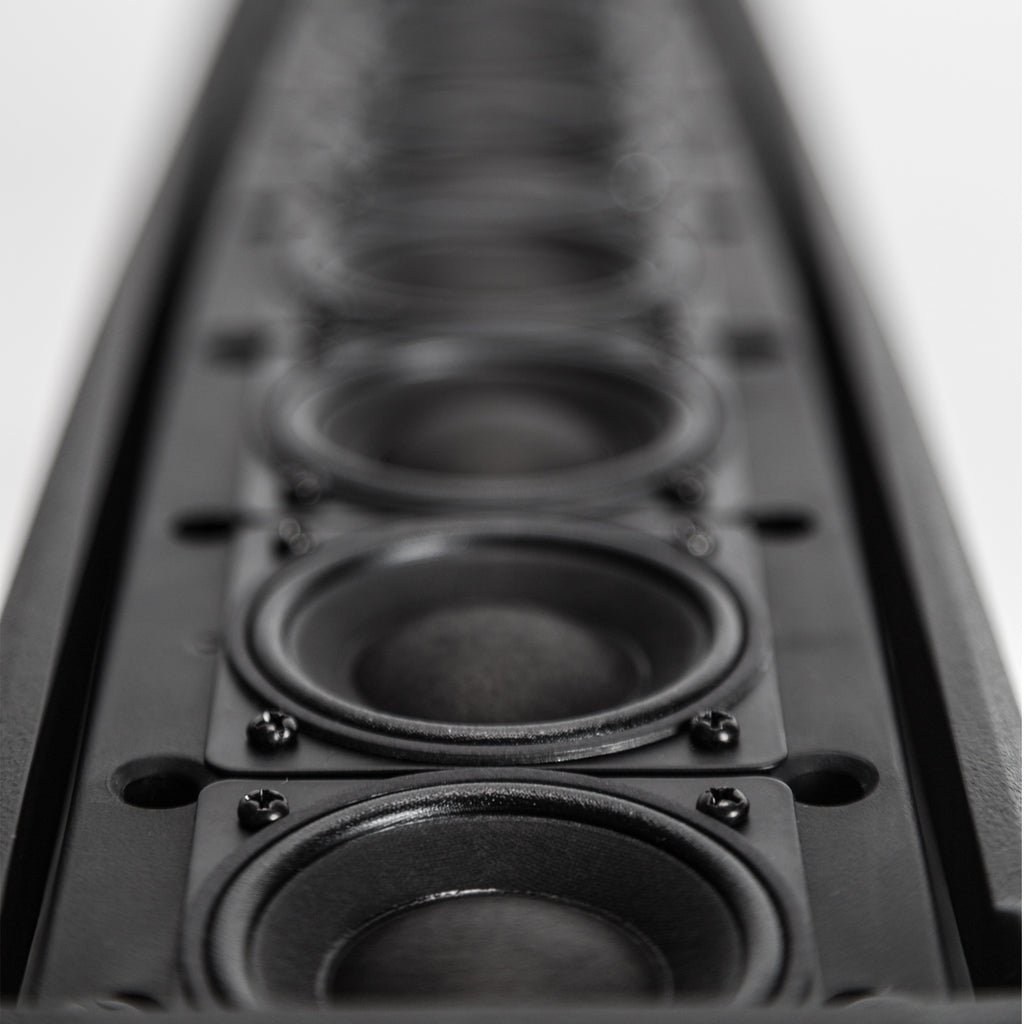

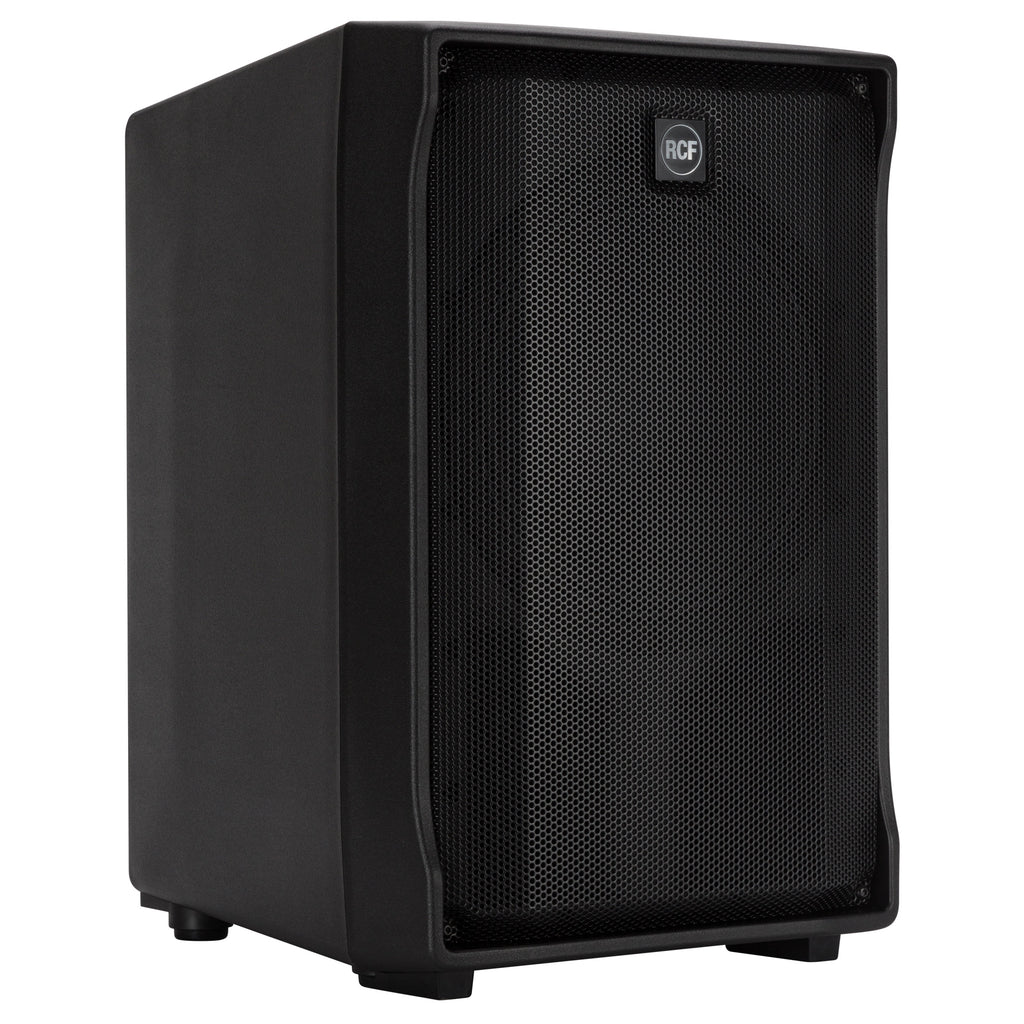

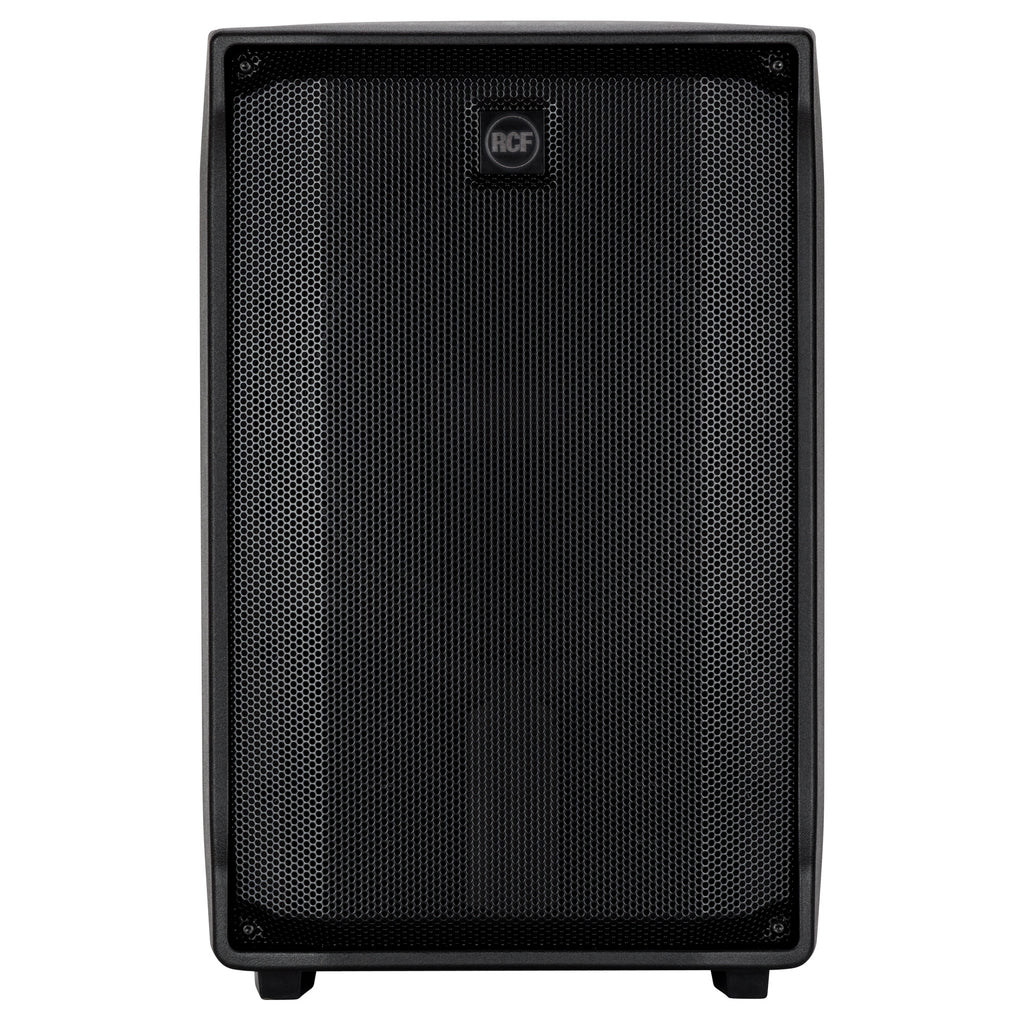

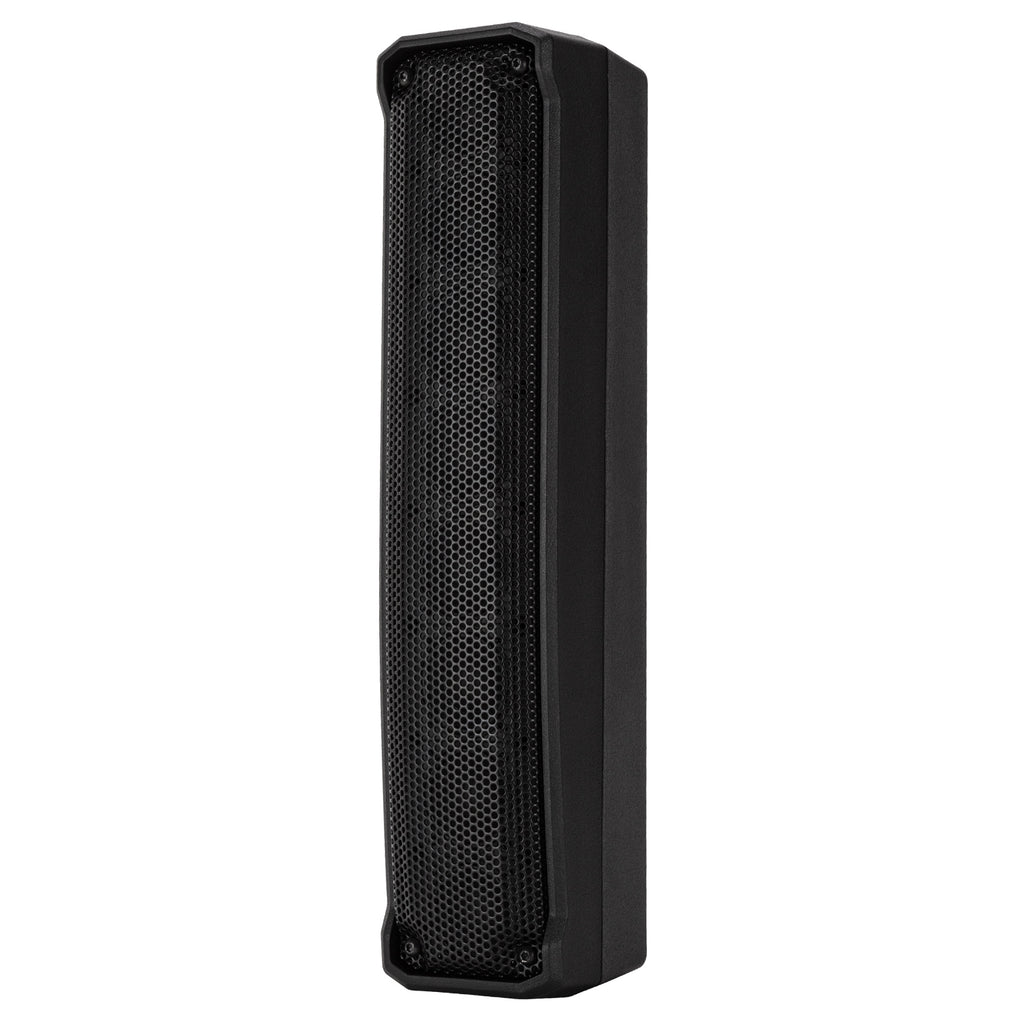

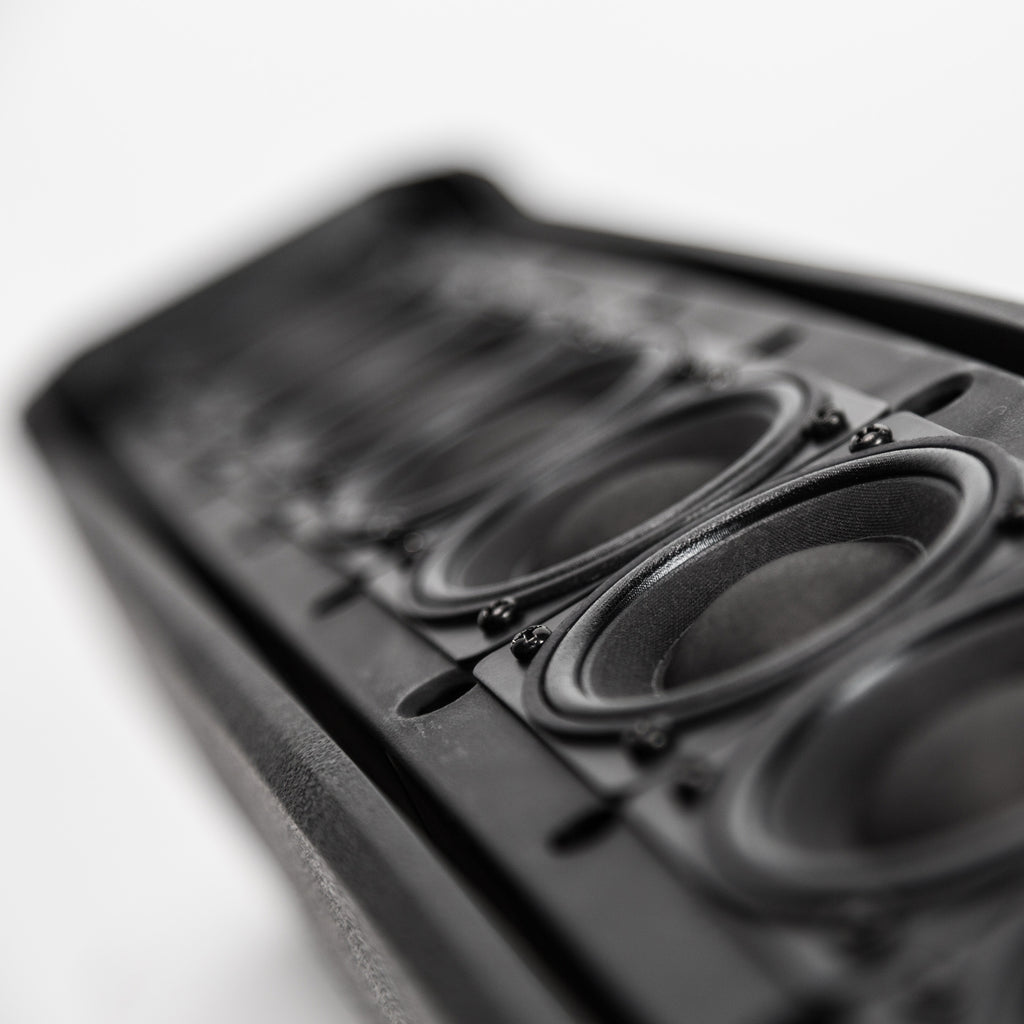

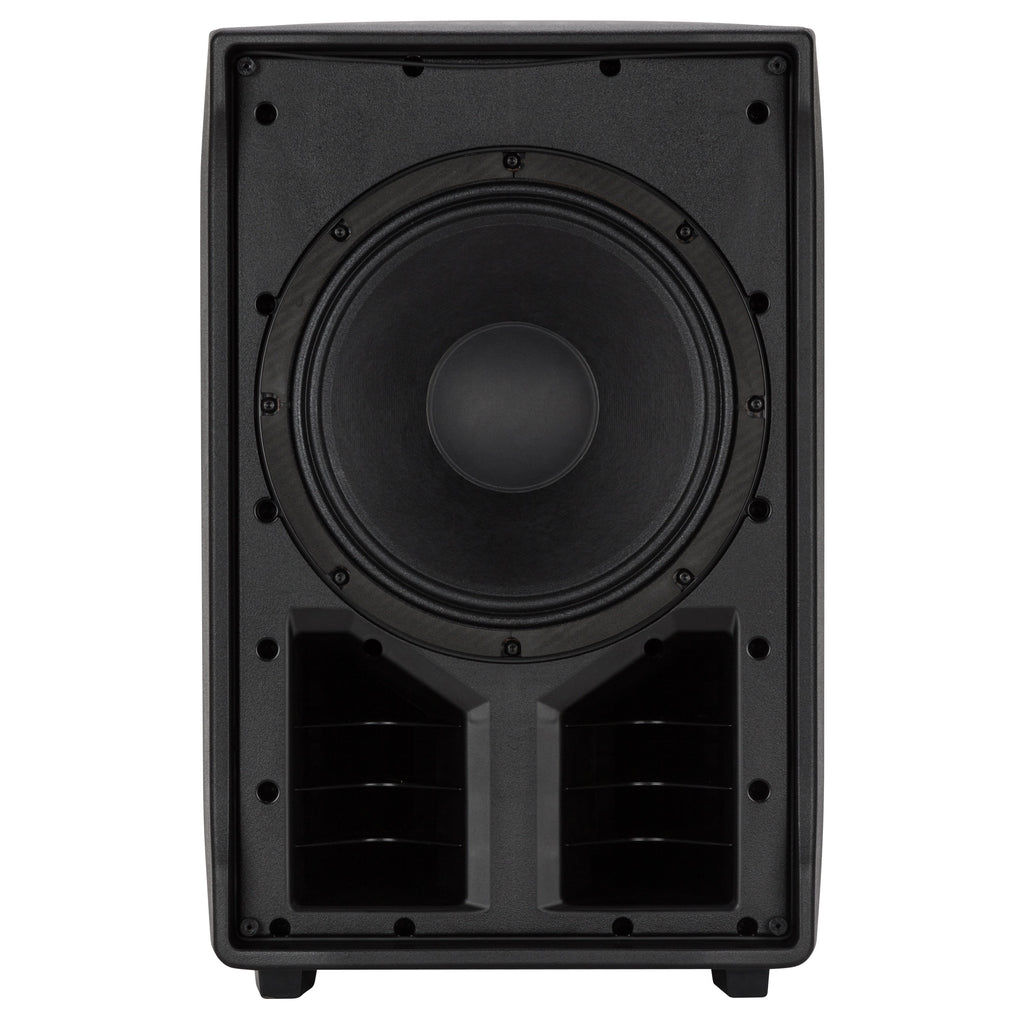

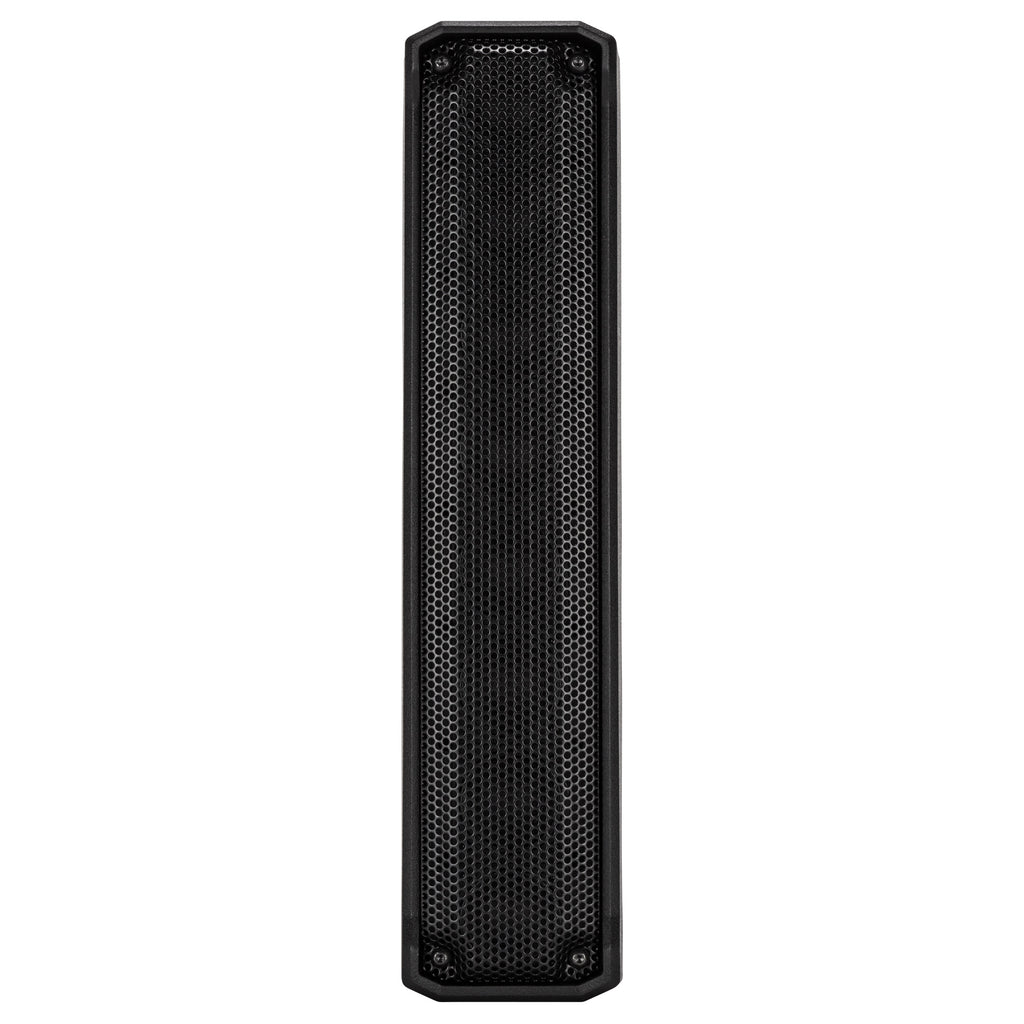

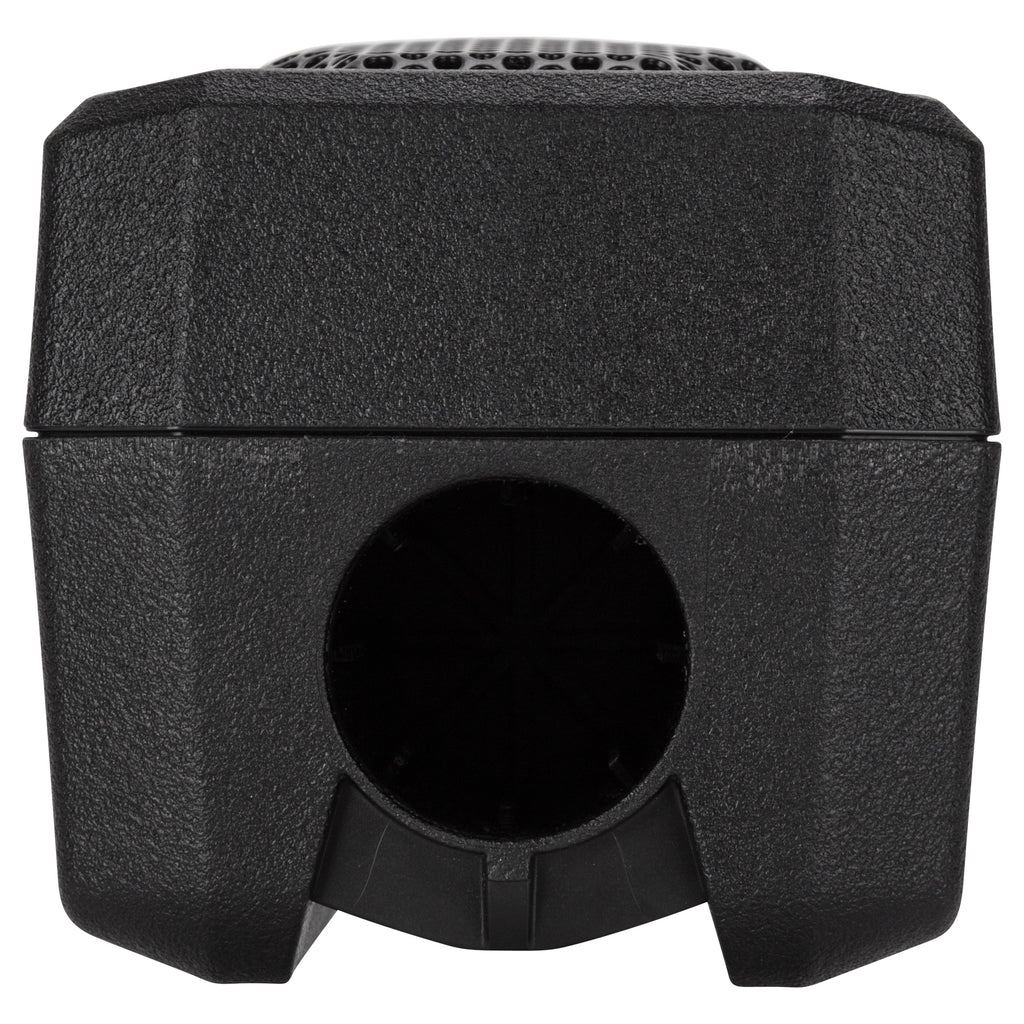

HIGH FREQUENCIES - The ultra-compact full-range 2" RCF drivers are capable of handling high SPL and power with a stunning sound performance. LOW FREQUENCIES - The high excursion 12" RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.
Ready to play in a few simple steps

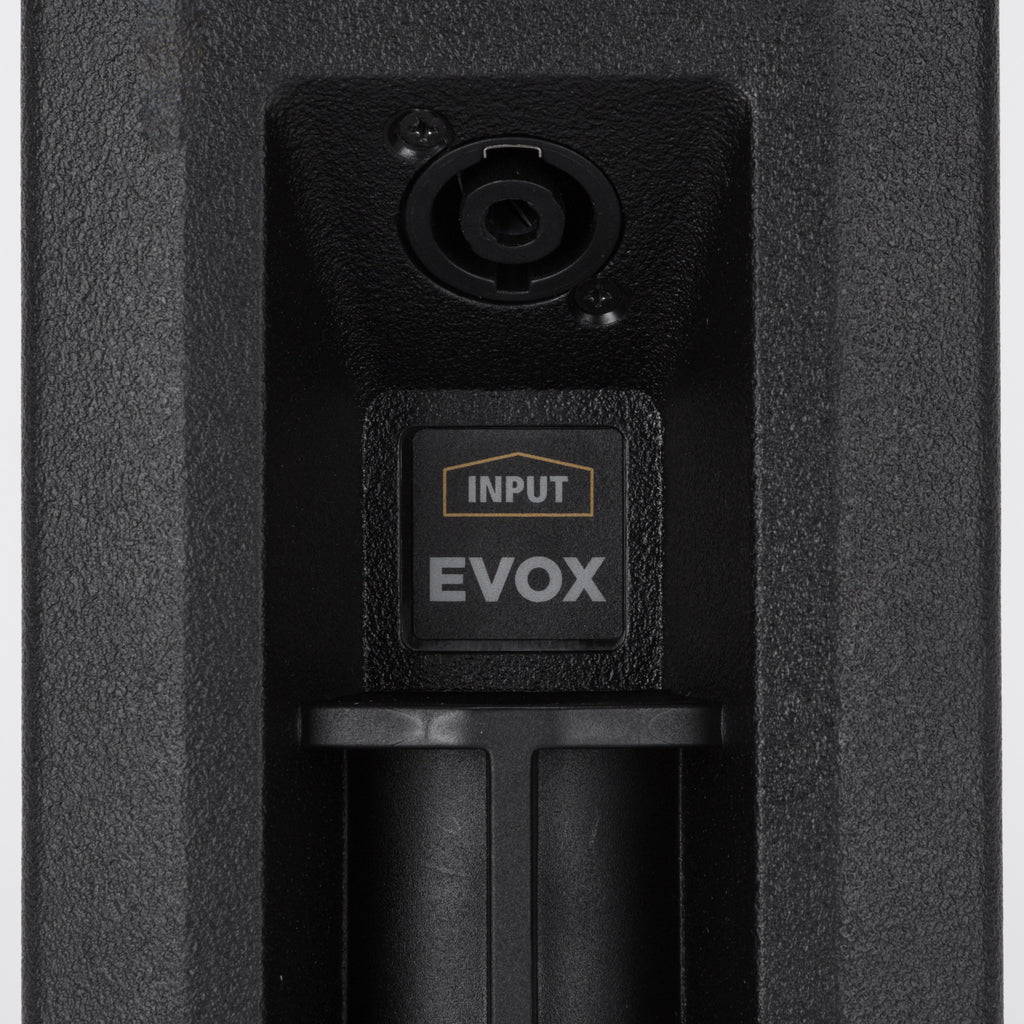

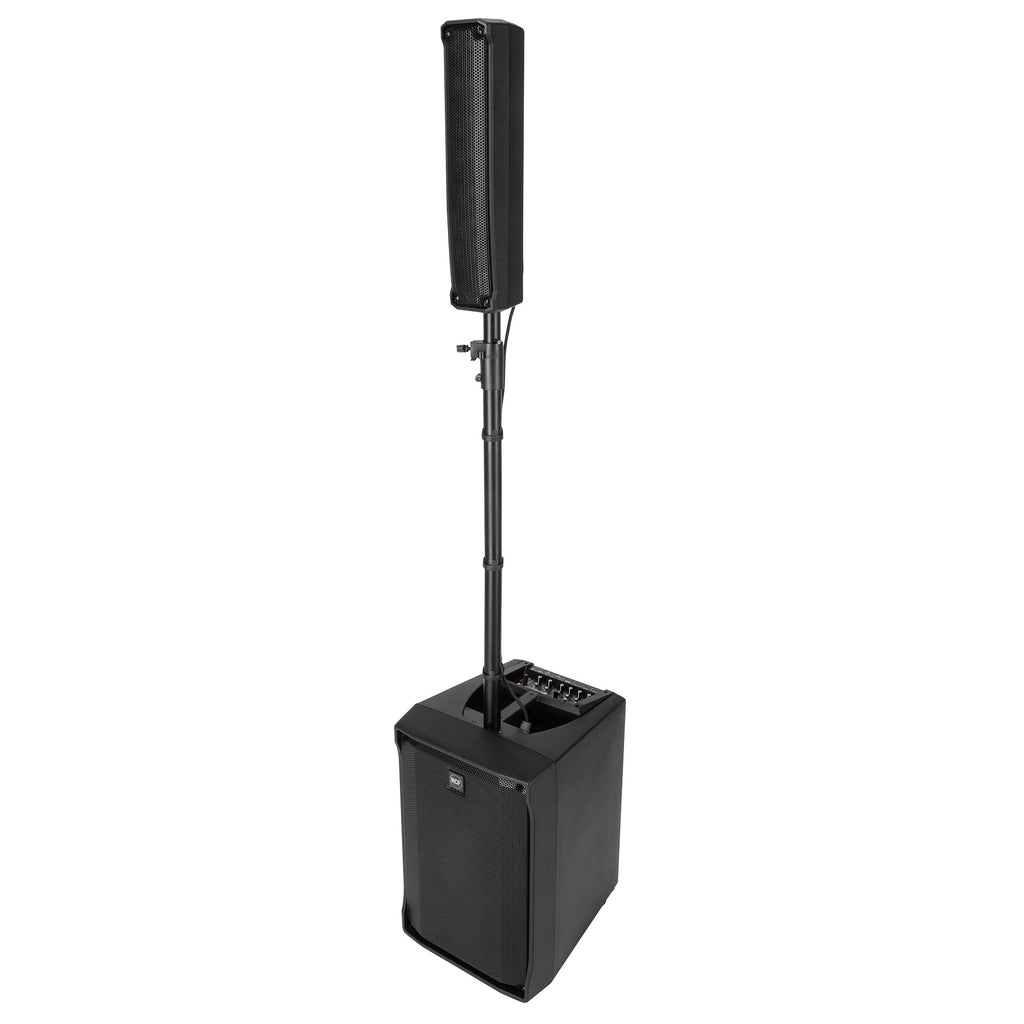

PORTABILITY In addition to the handle on top of the woofer's cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover's handles. MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it's done! An adjustable fastener allows the pole's length to be adapted. PLAY! Carrying and mounting your audio system has never been so quick.

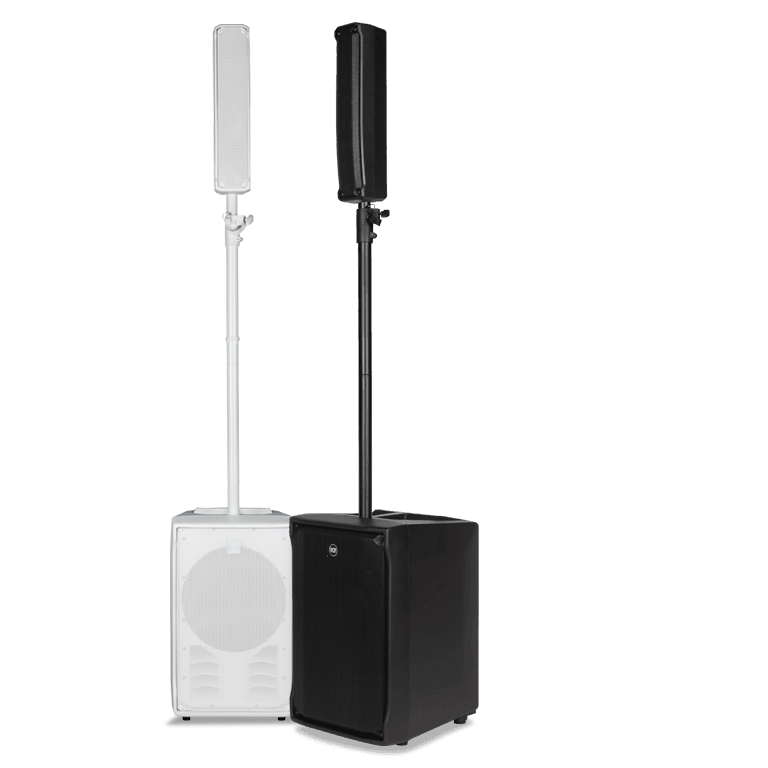

J system configurations
From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.
New perspective on linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Specifications
| Acoustical specifications | |
| Frequency Response | 40 Hz - 20000 Hz |
| Max SPL @ 1m | 128 dB |
| Horizontal coverage angle | 120° |
| Vertical coverage angle | 30° |
| Transducers | |
| Fullrange | 8 x 2.0'', 1.0'' v.c |
| Woofer | 1 x 12'', 2.5'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | XLR, Jack |
| Output connectors | XLR |
| Input sensitivity | -2 dBu/+4 dBu |
| Processor section | |
| Crossover Frequencies | 220 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Volume, Boost, Mic/Line |
| Power section | |
| Total Power | 1400 W Peak, 700 W RMS |
| High frequencies | 400 W Peak, 200 W RMS |
| Low frequencies | 1000 W Peak, 500 W RMS |
| Cooling | Convection |
| Connections | VDE |
| Electronic specifications | |
| Frequency Response | 20 Hz - 20 Hz |
| THD+N, 20dB gain, 0dBu out | 0.004% A-Weighted |
| Processing | |
| Processing Channels | 8 |
| Signal Processing | 32 Bit Floating Point |
| A/D-D/A conversion | 24 Bit @ 48.0 kHz |
| Dynamic range | 108 |
| Inputs | |
| Mic | 4 |
| Remote Controlled Storable Gain | Yes |
| Gain Range | 0 dB - 45 dB |
| Input Noise Level | -114 dBu A-Weighted |
| Mic Inputs Impedance | 3 kohm |
| Low Cut | 20 Hz - 1000 Hz |
| Phantom Power +48V | Yes |
| Mono Line | 4 |
| Gain Selection | 0 dB - 45 dB |
| Line Input Impedance | 11 kohm |
| HI-Z Line Inputs | 1 |
| HI-Z Line Inputs Impedance (Mohm) | 1 Mohm |
| A/D Dynamic range | 108 dB |
| Stereo Line | 2 |
| Gain Selection | 0 dB - 45 dB |
| Stereo Line Input Impedance (kOhm) | 11 kohm |
| Outputs | |
| AUX Send | 1 |
| AUX Output | 1 |
| Outputs specifications | |
| Main Out Impedance | 150 ohm |
| Main Out Level | 19 dBu |
| Aux Out Impedance (ohm) | 150 ohm |
| Aux Out Level | 19 dBu |
| D/A Dynamic Range | 108 dB |
| Compressors | |
| RCF Compressors | 4 mono (6 preset) |
| EQ | |
| Input Channels EQ | 1 Semi Parametric / 2 Shelving |
| Auxiliary sends | |
| AUX | 1 PRE/POST |
| FX POST | 1 |
| Internal Effects | |
| Send Effects | 1 |
| MultiFX Insert Effects | 1 |
| Mastering processors | |
| Main OUT processors | 1 |
| USB audio | |
| Play trk | 2 |
| Other features | |
| Footswitch | Yes |
| Electrical specifications | |
| Power supply | Internal |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | PP Composite |
| Handles | 1 Top |
| Pole mount/Cap | M20 thread |
| Grille | Steel |
| Color | Black, White |
| Size / Weight | |
| Height | 623 mm / 24.53 inches |
| Width | 400 mm / 15.75 inches |
| Depth | 460 mm / 18.11 inches |
| Weight | 22.2 kg / 48.94 lbs |
| Shipping information | |
| Package Height | 676 mm / 26.61 inches |
| Package Width | 451 mm / 17.76 inches |
| Package Depth | 581 mm / 22.87 inches |
| Package Weight | 29 kg / 63.93 lbs |
