Electro-Voice EV EVIDC10.1 (sold only in pairs)
Roll over image to zoom in Click on image to zoom
Electro-Voice EV EVIDC10.1 (sold only in pairs)

Electro-Voice EV EVIDC10.1 (sold only in pairs)

Electro-Voice EVSKU: EVID-C10-1
Price:
$549.00

Description

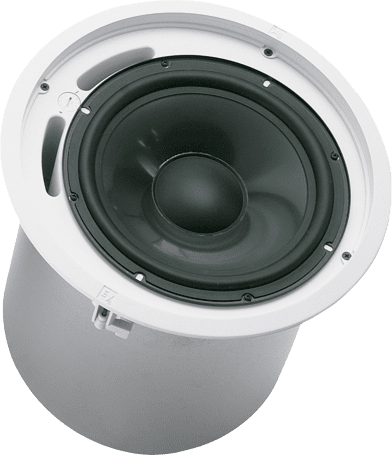

10" High performance subwoofer - complete with can enclosure, tile rails, and mounting ring - for 70v/100v or 8-ohm operation. Taps at 60, 30, 15, 7.5, and 3.75 watts (sold and priced per pair)

EVID C10.1

10" High?Power Ceiling Subwoofer

  • Supplemental LF for ceiling systems
  • High-excursion woofer in ported enclosure for extended lows
  • Low pass network with overload protection
  • Integrated transformer for 70 V, 100 V, or 8 ? use
  • Front-panel mode/wattage selector
  • Internally damped heavy-gauge steel enclosure
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories

Frequency Range (-10 dB) 45 - 180kHz
Weight Net 15.43lbs (7kg)
Height 11.93" (303mm)


Available Color White (paintable surface)
Chassis Size 10" (254mm)
Coverage (Nominal -6 dB) 180
Diameter (Max) 12.6" (320mm)
Enclosure Material Steel enclosure and UL94V-0 rated baffle and bezel
Flying No
Grille Powder-coated steel
Input Formats 8?, 70 V, 100 V
LF Transducer 10-inch polypropylene cone
Max. SPL/1m (calc) 122dB
Mounting Systems Integrated 3-point toggle anchors
Power Rating 600W
Sensitivity 1 W/1 m 94dB
Speaker Type Dual ported cabinet, internally damped
System Power Handling (Continuous/Program/Peak) 150Watts
Transformer Yes
Transformer Taps (Transformer Version Only) (7.5 - 70 V only), 15, 30, 60
Weatherized No
